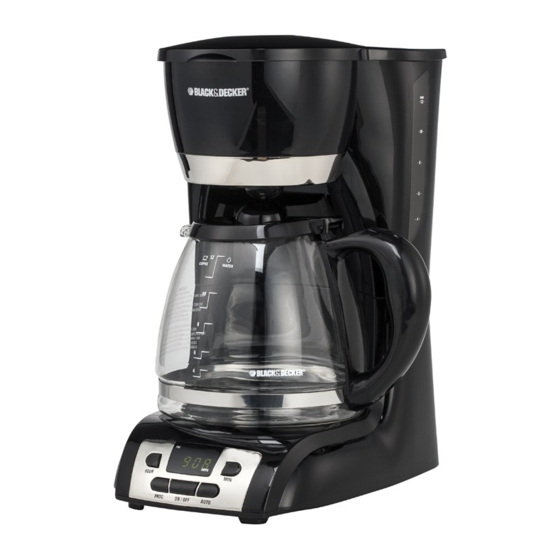

Black & Decker DCM2160B User Manual

12-cup programmable coffeemaker
Hide thumbs


Advertisement

Quick Links

USA/Canada 1-800-231-9786
Accessories/Parts 1-800-738-0245
Register your product at www.prodprotect.com/applica
12-CUP PROGRAMMABLE COFFEEMAKER
1. One-piece cover
† 8. Duralife™ Carafe
(Part # DCM2160W-02(w))
2. Showerhead
(Part # DCM2160B-02 (b))
† 3. Removable filter basket
(Part # DCM2160R-02 (r))
(Part # DCM2160B-01)
9. Cord storage
4. Water reservoir
(inside of unit)
5. Water windows
10. Nonstick "Keep Hot"
(on both sides) with cup
carafe plate
level markings
11. Control panel
6. Sneak-A-CupTM feature
Note: † indicates consumer
† 7. Carafe lid
replaceable/removable parts
(Part # DCM2160W-03(w))
(Part # DCM2160B-03 (b))
(Part # DCM2160R-03 (r))
MODEL ❍ DCM2160B ❍ DCM2160W
❍ DCM2160R
Please Read and Save this Use and Care Book.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including the
following:
❍ Read all instructions.
❍ Do not touch hot surfaces. Use handles or knobs.
❍ To protect against fire, electric shock and injury to
persons do not immerse cord, plugs or appliance in
water or other liquid.
❍ Close supervision is necessary when any appliance is
used by or near children.
❍ Unplug from outlet when not in use and before
cleaning. Allow to cool before putting on or taking off
parts, and before cleaning the appliance.
❍ Do not operate any appliance with a damaged cord or
plug, or after the appliance malfunctions or has been
damaged in any manner. Contact Consumer Support
at the number listed in the warranty section.
❍ The use of accessory attachments not recommended
by the appliance manufacturer may result in fire,
electric shock or injury to persons.
❍ Do not use outdoors.
❍ Do not let cord hang over edge of table or counter, or
touch hot surfaces.
❍ Do not place on or near a hot gas or electric burner,
or in a heated oven.
❍ To disconnect, turn any control to OFF (0), then
remove plug from wall outlet.
❍ Do not use this appliance for other than intended use.
❍ Keep lid on the carafe when in use.
❍ Scalding may occur if the lid is removed during the
brewing cycles.
❍ The carafe is designed for use with this appliance. It
must never be used on a range top.
❍ Do not set a hot carafe on a wet or cold surface.
❍ Do not use a cracked carafe or a carafe having a loose
or weakened handle.
❍ Do not clean carafe with cleansers, steel wool pads or
other abrasive material.
❍ This appliance is not intended for use by persons
(including children) with reduced physical, sensory
Product may vary slightly from what is illustrated.
IMPORTANT
WASH CARAFE BEFORE
FIRST USE!
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
❍ Children should be supervised to ensure that they do
not play with the appliance.
SAVE THESE
INSTRUCTIONS.
This product is for household use only.
POLARIZED PLUG (120V Models Only)
This appliance has a polarized plug (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to fit
into a polarized outlet only one way. If the plug does not fit fully into
the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to modify the plug in any way.
TAMPER-RESISTANT SCREW
Warning: This appliance is equipped with a tamper-resistant screw
to prevent removal of the outer cover. To reduce the risk of fire or
electric shock, do not attempt to remove the outer cover. There are
no user-serviceable parts inside. Repair should be done only by
authorized service personnel.
ELECTRICAL CORD
a) A short power-supply cord is provided to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
b) Longer extension cords are available and may be used if care is
exercised in their use.
c) If an extension cord is used,
1) The marked electrical rating of the detachable power-supply
cord or extension cord should be at least as great as the
electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord
should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape
over the countertop or tabletop where it can be pulled on
by children or tripped over.
Note: If the power supply cord is damaged, it should be replaced
by qualified personnel or in Latin America by an authorized service .
How to Use
This product is for household use only.
GETTING STARTED
• Remove packing materials, any stickers, and the plastic band around the
power plug.
• Please register your product at www.prodprotect.com/applica
• Wash removable parts as instructed in CARE AND CLEANING.
• Open one-piece cover and pour fresh cold water up to 12 MAX mark.
• Place 8 -12 cup basket-style paper filter into removable filter basket. Place
basket into filter basket holder.
• Close one-piece cover. Place carafe lid on the carafe.
• Place empty carafe on "Keep Hot" carafe plate.
• Plug cord into standard electrical outlet.
• Brew water through appliance without adding coffee grounds. This
removes any dust or residue that may remain in the system during the
manufacturing process.
• Discard water and paper filter.
• Turn off appliance, unplug and allow it to cool down.
SETTING THE CLOCK
1. Plug appliance into standard electrical outlet.
2. The digital clock display flashes 12:00.
3. To set the time: Press HOUR button until correct time appears on display.
Small dot in top left corner of digital display indicates P.M.
4. Press MIN button to select minutes.
Note: If unit is unplugged or power is interrupted even momentarily, the time
will need to be reset.
BREWING COFFEE
1. Open one-piece cover. Fill water reservoir with cold tap water. Use water
markings on the side of reservoir as a guide. Do not fill with more than
12 cups of water.
Important: If too much water is added it will leak from the back of the
coffeemaker.
2. Place basket-style paper filter into filter basket. Add ground coffee (we
suggest 1 heaping tablespoon per cup). Place filter basket in place.
3. To close carafe lid, place lid with tab over arrow to right of the handle. Turn
clockwise until tab is over the handle.
Note: Coffee may overflow if lid is not properly aligned.
4. Place empty carafe on carafe plate.
5. Plug cord into an outlet. Press ON/OFF button and brewing begins.
6. When coffee grounds are cool, carefully remove and discard used grounds
and filter. Close one-piece cover. The coffeemaker will keep brewed coffee
hot for 2 hours and then turn off automatically.
7. To turn off coffeemaker at any time press ON/OFF button.
8. Unplug appliance when not in use.
TM
SNEAK-A-CUP
FEATURE
Remove the carafe and brewing is paused. Carafe must be placed back on the
carafe plate in 30 seconds to prevent overflow. Brewing begins again.
SETTING AUTO BREW TIME
1. Press PROG button. The AUTO light flashes several times. Digital clock
displays 12:00.
2. Quickly press HOUR button then MIN button to select the time you would
like automatic brewing to begin (for example, 7:15 A.M. Make sure the P.M.
light is not on.)
3. Press PROG button again. Auto Brew time is set.
4. Press AUTO button, holding it down until the AUTO light stops flashing.
The digital display changes to time of day.
5. To check preset auto time, press PROG button and preset auto time is
displayed. The AUTO indicator light blinks until you press AUTO button.
6. To cancel Auto Brew function, press ON/OFF button twice. All lights turn off.
Care and Cleaning
This product contains no user serviceable parts. Refer service to qualified service
personnel.
CLEANING
Important: Make sure your coffeemaker is unplugged and cool.
1. Remove filter basket. Discard used paper filter and coffee grounds.
2. Wash filter basket, carafe and lid in dishwasher (top-rack) or by hand in hot,
soapy water.
3. Wipe outside of coffeemaker, control panel and carafe plate with a soft, damp
cloth.
Note: Do not use abrasive cleansers or scouring pads. Never immerse the
coffeemaker in water.
4. To clean the inside of the cover, open the cover and leave in the open position.
Pull showerhead, wipe with a damp cloth then place under the guide and close
the cover.
CLEANING WITH VINEGAR
Note: With regular use, minerals and hard water can clog your coffeemaker. A full
cleaning with vinegar is recommended once a month.
1. Pour white vinegar into water reservoir up to the 6-cup mark on the water
window. Add cold water up to the 10-cup mark.
2. Put a paper filter in filter basket and close cover. Set empty carafe on the carafe
plate.
3. Turn on coffeemaker. Let half the cleaning mixture brew into carafe (until level
is around 5). Turn off coffeemaker and let it soak for at least 15 minutes.
4. Turn on coffeemaker again and brew remaining cleaning mixture into carafe.
Turn off coffeemaker; empty carafe and discard paper filter.
5. Fill reservoir with cold water to 11-cup line; replace carafe on carafe plate and
then turn on coffeemaker for a complete brewing cycle to flush out remaining
cleaning solution. You may want to repeat this step to completely eliminate the
vinegar smell/taste.
6. Wash filter basket and carafe as instructed in CLEANING.
WARNING
RISK OF FIRE OR ELECTRIC SHOCK. DO NOT OPEN.
The lightning symbol refers to "dangerous voltage"; the exclamation
symbol refers to maintenance instructions. See below.
Warning: To reduce the risk of fire or electric shock, do not remove the
cover of the coffeemaker. There are no user-serviceable parts inside.
Repair should be done by authorized service personnel only.
NEED HELP?
For service, repair or any questions regarding your appliance, call the
appropriate 800 number in front of this sheet. Please DO NOT return the
product to the place of purchase. Also, please DO NOT mail product back to
manufacturer, nor bring it to a service center. You may also want to consult the
website listed on the cover of this manual.
TWO-YEAR LIMITED WARRANTY
(Applies only in the United States and Canada)
What does it cover?
• Any defect in material or workmanship provided; however, Spectrum
Brands, Inc.'s liability will not exceed the purchase price of product.
For how long?
• Two years from the date of original purchase with proof of such purchase.
What will we do to help you?
• Provide you with a reasonably similar replacement product that is either new
or factory refurbished.
How do you get service?
• Save your receipt as proof of date
of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-
free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.
What does your warranty not cover?
• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some
states do not allow the exclusion or limitation of consequential or incidental
damages, so this limitation may not apply to you.)
How does state law relate to this warranty?
• This warranty gives you specific legal rights. You may also have other rights
that vary from state to state or province to province.
975 W
120 V~
60 Hz
Sello del Distribuidor:
Código de fecha / Date Code
Fecha de compra:
Modelo:
Comercializado por:
Importado por / Imported by:
Rayovac de México S.A de C.V
Rayovac de México S.A de C.V
Autopista México Querétaro
Autopista México Querétaro
No 3069-C Oficina 004
No 3069-C Oficina 004
Colonia San Andrés Atenco, Tlalnepantla
Colonia San Andrés Atenco, Tlalnepantla
Estado de México, C.P. 54040
Estado de México, C.P. 54040
Mexico.
Mexico.
Tel: (55) 5831 – 7070
Tel: (55) 5831-7070
Para atención de garantía marque:
Servicio y Reparación
01 (800) 714 2503
Art. 123 No. 95
Col. Centro, C.P. 06050
Importado por / Imported by:
Deleg. Cuauhtemoc
Spectrumbrands
En Chile, Household Products Chile Ltda
Servicio al Consumidor,
Av. Del Valle 570, Ofic. 704
Venta de Refacciones y Accesorios
Ciudad Empresarial, Huechuraba
01 800 714 2503
Santiago - Chile
Fono: (562) 2571 3700
Importado por / Imported by:
Importado por / Imported by:
RAYOVAC ARGENTINA S.R.L.
Spectrumbrands S.A.
Humboldt 2495 Piso# 3
Carrera 17 No.89-40
(C1425FUG) C.A.B.A. Argentina.
Bogotá, Colombia
C.U.I.T No. 30-70706168-1
Línea de atención al cliente: 018000510012
BLACK+DECKER and the BLACK+DECKER logo are trademarks of
The Black & Decker Corporation and are used under license. All rights reserved.
BLACK+DECKER y el logo tipo BLACK+DECKER son marcas registradas de
The Black & Decker Corporation y son utilizados bajo licencia. Todos los derechos reservados.
Made and Printed in People's Republic of China.
Fabricado e Impreso en la República Popular de China.
© 2015 The Black & Decker Corporation and Spectrum Brands, Inc.
T22-5002819
14111-00 E/S

Advertisement

loading

  Related Manuals for Black & Decker DCM2160B

  Summary of Contents for Black & Decker DCM2160B

  • Page 1 SNEAK-A-CUP FEATURE • This warranty gives you specific legal rights. You may also have other rights MODEL ❍ DCM2160B ❍ DCM2160W ❍ DCM2160R Remove the carafe and brewing is paused. Carafe must be placed back on the that vary from state to state or province to province.
  • Page 2: Instrucciones Importantes

      2 horas y después se apaga automáticamente. ¿Cómo se puede obtener servicio? MODEL ❍ DCM2160B ❍ DCM2160W ❍ DCM2160R 7. Presione el botón de encendido/apagado (ON/OFF). • Conserve el recibo original de 8. Desconecte la cafetera mientras no esté en uso.

This manual is also suitable for:

Dcm2160wDcm2160r
