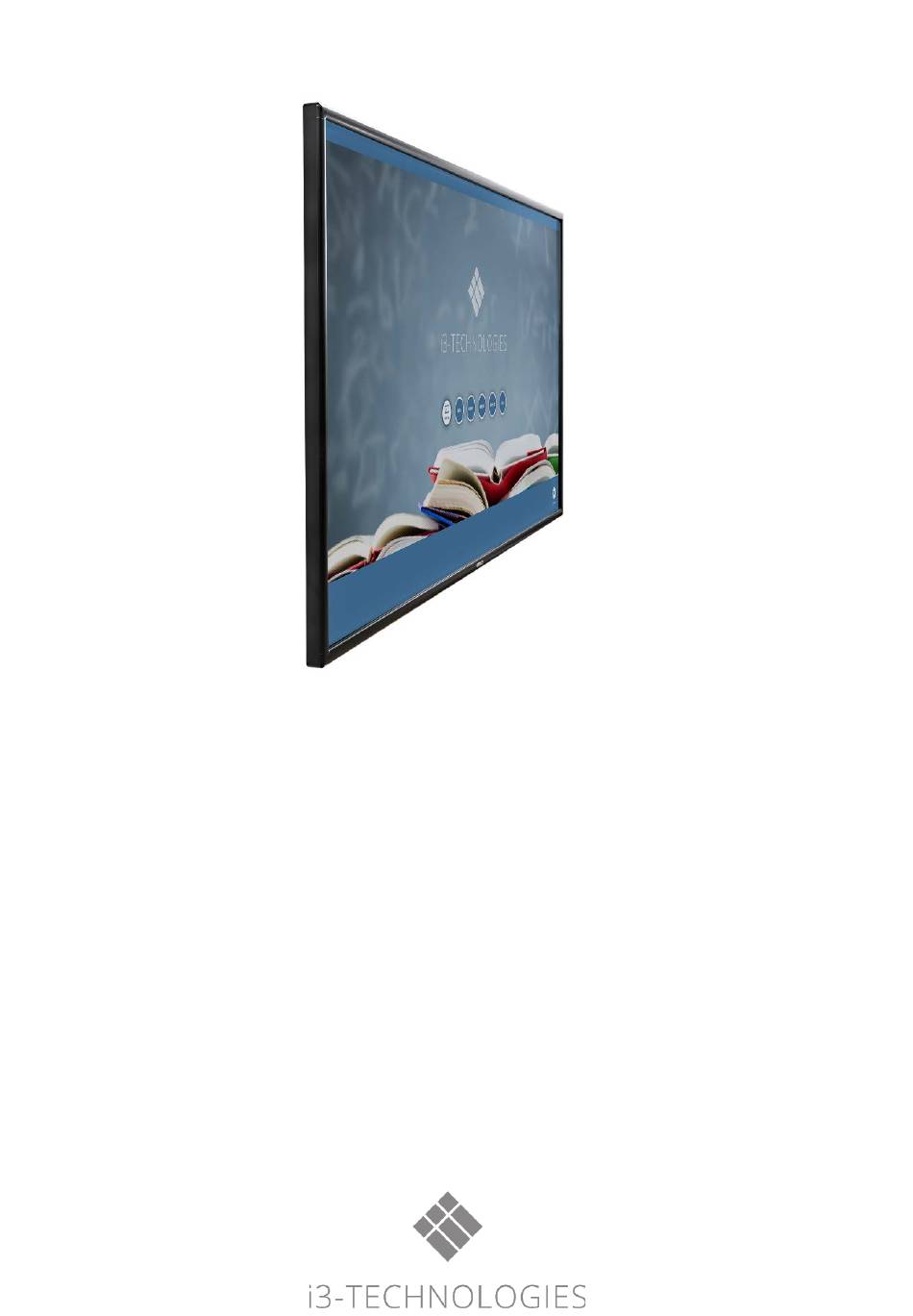

- Page 1 i3TOUCH EXCELLENCE User’s Manual...
- Page 2 Contents...
-
Page 3: Safety Warning
Safety Warning Before operating the unit, please read this manual thoroughly,and keep it for future reference. Image shown in this manual is indicative only. There may be differences between the pictures and the actual product, please prevail in kind. Placement Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. -
Page 4: Prepare To Install
Prepare to Install Prepare to Install 1. Control Panel Items Function description Remote control Receiving remote control signal, and do not place any objects to signal receiver block remote control receiving Power Indicator Turn on the power switch, the power indicator light is lit, which light means the power is connected. - Page 5 Prepare to Install AV IN Composite video and audio input COAX OUT Coaxial output RS232 Serial interface, used for mutual transfer of data between devices AUDIO OUT Audio output to the external speaker Connecting RJ45 terminals To open or shut down AC power supply. “ I ” means power on, “ O ” means AC SWITCH power off AC IN...
- Page 6 Prepare to Install Detailed Function Description Power on/off Mute switch Built-in computer Windows key Built-in computer Space key Built-in computer spacebar Alt + Tab Built-in computer program window close button Numeric input keys Display channel information Function button Input signal source selection key, choose different sources according to need Android system main screen button Setting menu button, press this button to pop up Lock and unlock Buttons and Touch function...
- Page 7 Prepare to Install 2) Remote Control Instruction Install Batteries (1) Open back cover of battery component on the back of remote control (2) Install AAA type battery according to the corresponding electrode, make sure battery positive and negative pole are correct ("+"to"+", "-" to "-"), please do not mix using old and new batteries (3) After battery is installed, close the back cover of battery components, and make the following clip buckled to the bottom...
-
Page 8: Connection And Setting
Connection and Setting Connection and Setting For the safety of you and the machine, please do not connect any power plug before connection. (1) Use VGA cable to connect to VGA output port of external computer, and meanwhile use headphone audio cable to connect to external computer audio output interface (2) Use USB cable to connect to external computer USB port (3) After cable connection, plug in power cord,and switch power on... - Page 9 Connection and Setting 2. Audio and Video Equipment 1) AV IN (1) Use AV audio and video cables to connect audio and video equipments with AV output (yellow for video, red for right sound channel, and white for left sound channel) (2) After cable connection, plug in power cord, and switch power on (3) Press to turn equipment on...
- Page 10 Connection and Setting 3. Coaxial Connection (1) Use coaxial cable to connect audio device with coaxial input (2) After cable connection, plug in power cord, and switch power on (3) Press to turn (4) equipment on (1) Use HDMI cable to connect display devices with HDMI in, and use audio cable to connect sound output (2) After cable connection, plug in power cord, and switch power on (3) Press to turn equipment on...
- Page 11 Connection and Setting 5. LAN Connection Network Cable Internet 6. RS232 Connection After using serial port cable to connect central control equipment and machine, certain function of the machine can be controlled via central control equipment, such as: machine ON/OFF, and adjustment of sound volume, etc.
-
Page 12: Menu Operation(This Part Is To Be Determined)
Menu Operation Menu Operation(This part is to be determined) Touch Menu Operation Call up Method Take middle point position on the bottom of display screen as starting point, use touch pen to drag towards screen center position to call up touch menu, as shown below. Note: "Touch A Method"... - Page 13 Menu Operation Detail Setting Menu Press Menu on remote control or click the icon on General Setting menu with touch pen to call up detail setting menu.Detail setting menu includes Audio, Screen, Display and Adjust. Audio Press button on remote control to select Audio setting menu. Press button on remote control or directly click with touch pen to select the option.
- Page 14 Menu Operation Display Press button on remote control to select Display setting menu. Press button on remote control or directly click with touch pen to select the option. Press Enter on remote control to enter adjustment mode, and press button or directly click with touch pen to adjust each option.
-
Page 15: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting Machine Fails to Work Normally Check whether there are other objects between remote control and equipment control receiving window, thus leading to failure of remote control. Remote control Check whether the battery electrode in the remote control is correct. failure Check whether remote control nee ds to replace battery. -
Page 16: Maintenance
Maintenance Maintenance Proper maintenance can avoid many early faults and regular careful cleaning can make machine brand new. Please unplug power plug before cleaning and maintenance,to prevent electric shock. Clean Screen Please mix and stir even a little fabric softener or tableware detergent with warm water. Please use a soft cloth to be completely soaked in the mixure.
