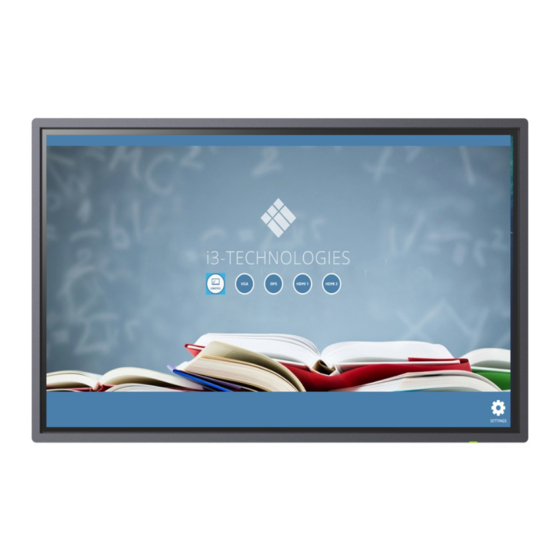

i3-TECHNOLOGIES i3TOUCH V-11 User Manual

i3-TECHNOLOGIES i3TOUCH V-11 User Manual

I3touch v-series

Advertisement

i3TOUCH V-SERIES
MANUAL
User Manual for i3TOUCH V-Series 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3TOUCH V-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for i3-TECHNOLOGIES i3TOUCH V-11

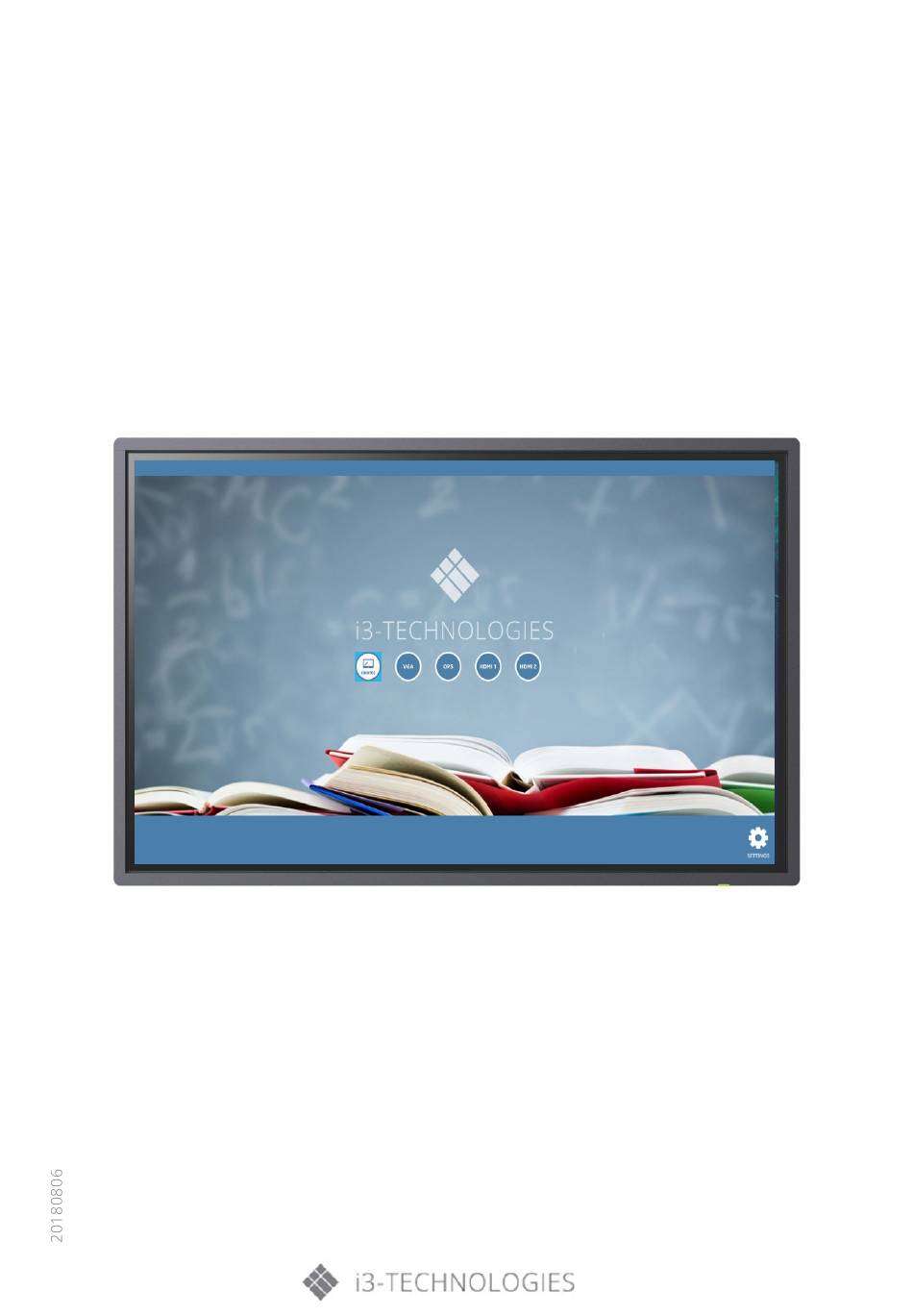

  • Page 1 i3TOUCH V-SERIES MANUAL User Manual for i3TOUCH V-Series 11...
  • Page 2: Table Of Contents

    Table of Contents Features ................................3 Safety warning and precautions ........................3 Installation and connection ..........................7 Packing List ..............................7 Ports ................................. 8 Connection Diagram ............................. 9 Control Buttons on the front panel ......................10 Remote Control ..............................11 Basic Operations ..............................
  • Page 3: Features

    Features 1. Run on Android 5.0.1 operating system with unique UI design, offering you more convenient operations and better visual experience. 2. With high precision touch and smooth writing Safety warning and precautions Thanks for purchasing our high-performance multifunctional LED backlight electronic whiteboard. As a valuable offering better audio and visual experience, this product has considered the personal safety factors in design and been tested strictly before delivery.
  • Page 4 WARNING Use AC 100-240V, 50/60Hz only • Cut off power supply before connecting/disconnecting any cable • To avoid the risk of fall, damage and fire, do not fix the product to any unstable position. • Do not place the product in any environment: •...
  • Page 5 CAUTION Do not allow children to climb the product. • To avoid the risk of swallow, keep small accessories beyond the reach of children. • Turn off the product and disconnect the power plug before keeping the product idle for a long •...
  • Page 6 Ventilation • Keep clearances around the product according to the minimum dimensions shown in the picture. Never cover the ventilation holes or insert any object into the housing. • Do not place the product in a confined space such as a bookcase or imbedded closet unless •...
  • Page 7: Installation And Connection

    Installation and connection a) Packing List Item Item 1 LCD Electronic Whiteboard 1 Disc (Optional) 1 Remote Control 1 Warranty Card 1 User’s manual 1 Certificate of Conformity 1 Power cord 1 Wall-mount instructions (Optional) 2 Styluses 2 Batteries (Optional) 1 3m HDMI Cable (Optional) 1 3m USB cable A-B (Optional) Caution:...
  • Page 8: B) Ports

    b) Ports Remark: Different models in the same series may have slightly different ports. The above pictures are subjected to the actual product. 1. Power Port 7. PC-AUDIO Port 2. TOUCH-USB 8. USB 3.0 Ports 3. RS232 Port 9. USB 2.0 Port 4.
  • Page 9: C) Connection Diagram

    c) Connection Diagram Schematic diagram for connecting the product to a PC. (Note: Disconnect the power plug before installing or removing the product!) Connection diagram Remark: The connection diagram in this manual is only for reference when connecting a PC box, which is subject to actual operations.
  • Page 10: D) Control Buttons On The Front Panel

    d) Control Buttons on the front panel Remark: Different models may have slightly different appearances. The above pictures are subject to the actual product.
  • Page 11: Remote Control

    Remote Control Installation of the batteries: Remove the battery compartment cover and follow the polarity marks “+” and “-“ in the battery compartment to install two AAA batteries (No.7, 1.5V). Precautions for use of remote control: • Aim the remote control at the remote receiver when using it. Any object placed between the remote control and the remote receiver may disturb normal operation.
  • Page 12 Keys to the remote control...
  • Page 13: Basic Operations

    Basic Operations a) Power on/Standby Insert the power plug into the power outlet. First turn on the ON/OFF button on the product, if available; then press on the remote control or control panel to turn on the product. In the absence of the ON/OFF button , just press In power-on state, press...
  • Page 14 Press the “MENU” key on the remote control or on the front panel; the screen will display the main • menu: 1. Press on the remote control to select an adjustment category menu. Adjustment category menus include: Picture, Sound Mode Adjustment, Channel, and Settings. 2.
  • Page 15: D) List Of Menu Settings

    d) List of Menu Settings Picture Mode Select the picture (Standard, Bright, Soft, PC, Custom). Contrast Measure the luminance between the brightest white and the darkest black that can be produced in the light and dark areas of a picture. Brightness Adjust the overall brightness of pictures: increase the analog value to enhance the brightness;...
  • Page 16: Intelligent Platform Operations

    Intelligent Platform Operations a) Basic operations Press to display the main interface of the intelligent mode (as shown in the figure). 1. Press to select an app; 2. Press “OK” to run the app; Special tips: Operations are complex in the intelligent Mode; user itself can install apps. Different apps are operated differently.
  • Page 17 Language and keyboard settings Language: select Settings > Preferences > Language in the intelligent mode, and press “OK”; press to select the desired language, and press “OK”. Select input method: select Settings > Preferences > Keyboard > Current Keyboard in the intelligent mode, and press “OK”;...
  • Page 18 Caution: 1) It is possible that some non-standard USB devices cannot be recognized; please use a standard USB device. 2) The streaming media system has certain restrictions on the format of each file played; errors will be caused if going beyond such restrictions. 3) Do not plug or remove the USB device when the system is playing a file;...
  • Page 19: C) Settings

    During playback, press “OK” to display the menu options shown above. Select the corresponding icon, and press “OK” to execute the operation. User can press “Back” to exit playback or press on the remote control to perform shortcut operations. c) Settings Network Settings: Select Network Settings under Settings in the intelligent mode, and press “OK”.
  • Page 20: Important Statement On Network Service

    WiFi Hotspot: Set the product as a hotspot for wireless network connection with this option. 1. Select WiFi Hotspot, and press “OK” to enable the WiFi hotspot function; 2. Select ‘Configure WiFi Hotspot’, and press “OK”; 3. Enter the network name (SSID) in the textbox. The default name in the system is “AndroidAP”; you can also change it to other names;...
  • Page 21: Troubleshooting

    Troubleshooting Symptom Possible cause Solution The screen does not Looseness of power plug, power Check if the power cord is properly display anything; there is connection failure connected no sound, and the indicator does not come Pictures shown on the Signal interference caused by Do not use the electric hair dryer near the product have dotted line...
  • Page 22: Technical Specifications

    Technical Specifications Working conditions: temperature: 0°C~40°C; Humidity: 20%~80%; Barometric pressure: 86kPa~104kPa. Storage conditions: temperature: -10°C~60°C; Humidity: 10%~60%; Barometric pressure: 86kPa~104kPa. 1. Supported systems: PAL + NTSC + SECAM; 2. Antenna input: 75Ω coaxial, unbalanced; 3. Intelligent operating system: Android 5.0.1; VGA Display Mode Mode Resolution...
  • Page 23: Toxic/Hazardous Substances/Elements In The Product

    Toxic/Hazardous Substances/Elements in the product Toxic and Hazardous Substance or Element Component (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) Display screen Housing PCBA* Power cord and cables Metal Parts Packing Materials* Remote control Speaker Accessories* This table has been prepared in accordance with SJ/T11364. *: PCBA includes the PCB and its electronic components;...
  • Page 24 This Manual is provided for reference only. The functions of the actual product are subject to change without further notice.
