i3-TECHNOLOGIES i3TOUCH V8610 T10 Manual

I3touch v-series interactive touch display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
i3TOUCH V8610 T10
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3TOUCH V8610 T10 and is the answer not in the manual?

Questions and answers

Related Manuals for i3-TECHNOLOGIES i3TOUCH V8610 T10

Summary of Contents for i3-TECHNOLOGIES i3TOUCH V8610 T10

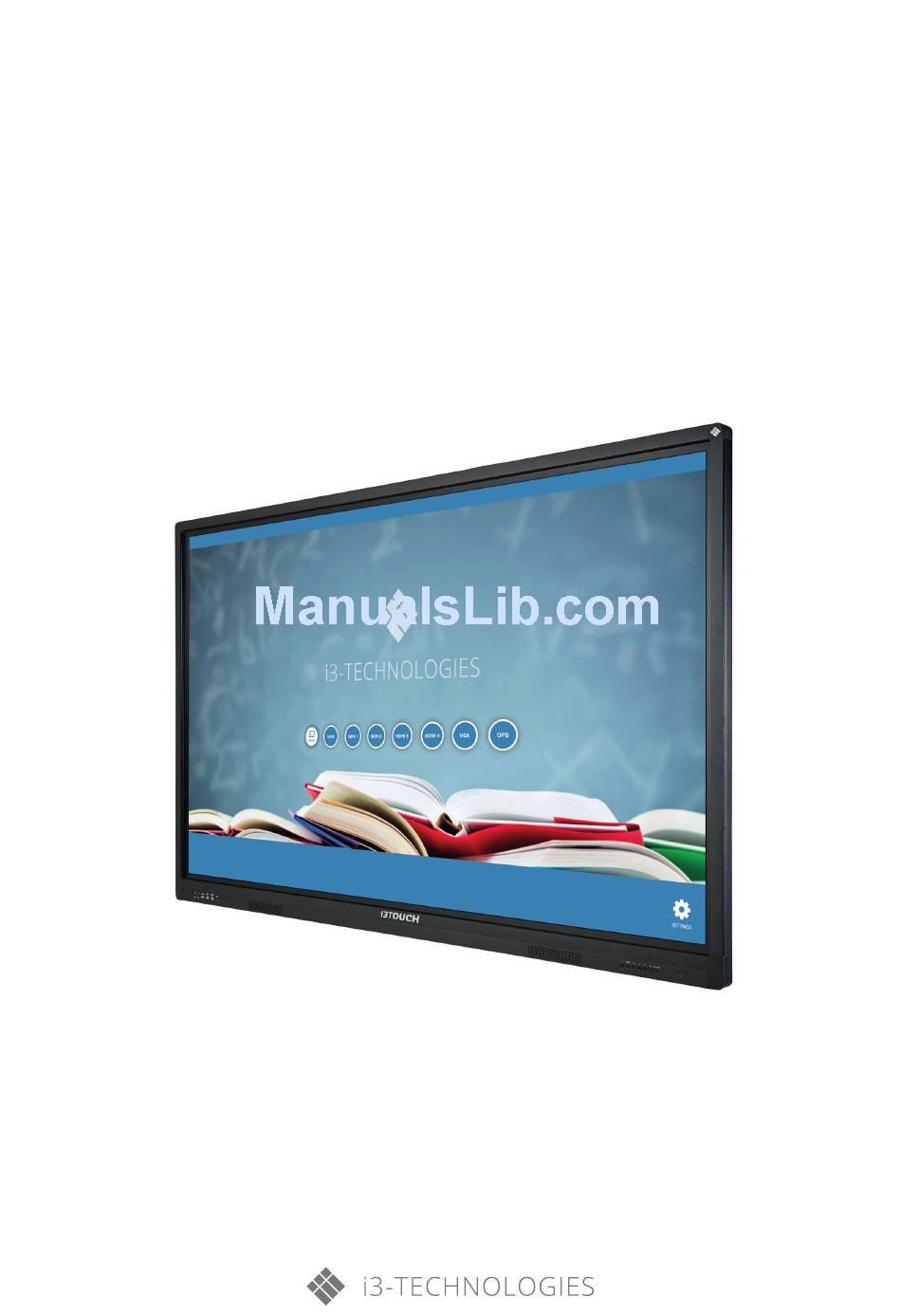

  • Page 1 V8610 T10 MANUAL...
  • Page 2 Note: Please read this Manual carefully before using the product! Do not attempt to disassemble the product. If the product does not work, please contact us or our dealer in your area.

  • Page 3: Table Of Contents

    CONTENTS 1. Special Functions 2. Safety Warning and Precautions 3. Installation and Connection 3.1 Packing List 3.2 Interfaces 3.3 Connection Diagram 3.4 Keys on the Control Panel 4. Remote Control 5. Basic Operations 5.1 Power On/Standby 5.2 Signal Source Selection 5.3 Menu Operations 5.4 Setting List 6.

  • Page 4: Special Functions

    i3TOUCH V-SERIES USER MANUAL 1. Special functions 1. Android 4.0 intelligent operating system and unique UI design for easier operation and better visual experience. 2. Huge amounts of online applications to be downloaded for chatting, inquiring, learning, shopping and reading. Supporting synchronized receiving and sending of e-mails. 3.

  • Page 5: Safety Warning And Precautions

    i3TOUCH V-SERIES USER MANUAL 2. Safety Warning and Precautions In case of the followings: Power outage or unstable voltage. • The product emits abnormal sounds or smell. • AC power cord is damaged • The LCD electronic whiteboard is damaged due to fall, strike or impact. •...
  • Page 6 i3TOUCH V-SERIES USER MANUAL 2. Safety Warning and Precautions WARNING WARNING Do not use the power source other than AC 220V, 50Hz. • All connecting cables shall be connected to and disconnected from the interfaces when power is cut off. •...
  • Page 7 i3TOUCH V-SERIES USER MANUAL 2. Safety Warning and Precautions Do not allow the children to climb on the product. • Keep small attachments out of reach of children to avoid accidental swallowing. • If the product will not be used in a long time, please power it off and remove the power plug. •...
  • Page 8 i3TOUCH V-SERIES USER MANUAL 2. Safety Warning and Precautions Ventilation Mounted on the wall Hinder ventilation Wall Please reserve some spaces around the product as indicated in the figure. • Do not cover the ventilation holes or insert any object into the housing. •...

  • Page 9: Installation And Connection

    i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Packing List Part name Part Name 1 disk (optional) 1 LCD electronic whiteboard ü ü 1 warranty card 1 remote control ü ü 1 certificate of quality 1 User’s Manual ü ü 1 Instruction for Wall Mounting (optional) 1 power cord ü...
  • Page 10 i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Tips Place the LCD electronic whiteboard nearby an AC power socket which is easy to plug and unplug. • For your safety, you are recommended to use a suitable wall bracket or base. •...

  • Page 11: Interfaces

    i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Interfaces Below 79” (001/002/004/005) interfaces Front frame interfaces for Series 001/002 Front frame interfaces for Series 004/005 Remark: Different models in the same series may have varied interfaces; Please refer to the actual product. 1.Power interface;...
  • Page 12 i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Interfaces 79’’ and above (001/002) interfaces Remark: Different models in the same series may have varied interfaces; Please refer to the actual product. 1. Power interface; 20. Microphone interface on front frame; 2.
  • Page 13 i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Interfaces 79’’ and above (004/005) interfaces Remark: Different models in the same series may have varied interfaces; Please refer to the actual product. 16. RS232 input and output interface; 1. Power interface; 17.
  • Page 14 i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Interfaces Connection of external equipment to 65’’ Series 003 Remark: Different models in the same series may have varied interfaces; Please refer to the actual product. 16. HDMI on front frame; 1. Power interface; 17.

  • Page 15: Connection Diagram

    i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Connection diagram Connection diagram for PC and i3TOUCH. (Note: Please firstly disconnect the power plug when you install or assemble & disassemble the product!) Interfaces on the i3TOUCH. Interfaces on the PC. Remark: The connection diagram described herein is only for reference in PC connection;...

  • Page 16: Keys On The Control Panel

    i3TOUCH V-SERIES USER MANUAL 3. Installation and Connection Keys on the panel 1. Power/Standby key (long press for standby/press for BLANK- black screen); 2. MENU: Press it to display the setup menu; 3. : VOL +/- keys; in OSD menu operations, press them to adjust the analog value of the selected item; their functions are the same as keys on the remote control;...

  • Page 17: Remote Control

    i3TOUCH V-SERIES USER MANUAL 4. Remote control Installation of the batteries: Remove the battery compartment cover and install two AAA batteries (1.5V) into the battery compartment as per the polarity symbols “+” and “-”. Precautions: The remote control should aim at the reception window. Do not leave any obstacle between the remote control •...
  • Page 18 i3TOUCH V-SERIES USER MANUAL 4. Remote control Standby Switch between working mode and standby mode Snapshot Take screenshot Mute key Turn on or off the sound Letter/numeric keys Input any letter and number F1 (still image) Turn on or off still image in LCD electronic whiteboard Program list Character input backspace key/view TV program list Homepage...

  • Page 19: Basic Operations

    i3TOUCH V-SERIES USER MANUAL 5. Basic Operations Power On/Standby Insert the power plug into the power socket, press the on/off key “ Insert the power plug into the power socket, press the on/off key “ Insert the power plug into the power socket, press the on/off key “ ”...

  • Page 20: Menu Operations

    i3TOUCH V-SERIES USER MANUAL 5. Basic Operations Menu operations In this Chapter, we take the menu operations of LCD electronic whiteboard as an example, and menu operations in other modes are similar to those of LCD electronic whiteboard. As for the operations in intelligent mode, please refer to the Instructions for Intelligent Platform hereinafter.

  • Page 21: Setting List

    i3TOUCH V-SERIES USER MANUAL 5. Basic Operations Basic operations Settings list Image mode Adjust the overall image eff ect: “[Standard], [Soft], [User] or [Bright]”. Contrast Adjust the overall image layering: The bigger the analog value (0-100), the higher the layering. Brightness Adjust the overall image brightness: The bigger the analog value (0-100), the higher the brightness.

  • Page 22: Instructions For Intelligent Platform

    i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Basic operations Press the “ Press the “ ” key on the remote control to display the intelligent homepage (as shown in the figure). ” key on the remote control to display the intelligent homepage (as shown in the figure). Press the “...

  • Page 23: Intelligent Application

    i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Basic operations System time setting: In intelligent mode, select Settings > Time and Date Settings > Auto Acquisition of Time and Date via the Internet and press the “OK” key; the system will acquire time from the Internet and update automatically; if your LCD electronic whiteboard is not connected with the Internet, you can only set the system time manually in Time and Date Settings.
  • Page 24 i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Basic operations How to access a website? Firstly press “ How to access a website? Firstly press “ ” keys to select the website input box and then input the network ”...
  • Page 25 i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Basic operations APK installer: APK installer option helps the user to manage the applications. The user can install any installation file saved in a local disk or remove any application installed locally. Tip: You can select Settings >...
  • Page 26 i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Basic operations Multimedia player: Connect to the USB storage device via USB interface; in intelligent mode, select Local Play and press the “OK” key to run. Select the file category from [All], [Picture], [Music] and [Video] on the left. Play the file saved in a local disk device: Firstly insert the USB storage device into the USB interface of the product before playing the file saved in a local disk device.
  • Page 27 i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Introduction to the option icon of playing interface Menu option of picture player Play the previous picture. Play the previous picture. Pause/start slide playing. Pause/start slide playing. Play the next picture. Play the next picture.
  • Page 28 i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Introduction to the option icon of playing interface Menu option of video player Play the previous video. Play the previous video. Select the speed of fast rewind. Select the speed of fast rewind. Pause/start video playing.

  • Page 29: Settings

    i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Settings Visible passwords: Display the password information when input passwords in PPPOE dialing and wireless network connection. Select Visible Passwords and press the “OK” key to enable and disable the function. Network settings: Select Network Settings in Settings of intelligent mode and press the “OK”...

  • Page 30: Important Statement About Web Service

    i3TOUCH V-SERIES USER MANUAL 6. Instructions for Intelligent Platform Settings Visible passwords: Display the password information when input passwords in PPPOE dialing and wireless network connection. Select Visible Passwords and press the “OK” key to enable and disable the function. Network settings: Select Network Settings in Settings of intelligent mode and press the “OK”...

  • Page 31: Troubleshooting

    i3TOUCH V-SERIES USER MANUAL 8. Troubleshooting Troubleshooting Fault Possible Cause Solution Check whether the antenna connector is loose or not and The antenna connector is loose and the cable is damaged whether the cable is undamaged or not The antenna type is not suitable Snowflake-like spots on the image Check the antenna type (VHF/UHF) accompanied with noises...

  • Page 32: Technical Specifications

    i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 65’’ (001)/65’’ (001-T) 65’’ (001 N) Physical resolution FHD 1920 × 1080 (pixels) 1920 × 1080 (pixels) Pixel pitch 0.744mm × 0.744mm Response time 6.5ms Brightness 350 cd/m2 Contrast 4000:1 Viewing angle 178°/178°...
  • Page 33 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 70’’ (001)/70’’ (001-T) 70’’ (001 N) Physical resolution FHD 1920 × 1080 (pixels) 1920 × 1080 (pixels) Pixel pitch 0.807mm × 0.807mm Response time Brightness 400 cd/m2 Contrast 4000:1 Viewing angle 178°/178°...
  • Page 34 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 79’’ (001)/79’’ (001-T) Physical resolution 3840 × 2160 (pixels) Pixel pitch 0.453mm × 0.453mm Response time Brightness 430 cd/m2 Contrast 1400:1 Viewing angle 178°/178° Chroma 1.06B Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, refresh rate switch- System functions ing and running state display Control mode...
  • Page 35 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 84.04’’ (001)/84.04’’ (001-T) Physical resolution 3840 × 2160 (pixels) Pixel pitch 0.4845mm × 0.4845mm Response time Brightness 350 cd/m2 / 420 cd/m2 Contrast 1600:1 Viewing angle 178°/178° Chroma 1.06B Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 36 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 97.52’’ (001)/ 97.52’’ (001-T) Physical resolution UHD 3840 × 2160 (pixels) Pixel pitch 0.5622mm × 0.5622mm Response time 5ms/8ms Brightness 500 cd/m2 Contrast 1300:1 Viewing angle 178°/178° Chroma 1.06B Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 37 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 64.5’’ (002)/64.5’’ (002-T) Physical resolution FHD 1920 × 1080 (pixels) Pixel pitch 0.744mm × 0.744mm Response time Brightness 360cd/m2 Contrast 4000:1 Viewing angle 178°/178° Chroma 1.07B Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 38 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 70’’ (002)/70’’ (002-T) Physical resolution FHD 1920 × 1080 (pixels) Pixel pitch 0.807mm × 0.807mm Response time Brightness 400cd/m2 Contrast 4000:1 Viewing angle 178°/178° Chroma 16.7M Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 39 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 64.5’ (003)/64.5’’ (003-T) Physical resolution FHD 1920 × 1080 (pixels) Pixel pitch 0.248mm × 0.744mm Response time 6.5ms Brightness 350 cd/m2 Contrast 5000:1 Viewing angle 178°/178° Chroma 1.07G Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 40 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 64.5’’ (004/005)/ 64.5’’ (004/005-T) Physical resolution 1920 × 1080 (pixels) Pixel pitch 0.248mm × 0.744mm Response time 6.5ms Brightness 350 cd/m2 Contrast 5000:1 Viewing angle 178°/178° Chroma 1.07G Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 41 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 70’’ (004/005)/ 70’’ (004/005-T) Physical resolution 1920 × 1080 (pixels) Pixel pitch 0.807mm × 0.807mm Response time Brightness 400 cd/m2 Contrast 4000:1 Viewing angle 178°/178° Chroma 16.7M Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 42 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Model 8610 T10 Physical resolution 3840 × 2160 (pixels) Pixel pitch 0.4845mm × 0.4845mm Response time Brightness 350 cd/m2 Contrast 1600:1 Viewing angle 178°/178° Chroma 10bit Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode...
  • Page 43 i3TOUCH V-SERIES USER MANUAL 9. Technical specifications Overal specification Requirements for working environment: Temperature: 0°C-40°C Humidity: 20%-80% Barometric pressure: 86kPa-104kPa Requirements for storage environment: Temperature: -10°C-60°CHumidity: 10%-60% Barometric pressure: 86kPa-104kPa 1.Supported SYS: PAL+NTSC+SECAM; 2. Antenna input: 75Ω coaxial (asymmetric); 3. AV video input: 75Ω, 1Vp-p, RCA terminal; 4.

  • Page 44: Rohs Compliance

    i3TOUCH V-SERIES USER MANUAL 10. ROHS Compliance Names and contents of toxic and hazardous substances or elements contained in the product Toxic and Hazardous Substance or Element Component Cr6+ PBDE Display screen × Housing PCB assembly* × Power cord and connecting wires ×...
  • Page 45 i3TOUCH V-SERIES USER MANUAL NOTES...
