EDUS391000-C
2.7

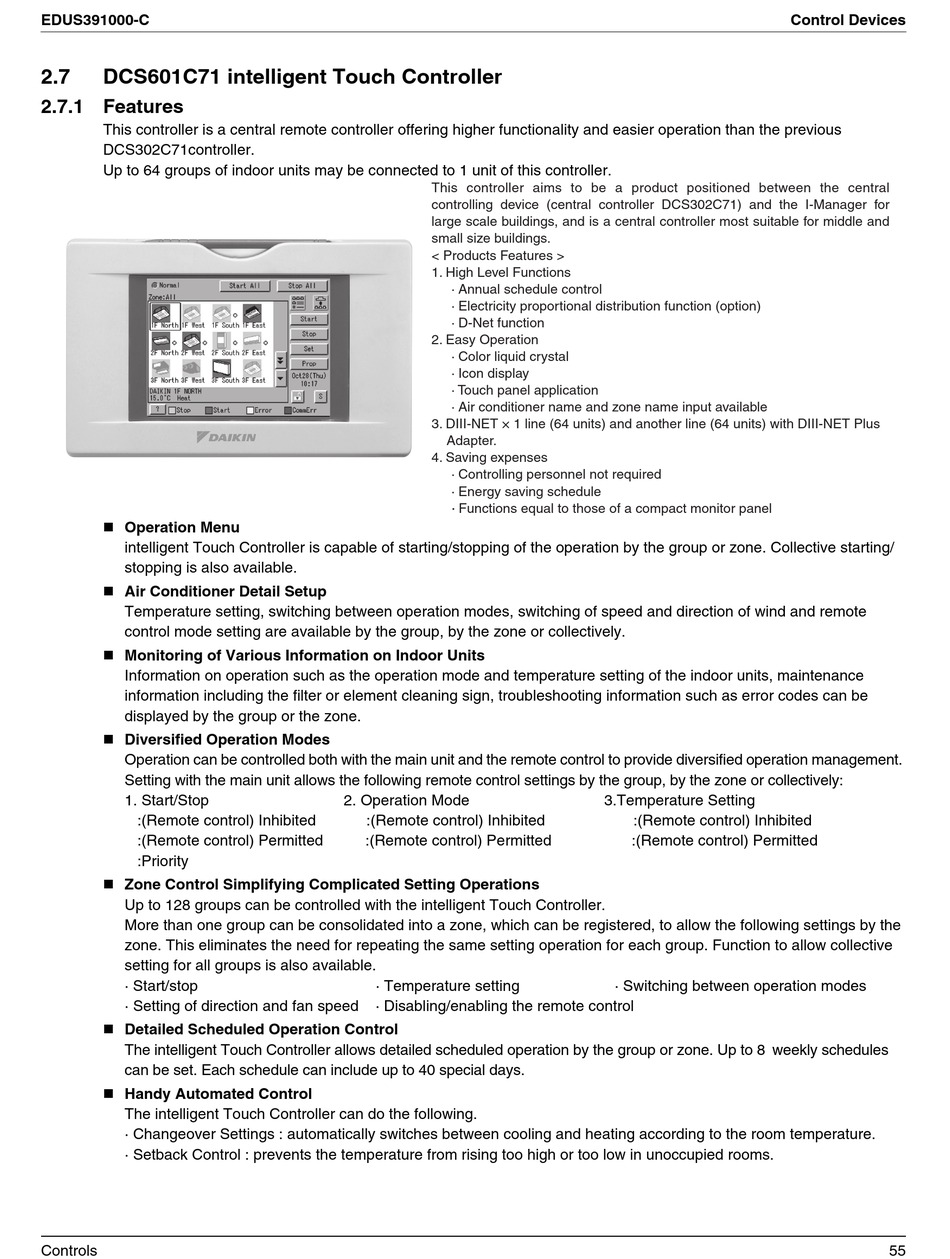

DCS601C71 intelligent Touch Controller

2.7.1 Features
This controller is a central remote controller offering higher functionality and easier operation than the previous
DCS302C71controller.
Up to 64 groups of indoor units may be connected to 1 unit of this controller.
 Operation Menu
intelligent Touch Controller is capable of starting/stopping of the operation by the group or zone. Collective starting/
stopping is also available.
 Air Conditioner Detail Setup
Temperature setting, switching between operation modes, switching of speed and direction of wind and remote
control mode setting are available by the group, by the zone or collectively.
 Monitoring of Various Information on Indoor Units
Information on operation such as the operation mode and temperature setting of the indoor units, maintenance
information including the filter or element cleaning sign, troubleshooting information such as error codes can be
displayed by the group or the zone.
 Diversified Operation Modes
Operation can be controlled both with the main unit and the remote control to provide diversified operation management.
Setting with the main unit allows the following remote control settings by the group, by the zone or collectively:
1. Start/Stop
:(Remote control) Inhibited
:(Remote control) Permitted
:Priority
 Zone Control Simplifying Complicated Setting Operations
Up to 128 groups can be controlled with the intelligent Touch Controller.
More than one group can be consolidated into a zone, which can be registered, to allow the following settings by the
zone. This eliminates the need for repeating the same setting operation for each group. Function to allow collective
setting for all groups is also available.
· Start/stop
· Setting of direction and fan speed
 Detailed Scheduled Operation Control
The intelligent Touch Controller allows detailed scheduled operation by the group or zone. Up to 8 weekly schedules
can be set. Each schedule can include up to 40 special days.
 Handy Automated Control
The intelligent Touch Controller can do the following.
· Changeover Settings : automatically switches between cooling and heating according to the room temperature.
· Setback Control : prevents the temperature from rising too high or too low in unoccupied rooms.
Controls
This controller aims to be a product positioned between the central
controlling device (central controller DCS302C71) and the I-Manager for
large scale buildings, and is a central controller most suitable for middle and
small size buildings.
< Products Features >
1. High Level Functions
· Annual schedule control
· Electricity proportional distribution function (option)
· D-Net function
2. Easy Operation
· Color liquid crystal
· Icon display
· Touch panel application
· Air conditioner name and zone name input available
3. DIII-NET × 1 line (64 units) and another line (64 units) with DIII-NET Plus
Adapter.
4. Saving expenses
· Controlling personnel not required
· Energy saving schedule
·
Functions equal to those of a compact monitor panel
2. Operation Mode
:(Remote control) Inhibited
:(Remote control) Permitted
· Temperature setting
· Disabling/enabling the remote control
3.Temperature Setting
:(Remote control) Inhibited
:(Remote control) Permitted
· Switching between operation modes
Control Devices
