Connector Pin Assignments (Continued)

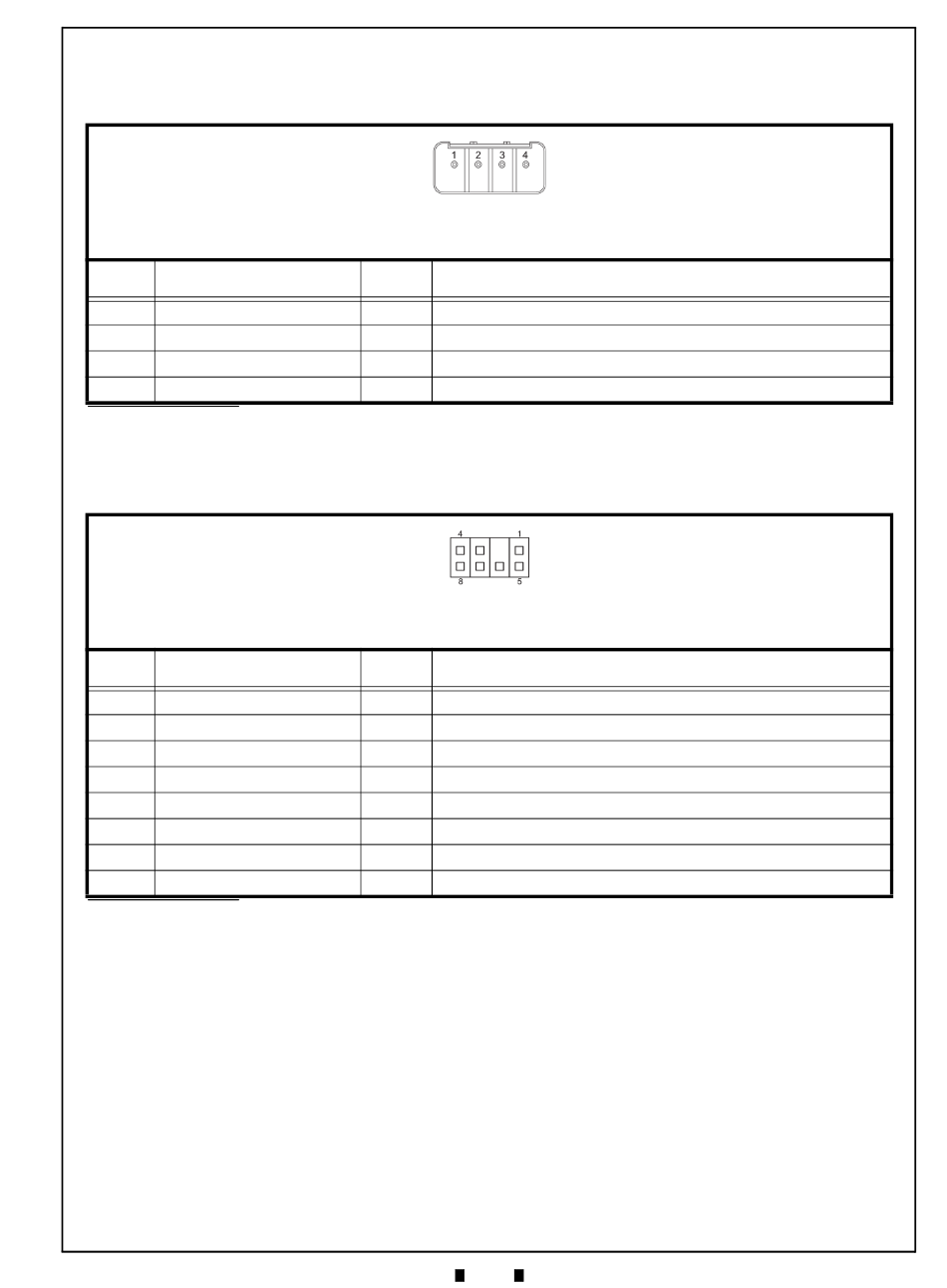

Table 2-5 lists the UBA-RC
Pin No. Signal Name
1 +24V Power
2 +24V Power
3 GND (Power)
4 GND (Power)
*. I/O (input/output) is the terminal as viewed from the Banknote Recycler's backside.
Connector Pin Assignments (Continued)
Table 2-6 lists the UBA-RC
Table 2-6 Front Panel Bezel Interface Connection Pin Assignments
Pin No. Signal Name
1 NC
2 NC
3 NC
4 NC
5 +13V (Power)
6 GND (Power)
7 LED Power
8 LED-
*. I/O (input/output) is the terminal as viewed from the Banknote Recycler's backside.
P/N 960-100928R_Rev. 3 {EDP #192692}
UBA-RC™ Series Banknote Recycler
Power Supply Pin Assignments.
™
Table 2-5 Power Supply Pin Assignments
Header Type: 53426-0410 (MOLEX)
Contact Type: 50351-8100 (MOLEX)
Housing: 51103-0400 (MOLEX)
Recommended Wires: Slit Wire UL1007 AWG #22-24
*
I/O
- +24V DC Power Supply
- +24V DC Power Supply
- 0V DC Power
- 0V DC Power
Front Panel Bezel Interface Connection Pin Assignments.
™
Header Type: RF-H08(07)2SD-1110 (JST)
Contact Type: RF-SC2210 (JST)
Housing: RF-08 (JST)
Recommended Wires: Slit Wire UL1007 AWG #24-26
*
I/O
- No Connection
- No Connection
- No Connection
- No Connection
- +13V DC Power (from UBA)
- 0V DC Power (from UBA)
- LED Drive Line (anode)
- LED Drive Line (cathode)
Function
Function
