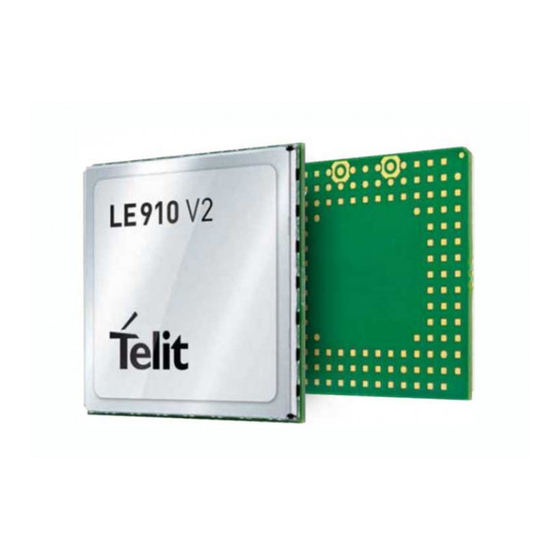

Telit Wireless Solutions LE910 Reference Manual

Telit Wireless Solutions LE910 Reference Manual

V2 series

Hide thumbs Also See for LE910:

Design manual (32 pages)

,

User manual (25 pages)

Table Of Contents

page of 509

/ 509
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

Telit LE910 V2 Series AT Commands

Reference Guide

80446ST10707A Rev. 0– 2015-11-03 – draft2

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the LE910 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telit Wireless Solutions LE910

Page 1 Telit LE910 V2 Series AT Commands Reference Guide 80446ST10707A Rev. 0– 2015-11-03 – draft2...
Page 2 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 APPLICABILITY TABLE PRODUCT LE910-NA V2 LE910-SV V2 LE910-EU V2 LE910-JN V2 LE910-AU V2 LE910-JK V2 Cat1 derivatives: LE910-SV1 LE910-SA1 LE910-EU1 SW Version 20.00.xxx Note: the features described by the present document are provided by the products equipped with the software versions equal or greater than the version shown in the table.
Page 3: St10707A Rev . 0– 2015
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.
Page 4 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.
Page 5: Table Of Contents
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Contents INTRODUCTION ................................. 15 1.1..................................15 COPE 1.2................................15 UDIENCE 1.3.......................... 15 ONTACT NFORMATION UPPORT 1.4..............................16 ONVENTIONS 1.5............................16 ELATED OCUMENTS OVERVIEW .................................. 17 2.1.
Page 6 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Single Line Connect Message - \V ........................37 Country Of Installation - +GCI ..........................38 4.1.3.2. DTE - Modem Interface Control ..........................39 Command Echo - E ............................... 39 Quiet Result Codes - Q ............................
Page 7 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Subscriber Number - +CNUM ..........................68 Read Operator Names - +COPN ..........................68 Network Registration Report - +CREG ......................... 69 Operator Selection - +COPS ..........................70 Select Wireless Network - +WS46 ........................73 Facility Lock/Unlock - +CLCK ..........................
Page 8 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4.6. Voice Control ................................126 DTMF Tones Transmission - +VTS ........................126 Tone Duration - +VTD ............................127 4.1.4.7. Commands For GPRS ............................... 128 GPRS Mobile Station Class - +CGCLASS ......................128 GPRS Attach Or Detach - +CGATT ........................
Page 9 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 USB configuration - #USBCFG .......................... 187 Connect physical ports to Service Access Points - #PORTCFG ................188 Data Link - #DLINK ............................189 Network Selection Menu Availability - +PACSP ....................190 Manufacturer Identification - #CGMI .........................
Page 10 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Band Selection - #BND ............................. 250 Automatic Band Selection - #AUTOBND ......................252 PPP-GPRS Connection Authentication Type - #GAUTH ................. 252 PPP-GPRS Parameters Configuration - # GPPPCFG ..................253 Skip Escape Sequence - #SKIPESC ........................
Page 11 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Circuit Switched Fallback - #CSFB ........................312 4.1.6.5. Event Monitor Commands ............................313 Enable EvMoni Service - #ENAEVMONI ......................313 EvMoni Service parameter - #ENAEVMONICFG ..................... 315 Event Monitoring - #EVMONI..........................316 Send Message - #CMGS ............................
Page 12 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 FTP GET in command mode - #FTPGETPKT ....................377 FTP Type - #FTPTYPE ............................378 FTP Read Message - #FTPMSG ......................... 378 FTP Delete - #FTPDELE........................... 379 FTP Print Working Directory - #FTPPWD ....................... 379 FTP Change Working Directory - #FTPCWD ....................
Page 13 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 receive HTTP server data - #HTTPRCV ......................423 4.1.6.12. Script management ..............................424 Write Script - #WSCRIPT ..........................424 Read Script - #RSCRIPT ........................... 425 List Script Names - #LSCRIPT ......................... 426 Delete Script - #DSCRIPT ..........................
Page 14 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 LTE Jammed Detect & Report - #JDR4GCFG....................473 4.1.6.17. OTA Commands (this section is not yet supported by the first beta releases) ............475 OTA Set Network Access Point - #OTASNAP ....................475 OTA Set User Answer - #OTASUAN .......................
Page 15: Introduction
Introduction 1.1. Scope This document is aimed in providing an detailed specification and a comprehensive listing as a reference for the whole set of AT command for the LE910 V2 series (LTE cat.4 modules) and their Cat1. derivatives 1.2. Audience Readers of this document should be familiar with Telit modules and their ease of controlling by means of AT Commands.
Page 16: Text Conventions
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 1.4. Text Conventions Danger – This information MUST be followed or catastrophic equipment failure or bodily injury may occur. Caution or Warning – Alerts the user to important points about integrating the module, if these points are not followed, the module and end user equipment may fail or malfunction.
Page 17: Overview
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Overview 2.1. About the document This document is to describe all AT commands implemented on the Telit wireless modules listed on the Applicabilty Table. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 17 of 509 Mod.
Page 18: At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT COMMANDS The Telit wireless module family can be controlled via the serial interface using the standard AT commands . The Telit wireless module family is compliant with: 1. Hayes standard AT command set, in order to maintain the compatibility with existing SW programs.
Page 19: At Command Syntax
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 3.2. AT Command Syntax The syntax rules followed by Telit implementation of either Hayes AT commands, GSM commands are very similar to those of standard basic and extended AT commands There are two types of extended command: Parameter type commands.
Page 20: Command Lines
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 A string, either enclosed between quotes or not, is considered to be a valid string type parameter input. According to V25.ter space characters are ignored on the command line and may be used freely for formatting purposes, unless they are embedded in numeric or quoted string constants;...
Page 21: Me Error Result Code - +Cme Error:
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 the same command line, because if one of them fails, then an error message is received but it is not possible to argue which one of them has failed the execution.

Page 22 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Numeric Format Verbose Format SIM PUK2 required memory full invalid index not found memory failure text string too long invalid characters in text string dial string too long invalid characters in dial string...
Page 23 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Numeric Format Verbose Format wrong APN wrong PDP service not supported QOS not accepted NSAPI already used LLC or SNDCP failure network reject Custom SIM Lock related errors MCL personalisation PIN required...
Page 24: Message Service Failure Result Code - +Cms Error:
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 3.2.2.2. Message Service Failure Result Code - +CMS ERROR: <err> This is NOT a command, it is the error response to +Cxxx 3GPP TS 27.005 commands. Syntax: +CMS ERROR: <err>...

Page 25: Information Responses And Result Codes
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 3.2.3. Information Responses And Result Codes The TA response, in case of verbose response format enabled, for the previous examples command line could be as shown below: • information response to +CMD1? <CR><LF>+CMD1:2,1,10<CR><LF>...
Page 26: Command Response Time-Out
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 3.2.4. Command Response Time-Out Every command issued to the Telit modules returns a result response, if response codes are enabled (default). The time needed to process the given command and return the response varies, depending on the command type.
Page 27 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 The values set by other commands are stored in NVM outside the profile: some of them are stored always, without issuing any &W, some other are stored issuing specific commands (+CSAS, #SLEDSAV, #SKTSAV, #ESAV);...
Page 28 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CLVL +VTD +CSCB #CAP #SRS #SRP #STM #E2SMSRI #CODEC #SHFEC #HFMICG #HSMICG #SHFSD #SPKMUT #NITZ #E2SLRI #HFRECG #HSRECG #SHFAGC #SHSAGC #SHFNR #SHSSD #DVI #DVIEXT #SIMDET The values set by following commands are automatically stored in NVM, without issuing any...
Page 29 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 stored by #ESAV command and automatically restored at startup; factory default valutes are restored by #ERST command. $GPSP $GPSR $GPSNVRAM $GPSQOS $GPSSLSR $GPSSTOP stored by $GPSSAV command and automatically restored at startup; factory default valutes are...
Page 30: At Commands References
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT Commands References 4.1. Command Line General Format 4.1.1. Command Line Prefixes Starting A Command Line - AT AT - Starting A Command Line SELINT 2 The prefix AT, or at, is a two-character abbreviation (ATtention), always used to...
Page 31: General Configuration Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.2. General Configuration Commands Select Interface Style - #SELINT #SELINT - Select Interface Style SELINT 2 Set command sets the AT command interface style depending on parameter <v>. AT#SELINT=[<v>] Parameter: <v>...
Page 32: Hayes Compliant At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.3. Hayes Compliant AT Commands 4.1.3.1. Generic Modem Control Set To Factory-Defined Configuration - &F &F - Set To Factory-Defined Configuration SELINT 2 Execution command sets the configuration parameters to default values specified by AT&F[<value>]...
Page 33: Select Active Service Class - +Fclass
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Select Active Service Class - +FCLASS +FCLASS - Select Active Service Class SELINT 2 Set command sets the wireless module in specified connection mode (data, voice), AT+FCLASS=<n> hence all the calls done afterwards will be data or voice.
Page 34: Store Current Configuration - &W
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Store Current Configuration - &W &W - Store Current Configuration SELINT 2 Execution command stores on profile <n> the complete configuration of the device. AT&W[<n>] Parameter: <n> 0..1 - profile Note: if parameter is omitted, the command has the same behaviour of AT&W0.
Page 35: Manufacturer Identification - +Gmi
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Manufacturer Identification - +GMI +GMI - Manufacturer Identification SELINT 2 Execution command returns the manufacturer identification. AT+GMI Reference V.25ter Model Identification - +GMM +GMM - Model Identification SELINT 2 Execution command returns the model identification.
Page 36: Display Configuration And Profile - &V
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Display Configuration And Profile - &V &V - Display Current Base Configuration And Profile SELINT 2 Execution command returns some of the base configuration parameters AT&V settings. Note: the row of information about CTS (C106) OPTIONS is in the output of &V only for compatibility reasons and represents only a dummy value.
Page 37: Extended S Registers Display - &V3
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended S Registers Display - &V3 &V3 - Extended S Registers Display SELINT 2 Execution command returns the value of the S registers in decimal and hexadecimal AT&V3 value in the format: <reg0>...
Page 38: Country Of Installation - +Gci
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Country Of Installation - +GCI +GCI - Country Of Installation SELINT 2 Set command selects the installation country code according to AT+GCI=<code> ITU-T.35 Annex A. Parameter: <code> 59 - it currently supports only the Italy country code Read command reports the currently selected country code.
Page 39: Dte - Modem Interface Control
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.3.2. DTE - Modem Interface Control Command Echo - E E - Command Echo SELINT 2 ATE[<n>] Set command enables/disables the command echo. Parameter: <n> 0 - disables command echo 1 - enables command echo (factory default) , hence command sent to the device are echoed back to the DTE before the response is given.
Page 40: Data Terminal Ready (Dtr) Control - &D
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 &C - Data Carrier Detect (DCD) Control SELINT 2 1 - DCD follows the Carrier detect status: if carrier is detected DCD is high, otherwise DCD is low. (factory default) 2 - DCD off while disconnecting Note: if parameter is omitted, the command has the same behaviour of AT&C0...
Page 41: Flow Control - &K
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Flow Control - &K &K - Flow Control SELINT 2 AT&K[<n>] Set command controls the RS232 flow control behaviour. Parameter: <n> 0 - no flow control 3 - hardware bi-directional flow control (both RTS/CTS active) (factory default) Note: if parameter is omitted, the command has the same behaviour as AT&K0...
Page 42: Response Format - V
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Response Format - V V - Response Format SELINT 2 Set command determines the contents of the header and trailer transmitted with ATV[<n>] result codes and information responses. It also determines if result codes are transmitted in a numeric form or an alphanumeric form (see [§3.2.3 Information...
Page 43: Extended Result Codes - X
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended Result Codes - X X - Extended Result Codes SELINT 2 Set command selects the result code messages subset used by the modem to inform ATX[<n>] the DTE of the result of the commands.
Page 44: Fixed Dte Interface Rate - +Ipr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Fixed DTE Interface Rate - +IPR +IPR - Fixed DTE Interface Rate SELINT 2 AT+IPR=<rate> Set command specifies the DTE speed at which the device accepts commands during command mode operations; it may be used to fix the DTE-DCE interface speed.
Page 45: Dte-Modem Local Flow Control - +Ifc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 DTE-Modem Local Flow Control - +IFC +IFC - DTE-Modem Local Flow Control SELINT 2 Set command selects the flow control behaviour of the serial port in both directions: AT+IFC=<by_te>, <by_ta>...
Page 46 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +ICF - DTE-Modem Character Framing SELINT 2 AT+ICF = 2,0 AT+ICF = 2,1 AT+ICF = 3 AT+ICF = 5,0 AT+ICF = 5,1 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 46 of 509 Mod.
Page 47 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 47 of 509 Mod. 0808 2011-07 Rev.2...
Page 48: Call Control
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Call Control Dial - D D – Dial SELINT 2 ATD<number>[;] Execution command starts a call to the phone number given as parameter. If “;” is present, a voice call to the given number is performed, regardless of the current value of the connection mode set by +FCLASS command.
Page 49 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 D – Dial SELINT 2 ATD><n>[;] Issues a call to phone number in entry location <n> of the active phonebook memory storage (see +CPBS). If “;” is present a voice call is performed.
Page 50: Tone Dial - T
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 D – Dial SELINT 2 ATD>6; To call the entry with alphanumeric field “Name”: ATD>”Name”; Reference V25ter. Tone Dial - T T - Tone Dial SELINT 2 Set command has no effect is included only for backward compatibility with landline modems.
Page 51: Return To On Line Mode - O
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 H – Disconnect SELINT 2 Reference V25ter. Return To On Line Mode - O O - Return To On Line Mode SELINT 2 Execution command is used to return to on-line mode from command mode. If there's no active connection it returns NO CARRIER.
Page 52: S Parameters
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.3.4. S Parameters Basic commands that begin with the letter “S” are known as “S-Parameters”. The number following the “S” indicates the “parameter number” being referenced. If the number is not recognized as a valid parameter number, an ERROR result code is issued.
Page 53: Escape Character - S2
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 S1 - Ring Counter SELINT 2 ATS1 S1 is incremented each time the device detects the ring signal of an incoming call. S1 is cleared as soon as no ring occur.
Page 54: Response Formatting Character - S4
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 S3 - Command Line Termination Character SELINT 2 Note: the format of the numbers in output is always 3 digits, left-filled with 0s Reference V25ter Response Formatting Character - S4...
Page 55: Command Line Editing Character - S5
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Command Line Editing Character - S5 S5 - Command Line Editing Character SELINT 2 Set command sets the value of the character recognized by the device as a request ATS5=[<char>]...
Page 56: Delay To Dtr Off - S25
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 S12 - Escape Prompt Delay SELINT 2 3) the minimum period, after receipt of the last character of the three escape character sequence, during which no other character has to be detected in order to accept the escape sequence as a valid one.
Page 57: 3Gpp Ts 27.007 At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4. 3GPP TS 27.007 AT Commands 4.1.4.1. General Request Manufacturer Identification - +CGMI +CGMI - Request Manufacturer Identification SELINT 2 AT+CGMI Execution command returns the device manufacturer identification code without command echo.
Page 58: Select Te Character Set - +Cscs
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Select TE Character Set - +CSCS +CSCS - Select TE Character Set SELINT 2 Set command sets the current character set used by the device. AT+CSCS= [<chset>] Parameter: <chset> - character set “GSM”...
Page 59: Multiplexing Mode - +Cmux
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Multiplexing Mode - +CMUX +CMUX - Multiplexing Mode SELINT 2 Set command is used to enable/disable the 3GPP TS 27.010 multiplexing protocol AT+CMUX=<mode> [,<subset>[,<port_spe control channel. ed>[,<N1>[,<T1>[,<N 2>[,<T2>[,<T3>[,<k> Parameters: ]]]]]]]] <mode>...
Page 60 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CEREG – EPS network registration status SELINT 2 +CEREG=[<n>] The set command controls the presentation of an unsolicited result code +CEREG: <stat> when <n>=1 and there is a change in the MT's EPS network registration status in E- UTRAN, or unsolicited result code.
Page 61: Set Mode Of Operation For Eps - +Cemode
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CEREG – EPS network registration status SELINT 2 +CEREG: (list of supported <n>s) Reference 3GPP TS 27.007 Set Mode of operation for EPS - +CEMODE +CEMODE – Set mode of operation for EPS.
Page 62 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CESQ – Extended Signal Quality SELINT 2 AT+CESQ Execution command reports received signal quality parameters in the form: +CSQ: <rxlev>,<ber>,<rscp>,<ecno>,<rsrq>,<rsrp> Where < rxlev > - received received signal strength level (see 3GPP TS 45.008 subclause 8.1.4).
Page 63 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CESQ – Extended Signal Quality SELINT 2 2-19 dB ≤ rsrq < -18.5 dB 32 - -4 dB ≤ rsrq < -3.5 dB 33 - -3.5 dB ≤ rsrq < -3 dB 34 - -3 dB ≤...
Page 64: Call Control
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4.2. Call Control Hang Up Call - +CHUP +CHUP - Hang Up Call SELINT 2 AT+CHUP Execution command cancels all active and held calls, also if a multi-party session is running.
Page 65: Radio Link Protocol - +Crlp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Radio Link Protocol - +CRLP +CRLP - Radio Link Protocol SELINT 2 Set command sets Radio Link Protocol (RLP) parameters used when non- AT+CRLP=[<iws> [,<mws>[,<T1> transparent data calls are originated [,<N2>[,<ver>]]]]]...
Page 66: Extended Error Report - +Ceer
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CR - Service Reporting Control SELINT 2 REL SYNC - synchronous non-transparent. Note: this command replaces V.25ter [14] command Modulation Reporting Control (+MR), which is not appropriate for use with a GSM terminal.
Page 67: Voice Hung Up Control - +Cvhu
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CRC - Cellular Result Codes SELINT 2 instead of the normal RING. where <type> - call type: ASYNC - asynchronous transparent data SYNC - synchronous transparent data REL ASYNC - asynchronous non-transparent data...
Page 68: Network Service Handling
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSTA – Select Type of Address SELINT 2 Test command reports the range for the parameter <type> AT+CSTA=? 4.1.4.3. Network Service Handling Subscriber Number - +CNUM +CNUM - Subscriber Number...
Page 69: Network Registration Report - +Creg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Network Registration Report - +CREG +CREG - Network Registration Report SELINT 2 Set command enables/disables network registration reports depending on the AT+CREG= [<mode>] parameter <mode>. Parameter: <mode> 0 - disable network registration unsolicited result code (factory default)
Page 70: Operator Selection - +Cops
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CREG - Network Registration Report SELINT 2 AT+CREG? Read command reports the <mode> and <stat> parameter values in the format: +CREG: <mode>,<stat>[,<Lac>,<Ci>[,<AcT>]] Note: <Lac>, and <Ci> and <AcT> are reported only if <mode>=2 and the mobile is registered on some network cell.
Page 71 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +COPS - Operator Selection SELINT 2 2 - deregister from GSM network; the MODULE is kept unregistered until a +COPS with <mode>=0, 1 or 4 is issued 3 - set only <format> parameter (the parameter <oper> will be ignored) 4 - manual/automatic (<oper>...
Page 72 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +COPS - Operator Selection SELINT 2 +COPS: [list of supported (<stat> ,<oper (in <format>=0)>,, <oper (in <format>=2)>,< AcT>)s][,,(list of supported <mode>s), (list of supported<format>s)] where <stat> - operator availability...
Page 73: Select Wireless Network - +Ws46
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Select Wireless Network - +WS46 +WS46 - PCCA STD-101 Select Wireless Network SELINT 2 Set command selects the cellular network (Wireless Data Service, WDS) to AT+WS46=[<n>] operate with the TA (WDS-Side Stack Selection).
Page 74 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CLCK - Facility Lock/Unlock SELINT 2 "AB" - All Barring services (applicable only for <mode>=0) "AG" - All outGoing barring services (applicable only for <mode>=0) (not yet supported) "AC" - All inComing barring services (applicable only for <mode>=0) "FD"...
Page 75 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 75 of 509 Mod. 0808 2011-07 Rev.2...
Page 76: Change Facility Password - +Cpwd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Change Facility Password - +CPWD +CPWD - Change Facility Password SELINT 2 Execution command changes the password for the facility lock function defined by AT+CPWD=<fac>, <oldpwd>, <newpwd> command Facility Lock +CLCK.
Page 77 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CLIP - Calling Line Identification Presentation SELINT 2 128 - both the type of number and the numbering plan are unknown 129 - unknown type of number and ISDN/Telephony numbering plan 145 - international type of number and ISDN/Telephony numbering plan (contains the character "+")
Page 78: Calling Line Identification Restriction - +Clir
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Calling Line Identification Restriction - +CLIR +CLIR - Calling Line Identification Restriction SELINT 2 Set command overrides the CLIR subscription when temporary mode is provisioned AT+CLIR=[<n>] as a default adjustment for all following outgoing calls. This adjustment can be revoked by using the opposite command.
Page 79: Connected Line Identification Presentation - +Colp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Connected line identification presentation - +COLP +COLP – Connected Line Identification Presentation SELINT 2 This command refers to the GSM/UMTS supplementary service COLP (Connected AT+COLP=[<n>] Line Identification Presentation) that enables a calling subscriber to get the connected line identity (COL) of the called party after setting up a mobile originated call.
Page 80: Connected Line Identification Restriction Status - +Colr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +COLP – Connected Line Identification Presentation SELINT 2 2 - unknown (e.g. no network is present ) Note: This command issues a status request to the network, hence it may take a few seconds to give the answer due to the time needed to exchange data with it.
Page 81: Call Forwarding Number And Conditions - +Ccfc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Call Forwarding Number And Conditions - +CCFC +CCFC - Call Forwarding Number And Condition SELINT 2 Execution command controls the call forwarding supplementary service. AT+CCFC= <reason>, Registration, erasure, activation, deactivation, and status query are supported.
Page 82: Call Waiting - +Ccwa
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CCFC - Call Forwarding Number And Condition SELINT 2 where: <status> - current status of the network service 0 - not active 1 - active <classn> - same as <class>...
Page 83 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CCWA - Call Waiting SELINT 2 where <status> represents the status of the service: 0 - inactive 1 - active <classn> - same as <class> Note: the unsolicited result code enabled by parameter <n> is in the format:: +CCWA: <number>,<type>,<class>,[<alpha>][,<cli_validity>]...
Page 84: Call Holding Services - +Chld
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Call Holding Services - +CHLD +CHLD - Call Holding Services SELINT 2 Execution command controls the network call hold service. With this service it is AT+CHLD=[<n>] possible to disconnect temporarily a call and keep it suspended while it is retained by the network, contemporary it is possible to connect another party or make a multiparty connection.
Page 85: Call Deflection - +Ctfr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Call deflection - +CTFR +CTFR – Call deflection SELINT 2 AT+CTFR=<number>[,<type>] Set command is used to request a service that causes an incoming alerting call to be forwarded to a specified number. This is based on the GSM/UMTS supplementary service CD (Call Deflection;...
Page 86: Advice Of Charge - +Caoc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CUSD - Unstructured Supplementary Service Data SELINT 2 where: <m>: 0 - no further user action required (network initiated USSD-Notify, or no further information needed after mobile initiated operation).
Page 87: List Current Calls - +Clcc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CAOC - Advice Of Charge SELINT 2 Note +CAOC command returns an estimate of the cost of the current call only, produced by the MS and based on the information provided by either AoCI or AOCC supplementary services;...
Page 88: Ss Notification - +Cssn
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CLCC - List Current Calls SELINT 2 Reference 3GPP TS 27.007 SS Notification - +CSSN +CSSN - SS Notification SELINT 2 It refers to supplementary service related network initiated notifications.
Page 89: Closed User Group - +Ccug
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Closed User Group - +CCUG +CCUG - Closed User Group Supplementary Service Control SELINT 2 Set command allows control of the Closed User Group supplementary service AT+CCUG= [<n>[,<index> [GSM 02.85].
Page 90: Selection Of Preferred Plmn List - +Cpls
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPOL - Preferred Operator List SELINT 2 <E-UTRAN_AcTn> - E-UTRAN access technology: 0 access technology not selected 1 access technology selected Note: if <index> is given but <oper> is left out, entry is deleted. If <oper>...
Page 91: Mobile Equipment Control
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4.4. Mobile Equipment Control Phone Activity Status - +CPAS +CPAS - Phone Activity Status SELINT 2 AT+CPAS Execution command reports the device status in the form: +CPAS: <pas> Where: <pas>...
Page 92: Set Phone Functionality - +Cfun
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Set Phone functionality - +CFUN +CFUN - Set Phone Functionality SELINT 2 Set command selects the level of functionality in the ME. AT+CFUN= [<fun>[,<rst>]] Parameters: <fun> - is the power saving function mode 0 - minimum functionality, NON-CYCLIC SLEEP mode: in this mode, the AT interface is not accessible.
Page 93: Enter Pin - +Cpin
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CFUN - Set Phone Functionality SELINT 2 power save, then the module will wake up and proceed normally with the unsolicited incoming call code Note: when the module detects USB port is connected, then the power saving mode...
Page 94 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPIN - Enter PIN SELINT 2 SIM PUK2 - ME is waiting SIM PUK2 to be given; this <code> is returned only when the last executed command resulted in PUK2 authentication failure (i.e.
Page 95: Signal Quality - +Csq
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Signal Quality - +CSQ +CSQ - Signal Quality SELINT 2 Execution command reports received signal quality indicators in the form: AT+CSQ +CSQ: <rssi>,<ber> where <rssi> - received signal strength indication...
Page 96: Extended Signal Quality - +Cesq
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSQ - Signal Quality SELINT 2 66...91 AT+CSQ=? Test command returns the supported range of values of the parameters <rssi> and <ber>. Note: although +CSQ is an execution command without parameters, ETSI 07.07 requires the Test command to be defined.
Page 97: Indicator Control - +Cind
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CESQ – Extended Signal Quality SELINT 2 0 - Ec/Io < -24 dB 1 - -24 dB ≤ Ec/Io < -23.5 dB 2 - -23.5 dB ≤ Ec/Io < -23 dB 47 - -1 dB ≤...
Page 98 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CIND - Indicator Control SELINT 2 Parameter: <state> - registration state 0 - the indicator is deregistered; there’s no unsolicited result code (+CIEV URC) automatically sent by the ME to the application, whenever the value of the associated indicator changes;...
Page 99: Mobile Equipment Event Reporting - +Cmer
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CIND - Indicator Control SELINT 2 “roam” - roaming <ind> - roaming indicator range 0 - registered to home network or not registered 1 - registered to other network “smsfull”...
Page 100: Select Phonebook Memory Storage - +Cpbs
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMER - Mobile Equipment Event Reporting SELINT 2 <keyp> - keypad event reporting 0 - no keypad event reporting <disp> - display event reporting 0 - no display event reporting <ind>...
Page 101: Read Phonebook Entries - +Cpbr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPBS - Select Phonebook Memory Storage SELINT 2 <storage> "SM" - SIM phonebook "FD" - SIM fixed dialing-phonebook (FDN)(only phase 2/2+ SIM) "LD" - SIM last-dialing-phonebook (+CPBF is not applicable for this storage) "MC"...
Page 102 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPBR - Read Phonebook Entries SELINT 2 AT+CPBR= Execution command returns phonebook entries in location number range <index1> <index1>..<index2> from the current phonebook memory storage selected with [,<index2>] +CPBS. If <index2> is omitted, only location <index1> is returned.
Page 103: Find Phonebook Entries - +Cpbf
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPBR - Read Phonebook Entries SELINT 2 Note: if “MC” is the currently selected phonebook memory storage, a sequence of missed calls coming from the same number will be saved as one missed call and +CPBR will show just one line of information.
Page 104 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPBF - Find Phonebook Entries SELINT 2 The command returns a report in the form: [+CPBF: <index1>,<number>,<type>,<text>[,<hidden>][,<group>][,<adnumber>][,<adty pe>][,<secondtext>][,<email>]<CR><LF> +CPBF: <index2>,<number>,<type>,<text>[,<hidden>][,<group>][,<adnumber>][,<adty pe>][,<secondtext>][,<email>][…]]] where: <indexn> - the location number of the phonebook entry <number>...
Page 105 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPBF - Find Phonebook Entries SELINT 2 +CPBF: <nlength>,<tlength>,<glength>,<slength>,<elen gth> where: <nlength> - maximum length of field <number>, integer type <tlength> - maximum length of field <text>, integer type <glength>: integer type value indicating the maximum length of field <group>...
Page 106: Write Phonebook Entry - +Cpbw
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Write Phonebook Entry - +CPBW +CPBW - Write Phonebook Entry SELINT 2 Execution command writes phonebook entry in location number <index> in the AT+CPBW= [<index>] current phonebook memory storage selected with +CPBS.
Page 107 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPBW - Write Phonebook Entry SELINT 2 Note: before defining <group> string, it is recommended to check, with #CPBGR command, the predefined group names, that could be already stored in USIM in Grouping information Alpha String (GAS) file.
Page 108: Clock Management - +Cclk
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Clock Management - +CCLK +CCLK - Clock Management SELINT 2 Set command sets the real-time clock of the ME. AT+CCLK=<time> Parameter: <time> - current time as quoted string in the format: "yy/MM/dd,hh:mm:ss±zz"...
Page 109: Alarm Management - +Cala
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Alarm Management - +CALA +CALA - Alarm Management SELINT 2 Set command stores in the internal Real Time Clock an alarm time with respective AT+CALA= <time>[,<n>[,<type> settings. It is possible to set up a recurrent alarm for one or more days in the week.
Page 110: Delete Alarm - +Cald
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CALA - Alarm Management SELINT 2 in this state until a #WAKE or #SHDN command is received or a 90 seconds timer expires. If the device is in "alarm mode" and it does not receive the #WAKE command within 90s then it shuts down.
Page 111: Postpone Alarm - +Capd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CALD - Delete Alarm SELINT 2 AT+CALD=<n> Execution command deletes an alarm in the ME Parameter: <n> - alarm index Test command reports the range of supported values for <n> parameter.
Page 112: Setting Time Format - +Cstf
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <auxmode>: 1 yy/MM/dd (default) 2 yyyy/MM/dd Note: The <time> format of +CCLK and +CALA is "yy/MM/dd,hh:mm:ss+zz" when <auxmode>=1 and it is "yyyy/MM/dd,hh:mm:ss+zz" when <auxmode>=2. Read command reports the currently selected <mode> and <auxmode> in...
Page 113: Time Zone Reporting - +Ctzr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Time Zone reporting - +CTZR +CTZR – Time Zone reporting SELINT 2 AT+CTZR=<onoff> This command enables and disables the time zone change event reporting. If the reporting is enabled the MT returns the unsolicited result code +CTZV: <tz>...
Page 114: Restricted Sim Access - +Crsm
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Restricted SIM Access - +CRSM +CRSM - Restricted SIM Access SELINT 2 AT+CRSM= Execution command transmits to the ME the SIM <command> and its required <command> parameters. ME handles internally all SIM-ME interface locking and file selection routines.
Page 115: Generic Sim Access - +Csim
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Generic SIM access - +CSIM +CSIM – Generic SIM access SELINT 2 AT+CSIM=<lock> Between two successive +CSIM command the SIM-ME interface must be locked to avoid commands can modify wrong SIM file. The locking and unlocking of the SIM-ME interface must be done explicitly respectively at the beginning and at the end of the +CSIM commands sequence.
Page 116 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSIM – Generic SIM access SELINT 2 AT+CSIM=? Test command returns the OK result code. Lock SIM interface Example AT+CSIM=1 2G SIM (TS 11.11): AT#ENAUSIM? +ENAUSIM: 0 STATUS AT+CSIM=10,A0F2000016 +CSIM:48,”000002A87F20020000000000099300220800838A838A9000”...
Page 117 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSIM – Generic SIM access SELINT 2 FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000” 3G UICC (3G TS 31.101): AT#ENAUSIM? +ENAUSIM: 1 STATUS AT+CSIM=10,A0F2000016 +CME ERROR: operation not supported STATUS AT+CSIM=10,80F2000016 +CSIM:48,"623F8202782183027FF08410A0000000871002FFFFFF9000"...
Page 118: Alert Sound Mode - +Calm
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSIM – Generic SIM access SELINT 2 READ BINARY AT+CSIM=10,00B0000069 +CSIM:214,"02F81012F47022F83082F63082F64022F60192F31412F60313006 132F40102F20162 F21032F23002F60182F41012F91042F41902F46102F40242F22092F52072F22 062F03062F86032F0 1032F11042F01032F80217F60127F42027F43027F44027F24337F62037F0209 000" Unlock SIM interface AT+CSIM=0 Note After the locking of the SIM-ME interface (AT+CSIM=1) the SIM will be accessible only by AT+CSIM commands (#QSS: 0).
Page 119: Ringer Sound Level - +Crsl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CALM - Alert Sound Mode SELINT 2 Reference 3GPP TS 27.007 Ringer Sound Level - +CRSL +CRSL - Ringer Sound Level SELINT 2 Set command is used to select the incoming call ringer sound level of the device.
Page 120: Loudspeaker Volume Level - +Clvl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Loudspeaker Volume Level - +CLVL +CLVL - Loudspeaker Volume Level SELINT 2 Set command is used to select the volume of the internal loudspeaker audio output AT+CLVL=<level> of the device.
Page 121: Silence Command - +Csil
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Silence command - +CSIL +CSIL – silence command SELINT 2 AT+CSIL=[<mode>] This command enables/disables the silent mode. When the phone is in silent mode, all signalling tones from MT are suppressed.
Page 122: Accumulated Call Meter Maximum - +Camm
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Accumulated Call Meter Maximum - +CAMM +CAMM - Accumulated Call Meter Maximum SELINT 2 Set command sets the Advice of Charge related Accumulated Call Meter Maximum AT+CAMM= [<acmmax> Value stored in SIM (ACMmax). This value represents the maximum number of [,<pwd>]]...
Page 123: Call Meter Maximum Event - +Ccwe
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPUC - Price Per Unit And Currency Table SELINT 2 AT+CPUC=? Test command returns the OK result code Reference 3GPP TS 27.007 Call meter maximum event - +CCWE +CCWE – Call Meter maximum event SELINT 2 AT+CCWE=<mode>...
Page 124: Available At Commands - +Clac
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSVM – Set Voice Mail Number SELINT 2 145 - international type of number and ISDN/Telephony numbering plan (contains the character "+") Note: Set command is dummy. It only checks for parameters values validity;...
Page 125: Mobile Equipment Errors
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4.5. Mobile Equipment Errors Report Mobile Equipment Error - +CMEE +CMEE - Report Mobile Equipment Error SELINT 2 AT+CMEE=[<n>] Set command enables/disables the report of result code: +CME ERROR: <err>...
Page 126: Voice Control
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4.6. Voice Control DTMF Tones Transmission - +VTS +VTS - DTMF Tones Transmission SELINT 2 AT+VTS= Execution command allows the transmission of DTMF tones. <dtmfstring> [,duration] Parameters: <dtmfstring> - string of <dtmf>s, i.e. ASCII characters in the set (0-9), #,*,(A-D),P;...
Page 127: Tone Duration - +Vtd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Tone Duration - +VTD +VTD - Tone Duration SELINT 2 Set command sets the length of tones transmitted with +VTS command. AT+VTD= <duration> Parameter: <duration> - duration of a tone 0 - the duration of every single tone is dependent on the network (factory default) 1..255 - duration of every single tone in 1/10 sec.
Page 128: Commands For Gprs
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.4.7. Commands For GPRS GPRS Mobile Station Class - +CGCLASS +CGCLASS - GPRS mobile station class SELINT 2 AT+CGCLASS= Set command sets the GPRS class according to <class> parameter.
Page 129: Gprs Event Reporting - +Cgerep
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 GPRS Event Reporting - +CGEREP +CGEREP - GPRS Event Reporting SELINT 2 Set command enables or disables sending of unsolicited result codes +CGEV: AT+CGEREP= [<mode>[,<bfr>]] XXX (see below) from TA to TE in the case of certain events occurring in the TA or the network.
Page 130: Network Registration Status - +Cgreg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGEREP - GPRS Event Reporting SELINT 2 +CGEV: ME DETACH The mobile equipment has forced a GPRS detach. This implies that all active contexts have been deactivated. These are not reported separately +CGEV: ME CLASS <class>...
Page 131: Define Pdp Context - +Cgdcont
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGREG - GPRS Network Registration Status SELINT 2 where: <stat> - registration status (see above for values) <lac> - location area code in hexadecimal format (e.g. "00C3" equals 195 in decimal) <ci>...
Page 132 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGDCONT - Define PDP Context SELINT 2 M_CN_Signalling_Fl "IPV4V6" - Virtual <PDP_type> introduced to handle dual IP stack UE ag_Ind>]]]]]]]]]] capability <APN> - (Access Point Name) a string parameter which is a logical name that is used to select the GGSN or the external packet data network.
Page 133: Pdp Context Read Dynamic Parameters - +Cgdcontrdp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGDCONT - Define PDP Context SELINT 2 Note: a special form of the Set command, +CGDCONT=<cid>, causes the values for context number <cid> to become undefined. Note: parameters from <IPv4AddrAlloc> to <IM_CN_Signalling_Flag_Ind>...
Page 134 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGCONTRDP - PDP Context Read Dynamic Parameters sec_addr>]]]]]] […]] Description The execution command returns the relevant information <bearer_id>, <apn>, <ip_addr>, <subnet_mask>, <gw_addr>, <DNS_prim_addr>, <DNS_sec_addr>, <P-CSCF_prim_addr> and <P-CSCF_sec_addr> for a non- secondary PDP Context established by the network with the primary context identifier <p_cid>.
Page 135 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGCONTRDP - PDP Context Read Dynamic Parameters numeric (0-255) parameters. <DNS_prim_addr>: a string parameter which shows the IP Address of the primary DNS Server. <DNS_sec_addr>: a string parameter which shows the IP address of the secondary DNS Server.
Page 136: Quality Of Service Profile - +Cgqmin
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Quality Of Service Profile - +CGQMIN +CGQMIN - Quality Of Service Profile (Minimum Acceptable) SELINT 2 Set command allows to specify a minimum acceptable profile which is checked by AT+CGQMIN= [<cid>...
Page 137: Quality Of Service Profile - +Cgqreq
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Quality Of Service Profile - +CGQREQ +CGQREQ - Quality Of Service Profile (Requested) SELINT 2 Set command allows to specify a Quality of Service Profile that is used when the AT+CGQREQ= [<cid>...
Page 138: Quality Of Service Profile (Requested) - +Cgeqreq
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 3G Quality Of Service Profile (Requested) - +CGEQREQ +CGEQREQ – 3G Quality Of Service Profile (Requested) SELINT 2 Set command allows to specify a 3G quality of service profile for the AT+CGEQREQ= context identified by the(local) context identification parameter <cid>...
Page 139 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 8700…16000 <Delivery order> - SDU Delivery order 0 - no 1 – yes 2 – subscribed value (default value) <Maximum SDU size> - Maximum SDU size in octets 0 - subscribed value (default value) 10…1500...
Page 140 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 200…950 1000…4000 <Traffic handling priority > - Traffic handling priority 0 - subscribed value (default value) 1…3 <Source Statistics Descriptor> - Characteristics of the source of the submitted SDUs for a PDP context. This parameter should be provided if the <Traffic class>...
Page 141: Parameter Command Syntax - +Cgeqos
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 supported<SDU error ratio>s),(list of supported<Residual bit error ratio>s),(list of supported <Delivery of erroneous SDUs>s),(list of supported <Transfer delay>s),(list of supported <Traffic handling priority>s), (list of supported <Source statistics descriptor>s), (list of supported <Signalling indication>s)
Page 142: Parameter Command Syntax - +Cgeqosrdp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGEQOS - parameter command syntax [<DL_MBR>,<UL_MBR>] [<CR>>LF>+CGEQOS: <cid>, <QCI>, [<DL_GBR>,<UL_GBR>], [<DL_MBR>,<UL_MBR>] […]] The test command returns the ranges of the supported parameters. +CGEQOS=? +CGEQOS: (range of supported <cid>s) ,(list of supported <QCI>s) ,(list of supported <DL_GBR>s),...
Page 143: Quality Of Service Profile (Minimum Acceptable) - +Cgeqmin
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGEQOSRDP - parameter command syntax <DL_MBR>: a numeric parameter which indicates DL MBR in case of GBR QCI. The value is in kbit/s. This parameter is omitted for a non-GBR QCI. (see 3GPP TS 24.301 [83]) <UL_MBR>: a numeric parameter which indicates UL MBR in case of GBR...
Page 144 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <Guaranteed bitrate DL> - the guaranteed bitrate down link(kbits/s) 0 (default value) 1…42200 ( not yet supported by Intel) <Delivery order> - SDU Delivery order 0 - no (for default value) 1 –...
Page 145 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 0 (default value) 10…4000 <Traffic handling priority > - Traffic handling priority 1…3 <Source Statistics Descriptor> - Characteristics of the source of the submitted SDUs for a PDP context. This parameter should be provided if the <Traffic class>...
Page 146: Pdp Context Activate Or Deactivate - +Cgact
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 1 - streaming 2 - interactive 3 – background <Traffic handling priority > - Traffic handling priority 0 (default value as undefined) 1…3 If no PDP context has been defined, it has no effect and OK result code is returned.
Page 147: Quality Of Service Profile (Negotiated) - +Cgeqneg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGACT - PDP Context Activate Or Deactivate SELINT 2 Note: if no <cid>s are specified, the activation form of the command activates the first three defined contexts. The deactivation form deactivates all the active contexts.
Page 148: Pdp Context - +Cgact
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 PDP Context - +CGACT +CGACT - PDP Context Activate Or Deactivate SELINT 2 Execution command is used to activate or deactivate the specified PDP context(s) AT+CGACT= [<state>[,<cid> [,<cid>[,…]]]] Parameters: <state>...
Page 149: Show Pdp Address - +Cgpaddr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Show PDP Address - +CGPADDR +CGPADDR - Show PDP Address SELINT 2 Execution command returns a list of PDP addresses for the specified context AT+CGPADDR= [<cid>[,<cid> identifiers in the format: [,…]]]...
Page 150: Modify Pdp Context - +Cgcmod
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Modify PDP context - +CGCMOD +CGCMOD – Modify PDP context SELINT 2 AT+CGCMOD=[<cid1> The execution command is used to modify the specified PDP context(s) [,<cid2>[,…,<cidN>]]] with respect to QoS profiles.
Page 151 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CGPIAF - Printing IP Address Format 1 – Use zero compression. AT+CGPIAF? Read command returns the current parameter setting. AT+CGPIAF=? Test command returns values supported as compound parameter setting.
Page 152: Commands For Battery Charger
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Commands for Battery Charger Battery Charge - +CBC + CBC - Battery Charge SELINT 2 Execution command returns the current Battery Charge status in the format: AT+CBC +CBC: <bcs>,<bcl>...
Page 153: 3Gpp Ts 27.005 At Commands For Sms And Cbs
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.5. 3GPP TS 27.005 AT Commands for SMS and CBS 4.1.5.1. General Configuration Select Message Service - +CSMS +CSMS - Select Message Service SELINT 2 Set command selects messaging service <service>. It returns the types of messages AT+CSMS= <service>...
Page 154: Preferred Message Storage - +Cpms
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Preferred Message Storage - +CPMS +CPMS - Preferred Message Storage SELINT 2 Set command selects memory storages <memr>, <memw> and <mems> to be AT+CPMS= <memr> used for reading, writing, sending and storing SMs.
Page 155: Message Format - +Cmgf
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CPMS - Preferred Message Storage SELINT 2 AT+CPMS="ME" +CPMS: "ME",15,100,"ME",15,100,"ME",15,100 (change memory to ME where there are 15 SMS positions occupied) Reference 3GPP TS 27.005 Message Format - +CMGF...
Page 156 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSCA -Service Center Address SELINT 2 Note: in Text mode, this setting is used by send and write commands; in PDU mode, setting is used by the same commands, but only when the length of the SMSC address coded into the <pdu>...
Page 157: Set Text Mode Parameters - +Csmp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Set Text Mode Parameters - +CSMP +CSMP - Set Text Mode Parameters SELINT 2 Set command is used to select values for additional parameters for storing and AT+CSMP= [<fo>...
Page 158 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSMP - Set Text Mode Parameters SELINT 2 d) if <fo> asks for a Validity Period in enhanced format, <vp> shall be the quoted hexadecimal representation (string type) of 7 octets, as follows: •...
Page 159: Show Text Mode Parameters - +Csdh
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSMP - Set Text Mode Parameters SELINT 2 Example Set the parameters for an outgoing message with 24 hours of validity period and default properties: AT+CSMP=17,167,0,0 Set the parameters for an outgoing message with validity period in enhanced format: the <vp>...
Page 160: Select Cell Broadcast - +Cscb
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Select Cell Broadcast - +CSCB +CSCB -Select Cell Broadcast Message Types SELINT 2 AT+CSCB= Set command selects which types of Cell Broadcast Messages are to be received by [<mode>[,<mids>...
Page 161: Save Settings - +Csas
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Save Settings - +CSAS +CSAS - Save Settings SELINT 2 Execution command saves settings which have been made by the +CSCA, +CSMP AT+CSAS [=<profile>] and +CSCB commands in local non volatile memory.
Page 162 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMMS – More Message to Send SELINT 2 AT+CMMS=[<n>] Set command controls the continuity of SMS relay protocol link. When feature is enabled (and supported by network) multiple messages can be sent much faster as link is kept open.
Page 163: Message Receiving And Reading
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.5.3. Message Receiving And Reading New Message Indications - +CNMI +CNMI - New Message Indications To Terminal Equipment SELINT 2 AT+CNMI=[ Set command selects the behaviour of the device on how the receiving of new <mode>[,<mt>...
Page 164 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CNMI - New Message Indications To Terminal Equipment SELINT 2 <oa> - originating address, string type converted in the currently selected character set (see +CSCS) <alpha> - alphanumeric representation of <oa>; used character set should be the one selected with command +CSCS.
Page 165 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CNMI - New Message Indications To Terminal Equipment SELINT 2 <dcs> - Data Coding Scheme <pag> - page number <pags> - total number of pages of the message <data> - CBM Content of Message •...
Page 166 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CNMI - New Message Indications To Terminal Equipment SELINT 2 1 - TA buffer of unsolicited result codes defined within this command is cleared when <mode>=1..3 is entered. AT+CNMI?
Page 167 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CNMI - New Message Indications To Terminal Equipment SELINT 2 Store in Store in Store in Store in Store in <mems> - <mems> - <mems> - <mems> - SIM - Send...
Page 168: New Message Acknowledgement - +Cnma
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 New message acknowledgement - +CNMA +CNMA – New Message Acknowledgement Execution command confirms correct reception of a new message (SMS-DELIVER AT+CNMA or SMS-STATUS-REPORT) which is routed directly to the TE.
Page 169 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CNMA – New Message Acknowledgement 2 - It has been necessary to take the following decision to get over any incoherence problem, due to the possibility to have contemporaneous different settings of parameter <mt>...
Page 170: List Messages - +Cmgl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CNMA – New Message Acknowledgement AT+CNMI=2,2,0,0,0 Message is received from network. +CMT: "+821020955219",,"07/07/26,20:09:07+36" TEST MESSAGE Send positive acknowledgement to the network. AT+CNMA Reference 3GPP TS 27.005 List Messages - +CMGL...
Page 171 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGL - List Messages SELINT 2 (Text Mode) Parameter: <stat> "REC UNREAD" - new message "REC READ" - read message "STO UNSENT" - stored message not yet sent "STO SENT" - stored message already sent "ALL"...
Page 172: Read Message - +Cmgr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGL - List Messages SELINT 2 +CMGL: <index>,<stat>,<fo>,<mr>,<ra>,<tora>,<scts>,<dt>,<st> [<CR><LF> +CMGL: <index>,<stat>,<fo>,<mr>,<ra>,<tora>,<scts>,<dt>,<st> [...]] where <index> - message position in the storage <stat> - message status <fo> - first octet of the message PDU <mr>...
Page 173 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGR - Read Message SELINT 2 <stat> - status of the message 0 - new message 1 - read message 2 - stored message not yet sent 3 - stored message already sent <alpha>...
Page 174 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGR - Read Message SELINT 2 a) Not Present if <fo> tells that the Validity Period Format is Not Present b) Integer type if <fo> tells that the Validity Period Format is Relative c) Quoted time-string type if <fo>...
Page 175: Message Sending And Writing
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.5.4. Message Sending And Writing Send Message - +CMGS +CMGS - Send Message SELINT 2 (PDU Mode) (PDU Mode) AT+CMGS= Execution command sends to the network a message. <length>...
Page 176 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGS - Send Message SELINT 2 (Text Mode) (Text Mode) AT+CMGS=<da> Execution command sends to the network a message. [,<toda>] Parameters: <da> - destination address, string type represented in the currently selected character set (see +CSCS).
Page 177: Send Message From Storage - +Cmss
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGS - Send Message SELINT 2 Note: if message sending fails for some reason, an error code is reported. Note: care must be taken to ensure that during the command execution, which may take several seconds, no other SIM interacting commands are issued.
Page 178: Write Message To Memory - +Cmgw
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMSS - Send Message From Storage SELINT 2 Note To avoid malfunctions is suggested to wait for the +CMSS: <mr> or +CMS ERROR: <err> response before issuing further commands.
Page 179 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGW - Write Message To Memory SELINT 2 (Text Mode) (Text Mode) AT+CMGW[=<da> Execution command writes in the <memw> memory storage a new message. [,<toda> [,<stat>]]] Parameters: <da> - destination address, string type represented in the currently selected character set (see +CSCS).
Page 180: Delete Message - +Cmgd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGW - Write Message To Memory SELINT 2 If message is successfully written in the memory, then the result is sent in the format: +CMGW: <index> where: <index> - message location index in the memory <memw>.
Page 181: Select Service For Mo Sms Messages - +Cgsms
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGD - Delete Message SELINT 2 1 - delete all read messages from <memr> storage, leaving unread messages and stored mobile originated messages (whether sent or not) untouched 2 - delete all read messages from <memr> storage and sent mobile originated...
Page 182: Message Sending And Writing (3Gpp2 Mode)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.5.5. Message Sending And Writing (3GPP2 mode) The commands in this section are valid only if #SMSFORMAT is set to 1. Send Message - +CMGS +CMGS - Send Message...
Page 183 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGS - Send Message SELINT 2 62626262626262626262626262626262626262626262 <user_data: bbbbbbbbbbbbbbbbbbbbbb> AT+CMGS=31 > 07801091346554F307801091346554F31002020212C3870E1C3870E1C387162C5 8B162C58B1620 +CMGS: 3 07 <addr_len: 7byte> 80 <type_addr: 128> 1091346554F3 <destination_address:01194356453> 07 <addr_len: 7byte> 80 <type_addr: 128>...
Page 184: Send Message From Storage - +Cmss
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CMGS - Send Message SELINT 2 > Test SMS +CMGS: 1 AT+CMGS=? Test command returns the OK result code. Note To avoid malfunctions is suggested to wait for the +CMGS: <mr> or +CMS ERROR: <err>...
Page 185: Save Settings - +Csas
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSMP - Set Text Mode Parameters SELINT 2 <tele_id>- Teleservice ID 4097 - page 4098 - SMS message (factory default) <priority> - Priority Note: The priority is different with every carrier.
Page 186: Restore Settings - +Cres
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 +CSAS - Save Settings SELINT 2 Note: If parameter is omitted the settings are saved to profile 0 in the non-volatile memory. AT+CSAS=? Test command returns the possible range of values for the parameter <profile>.
Page 187: Usb Configuration - #Usbcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 USB configuration - #USBCFG #USBCFG- USB Configuration SELINT 2 AT#USBCFG=<mode> Set command specify USB configuration on the modem device. New configuration mode applied at the next boot up time.
Page 188: Connect Physical Ports To Service Access Points - #Portcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 0x1BC7 0x0021 0x1BC7 0x0023 0x1BC7 0x0024 0x1BC7 0x0025 AT#USBCFG? Read command shows the current <mode> in the following format #USBCFG: <mode> AT#USBCFG=? Test command returns the list of supported values.
Page 189: Data Link - #Dlink
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Data Link - #DLINK #DLINK – Data Link SELINT 2 AT#DLINK=<act>,<urc_mod Set command establishes or terminates data link channel between e> the Telit Mobile (USB5) and the first logic cmux channel DLCI_1.
Page 190: Network Selection Menu Availability - +Pacsp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 DLCI_2 connected to AT parser Telit Mobile (USB3) connected to AT parser Telit Mobile (USB4) connected to AT parser AT#DLINK? Read command reports <status> and <urc_mode> parameter values in the following format: #DLINK: <status>,<urc_mode>...
Page 191: Product Serial Number Identification - #Cgsn
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Product Serial Number Identification - #CGSN #CGSN - Product Serial Number Identification SELINT 2 AT#CGSN Execution command returns the product serial number, identified as the IMEI of the mobile, with command echo.
Page 192: International Mobile Subscriber Identity (Imsi) - #Cimi
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 International Mobile Subscriber Identity (IMSI) - #CIMI #CIMI - International Mobile Subscriber Identity (IMSI) SELINT 2 Execution command returns the international mobile subscriber identity, identified AT#CIMI as the IMSI number, with command echo.
Page 193 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CEER – Extended numeric error report SELINT 2 Normal call clearing User busy No user responding User alerting, no answer Call rejected Number changed Non selected user clearing Destination out of order...
Page 194 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CEER – Extended numeric error report SELINT 2 Interworking, unspecified GPRS related errors MS requested detach NWK requested detach Unsuccessful attach cause NO SERVICE Unsuccessful attach cause NO ACCESS...
Page 195: Extended Error Report For Network Reject Cause - #Ceernet
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended error report for Network Reject cause - #CEERNET #CEERNET – Ext error report for Network reject cause SELINT 2 AT#CEERNET Execution command causes the TA to return a numeric code in the format #CEERNET: <code>...
Page 196: Display Pin Counter - #Pct
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CEERNET – Ext error report for Network reject cause SELINT 2 FEATURE NOT SUPPORTED(SM cause failure) SEMANTIC ERROR IN TFT OPERATION SYNTACTICAL ERROR IN TFT OPERATION UNKNOWN PDP CNTXT...
Page 197: Software Shut Down - #Shdn
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Software Shut Down - #SHDN #SHDN - Software Shutdown SELINT 2 Execution command causes device detach from the network and shut down. AT#SHDN Before definitive shut down an OK response is returned.
Page 198: Wake From Alarm Mode - #Wake
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #ENHRST – Periodic ReseT SELINT 2 AT#ENHRST? Read command reports the current parameter settings for # EHNRST command in the format: # EHNRST: < mod >[,<delay>,<remainTime>] <remainTime> - time remaining before next reset AT#ENHRST=? Test command reports supported range of values for parameters <mod>...
Page 199: Temperature Monitor - #Tempmon
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #WAKE - Wake From Alarm Mode SELINT 2 Note: if #WAKE=0 command is issued after an alarm has been set with +CALA command, but before the alarm has expired, it will answer OK but have no effect.
Page 200 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 1 - it enables the presentation of the temperature monitor URC, whenever the module internal temperature reaches either operating or extreme levels; the unsolicited message is in the format: #TEMPMEAS: <level>,<value>...
Page 201: Temperature Monitor Configuration - #Tempcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #TEMPMON: <urcmode>,<action>[,<hyst_time>[,<GPIO>]] Test command reports the supported range of values for parameters <mod>, AT#TEMPMON=? <urcmode>, <action>, <hyst_time> and <GPIO> The following table is describing the temperature levels. Note Extreme Temperature Lower Bound -30°C...
Page 202: General Purpose Input/Output Pin Control - #Gpio
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Note 4: the extreme temperature upper limit must be bigger than the operating temperature upper limit Note 5: The extreme temperature upper limit must be lower than its upper limit (see TEMPMON for temperature limits).
Page 203 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #GPIO - General Purpose Input/Output Pin Control SELINT 2 Not all configurations for the three parameters are valid. Parameters: <pin> - GPIO pin number; supported range is from 1 to a value that depends on the hardware.
Page 204 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #GPIO - General Purpose Input/Output Pin Control SELINT 2 logic value present in output of the pin GPIO<pin> in the case the pin <dir> is currently set to output;...
Page 205: Stat_Led Gpio Setting - #Sled
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 STAT_LED GPIO Setting - #SLED #SLED - STAT_LED GPIO Setting SELINT 2 Set command sets the behaviour of the STAT_LED GPIO AT#SLED=<mode> [,<on_duration> [,<off_duration>]] Parameters: <mode> - defines how the STAT_LED GPIO is handled...
Page 206: Save Stat_Led Gpio Setting - #Sledsav
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Save STAT_LED GPIO Setting - #SLEDSAV #SLEDSAV - Save STAT_LED GPIO Setting SELINT 2 Execution command saves STAT_LED setting in NVM. AT#SLEDSAV Test command returns OK result code. AT#SLED=?
Page 207 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 8 – MT SMS has been received (same as AT#E2SMSRI=<duration>) 10 – +CREG will change status 20 – +CGREG will change status 40 – #QSS become 2 (SIM INSERTED and PIN UNLOCKED) 80 –...
Page 208: Read Analog/Digital Converter Input - #Adc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Read Analog/Digital Converter input - #ADC #ADC - Read Analog/Digital Converter input SELINT 2 Execution command reads pin<adc> voltage, converted by ADC, and outputs it in AT#ADC= [<adc>,<mode> the format: [,<dir>]]...
Page 209: V24 Output Pins Control - #V24
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #V24CFG - V24 Output Pins Configuration SELINT 2 1 – GPIO mode: the V24 output pins can be managed through the AT#V24 command <save> - Save V24 pin configuration: 0 –...
Page 210: Battery And Charger Status - #Cbc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #V24 - V24 Output Pins Control SELINT 2 0 - Low 1 - High Note: if <state> is omitted the command returns the actual state of the pin <pin>.
Page 211: Cell Monitor - #Moni
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #AUTOATT - Auto-Attach Property SELINT 2 Parameter: <auto> 0 - disables GPRS auto-attach property 1 - enables GPRS auto-attach property (factory default): after the command #AUTOATT=1 has been issued (and at every following startup) the terminal will automatically try to attach to the GPRS service.
Page 212 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 0 – it is the serving cell 1 – it is the intra-frequency cells 2 – it is the inter-frequency cells 3 – it is the WCDMA neighbour cells 4 –...
Page 213 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 #MONI: RSRP:<rsrp> RSRQ:<rsrq> Id:<id> EARFCN:<earfcn> PWR:<dBm> (LTE WCDMA neighbour cells) #MONI: PSC:<psc> RSCP:<rscp> EcIo:<ecio> UARFCN:<uarfcn> SCR:<scr> (LTE GSM neighbour cells) #MONI: Adj Cell<n> BSIC:<bsic> ARFCN:<arfcn> PWR:<dBm>...
Page 214 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 Second row reports a complete set of GSM-related information for the serving cell: #MONI: S: <bsic> <lac> <id> <arfcn> <dBm> <C1value> <C2value> <ti madv>...
Page 215 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 Execution command reports GSM-related information for cell 0 at#moni #MONI: I WIND BSIC:70 RxQual:0 LAC:55FA Id:1D23 ARFCN:736 PWR:-83dbm TA:1 Set command selects the cell 0 in UMTS network...
Page 216 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 0..6 - it is the ordinal number of the cell, in the neighbour list of the serving cell (default 0, serving cell). 7 - it is a special request to obtain GSM-related information from the whole set of seven cells in the neighbour list of the serving cell.
Page 217 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 #MONI: Adj Cell<n> [LAC:<lac> Id:<id>] ARFCN:<arfcn> PWR:<dBm> dBm (UMTS network) #MONI: PSC:<psc> RSCP:<rscp> EcIo:<ecio> UARFCN:<uarfcn> SCR:<scr> where: <netname> - name of network operator <cc>...
Page 218 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 to 8 rows report a reduced set of GSM-related information for the cells in the neighbours: #MONI: N<n> <bsic> <lac> <id> <arfcn> <dBm> <C1value> <C2value>[ <CR><LF>]...
Page 219: Compressed Cell Monitor - #Monizip
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONI - Cell Monitor SELINT 2 at#moni=0 Execution command reports UMTS-related information for serving cell and active cell at#moni #MONI: I TIM PSC:65535 RSCP:255 LAC:EF8D Id:52D2388 EcIo:255 UARFCN:65535 PWR:0dbm DRX:128 SCR:0 #MONI: PSC:49 RSCP:-96 EcIo:-2.0 UARFCN:10638 SCR:784...
Page 220 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONIZIP – Compressed Cell Monitor SELINT 2 0..6 - it is the ordinal number of the cell, in a the neighbour list of the serving cell (default 0, serving cell).
Page 221 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONIZIP – Compressed Cell Monitor SELINT 2 h) When extracting data for an adjacent cell (or active set cell), the format is: (GSM network) #MONIZIP: <lac>,<id>,<arfcn>,<dBm> (UMTS network) #MONIZIP: <psc>,<rscp>,<ecio>,<uarfcn>,<scr>...
Page 222 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MONIZIP – Compressed Cell Monitor SELINT 2 2. If the last setting done by #MONIZIP is 7, the execution command produces a table-like formatted output, as follows: (GSM network)
Page 223: Serving Cell Information - #Servinfo
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Serving Cell Information - #SERVINFO #SERVINFO - Serving Cell Information SELINT 2 Execution command reports information about serving cell, in the format: AT#SERVINFO (GSM network) #SERVINFO: <B-ARFCN>,<dBM>,<NetNameAsc>,<NetCode>, <BSIC>,<LAC>,<TA>,<GPRS>[,[<PB-ARFCN>],[<NOM>], <RAC>,[<PAT>]] (UMTS network) #SERVINFO: <UARFCN>, <dBM>, <NetNameAsc>,<NetCode>,...
Page 224 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SERVINFO - Serving Cell Information SELINT 2 <UARFCN> - UMTS ARFCN of the serving cell <PSC> - Primary Synchronisation Code <DRX> - Discontinuous reception cycle length <SD> - Service Domain 0 –...
Page 225 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SERVINFO - Serving Cell Information SELINT 2 <PB-ARFCN> - • if PBCCH is supported by the cell o if its content is the PBCCH ARFCN of the serving cell, then <PB-ARFCN>...
Page 226: Read Current Network Status - #Rfsts
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Read current network status - #RFSTS #RFSTS – Read current network status SELINT 2 Execution command reads current network status, in the format: AT#RFSTS (GSM network) #RFSTS:<PLMN>,<ARFCN>,<RSSI>,<LAC>,<RAC>,<TXPWR>,<MM>, <RR>,<NOM>,<CID>,<IMSI>,<NetNameAsc>,<SD>,<ABND> Where: <PLMN>...
Page 227 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #RFSTS – Read current network status SELINT 2 9 - INACTIVE 10 WAIT IDLE 11 - IDLE 12 - PLMN SEARCH 13 - CELL RESELECTION 14 - WAIT CELL RESELECTION...
Page 228 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #RFSTS – Read current network status SELINT 2 <SD> - Service Domain 0 - No Service 1 - CS only 2 - PS only 3 - CS+PS <ABND> - Active Band...
Page 229 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #RFSTS – Read current network status SELINT 2 20 - WAIT FOR ADDITIONAL OUTGOING MM CONNECTION 21 - CONNECTION ACTIVE GROUP TRANSMIT 22 - WAIT RR CONNECTION GROUP TRANSMIT 23 - LOCATION UPDATING PENDING 24 –IMSI DETACH PENDING...
Page 230: Query Sim Status - #Qss
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #RFSTS – Read current network status SELINT 2 0 - No Service 1 - CS only 2 - PS only 3 - CS+PS <ABND> - Active Band 1..63according to 3GPP TS 36.101 AT#RFSTS=? Test command tests for command existence.
Page 231: Delete All Phonebook Entries - #Cpbd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #QSS - Query SIM Status SELINT 2 then power off the module. The proper SIM status will be available at the next power on. AT#QSS? Read command reports whether the unsolicited indication #QSS is currently enabled or not, along with the SIM status, in the format: #QSS: <mode>,<status>...
Page 232 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #DIALMODE - Dialing Mode SELINT 2 Note: In case a BUSY tone is received and at the same time ATX0 is enabled ATD will return NO CARRIER instead of DISCONNECTED.
Page 233: Automatic Call - #Acal
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Automatic call - #ACAL #ACAL - Automatic Call SELINT 2 AT#ACAL= Set command enables/disables the automatic call function. [<mode>] Parameter: <mode> 0 - disables the automatic call function (factory default) 1 - enables the automatic call function.
Page 234: Extended Automatic Call - #Acalext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended automatic call - #ACALEXT #ACALEXT - Extended Automatic Call SELINT 2 Set command enables/disables the extended automatic call function. AT#ACALEXT= <mode>,<index> Parameters: <mode> 0 - disables the automatic call function (factory default) 1 - enables the automatic call function from internal phonebook.
Page 235: Extended Call Monitoring - #Ecam
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended Call Monitoring - #ECAM #ECAM - Extended Call Monitoring SELINT 2 This command enables/disables the call monitoring function in the ME. AT#ECAM= [<onoff>] Parameter: <onoff> 0 - disables call monitoring function (factory default) 1 - enables call monitoring function;...
Page 236: Sms Overflow - #Smov
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 SMS Overflow - #SMOV #SMOV - SMS Overflow SELINT 2 Set command enables/disables the SMS overflow signalling function. AT#SMOV= [<mode>] Parameter: <mode> 0 - disables SMS overflow signalling function (factory default) 1 - enables SMS overflow signalling function;...
Page 237: Message Waiting Indication - #Mwi
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MBN - Mailbox Numbers SELINT 2 Note: if all queried locations are empty (but available), no information text lines will be returned. AT#MBN=? Test command returns the OK result code.
Page 238: Network Emergency Number Update - #Nwen
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #MWI - Message Waiting Indication SELINT 2 0 - no waiting message indicator is currently set: if this the case no other information is reported 1 - there are waiting messages related to the message waiting indicator <indicator>.
Page 239: Update Plmn List - #Plmnupdate
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #NWEN – Network Emergency Number Update SELINT 2 #NWEN: <en> AT#NWEN=? Test command reports the range for the parameter <en> Update PLMN List - #PLMNUPDATE #PLMNUPDATE – Update PLMN List SELINT 2 AT#PLMNUPDATE=[<action...
Page 240: Plmn List Selection - #Plmnmode
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#PLMNUPDATE=? Test command returns the range of <action> parameter and the maximum length of <MCC>, <MNC> and <PLMNname> parameters. PLMN List Selection - #PLMNMODE #PLMNMODE – PLMN List Selection...
Page 241: Show Call Timers - #Sct
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 and the deletion period, in the format: #FPLMN: <action>,<period> AT#FPLMN=? Test command reports available values for parameters <action> and <period>. Show Call Timers - #SCT #SCT – Show Call Timers...
Page 242: Packet Service Network Type - #Psnt
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SCI – Show Call Information SELINT 2 #SCI: <index1>,<number>,<text>,<callTime>,<callDuration>[,<status>]<C R><LF> #SCI: <index2>,<number>,<text>,<callTime>,<callDuration>[,<status>][ …]]] where: <indexn> - the type of the entry ( 1: incoming call; 2: outgoing call) <number> - string type phone number <text>...
Page 243 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #PSNT – Packet Service Network Type SELINT 2 (<mode> = 2) #PSNT: <mode>,<nt>,<is_hsupa_available>,< is_hsupa_used>,<is_hsdpa_available>,<is_hsdpa_used> (<mode> = 0 or <mode> = 1) #PSNT: <mode>,<nt> where <mode> 0 - PSNT unsolicited result code disabled 1 - PSNT unsolicited result code enabled 2 - PSNT unsolicited result code enabled;...
Page 244: Sim Presence Status - #Simpr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #PSNT – Packet Service Network Type SELINT 2 Note: when the reported type of network <nt> is 2, the <nt> indication could be not complete in idle, because it depends on some not always broadcasted network parameters (HSDPA could be supported anyway);...
Page 245: Gsm And Umts Audio Codec - #Codec
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CFF – Call Forwarding Flags SELINT 2 AT#CFF=<enable> Set command enables/disables the presentation of the call forwarding flags URC. Parameter: <enable> 0 - disable the presentation of the #CFF URC (default value)
Page 246: Network Timezone - #Nitz
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CODEC – GSM and UMTS Audio Codec SELINT 2 AT#CODEC= Set command sets the GSM and UMTS audio codec mode. [<codec>] Parameter: <codec> 0 - all the codec modes are enabled (factory default) 1..255 - sum of integers each representing a specific codec mode:...
Page 247 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #NITZ - Network Timezone SELINT 2 <val> 0 - disables (a) automatic data/time updating, (b) Full Network Name applying and (c) #NITZ URC; moreover it sets the #NITZ URC ‘basic’ format (see <datetime>...
Page 248: Clock Management - #Cclk
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Clock management - #CCLK #CCLK - Clock Management SELINT 2 AT#CCLK=<time> Set command sets the real-time clock of the ME. Parameter: <time> - current time as quoted string in the format: "yy/MM/dd,hh:mm:ss±zz,d"...
Page 249 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CCLKMODE – Clock Mode SELINT 2 Parameter: <mode> - time and date mode 0 - Local time + local time zone offset (default) 1 – UTC time + local time zone offset Note: the setting is saved automatically in NVM.
Page 250: Enhanced Network Selection - #Ens
Parameter: <mode> 0 - disable ENS functionality (default for all products except LE910-NA) 1 - enable ENS functionality (default for LE910-NA products); if AT#ENS=1 has been issued, the following values will be automatically set: at every next power-up a Band GSM 850 and PCS enabled (AT#BND=3)
Page 251 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #BND - Select Band SELINT 2 1 - GSM 900MHz + PCS 1900MHz; this value is not available if the ENS functionality has been activated (see #ENS) 2 - GSM 850MHz + DCS 1800MHz (available only on quadri-band modules); this...
Page 252: Automatic Band Selection - #Autobnd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #BND - Select Band SELINT 2 Note: for 4G/3G only product use fixed unused value 0 for <band> parameter. Note: for 4G/2G only product use fixed unused value 0 for <UMTS band>...
Page 253: Ppp-Gprs Parameters Configuration - # Gpppcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #GAUTH – PPP Data Connection Authentication Type SELINT 2 AT#GAUTH= Set command sets the authentication type used in PDP Context Activation during [<type>] PPP-GPRS connections. Parameter <type> 0 - no authentication...
Page 254 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SKIPESC - Skip Escape Sequence SELINT 2 AT#SKIPESC= Set command enables/disables skipping the escape sequence +++ while transmitting [<mode>] during a data connection. Parameter: <mode> 0 - doesn’t skip the escape sequence; its transmission is enabled (factory default).
Page 255: Subscriber Number - #Snum
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Subscriber number - #SNUM #SNUM – Subscriber Number SELINT 2 AT#SNUM= Set command writes the MSISDN information related to the subscriber (own <index>[,<number>[, number) in the EFmsisdn SIM file.
Page 256: Gsm Context Definition - #Gsmcont
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SIMDET - SIM Detection Mode SELINT 2 AT#SIMDET? Read command returns the currently selected Sim Detection Mode in the format: #SIMDET: <mode>,<simin> where: <mode> - SIM Detection mode, as before <simin>...
Page 257: Show Address - #Cgpaddr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Show Address - #CGPADDR #CGPADDR - Show Address SELINT 2 AT#CGPADDR= Execution command returns either the IP address for the GSM context (if specified) [<cid>[,<cid> and/or a list of PDP addresses for the specified PDP context identifiers [,…]]]...
Page 258: Call Establishment Lock - #Cesthlck
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CGPADDR: 0,”xxx.yyy.zzz.www” AT#CGPADDR=? #CGPADDR: (0) Call Establishment Lock - #CESTHLCK #CESTHLCK – Call establishment lock SELINT 2 AT#CESTHLCK= This command can be used to disable call abort before the DCE enters connected state.
Page 259: Read To I2C - #I2Crd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #I2CWR – Write to I2C SELINT 2 Value has to be written in hexadecimal form (without 0x). <len>: number of data to send. Valid range is 1-254. The module responds to the command with the prompt '>' and awaits for the data to send.
Page 260: Power Saving Mode Ring - #Psmri
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #I2CRD – Read to I2C SELINT 2 <deviceId>: address of the I2C device, with the LSB, used for read\write command. It doesn’t matter if the LSB is set to 0 or to 1. 10 bit addressing supported.
Page 261: Control Command Flow - #Cflo
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #PSMRI – Power Saving Mode Ring SELINT 2 Note: the behavior for #PSMRI is invoked, only when modem is in sleep mode (AT+CFUN=5 and AT+CFUN=9) Note: in case of AT+CFUN=9, the pulse is generated also when a GPRS packet is received.
Page 262 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 262 of 509 Mod. 0808 2011-07 Rev.2...
Page 263: Report Concatenated Sms Indexes - #Cmglconcindex
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Report concatenated SMS indexes - #CMGLCONCINDEX #CMGLCONCINDEX – Report concatenated SMS indexes SELINT 2 AT#CMGLCONCINDEX The command will report a line for each concatenated SMS containing: #CMGLCONCINDEX: N,i,j,k,... where...
Page 264: Codec Information - #Codecinfo
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Codec Information - #CODECINFO #CODECINFO – Codec Information SELINT 2 This command is both a set and an execution command. AT#CODECINFO[ =<format>[, <mode>]] Set command enables/disables codec information reports depending on the parameter <mode>, in the specified <format>.
Page 265 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CODECINFO – Codec Information SELINT 2 <codec_used> - one of the following channel modes: 0 – no TCH 1 - full rate speech 1 on TCH 2 - full rate speech 2 on TCH 4 - half rate speech 1 on TCH 8 - full rate speech 3 –...
Page 266: Select Language - #Lang
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CODECINFO – Codec Information SELINT 2 <codec_setn> FR - full rate mode enabled EFR - enhanced full rate mode enabled HR - half rate mode enabled FAMR - AMR full rate mode enabled...
Page 267: Enable Rx Diversity And Set Darp - #Rxdiv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Enable RX Diversity and set DARP - #RXDIV #RXDIV – enable RX Diversity and set DARP SELINT 2 AT#RXDIV=<DIV_enable>[,< This command enables/disables the RX Diversity and sets the DARP.
Page 268 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 2 – A5/2 4 – A5/3 255 - reset the default values <encGPRS>: 0 – no GPRS encryption algorithm 1..7 - sum of integers each representing a specific GPRS encryption algorithm: 1 –...
Page 269 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#ENCALG=5,1 sets the GSM encryption algorithm A5/1 and A5/3, and the GPRS encryption algorithm GEA1. It will be available at the next reboot. AT#ENCALG? #ENCALG: 5,2,1,1 The last two values indicate that the last used GSM encryption algorithm...
Page 270: Escape Sequence Guard Time - #E2Esc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Escape Sequence Guard Time - #E2ESC #E2ESC - Escape Sequence Guard Time SELINT 2 Set command sets a guard time in seconds for the escape sequence in GPRS to be AT#E2ESC= [<gt>]...
Page 271: No Carrier Indication Handling - #Ncih
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 No Carrier Indication Handling - #NCIH #NCIH – NO CARRIER Indication Handling SELINT 2 Set command enables/disables sending of a NO CARRIER indication when a AT#NCIH = <enable> remote call that is ringing is dropped by calling party before it is answered at called party.
Page 272: Change And Insert File System Password - #Filepwd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #DAC - Digital/Analog Converter Control SELINT 2 Note With this command the DAC frequency is selected internally. D/A converter must not be used during POWERSAVING. DAC_OUT line must be integrated (for example with a low band pass filter) in order to obtain an analog voltage.
Page 273: User Determined User Busy - #Udub
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Note: after successful password change (<Mode> 2) password will be not inserted. Note: if current password is different from the empty string “” and password is not inserted then AT commands that make use of the file...
Page 274: Hsdpa Channel Quality Inication - #Cqi
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 HSDPA Channel Quality Inication - #CQI #CQI – HSDPA Channel Quality Indication AT#CQI Execution command reports channel quality indication in the form: #CQI: <cqi> where <cqi> - cqi value...
Page 275: Cmux Mode Set - #Cmuxmode
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CIPHIND – Ciphering Indication SELINT 2 where <mode> 0 - #CIPHIND unsolicited result code disabled 1 - #CIPHIND unsolicited result code enabled <cipher> - cipher status 0 – cipher off 1 –...
Page 276: Fast Dormancy - #Fdor
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CMUXMODE – CMUX Mode Set SELINT 2 If not set explicitly, the module preserves the previous value 0 – Disable the buffer_size limitation (default) 28 – 16384 Resize the internal cmux output buffer to the selected value.
Page 277 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#FDOR=<mode>[,<FDDel This command triggers fast dormancy; if all conditions are passed ayTimer>[,<SCRITimer>]] successful SCRI will be send towards the network. SCRI will be sent as a one shot or for every delay timer expiry, depending on the mode specified.
Page 278 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 10 - Reject due to peer message received when FD procedure is running. 11 - Reject when there is no PAS RAB is established and if we receive FD_START_REQ.
Page 279: Ims Pdp Apn Name Set - #Imspdpset
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FDOR: <mode>,< FDDelayTimer >,< SCRITimer> AT#FDOR=? Test command returns “OK” string along with supported modes and timer values. IMS PDP APN Name Set - #IMSPDPSET #IMSPDPSET – IMS PDP APN Name Set...
Page 280: Easy Scan® Extension At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #REBOOT - Reboot SELINT 2 Note: if AT#REBOOT follows an AT command that stores some parameters in NVM, it is recommended to insert a delay of at least 5 seconds before to issue AT#REBOOT, to permit the complete NVM storing Note: AT#REBOOT is an obsolete AT command;...
Page 281 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURV - Network Survey SELINT 2 Network survey started… and, after a while, a list of informations, one for each received carrier, is reported, each of them in the format:...
Page 282 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURV - Network Survey SELINT 2 CELL_OTHER - none of the above e.g. exclusion timer running, no BCCH available…etc. <numArfcn> - decimal number; it is the number of valid channels in the Cell Channel Description <arfcn...
Page 283 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURV - Network Survey SELINT 2 <t3192> - timer 3192 <drxmax> - discontinuous reception max time (in seconds) <ctrlAck> - packed control ack <bsCVmax> - blocked sequenc countdown max value <alpha>...
Page 284 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURV - Network Survey SELINT 2 <cellId> - cell identifier; if #CSURVF last setting is 0, <cellId> is a decimal number, else it is a 8-digits hexadecimal number <lac> - location area code; if #CSURVF last setting is 0, <lac> is a decimal number, else it is a 4-digits hexadecimal number <cellStatus>...
Page 285 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURV - Network Survey SELINT 2 Network survey started… arfcn: 36 bsic: 49 rxLev: -77 ber: 0.00 mcc: 222 mnc: 10 lac: 20060 cellId: 2716 2 cellStatus: CELL_SUITABLE numArfcn: 0 arfcn: numChannels: 0 array: pbcch: 0 no...
Page 286: Network Survey (Numeric Format) - #Csurvc
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURV - Network Survey SELINT 2 GPRS parameters like <pbcch> are printed only if GPRS is supported in the cell but their value is not available and will be always 0.
Page 287 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURVC - Network Survey (Numeric Format) SELINT 2 <cellStatus>,<numArfcn>[,<arfcn1> ..[ <arfcn64>]] [,<numChannels>[,<ba1> ..[<ba32>]][,<pbcch> [,<nom>,<rac>,<spgc>, <pat>,<nco>,<t3168>,<t3192>,<drxmax>,<ctrlAck>,<bsCVmax>, <alpha>,<pcMeasCh>]]],<mstxpwr>,<rxaccmin>,<croffset>,<penaltyt>,< t3212>,<CRH> <CR><LF><CR><LF><CR><LF> where: <arfcn> - the cell carrier assigned radio channel (BCCH - Broadcast Control Channel) <bsic>...
Page 288 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURVC - Network Survey (Numeric Format) SELINT 2 <ba > - decimal number; it is the arfcn of a valid channel in the BA list ( is in the range 1..<numChannels>); the output of this...
Page 289: Rxlev> - Decimal Number; It Is The Receiption Level (In Dbm)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURVC - Network Survey (Numeric Format) SELINT 2 <croffset> - decimal Cell Reselection Offset, range 0 - 63 <penaltyt> - decimal Penalty Time, range 0 - 31 <t3212> - decimal T3212 Periodic Location Update Timer <CRH>...
Page 290 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURVC - Network Survey (Numeric Format) SELINT 2 <ecio> - decimal number; it is the EC/IO ratio level (in dB) (For non BCCH-Carrier) <uarfcn>,<rxLev> where: <uarfcn> - decimal number; it is the RF channel <rxLev>...
Page 291: Network Survey Format - #Csurvf
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Network Survey Format - #CSURVF #CSURVF - Network Survey Format SELINT 2 AT#CSURVF= Set command controls the format of the numbers output by all the Easy [<format>] Scan® Parameter: <format>...
Page 292: At Run Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSURVEXT - Extended Network Survey SELINT 2 AT#CSURVEXT Set command enables/disables extended network survey. [=<value>] Parameter: <value> 0 - disables extended network survey (factory default) 1 - enables extended network survey; all the network survey execution...
Page 293 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SMSATRUN – Enable SMS AT Run service SELINT 2 Note1: When the service is active on a specific AT instance (see AT#SMSATRUNCFG), that instance cannot be used for any other scope, except for OTA service that has the highest priority.
Page 294: Set Sms Run At Service Parameters - #Smsatruncfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Set SMS Run AT Service parameters - #SMSATRUNCFG #SMSATRUNCFG – Set SMS AT Run Parameters SELINT 2 Set command configures the SMS AT RUN service. AT#SMSATRUNCFG= <instance> [,<urcmod> Parameter: [,<timeout>]]...
Page 295: Sms At Run White List - #Smsatwl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 SMS AT Run White List - #SMSATWL #SMSATWL – SMS AT Run White List SELINT 2 AT#SMSATWL= Set command to handle the white list. <action> ,<index> <action >: 0 – Add an element to the WhiteList [,<entryType>...
Page 296: Set Tcp Run At Service Parameter - #Tcpatruncfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Set TCP Run AT Service parameter - #TCPATRUNCFG #TCPATRUNCFG– Set TCP AT Run Service Parameters SELINT 2 Set command configures the TCP AT RUN service Parameters: AT#TCPATRUNCFG= <connId> ,<instance>...
Page 297 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #TCPATRUNCFG– Set TCP AT Run Service Parameters SELINT 2 Define in minutes the maximum time for a command execution. If timeout expires the module will be rebooted. The default value is 5 minutes. Range 1…5.
Page 298: Tcp Run At Service In Listen (Server) Mode - #Tcpatrunl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 TCP Run AT Service in listen (server) mode - #TCPATRUNL #TCPATRUNL– Enables TCP AT Run Service in listen (server) mode SELINT 2 AT#TCPATRUNL= Set command enables/disables the TCP AT RUN service in server mode. When <mod>...
Page 299: Tcp At Run Firewall List - #Tcpatrunfrwl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 TCP AT Run Firewall List - #TCPATRUNFRWL #TCPATRUNFRWL – TCP AT Run Firewall List SELINT 2 Set command controls the internal firewall settings for the TCPATRUN TCPATRUNFRWL connection. <action>, <ip_addr>,...
Page 300: Tcp At Run Authentication Parameters List - #Tcpatrunauth
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 TCP AT Run Authentication Parameters List - #TCPATRUNAUTH #TCPATRUNAUTH – TCP AT Run Authentication Parameters List SELINT 2 Execution command controls the authentication parameters for the TCPATRUNAUTH TCPATRUN connection.
Page 301: Tcp At Run In Dial (Client) Mode - #Tcpatrund
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 TCP AT Run in dial (client) mode - #TCPATRUND #TCPATRUND – Enables TCP Run AT Service in dial (client) mode SELINT 2 Set command enables/disables the AT#TCPATRUND=<mod> TCP AT RUN service in client mode. When this service is enabled, the module tries to open a connection to the Host (the Host is specified in AT#TCPATRUNCFG).
Page 302: Closing Tcp Run At Socket - #Tcpatrunclose
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Closing TCP Run AT Socket - #TCPATRUNCLOSE #TCPATRUNCLOSE – Closes TCP Run AT Socket SELINT 2 Closes the socket used by TCP ATRUN service. AT#TCPATRUNCLOSE Note: TCP ATRUN status is still enabled after this command, so the service re-starts automatically.
Page 303 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #TCPATCONSER – Connects the TCP Run AT service to a serial port SELINT 2 5 – USB3 6 – SPI Not all of these ports will be available at the same time.
Page 304: Run At Command Execution - #Atrundelay
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Run AT command execution - #ATRUNDELAY #ATRUNDELAY – Set the delay on Run AT command execution SELINT 2 Set command enables the use of a delay before the execution of AT command AT#ATRUNDELAY= <srv>,<delay>...
Page 305: Consume Commandsevent Monitor Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.4. Consume commandsEvent Monitor Commands Configure consume parameters - #CONSUMECFG #CONSUMECFG – configure consume parameters SELINT 2 This command sets the parameters related to the consume functionality AT#CONSUMECFG=<rule_i d>[,<service_type>[,<rule_ena ble>[,<period>[,<limit_amoun...
Page 306: Enable Consume Funztionality - #Enaconsume
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <action_id> Identifier of the action to trigger when the threshold limit has been reached. It corresponds to the AT command associated to the event CONSUMEX, where X=1,…5. (Refer to #EVMONI command) Range: (0-5);...
Page 307: Report Consume Statistics - #Statsconsume
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <storing_mode>: 0 – the counters are saved in NVM at every shuthdown (default) 1 – the counters are saved in NVM at every shuthdown and periodically at regular intervals specified by <storing_period> parameter <storing_period>...
Page 308 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 0 – period counter: the command returns the values of period counters for every rule defined with AT#CONSUMECFG command in the format: #STATSCONSUME: <rule_1>,<service_type>,<counted_data>,<threshold>,<current_time >,<period><CR><LF>#STATSCONSUME: <rule_2>,<service_type>,<counted_data>,<threshold>,<current_time >,<period><CR><LF>….<CR><LF>>#STATSCONSUME: <rule_10>,<service_type>,<counted_data>,<threshold>,<current_tim e>,<period>...
Page 309: Block/Unblock A Type Of Service - #Blockconsume
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STATSCONSUME: <service_1>,<life_data>,<current_time><CR><LF>#STATSCONSU <service_2>,<life_data>,<current_time><CR><LF>…<CR><LF>#ST ATSCONSUME: <service_12>,<life_data>,<current_time> where <service_i> is defined as <service_type> above <life_data> Number of data counted during entire life time period <current_time> Number of passed hours during entire life time period...
Page 310: Sgact/#Ssendline Configuration - #Ipconsumecfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#BLOCKCONSUME? Read command reports the status blocked/unblocked of every type of service in the following format: #BLOCKCONSUME: <service_type>,<block> Test command reports the supported range of values for <service_type> AT#BLOCKCONSUME=? and <block>...
Page 311: Open A Connection, Send Data, Close Connection - #Ssendline
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 0 – disable #SGACT authentication with IMEI/ICCID as user/pwd(default) 1 – enable #SGACT authentication with with IMEI/ICCID as user/pwd Note: <authIMEI/ICCIDEna> setting takes effect when successive #SGACT not indicating <userId> and <pwd> will be used Note: the values set by command are directly stored in NVM and doesn’t...
Page 312: Circuit Switched Fallback - #Csfb
// then TCP connection is closed Circuit Switched Fallback - #CSFB #CSFB – Circuit Switched Fallback AT#CSFB=<mode> This command is available for LE910-xx V2 variants supporting with 2G/3G fallback technologies. Set command configures the mode of operation for Circuit Switched Fallback.
Page 313: Event Monitor Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CSFB – Circuit Switched Fallback <lcs_client_identity> where: <m>: Notification parameter 0 - No user response required. This could be because of last user settings AT#CSFB=2 or 3. 1 - User response required. User should respond with AT#CSFB=4 or 5.
Page 314 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #ENAEVMONI – Enable EvMoni Service SELINT 2 <mod> Parameter: < mod > 0: Service Disabled (default) 1: Service Enabled Note1: When the service is active on a specific AT instance, that instance cannot be used for any other scope, except for OTA service that has the highest priority.
Page 315: Evmoni Service Parameter - #Enaevmonicfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 EvMoni Service parameter - #ENAEVMONICFG #ENAEVMONICFG – Set EvMoni Service Parameters SELINT 2 Set command configures the EvMoni service. AT#ENAEVMONICFG= <instance> [,<urcmod> Parameter: [,<timeout>]] <instance>: AT instance that will be used by the service to run the AT Command. Range 1 - 5.
Page 316: Event Monitoring - #Evmoni
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Event Monitoring - #EVMONI #EVMONI – Set the single Event Monitoring SELINT 2 Set command enables/disables the single event monitoring, configures the related AT#EVMONI= <label>, parameter and associates the AT command <mode>,...
Page 317 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #EVMONI – Set the single Event Monitoring SELINT 2 execute when the related event has occurred. Other values depend from the type of event. <param>: it can be a numeric or string value depending on the value of <paramType>...
Page 318 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #EVMONI – Set the single Event Monitoring SELINT 2 o if <paramType> = 2, <param> indicates the status high or low under monitoring. The values are 0 (low) and 1 (high) . (Default: 0) o if <paramType>...
Page 319: Send Message - #Cmgs
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #EVMONI – Set the single Event Monitoring SELINT 2 AT# EVMONI? Read command returns the current settings for each event in the format: #EVMONI: <label>,<mode>,<param0>[,<param1>[,<param2>[,<param3>]]] Where <param0>, <param1>, <param2> and <param3> are defined as before for <param>...
Page 320: Write Message To Memory - #Cmgw
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CMGS - Send Message SELINT 2 The entered text should be enclosed between double quotes and formatted as follows: - if current <dcs> (see +CSMP) indicates that GSM03.38 default alphabet is used and current <fo>...
Page 321 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #CMGW - Write Message To Memory SELINT 2 #CMGW: <index> where: <index> - message location index in the memory <memw>. If message storing fails for some reason, an error code is reported.
Page 322: At Command Delay - #Atdelay
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT Command Delay - #ATDELAY #ATDELAY – AT Command Delay SELINT 2 Set command sets a delay in second for the execution of following AT command. AT#ATDELAY= <delay> Parameters: <delay>...
Page 323: Multisocket At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.6. Multisocket AT Commands Socket Status - #SS #SS - Socket Status SELINT 2 AT#SS[=<connId>] Execution command reports the current status of the socket: Parameters: <connId> - socket connection identifier 1..6...
Page 324 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SS - Socket Status SELINT 2 AT#SS=? Test command reports the range for parameter <connId>. Example AT#SS #SS: 1,3,91.80.90.162,61119,88.37.127.146,10510 #SS: 2,4,91.80.90.162,1000 #SS: 3,0 #SS: 4,0 #SS: 5,3,91.80.73.70,61120,88.37.127.146,10509 #SS: 6,0 Socket 1: opened from local IP 91.80.90.162/local port 61119 to remote IP...
Page 325: Socket Info - #Si
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket Info - #SI #SI - Socket Info SELINT 2 Execution command is used to get information about socket data traffic. AT#SI[=<connId>] Parameters: <connId> - socket connection identifier 1..6 The response format is: #SI: <connId>,<sent>,<received>,<buff_in>,<ack_waiting>...
Page 326: Socket Type - #St
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SI - Socket Info SELINT 2 Sockets 1,2,3,6 are opened with some data traffic. For example socket 1 has 123 bytes sent, 400 bytes received, 10 byte waiting to be read and 50 bytes waiting to be acknowledged from the remote side.
Page 327: Context Activation - #Sgact
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #ST – Socket Type SELINT 2 AT#ST=? Test command reports the range for parameter <connId>. single socket: Example AT#ST=3 #ST: 3,2,1 Socket 3 is an UDP dialer. All sockets:...
Page 328: Socket Shutdown - #Sh
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SGACT - Context Activation SELINT 2 Note: In LTE network, default PDP context(cid 1) is activated by piggybacking on LTE attach procedure and maintained until detached from NW. This command with cid 1 is just binding or unbinding application to the default PDP context.
Page 329 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SCFG - Socket Configuration SELINT 2 1..5 - numeric parameter which specifies a particular PDP context definition <pktSz> - packet size to be used by the TCP/UDP/IP stack for data sending.
Page 330 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SCFG - Socket Configuration SELINT 2 #SCFG: 5,1,300,90,600,50 #SCFG: 6,1,300,90,600,50 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 330 of 509 Mod. 0808 2011-07 Rev.2...
Page 331: Socket Configuration Extended - #Scfgext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket Configuration Extended - #SCFGEXT #SCFGEXT - Socket Configuration Extended SELINT 2 Set command sets the socket configuration extended parameters. AT#SCFGEXT= <conned>,<srMode>, <recvDataMode>, Parameters: <keepalive>, <connId> - socket connection identifier [,<ListenAutoRsp>...
Page 332 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Note: these values are automatically saved in NVM. Note: Keepalive is available only on TCP connections. Note: for the behaviour of AT#SL and AT#SLUDP in case of auto- response mode or in case of no auto-response mode, see the description of the two commands.
Page 333: Socket Configuration Extended 2 - #Scfgext2
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket configuration Extended 2 - #SCFGEXT2 #SCFGEXT2 - Socket Configuration Extended Set command sets the socket configuration extended parameters for AT#SCFGEXT2= <connId>,<bufferStart>, features not included in #SCFGEXT command. [,<abortConnAttempt>...
Page 334 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 indication format when the socket is closed as follows 0 – NO CARRIER (default) Indication is sent as usual, without additional information 1 – NO CARRIER:<connId> Indication of current <connId> socket connection identifier is added 2 –...
Page 335 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SCFGEXT2: 6,0,0,0,0,0 AT#SCFG? #SCFG: 1,1,300,90,600,50 #SCFG: 2,1,300,90,600,50 #SCFG: 3,1,300,90,600,50 #SCFG: 4,2,300,90,600,50 #SCFG: 5,2,300,90,600,50 #SCFG: 6,2,300,90,600,50 AT#SCFG=1,1,300,90,600,30 Current configuration: socket with connId 1 and 2 are configured with new transmission timer behaviour.
Page 336: Socket Configuration Extended 3 - #Scfgext3
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket configuration Extended 3 - #SCFGEXT3 SELINT 2 #SCFGEXT3 - Socket Configuration Extended 3 AT#SCFGEXT3= Set command sets the socket configuration extended parameters for features <connId not included in #SCFGEXT command nor in #SCFGEXT2 command >,<immRsp>[,...
Page 337 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 SELINT 2 #SCFGEXT3 - Socket Configuration Extended 3 . . . #SCFGEXT3:<connId6>,<immRsp6>, <closureTypeCmdModeEnabling>, < fastsring >,0,0<CR><LF> AT#SCFGEXT3=? Test command returns the range of supported values for all the parameters.
Page 338: Socket Dial - #Sd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket Dial - #SD #SD - Socket Dial SELINT 2 Execution command opens a remote connection via socket. AT#SD=<connId>, <txProt>,<rPort>, <IPaddr> Parameters: [,<closureType> <connId> - socket connection identifier [,<lPort>...
Page 339: Socket Restore - #So
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SD - Socket Dial SELINT 2 sequence or after #SD has been issued with <connMode> set to command mode connection), these data are buffered and we receive the SRING URC (SRING presentation format depends on the last #SCFGEXT setting);...
Page 340: Socket Listen - #Sl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket Listen - #SL #SL - Socket Listen SELINT 2 This command opens/closes a socket listening for an incoming TCP connection on AT#SL=<connId>, <listenState>, a specified port. <listenPort> >[,<closure type>] Parameters: <connId>...
Page 341: Socket Listen Udp - #Sludp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SL - Socket Listen SELINT 2 Example Next command opens a socket listening for TCP on port 3500 without. AT#SL=1,1,3500 Socket Listen UDP - #SLUDP #SLUDP - Socket Listen UDP SELINT 2 AT#SLUDP=<connId...
Page 342: Socket Accept - #Sa
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SLUDP - Socket Listen UDP SELINT 2 AT#SLUDP=? Test command returns the range of supported values for all the subparameters. Example Next command opens a socket listening for UDP on port 3500.
Page 343: Detect The Cause Of A Socket Disconnection - #Slastclosure
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <retx> - total amount of retransmissions of outgoing packets since the last time the socket connection identified by <connId> has been opened <oos> - total amount of ingoing out of sequence packets...
Page 344 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <cause> - socket disconnection cause: 0 – not available(socket has not yet been closed) 1.- remote host TCP connection close due to FIN/END: normal remote disconnection decided by the remote application 2 -.remote host TCP connection close due to RST, all others cases in...
Page 345 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#SLASTCLOSURE=? Test command reports the supported range for parameter <connId> Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 345 of 509 Mod. 0808 2011-07 Rev.2...
Page 346: Receive Data In Command Mode - #Srecv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Receive Data In Command Mode - #SRECV #SRECV - Receive Data In Command Mode SELINT 2 Execution command permits the user to read data arrived through a connected socket, AT#SRECV= <connId>,...
Page 347: Send Data In Command Mode - #Ssend
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SRECV - Receive Data In Command Mode SELINT 2 SRING: 2,15 Read in hexadecimal format the buffered data AT#SRECV=2,15 #SRECV: 2,15 737472696e67612064692074657374 if the received datagram, received from <IPaddr and <IPport> is of 60 bytes AT#SRECV=2,15 #SRECV: <IPaddr>,<IPport>,2,15,45...
Page 348: Send Udp Data To A Specific Remote Host - #Ssendudp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SSEND - Send Data In Command Mode SELINT 2 Note: it’s possible to use #SSEND only if the connection was opened by #SD, else the ME is raising an error.
Page 349 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#SSENDUDP=? Test command reports the supported range of values for parameters <connId>,<remoteIP> and <remotePort> Starts listening on <LocPort>(previous setting of firewall through #FRWL has Example to be done) AT#SLUDP=1,1,<LocPort>...
Page 350: Send Udp Data To A Specific Remote Host Extended #Ssendudpext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#SS=1 #SS: 1,2,<LocIP>,<LocPort>,<RemIP2>,<RemPort2> Remote host has changed, we want to send a reponse: AT#SSENDUDP=1,<RemIP2>,<RemPort2> >response to second host Send UDP data to a specific remote host extended #SSENDUDPEXT #SSENDUDPEXT – send UDP data to a specific remote host extended...
Page 351: Send Data In Command Mode Extended - #Ssendext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Send data in Command Mode extended - #SSENDEXT #SSENDEXT - Send Data In Command Mode extended SELINT 2 AT#SSENDEXT= Execution command permits, while the module is in command mode, to send <connId>,...
Page 352: Ip Easy Authentication Type - #Sgactauth
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 IP Easy Authentication Type - #SGACTAUTH #SGACTAUTH – Easy GRPS Authentication Type SELINT 2 AT#SGACTAUTH= Set command sets the authentication type for IP Easy <type> This command has effect on the authentication mode used on AT#SGACT or AT#GPRS commands.
Page 353 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 1 - enable unsolicited result code, after an automatic activation/reactivation, of the local IP address obtained from the network. It has meaning only if <auto>=1. The unsolicited message is in the format: #SGACT: <ip_address>...
Page 354: Context Activation And Configuration Extended - #Sgactcfgext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Context activation and configuration extended - #SGACTCFGEXT #SGACTCFGEXT - context activation configuration extended SELINT 2 Execution command is used to enable new features related to AT#SGACTCFGEXT= <cid>, context activation.
Page 355: Pad Command Features - #Padcmd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 PAD command features - #PADCMD #PADCMD – PAD command features SELINT 2 AT#PADCMD=<mode> This command sets features of the pending data flush to socket, opened with AT#SD command. Parameters: <mode>:...
Page 356: Base64 Encoding/Decoding Of Socket Sent/Received Data - #Base64
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Base64 encoding/decoding of socket sent/received data - #BASE64 #BASE64 – Base64 encoding/decoding of socket sent/received data SELINT 2 Set command enables base64 encoding and/or decoding of data AT#BASE64= <connId>,<enc>,<dec>...
Page 357 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 These parts have to be a multiple of 57 bytes, except for the last one, to distinguish EOF condition. (Base64 encoding rules) For the same reason if #SRECV command is used by the application to receive data, a multiple of 78 bytes has to be considered.
Page 358 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#SO=<connId> CONNECT // Data received from socket are decoded // base64 before to be sent on the serial port +++ (suspension) ………………… Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 358 of 509 Mod.
Page 359: Ssl Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 SSL Commands Open a socket SSL to a remote server - #SSLD #SSLD – Opens a socket SSL to a remote server SELINT 2 AT#SSLD=<SSId>, Execution command opens a remote connection via socket secured through <rPort>,<IPAddress>,...
Page 360: Enable A Ssl Socket - #Sslen
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 10..5000 - hundreds of ms (factory default is 100) Note: if secure socket is not enabled using AT#SSLEN only test requests can be made. Note: if timeout is not set for SSL connection the default timeout value, set by AT#SSLCFG, is used.
Page 361 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Parameters: <SSId> - Secure Socket Identifier 1 – Until now SSL block manages only one socket <Enable> 0 – deactivate secure socket [default] 1 – activate secure socket Note: if secure socket is not enabled only test requests can be made for every SSL command except #SSLS (SSL status) which can be issued also if the socket is disabled.
Page 362: Close A Ssl Socket - #Sslh
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Close a SSL socket - #SSLH #SSLH – Close a SSL socket SELINT 2 This command allows closing the SSL connection. AT#SSLH=<SSId>[, <ClosureType>] Parameters: <SSId> - Secure Socket Identifier 1 - Until now SSL block manage only one socket.
Page 363: Read Data From A Ssl Socket - #Sslrecv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Read Data from a SSL socket - #SSLRECV #SSLRECV – Read data from a SSL socket SELINT 2 AT#SSLRECV=<SSId>, This command allows receiving data arrived through a connected <MaxNumByte>...
Page 364: Report The Status Of A Ssl Socket - #Ssls
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#SSLRECV=? Test command returns the range of supported values for all the parameters: #SSLRECV: (1),(1-1000),(10-5000) Report the status of a SSL socket - #SSLS #SSLS – Report the status of a SSL socket SELINT 2 This command reports the status of secure sockets.
Page 365: Manage The Security Data - #Sslsecdata
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Manage the security data - #SSLSECDATA #SSLSECDATA – Manage the security data SELINT 2 This command allows to store, delete and read security data AT#SSLSECDATA (Certificate, CAcertificate, private key) into NVM.
Page 366: Send Data Through A Ssl Socket - #Sslsend
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 If <DataType> data has not been stored (or it has been deleted) the response has the following format: #SSLSECDATA: <connId>,<DataType> No data stored Note: <size> parameter is mandatory if the <write> action is issued, but it has to be omitted for <delete>...
Page 367: Send Data Through A Secure Sockect In Command Mode - #Sslsendext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 The device responds to the command with the prompt ‘>’ and waits for the data to send. To complete the operation send Ctrl-Z char (0x1A hex); to exit without writing the message send ESC char (0x1B hex).
Page 368: Configure Security Parameters Of A Ssl Socket - #Sslseccfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 When <bytestosend> bytes have been sent, operation is automatically completed. If data are successfully sent, then the response is OK. If data sending fails for some reason, an error code is reported.
Page 369 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 5 - TLS_RSA_WITH_AES_256_CBC_SHA Note: when o value is chosen, cipher suites supported are indicated to the server within TLS handshake (i.e.: client hello) as follows: TLS_RSA_WITH_AES_256_CBC_SHA TLS_RSA_WITH_AES_128_CBC_SHA TLS_RSA_WITH_RC4_128_SHA TLS_RSA_WITH_RC4_128_MD5 Note: TLS_RSA_WITH_NULL_SHA is not included as default(0), but it is possible to set it(4) if required.
Page 370: Configure Additional Parameters Of A Ssl Socket - #Sslseccfg2
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Configure additional parameters of a SSL socket - #SSLSECCFG2 #SSLSECCFG2 – Configure additional parameters of a SSL socket SELINT 2 AT#SSLSECCFG2= This command allows configuring additional SSL connection <SSId>, parameters.
Page 371 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <maxTo> - exchange timeout (or socket inactivity timeout); in online mode, if there’s no data exchange within this timeout period the connection is closed. 0 - no timeout 1..65535 - timeout value in seconds (default 90 s.) <defTo>...
Page 372: Secure Socket Info - #Ssli
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 2 – NO CARRIER:SSL,<SSId>,<cause> Indication of current <SSId> secure socket connection and closure <cause> are added. Following the possible <cause> values are listed: 0 – not available (secure socket has not yet been closed 1 –...
Page 373: Ftp At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SSLI: <SSId>,<DataSent>,<DataRecv>,<PendingData>,<TCPConnWaitingAck> where: <SSId> secure socket connection identifier, as before <DataSent> - total amount(in bytes) of data sent to the TLS/SSL connection since the beginning of the connection itself (obviously: not yet encoded into TLS/SSL record) <DataRecv>...
Page 374: Ftp Open - #Ftpopen
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FTPTO - FTP Time-Out SELINT 2 #FTPTO: <tout> AT#FTPTO=? Test command returns the range of supported values for parameter <tout> FTP Open - #FTPOPEN #FTPOPEN - FTP Open SELINT 2 AT#FTPOPEN= Execution command opens an FTP connection toward the FTP server.
Page 375: #Ftpput - Ftp Put
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 0: No IP Private ignoring. During a FTP passive mode connection client uses the IP address received from server, even if it is a private IPV4 address. 1: IP Private ignoring enabled. During a FTP passive mode connection if the server sends a private IPV4 address the client doesn’t consider this and...
Page 376 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FTPPUT - FTP Put SELINT 2 (instead of CONNECT) Parameters: <filename> - string type, name of the file (maximum length 200 characters) <connMode> 0 - online mode 1 – command mode Note: use the escape sequence +++ to close the data connection.
Page 377: Ftp Get - #Ftpget
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 FTP Get - #FTPGET #FTPGET - FTP Get SELINT 2 Execution command, issued during an FTP connection, opens a data connection and AT#FTPGET= [<filename>] starts getting a file from the FTP server.
Page 378: Ftp Type - #Ftptype
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FTPGETPKT - FTP Get in command mode SELINT 2 AT#FTPGETPKT? Read command reports current download state for <filename> with <viewMode> chosen, in the format: #FTPGETPKT: <remotefile>,<viewMode>,<eof> <eof> 0 = file currently being transferred...
Page 379: Ftp Delete - #Ftpdele
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 FTP Delete - #FTPDELE #FTPDELE - FTP Delete SELINT 2 Execution command, issued during an FTP connection, deletes a file from the AT#FTPDELE= [<filename>] remote working directory. Parameter: <filename> - string type, it’s the name of the file to delete.
Page 380: Ftp List - #Ftplist
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 FTP List - #FTPLIST #FTPLIST - FTP List SELINT 2 Execution command, issued during an FTP connection, opens a data connection and AT#FTPLIST[= [<name>]] starts getting from the server the list of contents of the specified directory or the properties of the specified file.
Page 381: Set Restart Position - # Ftprest
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FTPAPP - FTP Append SELINT 2 <connMode> 0 - online mode 1 – command mode Note: use the escape sequence +++ to close the data connection. Note: The command causes an ERROR result code to be returned if no FTP connection has been opened yet.
Page 382: Receive Data In Command Mode - #Ftprecv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FTPREST – Set restart position for FTP GET SELINT 2 AT#FTPREST? Read command returns the current <restartposition> #FTPREST: <restartposition> AT#FTPREST=? Test command returns the OK result code. Receive Data In Command Mode - #FTPRECV #FTPRECV –...
Page 383 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FTPRECV – Receive Data In Command Mode SELINT 2 Example AT#FTPRECV? #FTPRECV: 3000 Read required part of the buffered data: AT#FTPRECV=400 #FTPRECV: 400 Text row number 1 * 1111111111111111111111111 *...
Page 384: Ftp Append
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 FTP Append #FTPAPP - FTP Append SELINT 2 AT#FTPAPP= Execution command, issued during an FTP connection, opens a data connection and [[<filename>], append data to existing <filename> file. <connMode>] If the data connection succeeds, a CONNECT indication is sent, afterward a NO CARRIER indication is sent when the socket is closed.
Page 385: Ftpappext - #Ftpappext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 FTPAPPEXT - #FTPAPPEXT #FTPAPPEXT – SELINT 2 This command permits to send data on a FTP data port while AT#FTPAPPEXT= the module is in command mode. <bytestosend>[,< eof >] FTP data port has to be previously opened through #FTPPUT (or #FTPAPP) with <connMode>...
Page 386 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 // Here data socket will stay opened, but interface will be //available(command mode) AT#FTPAPPEXT=Size >… write here the binary data. As soon Size byte are written, data are sent and OK is returned #FTPAPPEXT: <SentBytes>...
Page 387: Enhanced Ip Easy Extension At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.8. Enhanced IP Easy Extension AT Commands Authentication User ID - #USERID #USERID - Authentication User ID SELINT 2 AT#USERID= Set command sets the user identification string to be used during the authentication [<user>]...
Page 388: Packet Size - #Pktsz
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Packet Size - #PKTSZ #PKTSZ - Packet Size SELINT 2 Set command sets the default packet size to be used by the TCP/UDP/IP stack for AT#PKTSZ= [<size>] data sending.
Page 389: Socket Inactivity Time-Out - #Sktto
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #DSTO -Data Sending Time-Out SELINT 2 Note: this command is not allowed for sockets associated to a GSM context (see #SCFG). AT#DSTO? Read command reports the current data sending time-out value.
Page 390 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SKTSET - Socket Definition SELINT 2 <remote port> - remote host port to be opened 0..65535 - port number (factory default is 3333) <remote addr> - address of the remote host, string type. This parameter can be either: any valid IP address in the format: xxx.xxx.xxx.xxx...
Page 391: Query Dns - #Qdns
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Query DNS - #QDNS #QDNS - Query DNS SELINT 2 Execution command executes a DNS query to solve the host name into an IP AT#QDNS= [<host name>] address. Parameter: <host name>...
Page 392: Dns Response Caching - #Cachedns
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 DNS Response Caching - #CACHEDNS #CACHEDNS – DNS Response Caching SELINT 2 Set command enables caching a mapping of domain names to IP addresses, as does AT#CACHEDNS= [<mode>] a resolver library.
Page 393: Manual Dns Selection - #Dns
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Manual DNS Selection - #DNS #DNS – Manual DNS Selection SELINT 2 Set command allows to manually set primary and secondary DNS servers either for AT#DNS=<cid>, <primary>, a PDP context defined by +CGDCONT or for a GSM context defined by <secondary>...
Page 394: Socket Tcp Connection Time-Out - #Sktct
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket TCP Connection Time-Out - #SKTCT #SKTCT - Socket TCP Connection Time-Out SELINT 2 AT#SKTCT= Set command sets the TCP connection time-out for the first CONNECT answer [<tout>] from the TCP peer to be received.
Page 395: Socket Parameters Reset - #Sktrst
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SKTSAV - Socket Parameters Save SELINT 2 socket parameters have been saved in NVM Note If some parameters have not been previously specified then a default value will be stored.
Page 396 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #GPRS - GPRS Context Activation SELINT 2 Note: at least a socket identifier needs to be associated with PDP context #1 in order to every #GPRS action be effective; by default the PDP context #1 is associated with socket identifiers 1, 2 and 3, but it is possible to modify these associations through #SCFG.
Page 397: Socket Dial - #Sktd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Socket Dial - #SKTD #SKTD - Socket Dial SELINT 2 AT#SKTD= Set command opens the socket towards the peer specified in the parameters. [<socket type>, <remote port>, Parameters: <socket type> - socket protocol type <remote addr>,...
Page 398: Socket Listen - #Sktl
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SKTD - Socket Dial SELINT 2 AT#SKTD: <socket type>,<remote port>,<remote addr>, <closure type>,<local port> AT#SKTD=? Test command returns the allowed values for the parameters. AT#SKTD=0,1024,"123.255.020.001",255 Example CONNECT AT#SKTD=1,1024,"123.255.020.001", ,1025...
Page 399 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SKTL - Socket Listen SELINT 2 Where: <remote addr> - host address of the remote machine that contacted the device. When the connection is established the CONNECT indication is given and the modem goes into data transfer mode.
Page 400: Socket Listen Ring Indicator - #E2Slri
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SKTL - Socket Listen SELINT 2 Now listen is not anymore active to stop listening AT#SKTL=0,0,1024, 255 Note The main difference between this command and #SKTD is that #SKTL does not...
Page 401: Firewall Setup For Ipv6 Addresses - #Frwlipv6
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FRWL - Firewall Setup SELINT 2 <net_mask> - mask to be applied on the <ip_addr>; string type, it can be any valid IP address mask in the format: xxx.xxx.xxx.xxx Command returns OK result code if successful.
Page 402 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #FRWLIPV6 - Firewall Setup for IPV6 addresses SELINT 2 4 –disablefirewall and save this setting in NVM <ip_addr> - remote address to be added into the ACCEPT chain; string type, it can be any valid IP address in the format xxx.xxx.xxx.xxx.
Page 403: Gprs Data Volume - #Gdatavol
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 GPRS Data Volume - #GDATAVOL #GDATAVOL - GPRS Data Volume SELINT 2 Execution command reports, for every active PDP context, the amount of data the AT#GDATAVOL= [<mode>] last GPRS session (and the last GSM session, if GSM context is active) received and transmitted, or it will report the total amount of data received and transmitted during all past GPRS (and GSM) sessions, since last reset.
Page 404: Icmp Ping Support - #Icmp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #GDATAVOL - GPRS Data Volume SELINT 2 <receivedn> - number of bytes received, in every GPRS (or GSM) session since last reset, for <cidn> PDP context; Note: last GPRS and GSM session counters are not saved in NVM so they are loosen at power off.
Page 405: Ping Request - #Ping
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 PING request - #PING #PING – Send PING request This command is used to send Ping Echo Request messages and to receive the AT#PING= <IPaddr>[,<retryNu corresponding Echo Reply. m>[,<len>[,<timeout >[,<ttl>]]]]...
Page 406: Dns From Network - #Nwdns
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 DNS from Network - #NWDNS #NWDNS – DNS from Network SELINT 2 Execution command returns either the primary and secondary DNS addresses for the AT#NWDNS= [<cid>[,<cid> GSM context (if specified) and/or a list of primary and secondary DNS addresses for [,…]]]...
Page 407 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <protocol> - string that represents the protocol <cid> - cid of the PDP context to be used for the specified protocol Note: values are automatically saved in NVM. AT#PROTOCOLCFG? Read command returns the current settings in the format: #PROTOCOLCFG: "FTP",1,0,0,0<CR><LF>...
Page 408: Sms At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.9. SMS AT Commands Move Short Message to other memory - #SMSMOVE #SMSMOVE – Move Short Message to other memory SELINT 2 AT#SMSMOVE= Execution command moves selected Short Message from current memory to <index>...
Page 409: Sms Commnads Operation Mode - #Smsmode
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SMSMOVE – Move Short Message to other memory SELINT 2 test 3 //list the SMs to discover the memory index AT#SMSMOVE=1 //move the SM in the first position of ME to SIM AT#SMSMOVE? #SMSMOVE: "ME",2,100,"SM",1,50...
Page 410: Domain Configuration For Outgoing Sms - #Ismscfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Parameter: <mode> - MO SMS format 0 – 3GPP format 1 – 3GPP2 format (factory default) <3GPP2PDUMode> - 3GPP2 SMS PDU input format 0 – 3GPP-like format 1 – 3GPP2 format, according to Telit syntax: see +CMGS command (factory default) 2 –...
Page 411 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #ISMSCFG – Domain configuration for Outgoing SMS SELINT 2 AT#ISMSCFG=? Test command returns the supported range of values for parameter <mode>, in the format: #ISMSCFG: (list of supported <mode>s) Reproduction forbidden without Telit Communications S.p.A.
Page 412: E-Mail Management At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.10. E-mail Management AT Commands E-mail SMTP Server - #ESMTP #ESMTP - E-mail SMTP Server SELINT 2 AT#ESMTP= Set command sets the SMTP server address, used for E-mail sending.
Page 413: E-Mail Authentication User Name - #Euser
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 E-mail Authentication User Name - #EUSER #EUSER - E-mail Authentication User Name SELINT 2 Set command sets the user identification string to be used during the authentication AT#EUSER= [<e-user>] step of the SMTP.
Page 414: E-Mail Sending - #Emaild
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 E-mail Sending - #EMAILD #EMAILD - E-mail Sending SELINT 2 AT#EMAILD=[<da>, Execution command sends an e-mail message if GPRS context has already <subj> been activated by either AT#SGACT=1,1 or AT#GPRS=1.
Page 415: E-Mail Parameters Save - #Esav
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 E-mail Parameters Save - #ESAV #ESAV - E-mail Parameters Save SELINT 2 Execution command stores the e-mail parameters in the NVM of the device. AT#ESAV The e-mail parameters to store are:...
Page 416 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Encoding of data received on the serial port is performed if required (binary data), before transmission on the SMTP socket. Parameters: <da> - destination address, string type. (maximum length 100 characters) <subj>...
Page 417: E-Mail Smtp Port - #Esmtpport
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 …data received on the serial port are sent as attachment…. Send escape sequence to close the SMTP connection NO CARRIER at#smtpcl="me@myaddress.com","test2",2,"image.jpg",1 >message body...this is the text of the mail message…...
Page 418: Http Client At Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.11. HTTP Client AT Commands Configure HTTP Parameters - #HTTPCFG #HTTPCFG – configure HTTP parameters SELINT 2 AT#HTTPCFG=<prof_id>[,<s This command sets the parameters needed to the HTTP connection erver_address>[,<server_p ort>[,<auth_type>[,<userna...
Page 419 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <cid> - Numeric parameter indicating the PDP Context Identifier. Range: (0-5). Default: 3 <pkt_size> - send(#HTTPSND) or recv(#HTTPRCV) size for data sending or receiving. 0 – select automatically default value(300).
Page 420: Send Http Get, Head Or Delete Request - #Httpqry
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #HTTPCFG: (list of supported prof_id>s),<s_length>,(list of supported <server_port>s), (list of supported <auth_type>s),<u_length>,<p_length>,(list of supported <ssl_enabled>s),(list of supported <timeout>s),(list of supported <cid>s),(list of supported <pkt_size>s) where: <s_length> - integer type value indicating the maximum length of parameter <server_address>.
Page 421: Send Http Post Or Put Request - #Httpsnd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 When the HTTP server answer is received, then the following URC is put on the serial port: #HTTPRING: <prof_id>,<http_status_code>,<content_type>,<data_size> Where: <prof_id> is defined as above <http_status_code> is the numeric status code, as received from the server (see RFC 2616) <content_type>...
Page 422 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Parameters: <prof_id> - Numeric parameter indicating the profile identifier. Range: 0-2 <command>: Numeric parameter indicating the command requested to HTTP server: 0 – POST 1 – PUT <resource>: String parameter indicating the HTTP resource (uri), object of the request <data_len>: Numeric parameter indicating the data length to input in...
Page 423: Receive Http Server Data - #Httprcv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <data_size> is the byte amount of data received from the server. If the server doesn’t report the "Content-Length:" header line, the parameter value is 0. Note: if there are no data from server or the server doesn’t answer within the time interval specified in <timeout>...
Page 424: Script Management
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 (IRA 60, 60, 60) followed by the data. If reading ends successfully, the response is OK; otherwise an error code is reported. Parameters: <prof_id> - Numeric parameter indicating the profile identifier.
Page 425: Read Script - #Rscript
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #WSCRIPT - Write Script SELINT 2 1 - file content is readable with #RSCRIPT (no effect). The device shall prompt a five character sequence <CR><LF><greater_than><greater_than><greater_than> (IRA 13, 10, 62, 62, 62) after command line is terminated with <CR>;...
Page 426: List Script Names - #Lscript
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #RSCRIPT - Read Script SELINT 2 AT#RSCRIPT=? Test command returns OK result code. AT#RSCRIPT="First.py " Example hereafter receive the prompt; then the script is displayed, immediately after the prompt <<<import MDM...
Page 427 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #LCSCRIPT - List Script Names SELINT 2 Note: CRC16 is calculated using the standard reversed CRC16-CCITT x^16+x^12+x^5+1 polynomial (0x1021 representation, reversed) with initial value FFFF. Note: if file <script_name> is in use than CRC16 cannot be calculated and execution command does not report <crc>.
Page 428: Delete Script - #Dscript
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Delete Script - #DSCRIPT #DSCRIPT - Delete Script SELINT 2 Execution command deletes a file from Easy Script® related NVM memory. AT#DSCRIPT= [<script_name>] Parameter: <script_name> - name of the file to delete, string type (max 16 chars, case sensitive) Note: if the file <script_name>...
Page 429: Sim Toolkit Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.13. SIM Toolkit Commands SIM Tookit Interface Activation - #STIA #STIA - SIM Toolkit Interface Activation SELINT 2 AT#STIA= Set command is used to activate the SAT sending of unsolicited indications when a [<mode>...
Page 430 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STIA - SIM Toolkit Interface Activation SELINT 2 • if <mode> parameter of #STIA command has been set to 3 (reduced unsolicited indication) an unsolicited indication will be sent, indicating the type of proactive command issued by the SIM: #STN: <cmdType>...
Page 431 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STIA - SIM Toolkit Interface Activation SELINT 2 In case of SEND SHORT MESSAGE (<cmdType>=19) command if sending to network fails an unsolicited notification will be sent #STN: 119 if <cmdType>=33 (DISPLAY TEXT)
Page 432 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STIA - SIM Toolkit Interface Activation SELINT 2 if <cmdType>=18 (SEND USSD) an unsolicited notification will be sent to the user: #STN: <cmdType>[,<text>] where: <text> - optional text string sent by SIM In this case: •...
Page 433 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STIA - SIM Toolkit Interface Activation SELINT 2 if <cmdType>=64 (OPEN CHANNEL) an unsolicited notification will be sent to the user: #STN: <cmdType>[,<text>] where: <text> - optional text string sent by SIM In this case: •...
Page 434 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STIA - SIM Toolkit Interface Activation SELINT 2 #STN: 254 is sent if the user has indicated the need to end the proactive SIM application session (AT#STSR=<cmdType>,16 i.e. “proactive SIM application session terminated by the user”...
Page 435: Sim Tookit Get Information - #Stgi
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STIA - SIM Toolkit Interface Activation SELINT 2 issued (see #STGI), and after the SAT main menu has been displayed on TE an AT#STSR=37,0,x command is issued to select an item in the menu (see #STSR).
Page 436 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STGI - SIM Tookit Get Information SELINT 2 2 - SIM Initialization and File Change Notification; 3 - SIM Initialization; 4 - SIM Reset if <cmdType>=5 (SET UP EVENT LIST) #STGI: <cmdType>,<event list mask>...
Page 437 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STGI - SIM Tookit Get Information SELINT 2 #STGI: <cmdType>[,<text>] where: <text> - text to be displayed to user if <cmdType>=33 (DISPLAY TEXT) #STGI: <cmdType>,<cmdDetails>[,<text>] where: <cmdDetails> - unsigned Integer used as a bit field.
Page 438 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STGI - SIM Tookit Get Information SELINT 2 if <cmdType>=35 (GET INPUT) #STGI: <cmdType>,<commandDetails>,<text>,<responseMin>, <responseMax>[,<defaultText>] where: <commandDetails> - unsigned Integer used as a bit field. 0..255 - used as a bit field:...
Page 439 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STGI - SIM Tookit Get Information SELINT 2 #STGI: <cmdType>,<itemId>,<itemText>[,<nextActionId>] where: <commandDetails> - unsigned Integer used as a bitfield 0..255 - used as a bit field: bit 1: 0 - Presentation type is not specified...
Page 440 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STGI - SIM Tookit Get Information SELINT 2 bit 2 to 7: bit 8: 0 - no help information available 1 - help information available <numOfItems> - number of items in the list <titleText>...
Page 441: Sim Tookit Send Response - #Stsr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STGI - SIM Tookit Get Information SELINT 2 #STN:237 is an indication that the main menu of the SIM Application has been removed from the TA, and it is no longer available. In this case AT#STGI=37 command response will be always ERROR.
Page 442: Sim Tookit Terminal Attach - #Stta
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STSR - SIM Tookit Send Response SELINT 2 Note: Use of icons is not supported. All icon related actions will respond with no icon available. The read command can be used to request the currently ongoing proactive...
Page 443 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #STACFG – Configure SIM Toolkit Application parameters SELINT 2 Set command configures the SIM Toolkit Application. AT#STACFG=<instance> [, <UNUSED_1>[, Parameters: <UNUSED_2>] <instance>: AT instance that will be used by the SIM Toolkit Application (see #STTA).
Page 444: Phonebook At Commands Set
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.14. Phonebook AT Commands Set Read Group Entries - #CPBGR #CPBGR- Read Group Entries SELINT 2 AT#CPBGR= Execution command returns Grouping information Alpha String (GAS) USIM file <index1> entries in location number range <index1>...<index2>. If <index2> is omitted, [,<index2>]...
Page 445: Write Group Entries - #Cpbgw
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Write Group Entries - #CPBGW #CPBGW - Write Group Entry SELINT 2 Execution command writes Grouping information Alpha String (GAS) USIM file AT#CPBGW= <index>,<text> entry in location number <index>.
Page 446: Select Ringer Path - #Srp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SRS - Select Ringer Sound SELINT 2 Note: if command is issued with <n> > 0 and <tout> = 0, the playing of the ringing is stopped (if present) and <n> ringing tone is set as current.
Page 447: Handset Microphone Gain - #Hsmicg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #HFMICG - Handsfree Microphone Gain SELINT 2 It has no effect and is included only for backward compatibility. AT#HFMICG= [<level>] Parameter: <level>: 0..7 - (factory default = 4) Read command returns the current set value for parameter <level>, in the format: AT#HFMICG? #HFMICG: <level>...
Page 448: Set Handset Sidetone - #Shssd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <level> Parameter: <level>: handset analogue output gain 0..6 - handset analogue output (-3dB/step, default value = 0) Note: This parameter is saved in NVM issuing AT&W command. Read command returns the current handset analog output gain, in the format: AT#HSRECG? #HSRECG: <level>...
Page 449: Digital Microphone Gain - #Digmicg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SPKMUT - Speaker Mute Control SELINT 2 AT#SPKMUT=? Test command reports the supported values for <n> parameter. Digital Microphone Gain - #DIGMICG #DIGMICG – Digital Microphone Gain SELINT 2 AT#DIGMICG=<gain_level>...
Page 450: Echo Reducer Configuration - #Echocfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Echo Reducer Configuration - #ECHOCFG #ECHOCFG – Echo Reducer Configuration SELINT 2 AT#ECHOCFG=<par_1> Set command writes values in echo reducer parameters. It is not allowed if [,<par_2>[,…,<par_N>]] active audio profile is 0.
Page 451 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Total gain upper limit: increasing this parameter load echoes are more attenuated <par_32> 0..32767 - factory default value is 6000 NR Attenuation factor: decreasing this parameter increases allowed attenuation <par_33>...
Page 452: Tones Configuration
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Tones configuration Signaling Tones Mode - #STM #STM - Signaling Tones Mode SELINT 2 AT#STM= Set command enables/disables the signaling tones output on the audio path [<mode>] Parameter: <mode> - signaling tones status...
Page 453: Extended Tone Generation - #Toneext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended tone generation - #TONEEXT #TONEEXT – Extended tone generation SELINT 2 Execution command allows the reproduction of DTMF tones, standard free tone, AT# TONEEXT= standard busy tone and a set of user defined tones for a infinite time, or stop the <toneId>,<act>...
Page 454: User Defined Tone Set - #Udtset Command
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 User Defined Tone SET - #UDTSET command #UDTSET – User Defined Tone SET SELINT 2 AT#UDTSET= Set command sets frequency and amplitude composition for a User Defined Tone. <tone>...
Page 455: User Defined Tone Save - #Udtsav Command
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 User Defined Tone SAVE - #UDTSAV command #UDTSAV – User Defined Tone SAVe SELINT 2 AT#UDTSAV Execution command saves the actual values of frequency and amplitude parameters that have been set with the command #UDTSET AT#UDTSAV =? Test command returns the OK result code.
Page 456 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 456 of 509 Mod. 0808 2011-07 Rev.2...
Page 457 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 457 of 509 Mod. 0808 2011-07 Rev.2...
Page 458: Audio Filters
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Audio Filters Uplink Path Biquad Filters - #BIQUADIN #BIQUADIN - Uplink Path Biquad Filters SELINT 2 AT# BIQUADIN= Set command allows to configure the parameters of the two cascaded ⋅...
Page 459: Extended Uplink Biquad Filters - #Biquadinex
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended Uplink Biquad Filters - #BIQUADINEX #BIQUADINEX – Extended Uplink Biquad Filters SELINT 2 AT#BIQUADINEX= Set command allows to configure the parameters of the two extended ⋅ <a >...
Page 460: Cascaded Filters - #Biquadout
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Cascaded filters - #BIQUADOUT #BIQUADOUT - Downlink Path Biquad Filters SELINT 2 AT# BIQUADOUT= Set command allows to configure the parameters of the two cascaded digital ⋅ <a >...
Page 461: Extended Downlink Biquad Filters - #Biquadoutex
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended Downlink Biquad Filters - #BIQUADOUTEX #BIQUADOUTEX – Extended Downlink Biquad Filters SELINT 2 AT#BIQUADOUTEX= Set command allows to configure the parameters of the two extended ⋅ <a >...
Page 462: Echo Canceller Configuration
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Echo canceller configuration Handsfree Echo Canceller - #SHFEC #SHFEC - Handsfree Echo Canceller SELINT 2 AT#SHFEC= It has no effect and is included only for backward compatibility. [<mode>] Parameter: <mode>...
Page 463 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SHSAGC - Handset Automatic Gain Control SELINT 2 AT#SHSAGC? Read command reports whether the automatic gain control function on audio handset input is currently enabled or not, in the format: #SHSAGC: <mode>...
Page 464: Handsfree Noise Reduction - #Shfnr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Handsfree Noise Reduction - #SHFNR #SHFNR - Handsfree Noise Reduction SELINT 2 AT#SHFNR = It has no effect and is included only for backward compatibility. <mode> Parameter: <mode> (0,1) - (0 is default) Note: This parameter is saved in NVM issuing AT&W command.
Page 465: Embedded Dtmf Decoder Configuration - #Dtmfcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Embedded DTMF decoder configuration - #DTMFCFG DTMFCFG – Embedded DTMF decoder configuration SELINT 2 AT#DTMFCFG=<scaling> Set command allows configuration of the embedded DTMF decoder. ,<threshold_1>,<threshold_ 2>[,<std_twist>,<rev_twist>] Parameters: <scaling>: 3..11 – this is the scaling applied to the pcm samples in order to manage arithmetic operations.
Page 466: Digital Voice Interface
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 std_twist> and <rev_twist> parameters for the first time: if the read command is entered, it reports the parameter value just used. If subsequently the <std_twist> and <rev_twist> are omitted, the read command reports the parameter value entered the last time.
Page 467: Extended Digital Voiceband Interface - #Dviext
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Extended Digital Voiceband Interface - #DVIEXT #DVIEXT - Digital Voiceband Interface Extension SELINT 2 AT#DVIEXT=<config Set command configures the Digital Voiceband Interface. >,[<samplerate>,[< samplewidth>,[<audio Parameters: mode>,>,[<edge>]]]] <config> 0 – Burst Mode 1 –...
Page 468: Dvi Clock Activation - #Dviclk
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 DVI Clock Activation - #DVICLK #DVICLK – DVI Clock Activation SELINT 2 AT#DVICLK=<clk> Set command configures and activates the DVICLK clock signal. Parameters: <clk> 0 – Disable (factory default) 1 –...
Page 469: Miscellaneous Audio Commands
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Miscellaneous audio commands PCM Play and Receive - #SPCM #SPCM - PCM Play And Receive SELINT 2 Set command allows user either to send speech sample coming from microphone or AT#SPCM=<mode>,...
Page 470: Open Audio Loop - #Oap
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Sidetone is active for default. Note: When DTMF decoder is enabled, PCM playing and recording are automatically disabled (AT#SPCM will return error). Test command returns the supported range of values for parameters AT#SPCM=? <mode>, <dir>...
Page 471: Jammed Detection & Report At Commands (This Section Is Not Yet Supported By The First Beta Releases)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.16. Jammed Detection & Report AT Commands (this section is not yet supported by the first beta releases) Jammed Detect & Report - #JDR This command is obsolete, please refer to the next #JDRENH2.
Page 472 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #JDRENH2 – Enhanced Jammed Detect & Report 2 SELINT 2 5 - enables the Jammed Detect; the MODULE will make both the actions as for <mode>=1 and <mode>=4. 6 - enables the Jammed Detect (this value is available only for 10.00.xxx release);...
Page 473: Lte Jammed Detect & Report - #Jdr4Gcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #JDRENH2 – Enhanced Jammed Detect & Report 2 SELINT 2 <P_RSCP_T3G> - Set the threshold of RSCP in 3G Network. The threshold (RSCP_Thr) is calculated as RSCP_Thr= RSCP_Av*(1- (<P_RSCP_T3G>/100)) where RSCP_Av is the average of the last 10 RSCP measures.
Page 474 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #JDR4GCFG – LTE Jammed Detect & Report SELINT 2 NB: See AT#JDRENH2 to set the enable of the LTE Jammed Detect & Report feature. AT#JDR4GCFG? Read command reports the current settings, in the format: #JDR4GCFG: <P_RSRP_T4G>,<P_RSRQ_T4G>,<P_RSSNR_T4G>,0,0,0,0,0,0...
Page 475: Ota Commands (This Section Is Not Yet Supported By The First Beta Releases)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.17. OTA Commands (this section is not yet supported by the first beta releases) OTA Set Network Access Point - #OTASNAP #OTASNAP – OTA Set Network Access Point SELINT 2...
Page 476: Ota Set User Answer - #Otasuan
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 OTA Set User Answer - #OTASUAN #OTASUAN – OTA Set User Answer SELINT 2 Set command: AT#OTASUAN= <response>[,<mode>[ enables or disables sending of unsolicited result code #OTAEV that asks ,<bfr>]]...
Page 477 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #OTASUAN – OTA Set User Answer SELINT 2 #OTAEV: Fw Download Complete The firmware download is finished #OTAEV: OTA Fw Upgrade Failed The Fw upgrade has failed #OTAEV: Module Upgraded To New Fw...
Page 478: Ota Set Ring Indicator - #Otasetri
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 OTA Set Ring Indicator - #OTASETRI #OTASETRI - OTA Set Ring Indicator SELINT 2 AT#OTASETRI= Set command enables/disables the Ring Indicator pin response to a manual OTA [<n>] server request to start the firmware upgrade. If enabled, a negative going pulse is generated when the URC “#OTAEV: Do you want to upgrade the firmware?”...
Page 479: Save Ip Port And Ip Address For Ota Over Ip - #Otaipcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Save IP Port and IP Address for OTA over IP - #OTAIPCFG #OTAIPCFG – Save IP port and IP address for OTA over IP SELINT 2 AT#OTAIPCFG=<IPort>,<IP This command saves in NVM the IP port number and IP address of the addr>[,<unused>]...
Page 480: Start An Ota Update Over Ip - #Otaipupd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Start an OTA Update over IP - #OTAIPUPD #OTAIPUPD – Start an OTA Update over IP SELINT 2 AT#OTAIPUPD This command starts an OTA Update over IP. Note: in order to complete the update, the device has to be registered in the OTA server.
Page 481: Set Ip Port And Address For Ota Over Ip - #Otasnapip
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Set IP Port and Address for OTA over IP - #OTASNAPIP #OTASNAPIP – Set IP port and address for OTA over IP SELINT 2 AT#OTASNAPIP= Set command specifies the IP port number and IP address that the module has to use <IPort>,<IPaddr>[,<...
Page 482: Set Access Point Name For Ota Over Ip - #Otasnapipcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Set Access Point Name for OTA over IP - #OTASNAPIPCFG #OTASNAPIPCFG – OTA Set Access Point Name for OTA over IP SELINT 2 AT#OTASNAPIPCF Set command specifies the bearer (GSM or GPRS) and the APN that the module has to use to send the Remote Registration message.
Page 483: Ota Registration Status - #Otareg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 OTA Registration status - #OTAREG #OTAREG – OTA Registration status SELINT 0/1/2 AT#OTAREG Execution command reports the OTA registration status in the following form: #OTAREG: <OTA_reg_status>,<OTA_registered_IMSI> Where: <OTA_reg_status> - numeric parameter:...
Page 484 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #OTAREG – OTA Registration status SELINT 0/1/2 //extract the SIM: the module is considered not registered because there isn’t any inserted SIM; it’s showed the last registered IMSI at#otareg...
Page 485: M2Mair Cloud Commands (This Section Is Not Yet Supported By The First Beta Releases)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 4.1.6.18. m2mAIR Cloud Commands (this section is not yet supported by the first beta releases) The following AT commands regard the deviceWISE functionality. Here is a basic interaction diagram: Configure deviceWISE parameters - #DWCFG #DWCFG –...
Page 486 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <security> - Flag indicating if the SSL encryption is enabled. 0 – SSL encryption disabled (default) 1 – SSL encryption enabled If SSL encryption enabling is required, some initial settings have to be done as follows.
Page 487: Connect To M2M Service - #Dwconn
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <overflowHandling> - Flag indicating if the way to handle overflows in data management. 0 – FIFO (default) 1 – LIFO <atrunInstanceId> - AT instance that will be used by the service to run the AT Command.
Page 488: Query Connection Status - #Dwstatus
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Note: if the secure mode connection has been enabled, it cannot be used contemporarily to any command starting an SSL connection (including SSL sockets, FTPS, secure SMTP and HTPS).
Page 489: Send Data To M2M Service - #Dwsend
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Send data to M2M Service - #DWSEND #DWSEND – send data to M2M Service SELINT 2 AT#DWSEND=<type>,<para Execution command permits to send formatted data to the M2M Service. m_>[,<param_2>[,…[<param _n>]]]...
Page 490: Send Raw Data To M2M Service - #Dwsendr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Note: there is no limit on the length of the single <param_i>, but there is a limit in the total length of the AT command string, that cannot exceed 400 characters.
Page 491: Receive Data From M2M Service - #Dwrcv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#DWSENDR=? Test command reports the supported range of values for <dataLen> parameter Receive data from M2M Service - #DWRCV #DWRCV – Receive data from M2M Service SELINT 2 AT#DWRCV=<msgId>...
Page 492: Receive Raw Data From M2M Service - #Dwrcvr
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #DWRCV – Receive data from M2M Service SELINT 2 If the data received are the consequence of a previous data sending issued by AT#DWSEND, then they can be read only using AT#DWRCV command and not AT#DWRCVR command (i.e.: AT#DWRCV and...
Page 493: List Information On Messages Pending From M2M Service - #Dwlrcv
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #DWRCVR – Receive raw data from M2M Service SELINT 2 If the data received are the consequence of a previous data sending issued by AT#DWSENDR, then they can be read only using AT#DWRCVR command and not AT#DWRCV command (i.e.: AT#DWRCV and...
Page 494: Software Management Service (Swm) At Commands (Not Yet Supported In The First Beta Releases)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 <optionX> where X=1,..,5 - optional parameters depending on the feature (string) Note: feature 0 (Remote AT commands) has no option. Note: the <en> value is considered only at the very first connection to M2M...
Page 495: Configure Swm Client Parameters - #Swmcfg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMENA – SWM Client Enable / Disable AT#SWMENA? #SWMENA: 0,0 AT#SWMENA=1 AT#SWMENA? AT#SWMENA: 1,0 Configure SWM Client Parameters - #SWMCFG #SWMCFG – Configure SWM Client Parameters AT#SWMCFG=[<max_avail_ Set command configures the parameters related to SWM Client.
Page 496: Configure Bootstrap - # Swmbootstrap
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMCFG – Configure SWM Client Parameters the SWM client. Valid value is >=0. A value of 0 means no polling after device boot. Default is stored parsed as part of the DM tree: 60.
Page 497 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMBOOTSTRAP – Configure Bootstrap <serverURL> - string parameter indicating the URL of the SWM server in address:port form. The address substring shall start with “http://” or “https://”, otherwise an error is raised.
Page 498: Enable/Disable Self Registration - #Swmreg
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMBOOTSTRAP – Configure Bootstrap AT#SWMBOOTSTRAP =? Test command reports the supported range of values for all the parameters. Enable/Disable Self Registration - #SWMREG #SWMREG –Enable/Disable Self Registration AT#SWMREG=<mode>[,< Set command enables/disables in the SWM Client the self-registration domainName>[,<PIN>]]...
Page 499: Check Updates - #Swmchkupd
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMREG –Enable/Disable Self Registration #SWMREG: (list of supported <mode>s),<domainLength>,<pinLength> where: <domainLength> - integer type value indicating the maximum length of field <domainName> <pinLength> - integer type value indicating the maximum length of field <PIN>.
Page 500: Download Update Package From Oma-Dm Software Management Server - #Swmgetdp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMCHKUPD – Check updates #SWMCHKUPD: 1,4096, Minor Bug Fixes and Added Functionality (No Update is available) AT#SWMCHKUPD #SWMCHKUPD: 0 Download update package from OMA-DM software management server - #SWMGETDP #SWMGETDP –...
Page 501: Install Software Update Package - #Swmdeploydp
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMGETDP – Download update package from OMA-DM software management server. #SWMCHKUPD: 1,1024,”Description of update package”,”Release Note URL” AT#SWMGETDP=1 #SWMDLPRGRSS: 0,1024 #SWMDLPRGRSS: 1024,1024 #SWMRING: 2,”Description of update package”,”Release Note URL”...
Page 502: Device Management (Oma-Dm)
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 #SWMDEPLOYDP – Install software update package (after device reboot) #SWMRING: 4,”description of update package”,”Release Note URL” 4.1.6.20. Device Management (OMA-DM) #ENAOMADM #ENAOMADM – Enable OMA DM SELINT 2 AT#ENAOMADM=<enable>[,<u This command enables Open Mobile Alliance (OMA) standards- nsolicited>[,<account type>]]...
Page 503 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 "UIE_UI_ALERT_INPUT" - Shows the end-user an UI Alert input message "UIE_UI_ALERT_CHOICE" - Shows the end-user an UI Alert choice list "UIE_FUMO_CONFIRM_UPDATE" - Prompts the end-user to confirm update installation (Only for AT&T products)
Page 504: Plasmaid Write - #Uniquedevid
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 AT#ENAOMADM=? Test command reports the supported range of values for parameters <enable>,<unsolicited> and <account type> . PLASMAID Write - #UNIQUEDEVID #UNIQUEDEVID – PLASMAID write SELINT 2 AT#UNIQUEDEVID=<Pla Handling of PLASMA ID parameter (developed for ODIS AT&T smaID>...
Page 505 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 Note: Host Manufacturer, Host Model and Host Software application version should not change after an OTA firmware upgrade. AT#TEMPCFG? AT#TEMPCFG=? Test command returns the supported range of <Param>, <Action> and <Value> parameters.
Page 506: Oma Dm Send Pin Or Nss - #Omasendpin
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 OMA DM Send PIN or NSS - #OMASENDPIN #OMASENDPIN – OMA DM Send PIN or NSS SELINT 2 AT#OMASENDPIN= This command sends a response to an UIE_BOOTSTRAP_GET_PIN or <data>...
Page 507: List Of Acronyms
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 List of acronyms ARFCN Absolute Radio Frequency Channel Number Attention command BCCH Allocation BCCH Broadcast Control Channel Cell Allocation Cell Broadcast Message Cell Broadcast Service Current Call Meter CLIR...
Page 508 Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 NMEA National Marine Electronics Association Non Volatile Memory Personal Communication Service Packet Data Protocol Packet Data Unit Personal Identification Number Point to Point Protocol Pin Unblocking Code Radio Link Protocol...
Page 509: Document History
Telit LE910 V2 Series AT Commands 80446ST10707A Rev . 0– 2015-11-03 5.1. Document history Revision Date SW release Changes ISSUE #0 2015-11-03 20.00.xxx Initial release (draft2) Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 509 of 509...

Save PDF
