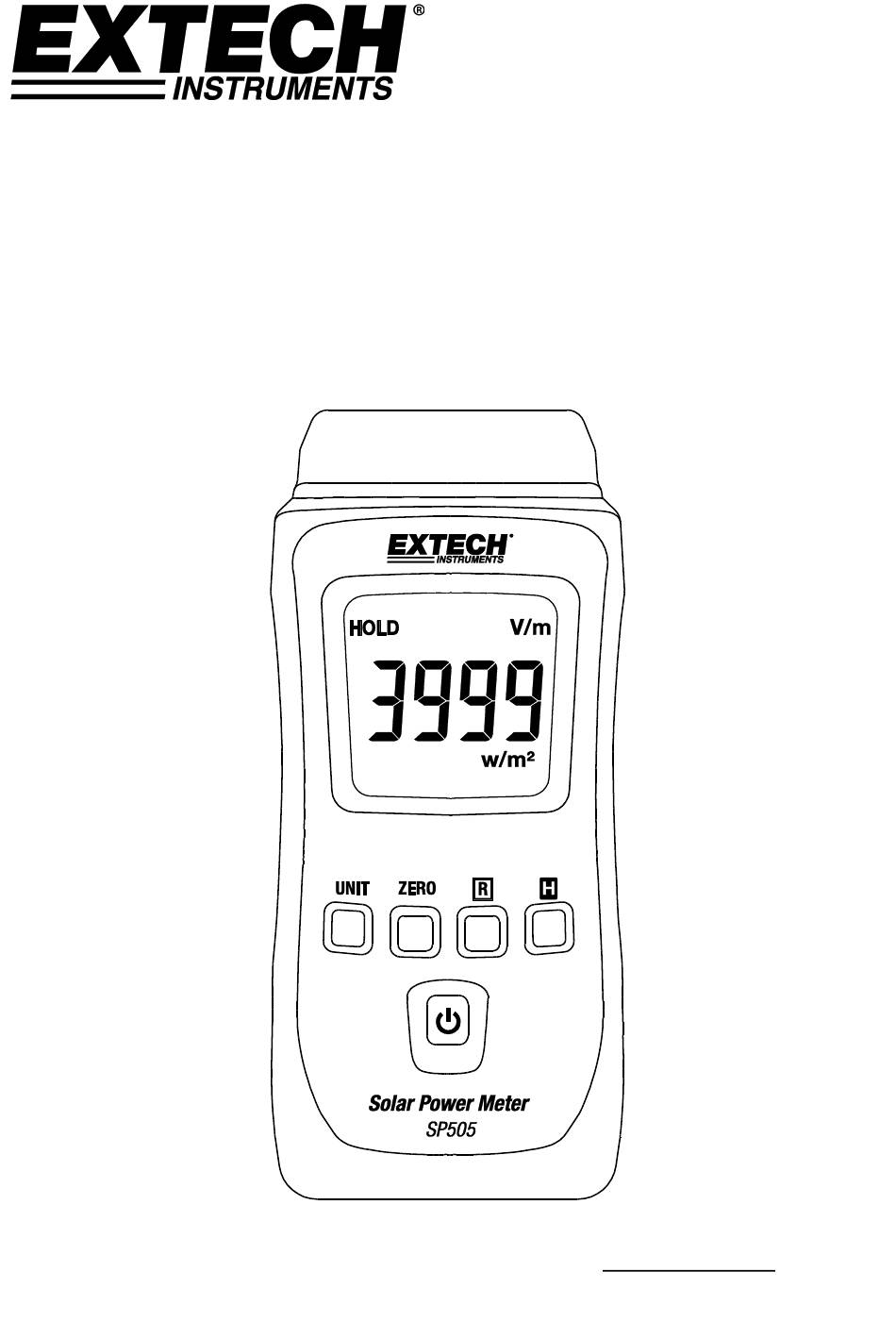

- Page 1 USER MANUAL Solar Power Meter Model SP505 Additional User Manual Translations available at www.extech.com...
-
Page 2: Meter Description
Thank you for selecting the Extech Model SP505 Solar Power Meter. This device measures the power of solar radiation. Use the SP505 to measure the effectiveness of solar film, measure solar radiation, check solar insulated windows, check headlight intensity, and find the optimal incidence angle for solar panels and solar water heaters. -
Page 3: Operation
With the window closed, aim the sensor toward the sun and record the reading. Open the window and aim the device toward the sun, recording the reading. Compare the two values to determine the heat efficiency of the window. Test the windows at least once a year to monitor efficiency. SP505-en-GB_V1.1 10/18... -
Page 4: Maintenance
Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. Store the meter in the supplied pouch. Remove the batteries if the meter is to be stored for more than 60 days. SP505-en-GB_V1.1 10/18... -
Page 5: Specifications
*Additional temperature error: ±0.38 W/m or ±0.12 BTU ft *h per °C from 25°C Copyright © 2018 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com SP505-en-GB_V1.1 10/18...
