APPENDIX D: SERIAL PORT (RS232 ON DB9)
Pin
Description
1
Not connected
2
RxD (received data)
3
TxD (transmitted data)
4
Not connected
5
Signal ground
6
Not connected
7
RTS (request to send)
8
CTS (clear to send)
9
Not connected

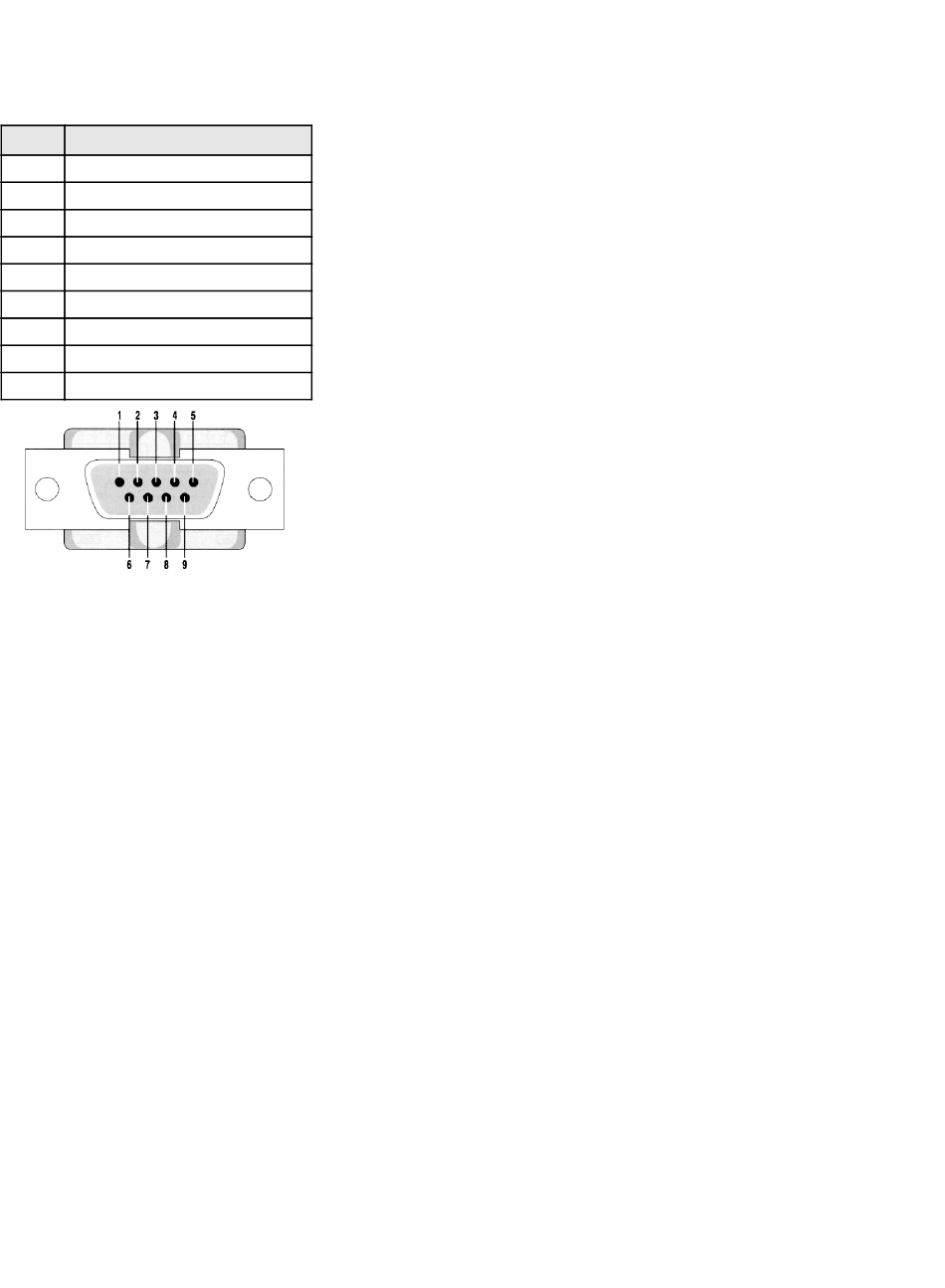

IQOYA *LINK and LINK/LE provide an RS232 serial port on a male DB-9 connector on its back panel. Use
this port to connect any compatible device. For pinout allocation details, please refer to the figure and table
above.
The port may be used for tunneling. Set-up is done through a web browser .
89
