Snmp - Digigram IQOYA *LINK User Manual

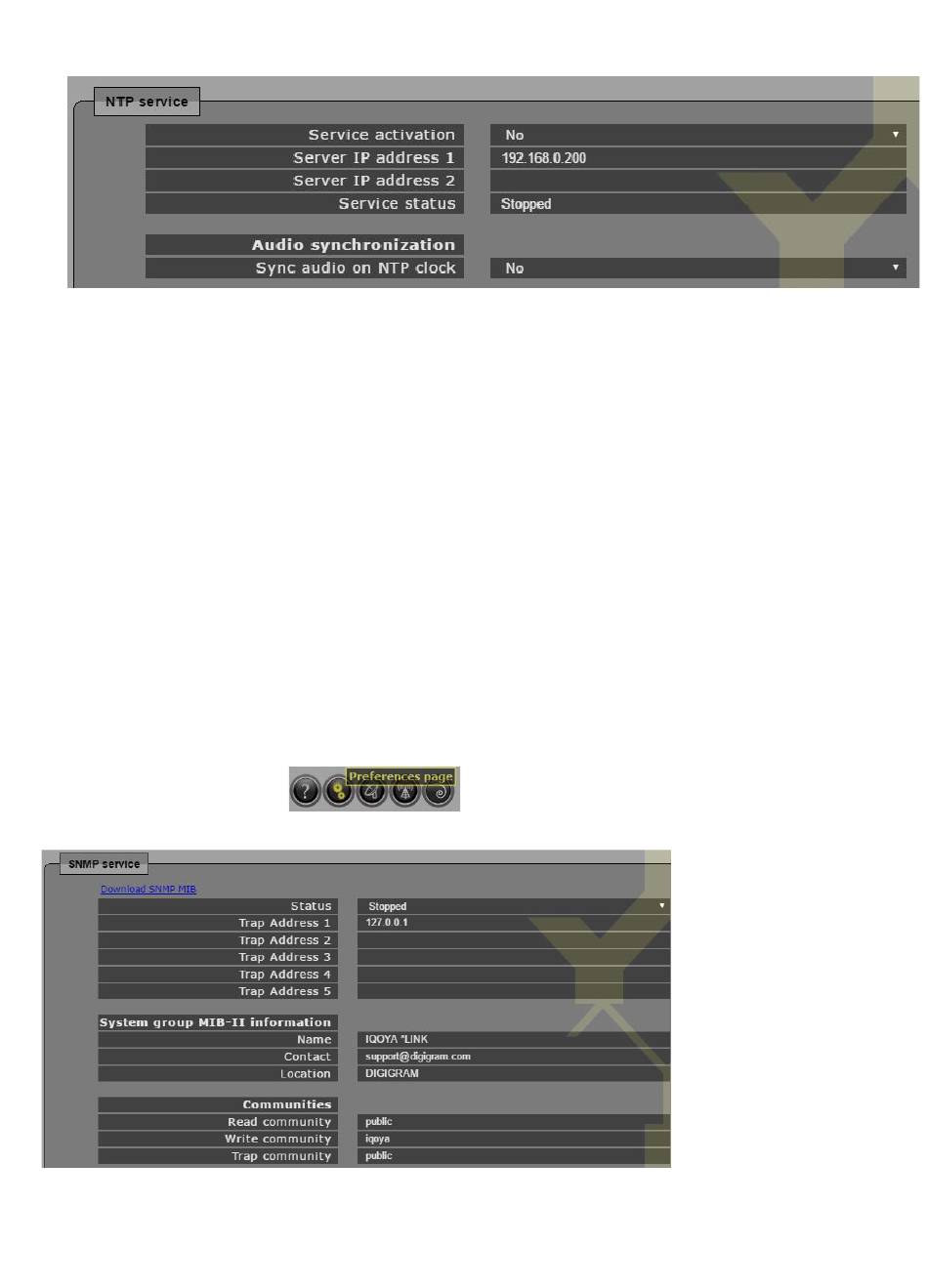

● Click on Configure
● Select "Yes" in "Service activation", and enter the IP address of the NTP server in "Server IP
address 1". You may enter the IP address of a secondary NTP server in "Server IP address
2".
● Select "Yes" in "Sync audio on NTP clock"
● Click on Apply.
At this point, IQOYA is set in mode where audio synchronization on NTP is allowed. It is then necessary to
configure all the parameters. Specific parameters for audio synchronization on NTP are to be configured from
the Send page for the encoder, and from the Receive page of the decoders which receive this stream.
Note that an IQOYA can at the same time generate a stream with NTP synchronization, and receive a stream
with NTP synchronization.
Please refer to paragraph "Encoder output parameters" to generate a stream with audio synchronization based
on NTP.
Please refer to paragraph "Decoder input parameters" to decode a stream with audio synchronization based on
NTP.

7.4.2 SNMP

To be able to control and monitor IQOYA, and receive alarms from it via SNMP, it is necessary to enable the
SNMP service.
Click on the 'Preferences' icon
● Select Services, SNMP
● Click on 'Configure"
● Select "Running" from the field "Status".
.
24
