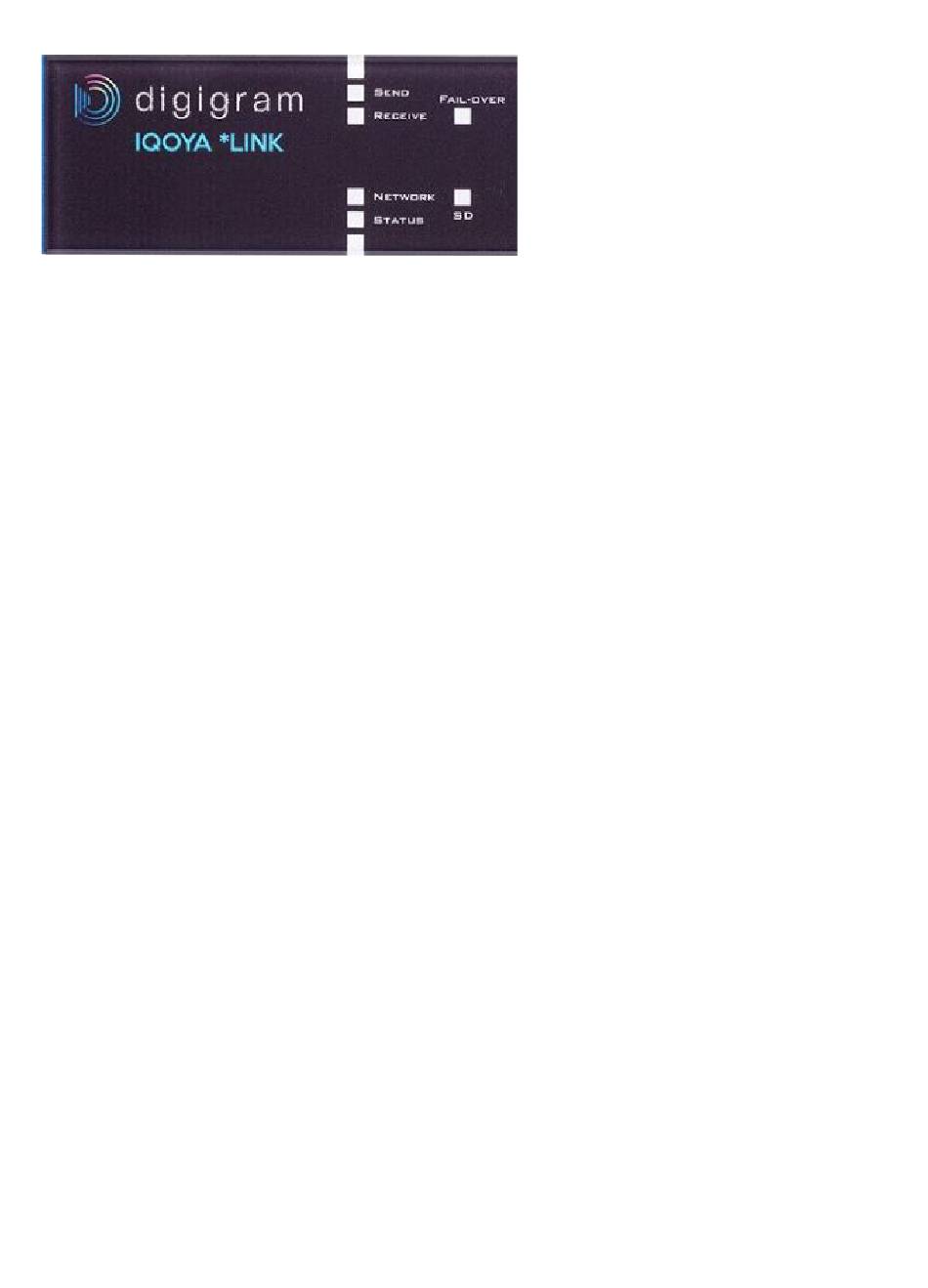

Digigram IQOYA *LINK User Manual page 14

Send
● off
● green
Receive
● off
● green
● lit red
● red/green flashing + Fail-over green => Main stream lost, backup stream is decoded.
Network
● green
● red
Status
● blinking green =>
● off
Fail-over
● green
● off
SD
● green
=> TX not configured
=> TX activated
=> RX not configured
=> the main audio stream is active
=> no packets received
=> the interfaces configured are connected
=> at least one of the interfaces configured is not connected
in use
=> configuration underway
=> backup in use (main source absent)
=> backup disabled
=> LED activated during read/write operations
