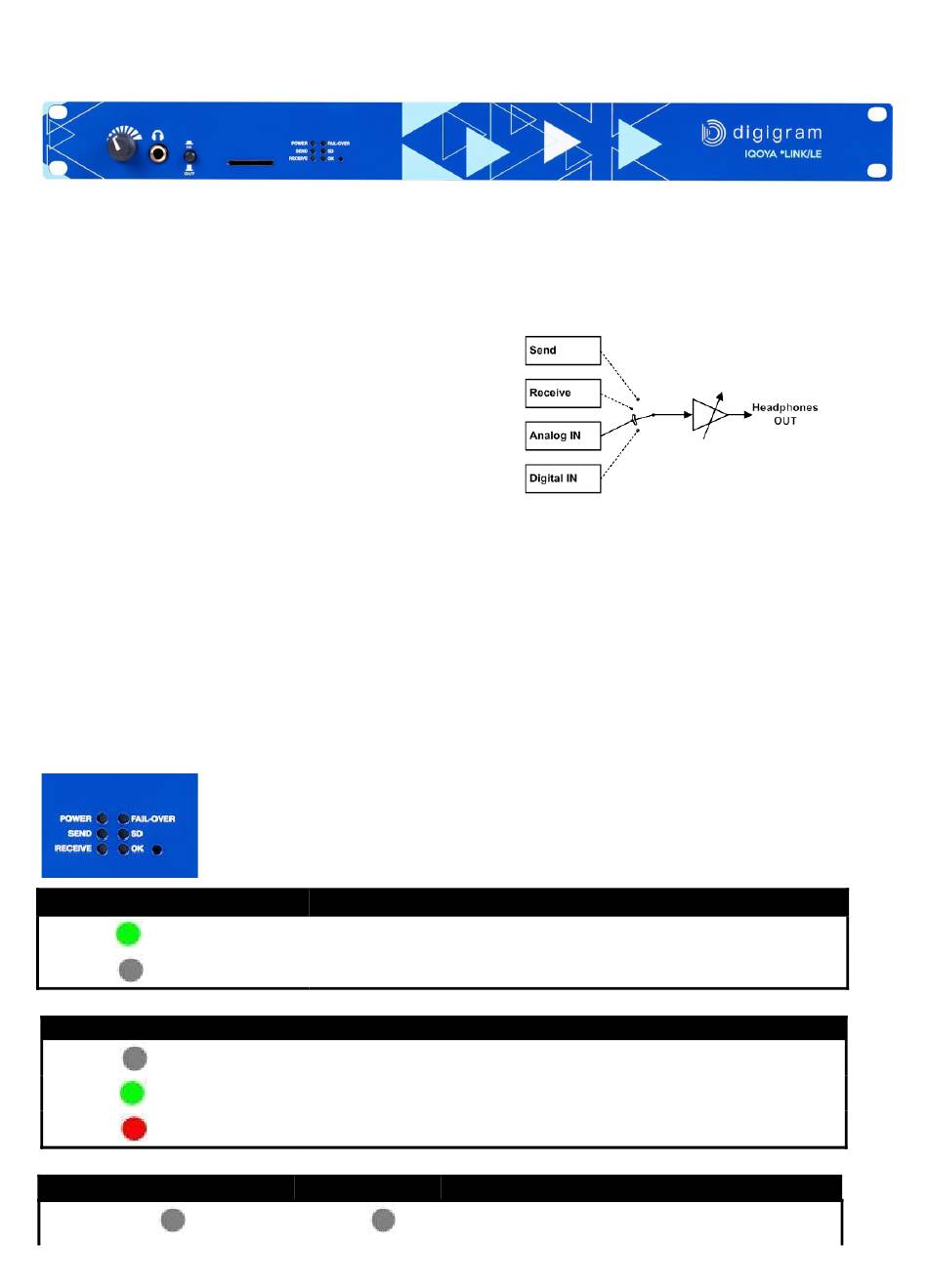

5.2 IQOYA *LINK/LE Front Panel

(1) (2) (3)
(1) Headphones volume
Rotary knob allowing to adjust the volume of the headphones output
(2) Headphones output
This output allows monitoring:
● the output to be encoded
● the analog input
● the digital input
● the decoded audio output
(3) Monitoring source selection
This button allows selecting the audio source to be monitored on the headphones.
Pushed: encoder audio input is monitored.
Released: encoder output is monitored.
(4) SDHC card
SDHC interface allowing providing audio files in order to play them the audio output (failover). For these audio
files, only .mp3, .mpeg, .mpg, .wav or .mp2 file formats are authorized
(5) LEDs
POWER LED
SEND LED
Receive
(4) (5) (6)
Operation
Device ON, power OK
Device OFF
Operation
« Send » section is not configured
Streaming is running
Streaming process failure
Fail-over Prioprity 1
Not
configured
15
Priority 2
Not configured
