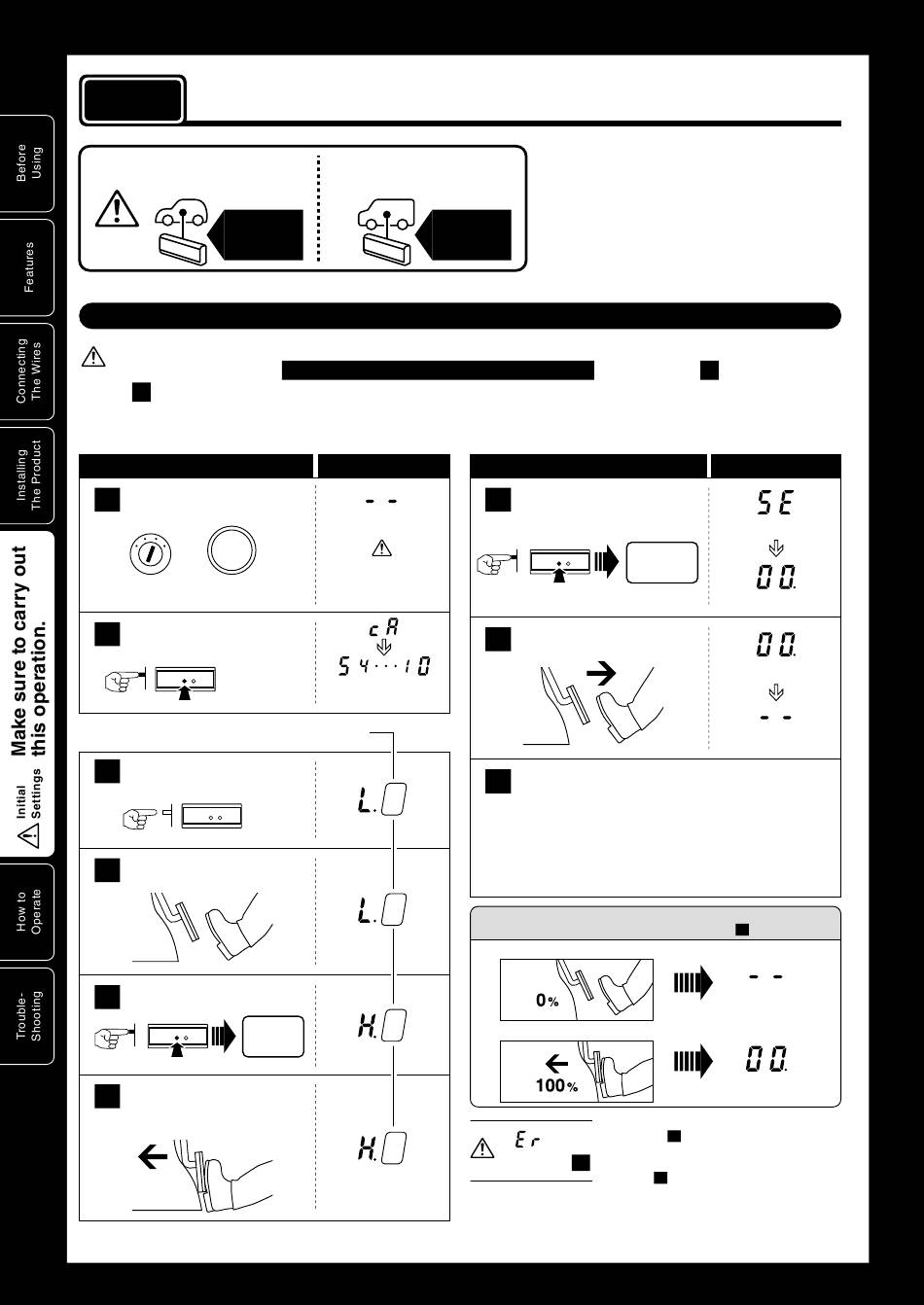

procedure
When installing for
the first time
Before making the "Initial Settings"
1. Make settings only after having completed all wiring (connector installation).
2. Make settings with the
( Neutral )
N .
[Making the Settings]
Operational Procedure
1
Turn the ignition ON.
(engine not running)
ON
or
Without braking,
press down twice
2
Press the SET switch
until "0" is displayed.
The values shown in the display will
vary depending on the type of car.
3
When "0" appears
release the SET switch.
4
Pedal is not pressed down.
(Release the accelerator to 0%)
0
%
5
Press the SET switch.
Press
6
Pedal is completely
pressed down.
(Press in on the accelerator to 100%)
100
%
4
Initial Settings
Make sure to carry out these settings.
When installing into a
different car
Initial
Settings
ignition in the ON position ( engine not running )
Controller Display Area
(Normal Mode)
ENGINE
START
STOP
--
If does not appear,
press the MODE switch
--
until appears.
Press until
"0" appears
Count down from 5 to 0
cA
after the "
Release
Set to
0
%
( Degree of Acceleration Setting )
• This operation sets the car's accelerator
characteristics into the controller unit.
• If the "Initial Settings" are not carried out,
the unit will remain in NORMAL Mode even
Initial
if the Mode is switched.
Settings
• If this settings have been improperly made
a Check Engine Light may go on.
Operational Procedure
7
With the accelerator at 100%,
press the SET switch.
Press
8
Once the display changes to
00. release the accelerator.
" blinking.
9
Setting Completed
If the device is re-installed into a different vehicle, make
sure to carry out these settings again.
After having finished settings and the battery or
wires have been disconnected it is not necessary
to carry out "Initial Settings" .
Check the Settings
Do not press in on pedal
Press down on pedal
7
If is
displayed at
( Parking )
and the gear in P
Controller Display Area
Set to
100
%
(Normal Mode)
Note: If the display is incorrect, start
2
again from step
(Normal Mode)
(100%)
If after the "Er" is shown the display returns to
as shown in 4 ( "L.1" or so on), it means that
the degree of acceleration settings have not
7
been confirmed properly. Re-do the settings
from step 4 .
or
(SET)
(100%)
(100%)
above.
