Each added module can be configured with a module name and up to 10 users who have access to the module
in case of outputs, or receive messages in case of inputs.
NOTE: Failure on Extensions are sent to the users in the general message tab.

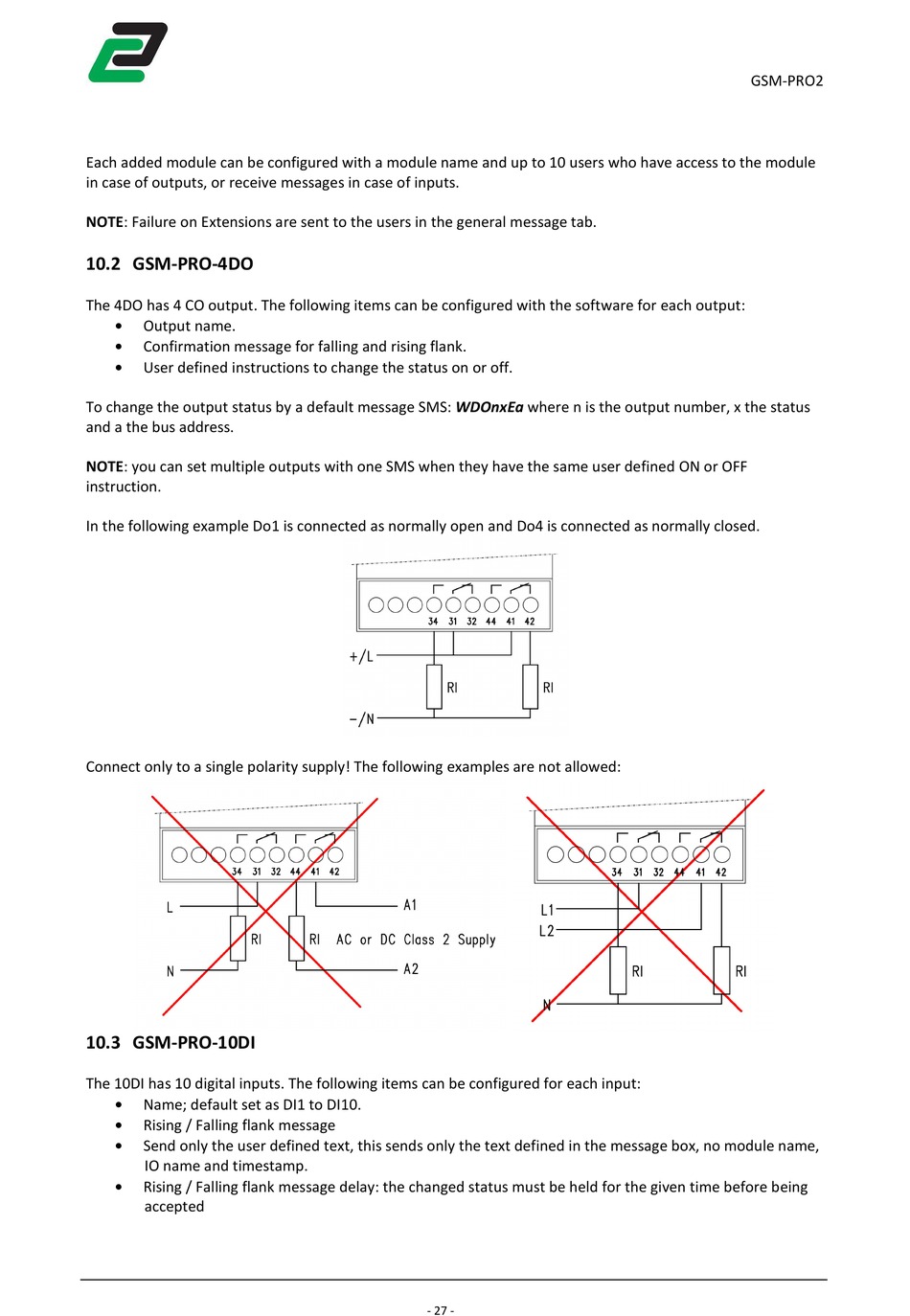

10.2 GSM-PRO-4DO

The 4DO has 4 CO output. The following items can be configured with the software for each output:

Output name.

Confirmation message for falling and rising flank.

User defined instructions to change the status on or off.
To change the output status by a default message SMS: WDOnxEa where n is the output number, x the status
and a the bus address.
NOTE: you can set multiple outputs with one SMS when they have the same user defined ON or OFF
instruction.
In the following example Do1 is connected as normally open and Do4 is connected as normally closed.
Connect only to a single polarity supply! The following examples are not allowed:

10.3 GSM-PRO-10DI

The 10DI has 10 digital inputs. The following items can be configured for each input:
 Name; default set as DI1 to DI10.

Rising / Falling flank message

Send only the user defined text, this sends only the text defined in the message box, no module name,
IO name and timestamp.

Rising / Falling flank message delay: the changed status must be held for the given time before being
accepted
