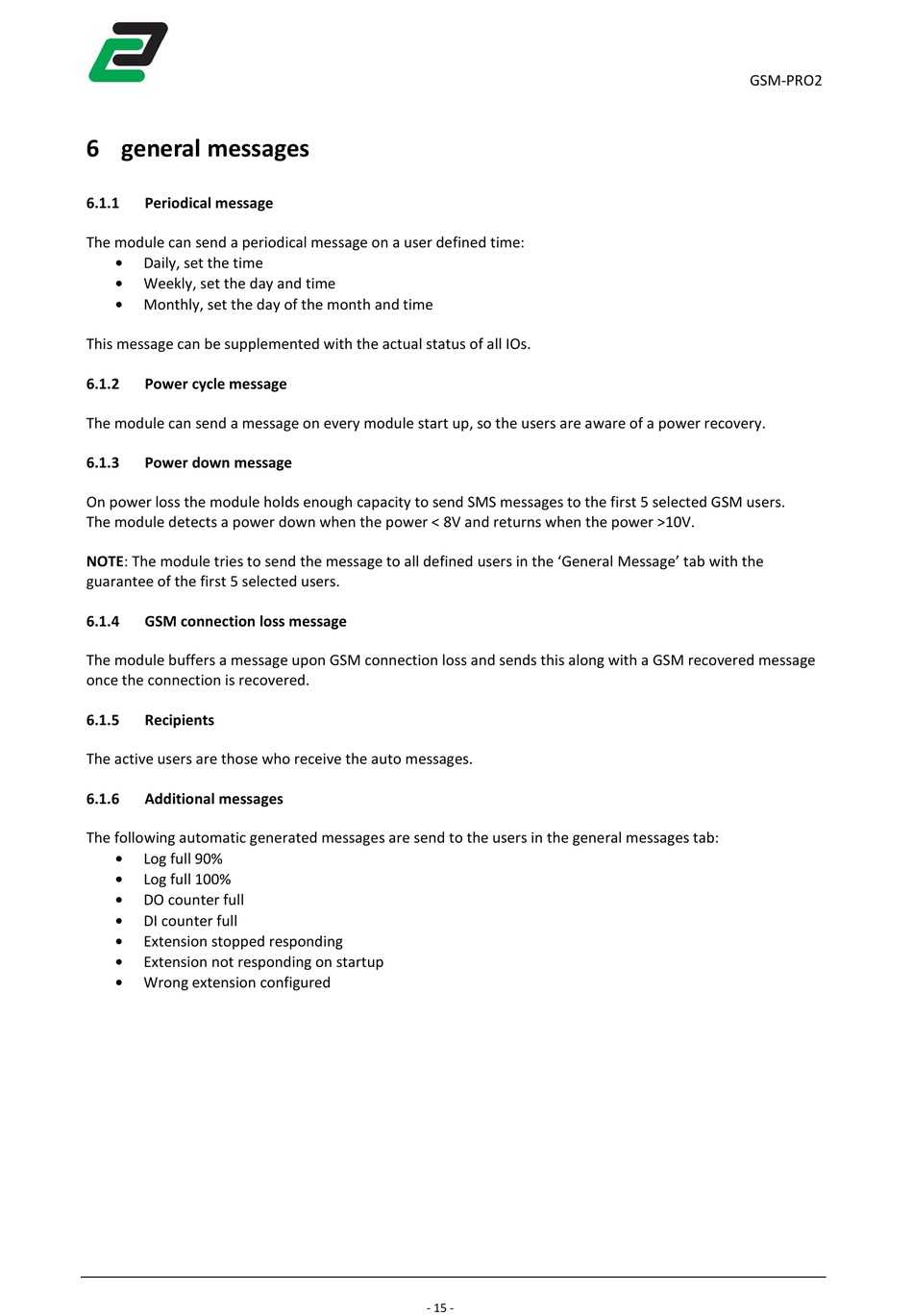

6 general messages

6.1.1

Periodical message

The module can send a periodical message on a user defined time:

Daily, set the time

Weekly, set the day and time
 Monthly, set the day of the month and time
This message can be supplemented with the actual status of all IOs.
6.1.2

Power cycle message

The module can send a message on every module start up, so the users are aware of a power recovery.
6.1.3

Power down message

On power loss the module holds enough capacity to send SMS messages to the first 5 selected GSM users.
The module detects a power down when the power < 8V and returns when the power >10V.
NOTE: The module tries to send the message to all defined users in the 'General Message' tab with the
guarantee of the first 5 selected users.
6.1.4

GSM connection loss message

The module buffers a message upon GSM connection loss and sends this along with a GSM recovered message
once the connection is recovered.
6.1.5

Recipients

The active users are those who receive the auto messages.
6.1.6

Additional messages

The following automatic generated messages are send to the users in the general messages tab:

Log full 90%
 Log full 100%

DO counter full

DI counter full
 Extension stopped responding

Extension not responding on startup

Wrong extension configured
