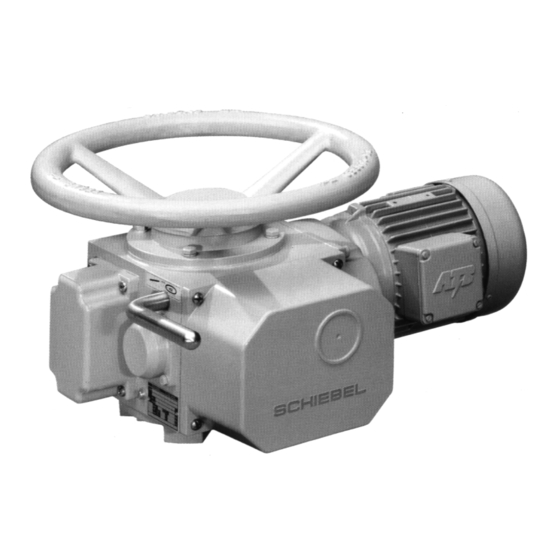

- Page 1 Operating instructions for actuators type AB OM-ENGLISH-AB-V2.05-2017.06.28...
-
Page 2: Table Of Contents
Operating instructions for actuators type AB CONTENTS OM-ENGLISH-AB-V2.05-2017.06.28 Contents Contents Operating instructions for actuators type AB 1 Introduction/Notes............3 Serial number and nameplater . -
Page 3: Operating Instructions For Actuators Type Ab
(see Figure 1) of the actuator (the nameplate is located under the hand lever). Using this serial number, SCHIEBEL can uniquely identify the actuator (type, size, design, options, technical data and test report). -
Page 4: Operational Mode
Clockwise rotation of the actuator is given when the output shaft turns counter clockwise when looking on the output shaft. Figure 3: AB3 - AB80 Figure 4: AB100 - AB500 All data in these operating instructions refer to the standard rotating direction. -
Page 5: Protection Devices
The adjusting screws are varnish-protected and must not be reset without prior consultation with the Schiebel Company. However, the torque for the relevant rotating direction can be reduced by means of plastic cams on the torque switch. -
Page 6: Information Notice (Tag)
Operating instructions for actuators type AB 1 Introduction/Notes OM-ENGLISH-AB-V2.05-2017.06.28 Figure 6: sticker 1.9 Information notice (tag) Each actuator is provided with a bilingual tag containing key information, which is attached to the handwheel after final inspection. This tag also shows the internal commission registration number (see Figure 7). Figure 7: tag... -
Page 7: Packaging, Transport And Storage
CAUTION: The silica gel in the connection compartment must be replaced after 6 months of storage (from date of delivery from SCHIEBEL’s factory in Vienna) After replacing the silica gel, brush with glycerine the connection cover seal. Then, carefully close again... -
Page 8: Installation Instructions
The connection of electrical wiring must follow the circuit diagram. This can be found in the appendix of the documentation. The circuit diagram can be ordered from SCHIEBEL by specifying the serial number. The standard model can be ordered with the following connection options:... - Page 9 Operating instructions for actuators type AB OM-ENGLISH-AB-V2.05-2017.06.28 3 Installation Instructions wire tightening connection size stripping torque length controlsignal 0,25. . . 2,5mm 0,5Nm motor grounding screw / Protective conductor terminals with M4 1. . . 1,2Nm — ring cable bracket explosion-proof actuators - electrical connection of the controlsignals and the motor via the terminal box on the actuator - AK36 wire...
-
Page 10: Motor Connection
Operating instructions for actuators type AB 3 Installation Instructions OM-ENGLISH-AB-V2.05-2017.06.28 If ordered (or because of high currents) also other plugs can be used. Electrical connection of the controlsignals and the motor via plug with screw connection - Han24E / SHan24E / SH32 wire tightening connection... -
Page 11: Commisioning
Labels on the actuator: Figure 9: AB8, 18, 40, 80 Figure 8: AB3, 5, 100, 200, 500 4.2 Monitoring the Rotating Direction Move the actuator with coupled fittings to the middle position by hand. Give the actuator the short electrical command “CLOSE“. -
Page 12: Camshaft Gear (Operational Range Starting At 0.25 Rev. At The Output)
Operating instructions for actuators type AB 4 Commisioning OM-ENGLISH-AB-V2.05-2017.06.28 Figure 11: 1. . . switch S4, 2. . . L, 3. . . trip cam for counter-clockwise (OPEN), 4. . . switch S3, 5. . . R, 6. . . flasher shaft, 7. . . trip cam for Figure 10 counter-clockwise (CLOSE) Setting the position „OPEN“:... -
Page 13: Maintenance
Operating instructions for actuators type AB OM-ENGLISH-AB-V2.05-2017.06.28 5 Maintenance 5 Maintenance No maintenance work must be undertaken unless the actuator has been switched to IDLE. (Switching on during maintenance must be rendered impossible.) Following start-up, the ac- tuators are ready for use. The actuator is standardly filled with grease (oil filling upon customer’s request). -
Page 14: Application Temperature From -50 To +100 C
7.5 Basic Lubricant Service Interval On actuator maintenance, the old grease must be removed completely and replaced by a new one. The service interval for Schiebel actuators is 10 years from the date of delivery by Fa. SCHIEBEL Antriebstechnik Gesellschaft m.b.H, A-1230 Vienna The functionality and operating life of the lubricants is, however, dependent upon operational conditions. -
Page 15: Lubricant Requirements
The quantities needed for lubricant service can be seen from the table below. 7.6 Lubricant Requirements Threaded bushing Linear actuator (form A) Type of actuator Main gear Spur gears Pin jack (form B, B1, Claw coupling (form 11cm AB3/5 — (1litre oil) 15cm (1litre oil) — AB18 (1litre oill) 1,5kg — AB40/80... -
Page 16: Training
The Schiebel Company recommends to recruit only qualified personnel for assembly of Schiebel actuators. Upon special request by the ordering party, personnel can be trained on the premises of the Schiebel Company according to the operations listed in the instructions for use. -
Page 17: Original Declaration Of Incorporation Of Partly Completed Machinery
SEC-EINBAUERKLAERUNG-ENGLISH-V2.00-2015.04.14 9 Original Declaration of Incorporation of Partly Completed Machinery According Machinery Directive 2006/42/EC, (Annex II, sub. B) The maufacturer, the company: SCHIEBEL Antriebstechnik Gesellschaft m.b.H. Josef-Benc-Gasse 4 A-1230 Vienna hereby declares that the partly completed machinery described below: Electric actuators series:... -
Page 18: Declaration Of Conformity
10 Declaration of Conformity OM-ENGLISH-AB-V2.05-2017.06.28 SEC-KF-ENGLISH-V2.03-2017.03.20 10 Declaration of Conformity ( EMV- and Low voltage-directive) The producer: SCHIEBEL Antriebstechnik Gesellschaft m.b.H. Josef-Benc-Gasse 4 A-1230 Wien herewith confirms, that the equipment electric actuators with control unit and following types (r)AB ... CSC meets the requirement of the EC-directive: 2004/108/EG („EMV-directive“) -
Page 19: Declaration Of Conformity
Operating instructions for actuators type AB OM-ENGLISH-AB-V2.05-2017.06.28 11 Declaration of Conformity SEC-KF-ENGLISH-V2.03-2017.03.20 11 Declaration of Conformity (Ex-, EMV- and Low voltage-directive) The producer: SCHIEBEL Antriebstechnik Gesellschaft m.b.H. Josef-Benc-Gasse 4 A-1230 Wien herewith confirms, that the equipment Description Type Marking Certificate-No. - Page 20 EC-directive: 2006/95/EG („Low-voltage-directive“) in consideration of the respective operating instructions, and the fulfilment of the Directive has been demon- strated by the following standards: EN 60204-1:2006 Vienna, 14.12.2016 ................. (location) (date) (Klaus Schiebel, general manager)
- Page 21 SCHIEBEL Antriebstechnik Gesellschaft m.b.H. Josef Benc Gasse 4 A 1230 Wien Tel.: +43 1 66 108 - 0 Fax: +43 1 66 108 - 4 info@schiebel-actuators.com www.schiebel-actuators.com OM-ENGLISH-AB-V2.05-2017.06.28...
