- Page 1 Your success is our actuator Actuator-control unit SCHIEBEL Antriebstechnik GmbH Josef-Benc-Gasse 4 SMARTCON ® 1230 Wien Short instruction info@schiebel.com Operation Set-up of travel-end limits...

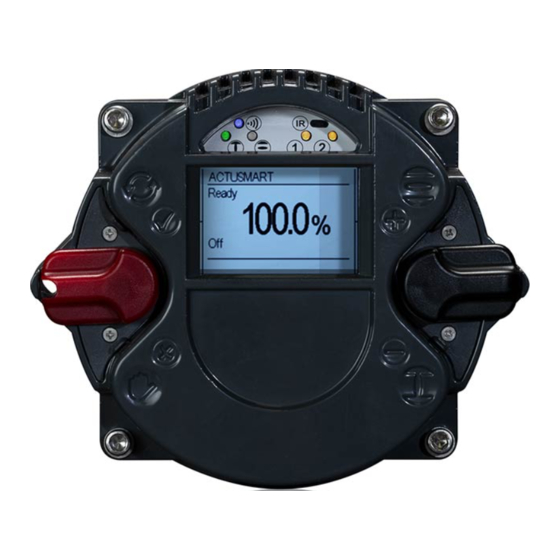

- Page 2 ® General overview/functions/handling of control unit SMARTCON Valve position indication Infrared-Interface Status indication: LED glows: Valve is opened or closed LED’s glows: Actuator is ready LED blinks: Valve is being opened or closed LED’s blinking or not glowing: Failure (actuator is not ready)
- Page 3 Adjustment of the travel end positions for right closing valves CAUTION – use this short instruction always in combination with main instruction manual! * This short instruction do not replace our main instruction! * It is designed for skilled people who are acquaint with our main instruction in which safety instructions, mounting, handling and start-up are described.
