E-DWT-H User Guide
TEST port (DH500F)
Reservoir cap
Priming pump plunger
Reservoir cap vent valve
Reference pressure monitor (RPM4-E-DWT)
Test shut off valve and fine pressure adjustment
'Lo Q-RPT shut off' valve position prompt LED
Introduction
This demo guide is to assist customers and
representatives
to
demonstration or evaluation of E-DWT-H.
written for the more complex case of a dual Q-RPT
E-DWT-H model.
Preparation
Plug in the E-DWT-H to power up.
Attach the four variable volume handles.
Open the reservoir cap (vent port) by turning
counter-clockwise.
Open the reservoir shutoff valve.

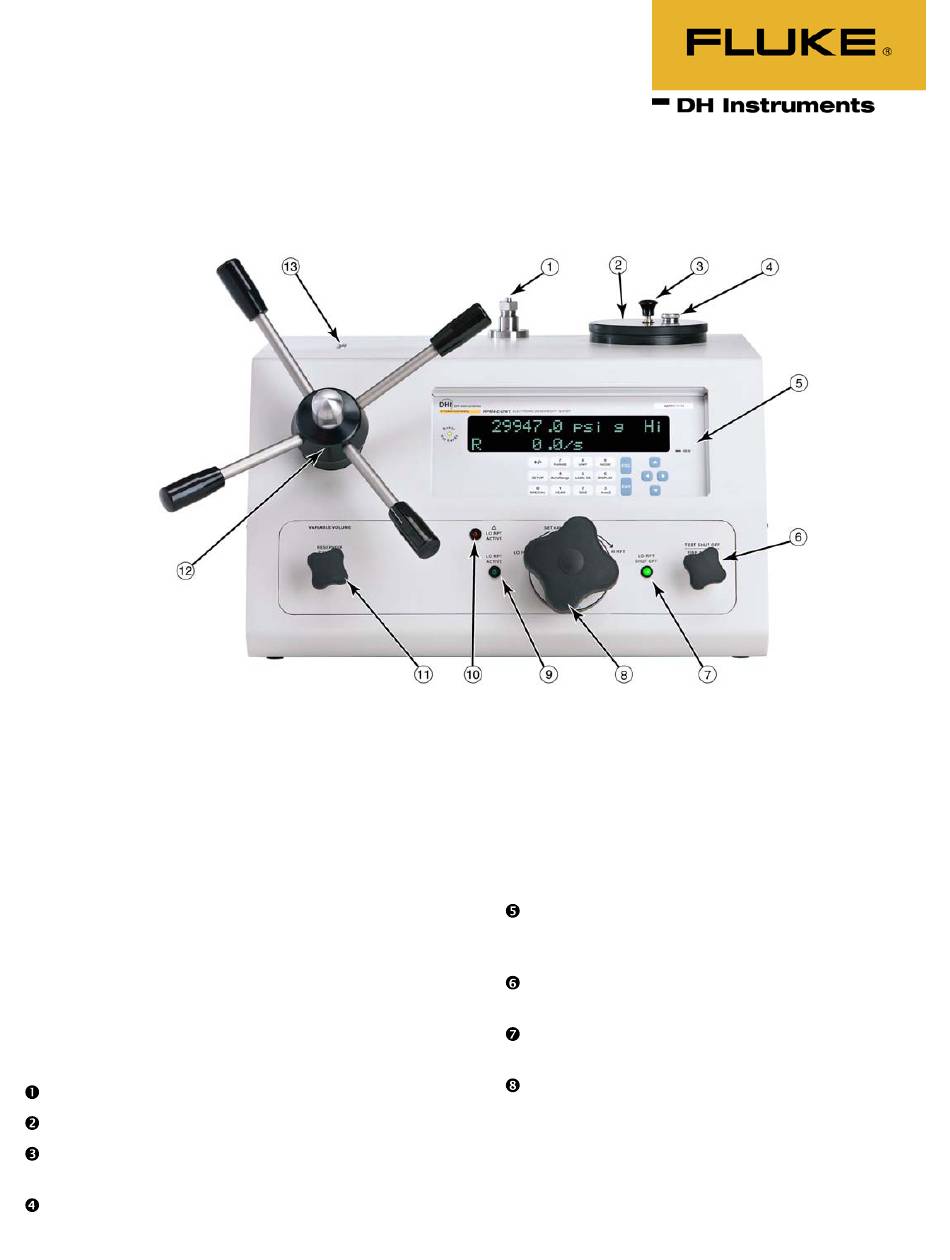

Figure 1 : E-DWT-H wit h Hi and Lo Q-RPT
perform
an
effective
It is
Lo Q-RPT shut off valve
'Lo Q-RPT active' valve position prompt LED
'Lo Q-RPT active' caution indicator
Reservoir shut off valve
Variable volume (screw press)
Variable volume piston position indicator
Back out the variable volume by turning
counter-clockwise. Back it out all the way, then
turn back in (clockwise) ½ turn.
Set the Lo Q-RPT shutoff valve to the Hi
Q-RPT (clockwise).
Set the RPM4 to the Hi Q-RPT using the
[7/Range] key.
Open the test shutoff valve by turning counter-
clockwise until it is fully backed out. Turn the
handle back in (clockwise) 4 turns to bring the
valve close to mid-stroke.
