Foscam C1 Quick Installation Manual

Package Contents
Quick Installation Guide
Indoor HD IP Camera with P2P
IP Camera
Model: C1
Resource CD

Security Warning

Foscam cameras require good security practices to
safeguard your privacy. You can help protect your
camera by changing the default username and/or
password.
You should update your camera regularly at
Foscam Digital Technologies
http://www.foscam.us/ rmware.html. Make sure your
camera has the latest rmware installed for your
V1.2
speci c camera model.
"Foscam" App download
EE200553
1

Hardware Introduction

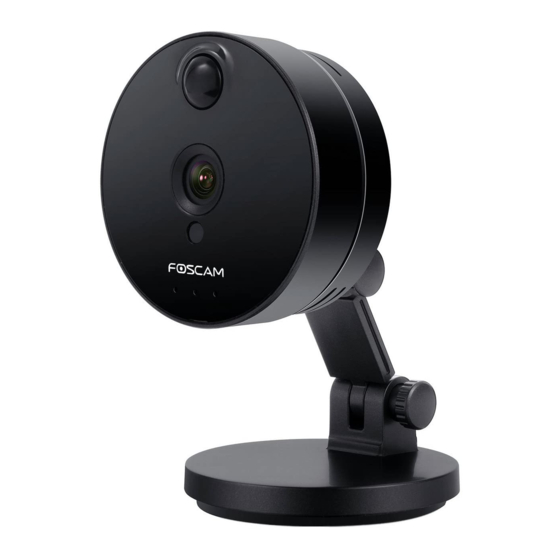

Physical Description

Front panel
Security Warning Card USB Power Cable
Quick Installation Guide
Indoor HD IP Camera with P2P
Foscam Digital Technologies
"Foscam" App download
Quick Installation Guide AC Adapter
Power light
Rear panel
WPS/Reset
LAN SoftAP
Power
PIR
Lens
Infrared LED

The Information of Network Light

Microphone
Network light
Micro SD Card Slot
Network Light Description
O No Wi-Fi connection
Flash
Constant Wired connection
Flashing every 0.1 seconds Soft AP takes e ect
Flashing every 0.2 seconds EZLink takes e ect (default)
Flashing every 0.4 seconds WPS is connecting
Slow Flash every 1.0 second Wi-Fi connected

Hardware Connection

Hardware Installation

1. Rotate the base of the camera (gray section highlighted
below) so tabs a and b overlap, then remove the base.
According to the monitored area, install the base of the
2.
camera on the ceiling or wall with expansion screws.
3. Ensure tabs a and b align, and push the camera body to
make it ush with the base. Rotate the camera body, so
that a and b do not overlap, the installation is complete.
1. Connect the AC power adapter to the camera.
a
2. Turn on your wireless router.
b
Before you continue, please note:
Make sure your smartphone is located near the camera.
Do not use an ethernet cable to connect the camera if
you want to use a wireless connection.
Make sure your smartphone is connected to your
a b
wireless router.
WPS
