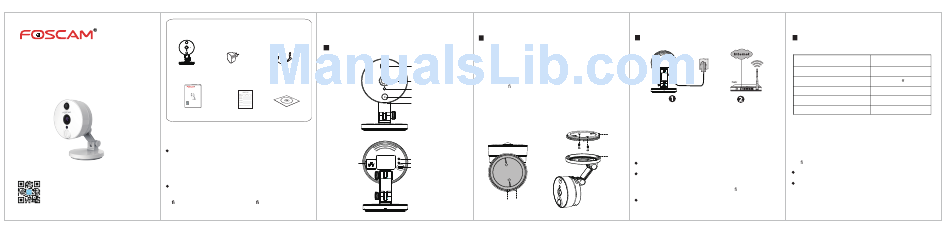

Foscam C2 Quick Installation Manual

Quick Installation Guide
IP Camera
Indoor FHD IP Camera with P2P
Quick Installation Guide
Indoor FHD IP Camera with P2P
"Foscam" App download
Quick Installation Guide
Security Warning
Foscam cameras and NVRs require good security
practices to safeguard your privacy. You should
regularly change your camera or NVR password
Model: C2
which is 8-10 numbers, letters, symbols combination.
You should update your camera or NVR regularly.
Make sure your camera or NVR has the latest
rmware installed for your speci c model and better
V1.2
"Foscam" App download
experience.
EQC00008
1
Package Contents Hardware Introduction
Physical Description
AC Adapter
USB Power Cable
Model: C2
EQC00003 V1.0
Warranty Card
CD-ROM
LAN
Hardware Installation
1. Rotate the base of the camera until points a and b are
aligned, this allows for the mounting plate to be
PIR
removed.
2. Install the mounting plate on a wall or ceiling with
Lens
supplied xing screws.
Induction IC
High-Power IR LED 3. Align points a and b to insert the camera base to the
Micro SD Card Slot
mounting plate. Rotate so that points a and b are no
longer aligned, this attaches the camera securely to the
base.
WPS/Reset
Power/Network light
Power
a
b
Hardware Connection
WPS
1. Turn on your wireless router.
Connect the power adapter to the camera.
2.
a
Before you continue, please note:
b
Make sure your smartphone is located near the camera.
Do not use an Ethernet cable to connect the camera
if you want to use a wireless connection. And the camera
will play a sound "Ready for WiFi con guration" .
Make sure your smartphone is connected to your wireless
router.
Light Status
Light Status Description
Constant Flash(green) Wired connection
Flashing(green) every 0.2 seconds EZLink takes e ect (default)
Flashing(green) every 0.4 seconds WPS is connecting
Slow Flash(green) every 1.0 second Wi-Fi connected
Flashing(red) every 0.4 seconds Reset is started
Please note:
The camera has a 1080P video output. Make sure you have
a much smoother video experience on the smartphone. It
recommends that the smartphone has the following
con guration:
IOS: system version 8.1 and above.
Android: systetem version 4.1 and above, and the
smartphone has a Graphics Processing Unit (GPU)
function.
