- Fit the water supply hose onto the hose connector (see
hydraulic diagram) located on the middle shelf of the
cabinet.
- Make sure that the drain boss in the dispensing
compartment tray is punched and lines up with the
drain tube in the cabinet.

INSTALLING THE PAYMENT SYSTEM

The machine is sold without payment system, there-
fore the installer of such a system is responsible for
any damage to the machine or to things and persons
caused by faulty installation.
The machine is electrically pre-set for the installation of
MDB payment systems, and namely:
- coin acceptor or "validator"
- change-giver coin mechanisms or "changer"
- bill accepter or "bill validator"
- key / magnetic card reader or "cashless"
that can be used in various combinations.
Compatibility for housing the payment systems must
be ascertained by and under the sole responsibility of
the installer.
When switched on, the machine goes through a control
rotine to determine
which payment systems are actually
installed and therefore configure the correct system.
CONNECTING THE MACHINE TO THE
POWER SUPPLY
The machine operates under a single-phase 220 V~ 60 Hz
voltage and is protected by 10 A fuses, located inside the
support cabinet (see Fig. 9).
Before making the connection, ensure that the rating
corresponds to that of the power grid, and more specifi-
cally:
- the supply voltage rating must be within the range
recommended for the connection points;
- the main switch should be capable of withstanding the
peak load required, and at the same time ensure
proper omnipolar disconnection from the power grid
with an opening gap of the contacts of at least 3 mm;
the main switch is protected by a differential switch.
The switch, the power outlet and the plug must be
located in an easily accessible position.
The power supply cable is of the type with a two-pole
straight plug of the non-detachable type. Any replacement
of the power supply cable should be made by qualified
personnel only, using cables of the type H05 RN - F or H05
V V - F with a section of 3x1-1.5 mm2.
The electrical safety of the machine is ensured only
when it is correctly connected to an efficient earthing
system according to the safety standards in force.
© by NECTA VENDING SOLUTIONS SpA

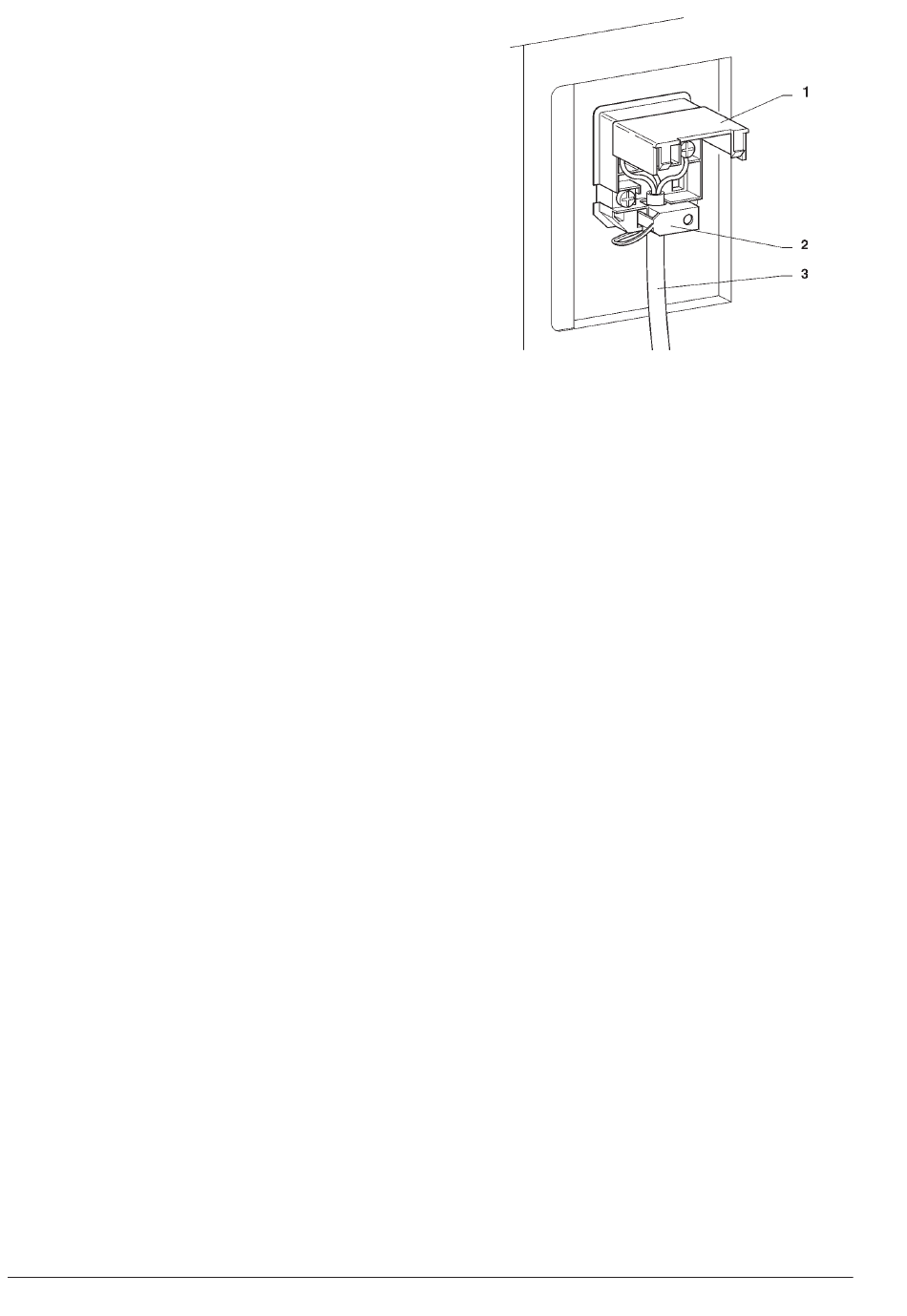

Fig. 10
1 - Lift cover
2 - Cable clamp
3 - Power supply cable
This fundamental safety requirement must be duly verified,
and if in doubt the system must be carefully tested by
qualified technicians.
Do not use adapters, multiple sockets and/or exten-
sions.
Before switching the machine on, ensure that the water
tank is correctly filled.
THE MANUFACTURER DECLINES ALL RESPONSI-
BILITY FOR ANY DAMAGE CAUSED BY NON-COM-
PLIANCE WITH THE ABOVE MENTIONED SAFETY
RULES.

DIFFERENTIAL SWITCH

The differential switch has the following characteristics:
- maximum current: 15 A
- maximum tripping current to earth: 15 mA
- breaking capacity: 1.5 KA
This switch is fitted for the purpose of protecting from
any overcurrent and earth leakage, also protecting per-
sons from contact with live parts.
If the switch is triggered again when is reset after
tripping, the system must be tested by qualified per-
sonnel.
