CONNECTING THE MACHINE TO
THE POWER SUPPLY
The machine is designed to operate under a single-phase
240 V~ voltage and is protected by 10 A fuses.
Before making the connection make sure that the ratings
correspond to those of the power grid, and more specifi-
cally:
- the supply voltage rating should be within the limits
recommended for the connection points;
- the main switch should be capable of withstanding the
peak load required, and at the same time ensure
proper omnipolar disconnection from the power grid
with an opening gap of the contacts of at least 3 mm.
The main switch, the power outlet and the plug should
be located within easy reach.
The power cable is of the type fitted with a fixed plug.
Any replacement (see Fig. 11) should be done by qualified
personnel only, using exclusively cables of the type HO5
RN - F or HO5 V V-F or H07 RN-F with a section of 3x1-
2
1,5 mm .

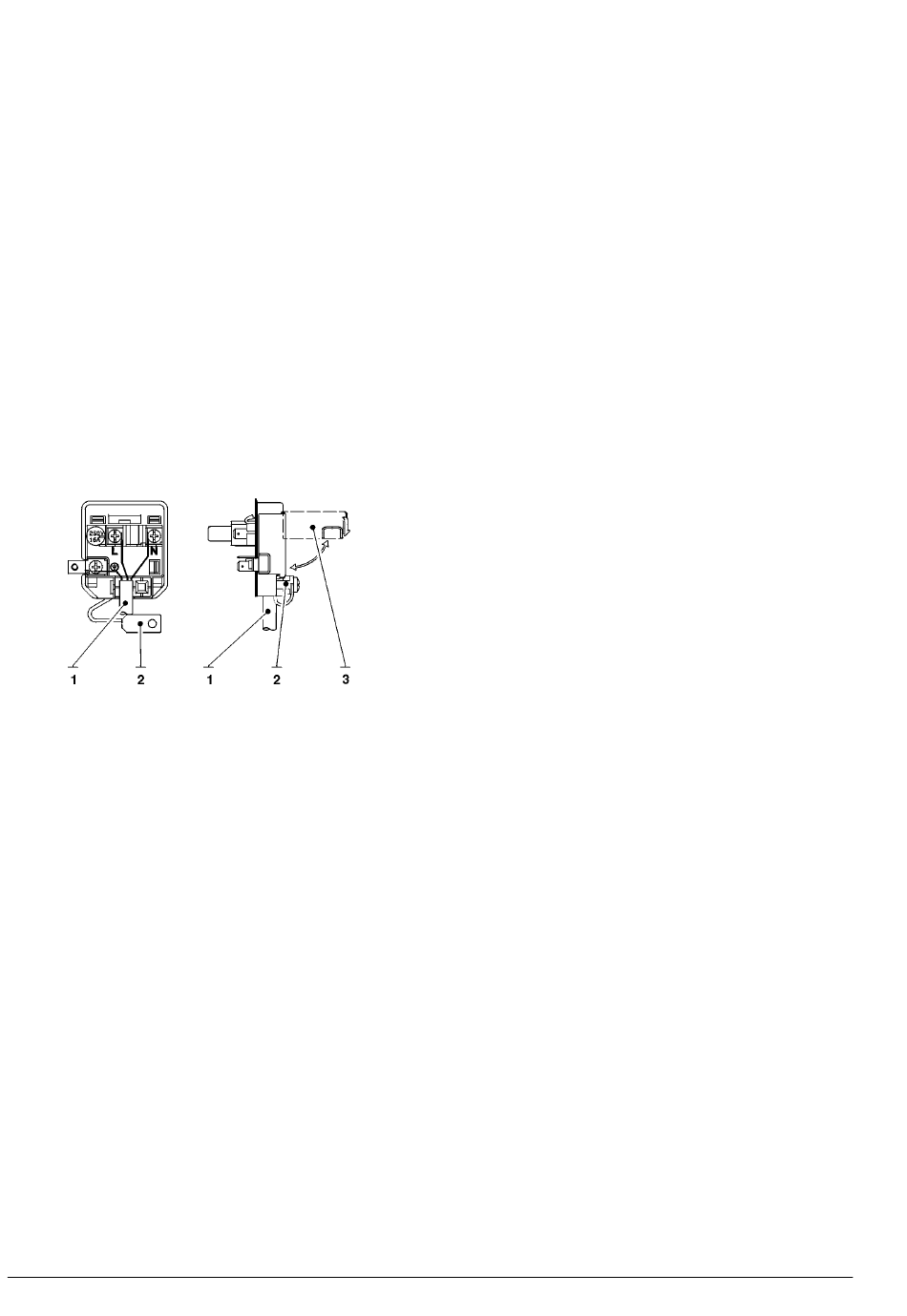

Fig. 11
1 - Cable from the mains
2 - Cable clamp
3 - Cover
The electrical safety of the machine is ensured only when
it is correctly and efficiently earthed according to the safety
standards in force.
This fundamental safety requirement must be duly
verified, and if in doubt the system must be carefully
tested by qualified technicians.
Do not use adapters, multiple sockets and/or exten-
sions.
Before switching the machine on, be sure it is correctly
connected to the water mains and the cutoff valve is open.
THE MANUFACTURER DECLINES ALL RESPONSI-
BILITY FOR ANY DAMAGE CAUSED BY NONCOMPLI-
ANCE WITH THE ABOVE MENTIONED SAFETY RULES.
© by NECTA VENDING SOLUTIONS SpA

DOOR SWITCH

When opening the door a special microswitch disconnects
the power from the machine electrical system.
With the door open, no energised parts can be ac-
cessed. Inside the machine the only energised parts
are the ones which are covered with protective cas-
ings which are marked with a plate indicating "before
removing the cover disconnect the electricity".
Before removing these covers it is necessary to un-
plug the machine from the mains socket.
To energize the system with the open door, simply insert
the special key into the slot (see Fig. 1).
All operations requiring the machine to be energized
with the door open should be carried out with the door
switch key inserted, and therefore by qualified per-
sonnel informed about the specific risks of such
situation.

INSTALLING THE PAYMENT SYSTEM

The machine is sold without payment system, there-
fore the installer of such a system is responsible for
any damage to the machine or to things and persons
caused by faulty installation.
- Install the validator and make sure that the program-
ming of the relevant parameters is correct.
Other payments systems such as "change giver" and
"cashless" can be installed by using the specific kits.
The "cashless" systems can be housed inside the machine
(see Fig. 2); other payments systems such as "change
giver" must be housed inside the support cabinet (op-
tional).

WATER SOFTENER UNIT

The machine is sold without water softener.
Should the water be very hard, a 2-litre ion-exchange resin
water softener unit can be installed in the cabinet.
The water softener, available as accessory, must be
replaced or regenerated regularly following the directions
of the manufacturer.
For health and functional reasons, higher capacity water
softener units should not be used.

INSERTING THE LABELS

The menu and instruction labels are supplied with the
machine and must be inserted at the time of installation
according to the layout and to the language (see "selection
dose" table).
LENGTH OF STIRRERS
The correct installation position of the stirrer stacker must
be checked according to the length of the stirrers to be
used (see Fig. 1)
