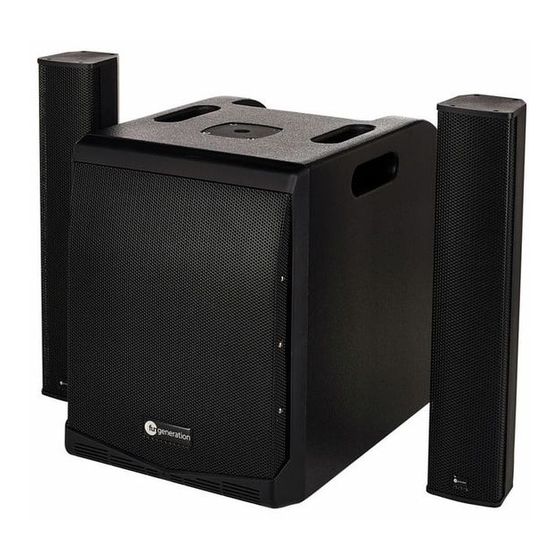

thomann fun generation Satmix 2.1 User Manual

Hide thumbs Also See for fun generation Satmix 2.1:
Table of Contents

Advertisement

Quick Links

Satmix 2.1
PA system
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the fun generation Satmix 2.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann fun generation Satmix 2.1

Summary of Contents for thomann fun generation Satmix 2.1

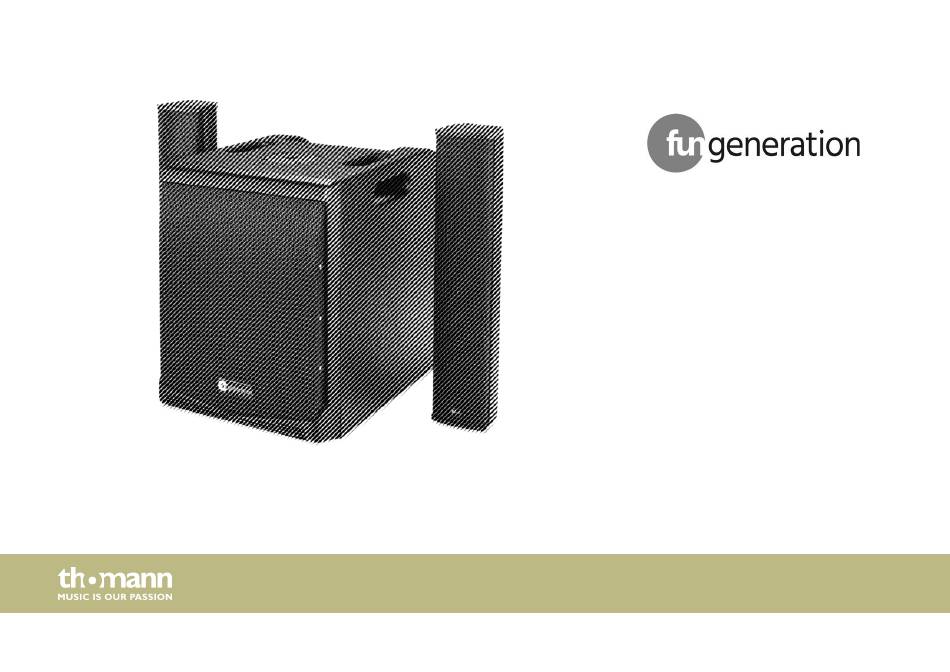

  • Page 1 Satmix 2.1 PA system user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 30.08.2018, ID: 432022...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation..............................13 4.1 Tips on handling speakers......................14 Connections and controls........................15 Technical specifications........................

  • Page 4: General Information

    General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 12: Features

    Features Features Active 2.1 system consisting of an active subwoofer with built-in 4-channel mixer and two satellites Inputs: XLR / 1/4" combo socket, RCA jack, 3.5 mm socket Bluetooth Outputs: Lockable input sockets (Speaker Flex) Reverb effect switchable Digital signal processor with four presets for different sound characteristics Standby function PA system...

  • Page 13: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 14: Tips On Handling Speakers

    Installation Pairing with Bluetooth devices Press [BLUETOOTH PAIR] to pair the device with other Bluetooth devices. It is visible under the name “Satmix 2.1”. After successful pairing the LED lights. 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly.

  • Page 15: Connections And Controls

    Connections and controls Connections and controls Rear panel Satmix 2.1...
  • Page 16 Connections and controls 1 [CH 1], [CH 2] Inputs for line or microphone level signals (XLR / 1/4" combo sockets). 2 [LINE/MIC] Switch for the signal level at the input. Switch released: Line level, switch pressed: microphone level. 3 [VOLUME] Volume control for the respective channel 4 [REVERB] Control for the reverb effect in the respective channel...
  • Page 17 Connections and controls 10 [BLUETOOTH PAIR] Starts the pairing with a Bluetooth device 11 [SUBVOL] This rotary control can be used to adjust the subwoofer volume. 12 [MASTER] This rotary control can be used to adjust the overall volume (subwoofer and connected external speakers). 13 [POWER] This LED indicates that the device is switched on and operational.
  • Page 18 Connections and controls 16 [DSP PRESET] Toggles the built-in digital signal processor between the different settings to adjust the sound characteristic. The indicator LEDs indicate the selected setting: [MUSIC] [LIVE] [DJ] [SPEECH] 17 [MIX OUT] At this line level output, the sum signal is present which e.g. can be sent to a separate power amp. 18 [AUX] Input for a line level signal, designed as 3.5 mm phone socket (stereo) 19 [L], [R]...
  • Page 19 Connections and controls 21 [Auto Stand-by] Switch that turns the automatic shutdown function on and off. When pressed, the function is deactivated, when not pressed, it is activated. The device will turn off after approx. 60 minutes without input signal. When the input signal recurs, the device returns automatically.

  • Page 20: Technical Specifications

    Technical specifications Technical specifications Subwoofer Speaker 1 × 10" woofer with 2" voice coil Inputs 2 × XLR/1/4" combo socket (balanced), 2 × 6.35 mm jack (balanced/unbalanced), 1 × 3.5 mm phone socket, 2 × RCA sockets Outputs 2 × input sockets (Speaker Twist) for the satellites, 1 × XLR chassis sockets for line output to other audio devices Power output subwoofer 300 W (RMS)
  • Page 21 Technical specifications Fuse 110 V: 5 × 20 mm, 10 A, 250 V, slow-blow 230 V: 5 × 20 mm, 5 A, 250 V, slow-blow Dimensions (W × H × D) 470 mm × 515 mm × 356 mm Weight 16.5 kg Satellites Speaker...
  • Page 22 Technical specifications Frequency response PA system...

  • Page 23: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 24 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
  • Page 25 Plug and connection assignment Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) Satmix 2.1...
  • Page 26 Plug and connection assignment RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding PA system...

  • Page 27: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 28 Notes PA system...
  • Page 29 Notes Satmix 2.1...
  • Page 30 Notes PA system...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
