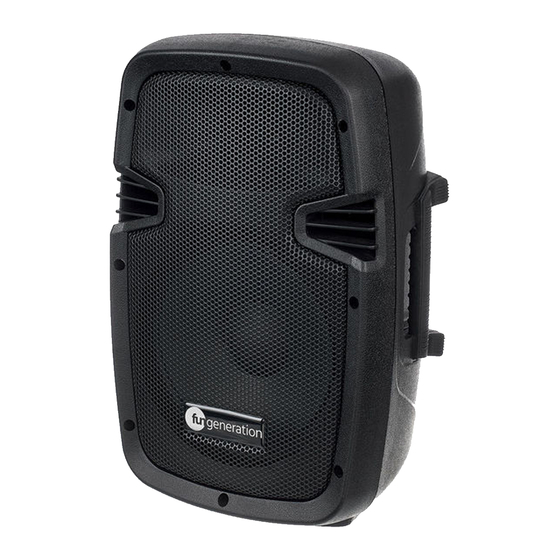

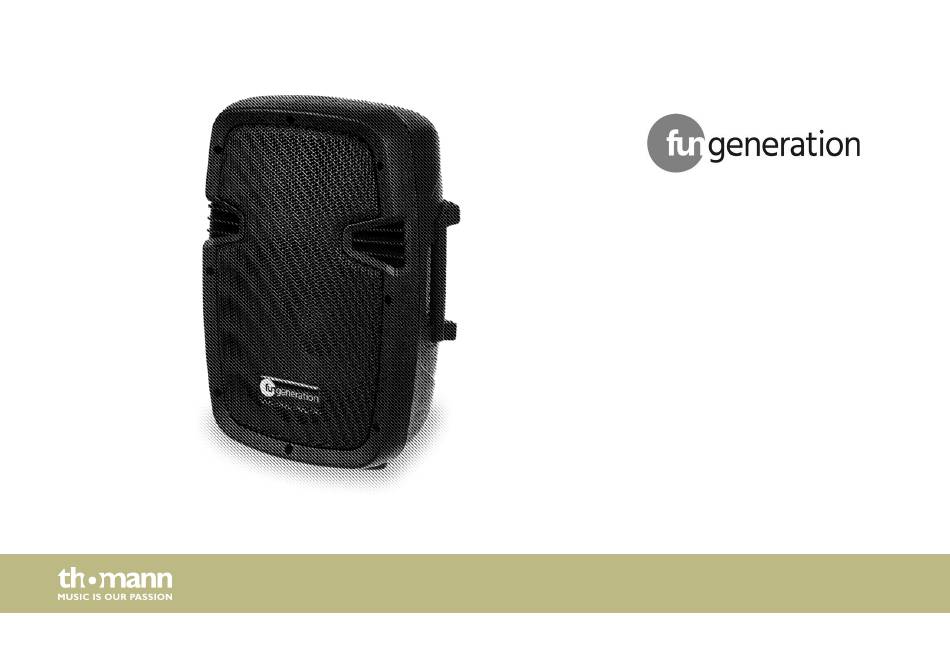

- Page 1 BP 108 A aktiver 2-wege-lautsprecher user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Deutschland Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 06.08.2020, ID: 471746 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 15 Starting up..............................16 Connections and controls........................18 Wiedergabe über Bluetooth......................22 Technical specifications........................23 Plug and connection assignment.................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. aktiver 2-wege-lautsprecher... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 8 General information Warning signs Type of danger Warning – danger zone. aktiver 2-wege-lautsprecher...
-
Page 9: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 10 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 11 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 12 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries.
- Page 13 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
- Page 14 Safety instructions NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains.
-
Page 15: Features
Features Features The mobile PA system is characterized by the following features: 2-way active speaker box for PA and DJ application Maximum output power: 60 W 8" woofer 1" compression driver 2-band equalizer Built-in media player with display, SD/MMC card slot, USB port and Bluetooth receiver 2 ×... -
Page 16: Starting Up
Starting up Starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 17 Starting up Das Gerät kann auf ein Stativ montiert bzw. auf dem Boden oder einer ausreichend dimensio‐ nierten und stabilen Oberfläche, z.B. einer Wandhalterung aufgestellt werden. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
-
Page 18: Connections And Controls
Connections and controls Connections and controls aktiver 2-wege-lautsprecher... - Page 19 Connections and controls 1 Media-Player 2 USB-Anschluss 3 Display 4 Auswahl- und Steuerungstasten des integrierten Media-Players: Drücken Sie die Taste lang zum Verringern der Lautstärke. Wenn Sie die Taste kurz drücken, hat sie je nach Modus eine andere Funktion: USB/SD/Bluetooth: Titel zurück, Line: keine Funktion Je nach Modus hat diese Taste eine andere Funktion: USB/SD/Bluetooth: Wiedergabe anhalten, Line: Mute BP 108 A...
- Page 20 Connections and controls Drücken Sie die Taste lang zum Erhöhen der Lautstärke. Wenn Sie die Taste kurz drücken, hat sie je nach Modus eine andere Funktion: USB/SD/Bluetooth: Titel vor, Line: keine Funktion Taste zum Auswählen des Modus (USB/SD/Bluetooth, Line-Eingang). 5 SD/MMC-Kartenslot 6 [VOLUME] Mit diesem Regler passen Sie die Lautstärke Ihres Mikrofons, Instruments oder einer sonstigen Audioquelle an.
- Page 21 Connections and controls 9 [M.ECHO] Mit diesem Regler passen Sie den Echoeffekt Ihres Mikrofons oder Instruments an. 10 [M.VOL] Mit diesem Regler passen Sie die Lautstärke des Echoeffekts Ihres Mikrofons oder Instruments an. 11 Anschlussbuchse für ein Netzteil 15 V DC 1 A 12 Hauptschalter zum Ein-/Ausschalten des Geräts.
-
Page 22: Wiedergabe Über Bluetooth
Wiedergabe über Bluetooth Wiedergabe über Bluetooth Über den integrierten Bluetooth-Empfänger des Geräts können Sie Musik kabellos von Blue‐ tooth-fähigen mobilen Geräte wie Smartphones, Tablets oder Notebooks wiedergeben. Beachten Sie die Gebrauchsanleitung Ihres Bluetooth-Geräts. Platzieren Sie es in der Nähe der Box und schalten Sie das Bluetooth-Gerät ein. -
Page 23: Technical Specifications
Technical specifications Technical specifications Eingänge 1 × Cinch-Buchsenpaar, stereo 2 × 6,35-mm-Klinkenbuchse Lautsprecher Zweiwegesystem mit 1-Zoll-Kompressionstreiber und 8-Zoll-Basslautsprecher Max. Schalldruck 109 dB Frequenzbereich 75 Hz … 18 kHz Speichermedien SD-Karte, USB-fähige Geräte Wiedergabeformate MP3, WAV Bluetooth-Standard Bluetooth 5.0 Bluetooth-Name BP-108A Ausgangsleistung RMS: 15 W Peak: 60 W... - Page 24 Technical specifications Spannungsversorgung Steckernetzteil (15 V / 1000 mA , Plus am Innenleiter) Montagemöglichkeit Stehend oder auf Stativ Abmessungen (B × H × T) 245 mm × 390 mm × 195 mm Gewicht 4,6 kg Umgebungsbedingungen Temperaturbereich –5 °C…45 °C Relative Luftfeuchte 50 %, nicht kondensierend Weitere Informationen...
-
Page 25: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 26 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
- Page 27 Plug and connection assignment RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding BP 108 A...
-
Page 28: Cleaning
Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth. -
Page 29: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 30 Notes aktiver 2-wege-lautsprecher...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
