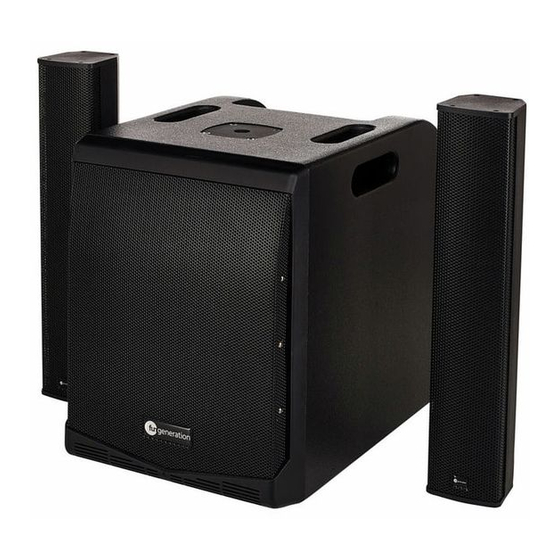

- Page 1 Satmix 2.1 Active Speaker...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 01.10.2024, ID: 432022 (V4)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation..............................11 4.1 Tips on handling speakers......................12 Connections and controls........................13 Technical specifications........................16 Plug and pin assignments........................21 Protecting the environment...................... - Page 4 Satmix 2.1 Active Speaker...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and arrange repair.
- Page 9 Safety instructions NOTICE! Damage to the device due to high voltages! The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐ tages can also cause a risk of injury and fires. The voltage selector switch can be used to set the device to the required operating voltage.
-
Page 10: Features
Features Features Active 2.1 PA system, consisting of an active subwoofer with integrated 4-channel mixer and two passive satellites Inputs: XLR/jack combo sockets, cinch sockets, 3.5-mm jack socket Outputs: Lockable Speaker Twist sockets for connecting the passive satellites Subwoofer with M20 thread Satellite with 25 mm speaker flange Voltage selector Reverb effect can be added... -
Page 11: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 12: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 13: Connections And Controls
Connections and controls Connections and controls Rear panel & )* & ö Satmix 2.1 2.1Active Speaker System Power (Peak): 1200W FUSE: < INPUT: 100V-120V~50/60Hz 100-120V T10AL250V 220V-240V~50/60Hz 220-240V T5AL250V POWER Auto Stand-by STBY INPUT VOLTAGE Satmix 2.1 Active Speaker... - Page 14 Connections and controls 1 [CH 1], [CH 2] | Inputs for signals with line or microphone level (XLR/jack combo sockets) 2 [LINE/MIC] | Switch for the level of the signal on the input. Switch released: Line level, switch pressed: Microphone level 3 [VOLUME] | Volume control for the respective channel 4 [REVERB] | Control for the reverb effect in the respective channel 5 [LOW] | Sound regulator for the low frequencies of the respective channel...
- Page 15 Connections and controls 16 [DSP PRESET] | Button for switching between the various settings of the built-in digital signal processor; this allows the sound characteristic to be adjusted. The indicator LEDs indicate the selected setting: [MUSIC], [LIVE], [DJ], [SPEECH] 17 [MIX OUT] | The sum signal is present on this line-level output, designed as a 3-pin XLR panel plug; it can be sent to a separate power amplifier, for example.
-
Page 16: Technical Specifications
Technical specifications Technical specifications Subwoofer System Active woofer Amplifier class Configuration Woofer 2 × 10-inch speaker (neodymium) with 2-inch voice coil Input connections Line/Mic 2 × XLR/jack combo socket, (balanced) Line 2 × 6.35-mm jack socket, (unbalanced) 2 × Cinch sockets 360 mm 1 ×... - Page 17 Technical specifications Output power RMS: 300 W Peak: 600 W Sensitivity (1 W/1 m) 94.5 dB SPL Rated impedance 4 Ω Max. sound pressure level 124 dB SPL Max. short-term sound 127 dB SPL pressure level Bluetooth® Frequency range 2.402 GHz … 2.480 GHz Max.
- Page 18 Technical specifications Dimensions (W × H × D) 360 mm × 462 mm × 522 mm Weight 16.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Satellites System Passive satellite speaker Configuration Mid-range speaker each 6 × 2 3/4-inch speakers (neody‐ mium) with 0.8-inch voice coil Input connections 1 ×...
- Page 19 Technical specifications Max. short-term sound 124 dB SPL pressure level Beam angle (H × V) 120° × 20° Dimensions (W × H × D) 107 mm × 535 mm × 106 mm Weight 1.76 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Satmix 2.1...
- Page 20 Technical specifications Frequency response Satmix 2.1 Active Speaker...
-
Page 21: Plug And Pin Assignments
Plug and pin assignments Plug and pin assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 22 Plug and pin assignments 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding Satmix 2.1 Active Speaker...
- Page 23 Plug and pin assignments XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding Speaker Twist connector Signal 1 (in phase) 1–...
-
Page 24: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 25 When disposing of the device, comply with the rules and regulations that apply in your country. You can also return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de.
- Page 26 Notes Satmix 2.1 Active Speaker...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
