Atari TETRIS Installation Instructions Manual page 12

Control Panel
Cover
Red Buttons
Tetris

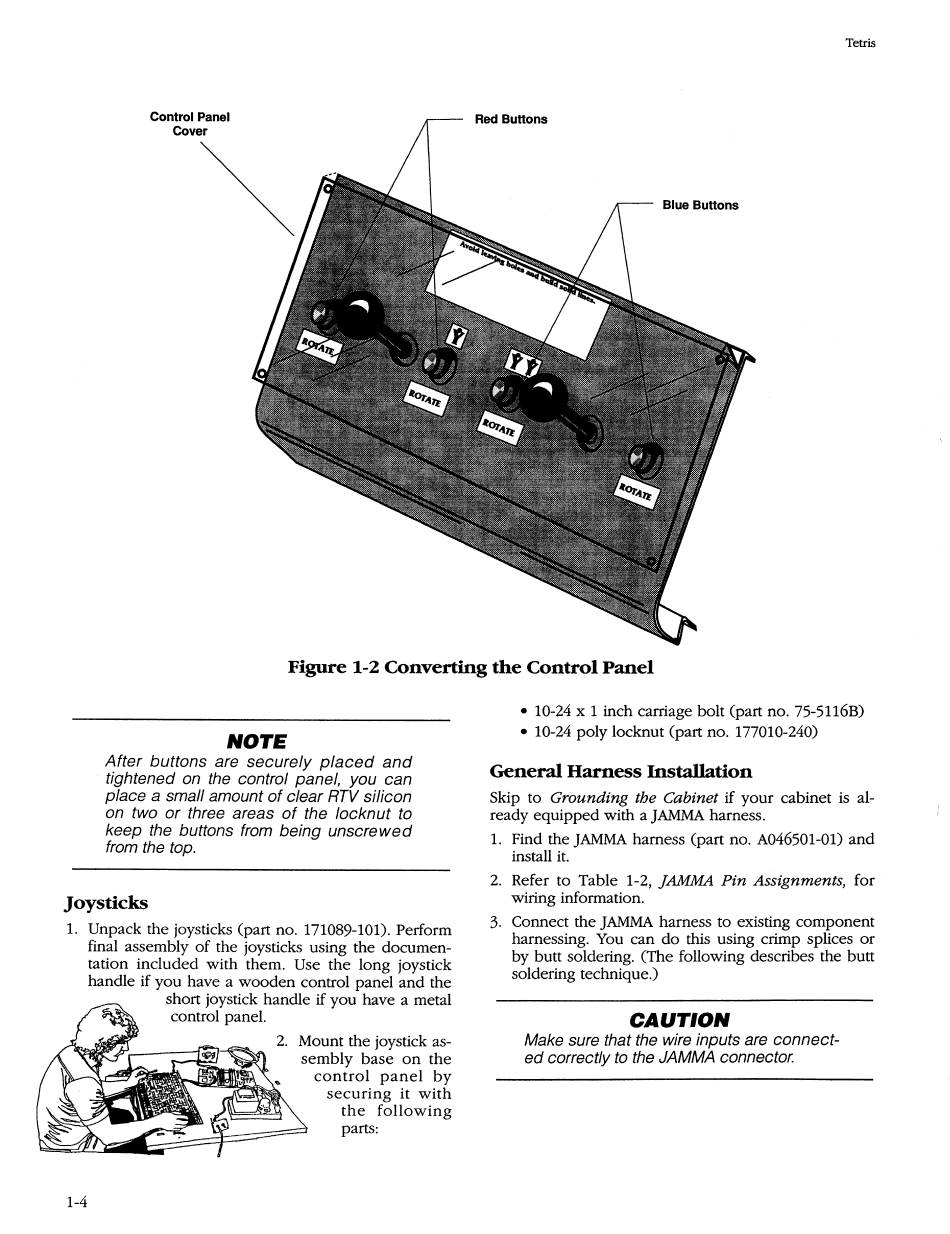

Figure 1-2 Converting the Control Panel
NOTE
After buttons are securely placed and
tightened on the control panel, you can
place
a
small amount of clear RTV silicon
on two or three areas of the locknut to
keep the buttons from being unscrewed
from the top.
Joysticks
1. Unpack the joysticks (part no. 171089-101). Perform
final assembly of the joysticks using the documen-
tation included with them. Use the long joystick
handle if you have a wooden control panel and the
1-4
short joystick handle if you have a metal
control panel.
Mount the joystick as-
sembly base on the
control panel by
securing it with
the following
parts:
• 10-24 x 1 inch carriage bolt (part no. 75-5116B)
• 10-24 poly locknut (part no. 177010-240)
General Harness Installation
Skip to
Grounding the Cabinet
if your cabinet is al-
ready equipped with a JAMMA harness.
1.
Find the JAMMA harness (part no. A046501-01) and
install it.
2. Refer to Table 1-2, JAMMA Pin Assignments, for
wiring information.
3. Connect the JAMMA harness to existing component
harnessing. You can do this using crimp splices or
by butt soldering. (The following describes the butt
soldering technique.)
CAUTION
Make sure that the wire inputs are connect-
ed correctly to the JAMMA connector.
