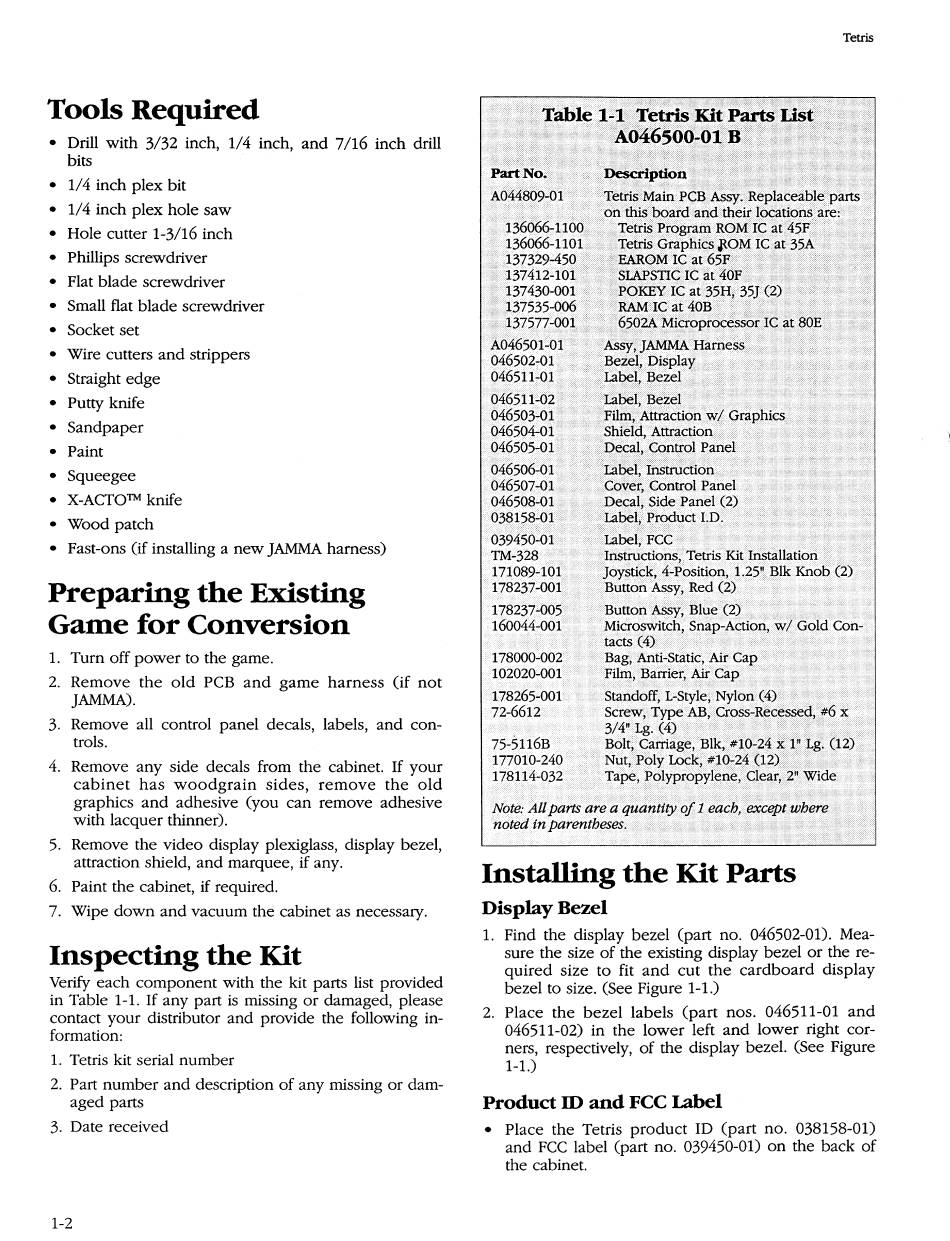

Tools Required
• Drill with 3/32 inch, 1/4 inch, and 7/16 inch drill
bits
• 1/4 inch plex bit
• 1/4 inch plex hole saw
• Hole cutter 1-3/16 inch
• Phillips screwdriver
• Flat blade screwdriver
• Small flat blade screwdriver
• Socket set
• Wire cutters and strippers
• Straight edge
• Putty knife
• Sandpaper
• Paint
• Squeegee
• X-ACTOTM knife
• Wood patch
• Fast-ons (if installing a new JAMMA harness)
Preparing the Existing
Game for Conversion
1. Turn off power to the game.
2. Remove the old PCB and game harness (if not
JAMMA).
3. Remove all control panel decals, labels, and con-
trols.
4. Remove any side decals from the cabinet. If your
cabinet has woodgrain sides, remove the old
graphics and adhesive (you can remove adhesive
with lacquer thinner).
5. Remove the video display plexiglass, display bezel,
attraction shield, and marquee, if any.
6. Paint the cabinet, if required.
7. Wipe down and vacuum the cabinet as necessary.
Inspecting the Kit
Verify each component with the kit parts list proVided
in Table 1-1. If any part is miSSing or damaged, please
contact your distributor and provide the following in-
formation:
1. Tetris kit serial number
2. Part number and description of any missing or dam-
aged parts
3. Date received
1-2
Tetris
table
.·lH:r~~iG.tP~~t···
A.ij:i6500~OlilI/··
Pa.rtNo.
A044809;01
136C>66-1100
136066-1101
;137329-450
'··137412-101 .
137430-001
137535-0C>6
137577~00r
. . .
A046501...Q1
046502,.Q1
046511~01
()46511,.Q2
()46503,.Q 1
046504,.01
046505,.Q1
039450,.Q1
TM-328
171089-101
178237-001
178237-005
160044-001
178000~002
102020-001
178265-001
72-6612
75-5116B
177010-240
178114-032
:-,' ; ' . ::?::-:.;' , ::::::"" "::::C::':()'::
::::::~:
:=:-:,-:-<
. . J.JeScription
Te~~M~;~p¢~A;,~.·'ii~pl~ce~bl~pirts
ontliisibOardaridtheiI: l()cationsare:··
.•..• TetfiSj>rograw
RQMI¢:ic45F .....
·····TetrisGraphics~OM leat 35A
...• EARO.MIC·ar65F
...SLAPStICICit 4()F .....
. . . POKEY
IC; at35H;35](2)
RAMICif40B
. . . .
····95(j2AMi(:t(jpr9c~ss9qTC;<lr§6E····
Assy;JAMMAH<lrne~s
B~zt!lll)isplay
La»el, Bezel
U¥1;13 eZe1 . . . . . . . . . . . . . • . . . . • •. . . . . . . . . . . . • . •. . . . . . . . .
• • • Pilm{AUraction.w!.GraphiCs
Shield, AttraCtion . . • .
l)e<:a,I,~()nt:(()l ~anel
. G6ei;ibi;waion
COY(!f,
Control Panel
Decal, Side Panel (2)
rabel;
pt
odl.l
ct
r
D :
.. Label; FCC
Instructioris,·TetdsKitIIlStallation •
Joysti~k;
. . . +Position,.1.251.'13Ik.Knob . . .
(2)
Button Assy,lted (2)
BU1:tohASsy,
Blue
(2)
Microswitch, Snap-Action,
",,I
Gold Con~
tacts(4)
Bag, Anti-Static, Air Cap
PilIl}, Barrier, Air cap
Standoff, LcStyle,Nylon (4)
Screw,.Type.AB,Cross~Recesse<i,#6
.·x
3/4"Lg. (4) . . .................. .
Bolt,Cariiige,Blk;"i10~24X:l!i.~g
.. (12)
.
N\lt,PolyLock;tI'~0::24(12)
.
Tape,~olypropyleIle,qear,2"
Wide
Note: Allparts are aquantityollea.c!J,~ceptwbere
noted in parentheses.
Installing the Kit Parts
Display Bezel
1.
Find the display bezel (part no. 046502-01). Mea-
sure the size of the existing display bezel or the re-
quired size to fit and cut the cardboard display
bezel to size. (See Figure 1-1.)
2. Place the bezel labels (part nos. 046511-01 and
046511-02) in the lower left and lower right cor-
ners, respectively, of the display bezel. (See Figure
1-1.)
Product ID and FCC Label
• Place the Tetris product ID (part no. 038158-01)
and FCC label (part no. 039450-01) on the back of
the cabinet.
