Tetris
FCC and Product
10
Side Panel
Decal (1 of 2)
Attraction Shield
Attraction Film
"Avoid Leaving Holes"
Label
Display Plexiglass
from Previous
Game
"Build Solid Lines"
Label

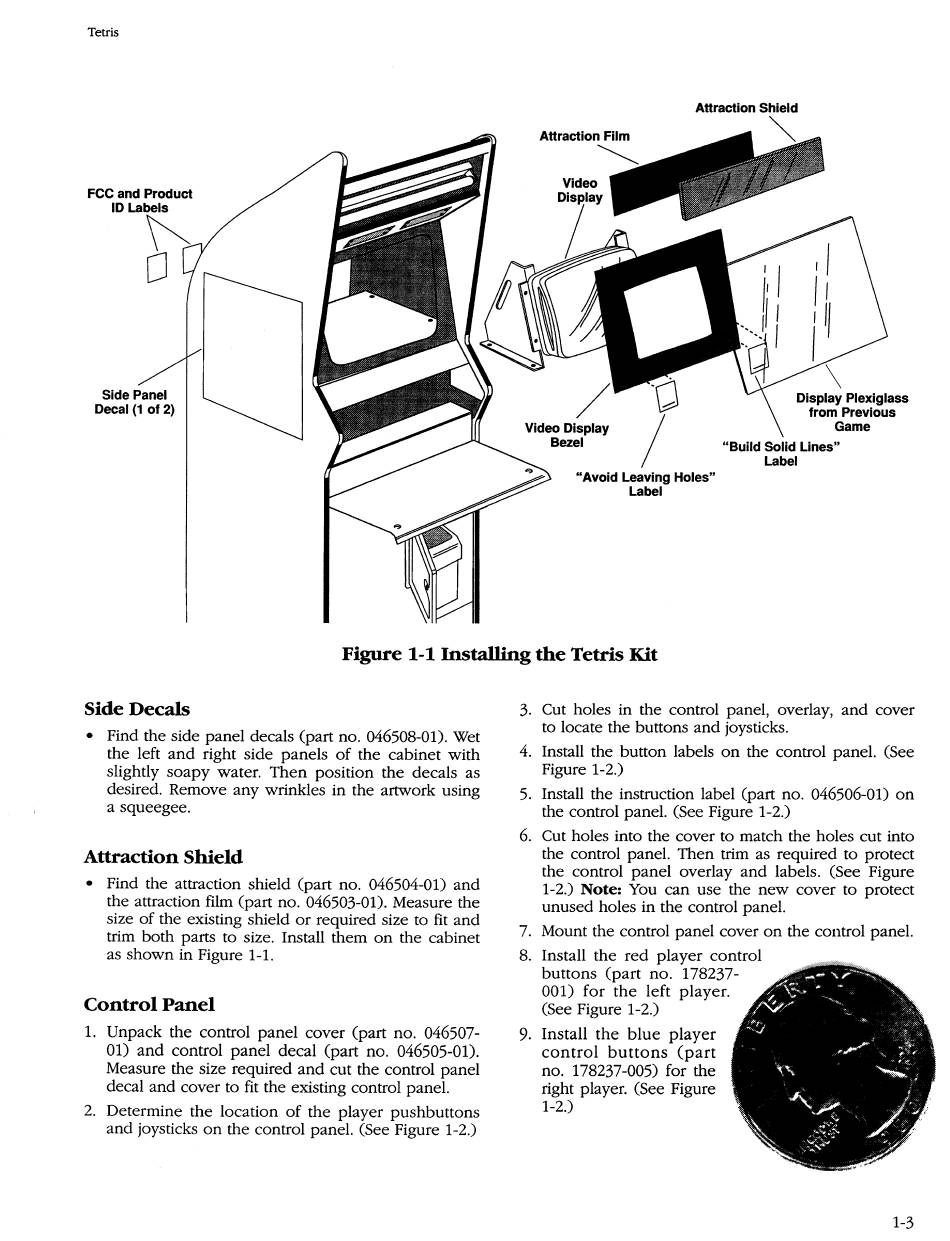

Figure 1-1 Installing the Tetris Kit
Side Decals
• Find the side panel decals (part no. 046508-01). Wet
the left and right side panels of the cabinet with
slightly soapy water. Then position the decals as
desired. Remove any wrinkles in the artwork using
a squeegee.
Attraction Shield
• Find the attraction shield (part no. 046504-01) and
the attraction film (part no. 046503-01). Measure the
size of the existing shield or required size to fit and
trim both parts to size. Install them on the cabinet
as shown in Figure 1-1.
Control Panel
1. Unpack the control panel cover (part no. 046507-
01) and control panel decal (part no. 046505-01).
Measure the size required and cut the control panel
decal and cover to fit the existing control panel.
2. Determine the location of the player pushbuttons
and joysticks on the control panel. (See Figure 1-2.)
3. Cut holes in the control panel, overlay, and cover
to locate the buttons and joysticks.
4. Install the button labels on the control panel. (See
Figure 1-2.)
5. Install the instruction label (part no. 046506-01) on
the control panel. (See Figure 1-2.)
6. Cut holes into the cover to match the holes cut into
the control panel. Then trim as reqUired to protect
the control panel overlay and labels. (See Figure
1-2.) Note: You can use the new cover to protect
unused holes in the control panel.
7. Mount the control panel cover on the control panel.
8. Install the red player control
buttons (part no. 178237-
001) for the left player.
(See Figure 1-2.)
9.
Install the blue player
control buttons (part
no. 178237-005) for the
right player. (See Figure
1-2.)
1-3
