HD250i Direct Flueing with Wall Terminal
Flueing Installation Instructions
This flue shall be installed in accordance with:
•
Manufacturer's Installation Instructions
•
Local Gas Fitting Regulations
•
Municipal Building Codes
•
NZS:526 Installation Code
•
Any other local relevant statutory regulation
This appliance and flue system must be installed, serviced and removed by an Authorised person.
Rinnai New Zealand
Rinnai New Zealand
HD250i Flueing Installation: 0-07
Advertisement
Table of Contents
Related Manuals for Rinnai HD250i
Summary of Contents for Rinnai HD250i
- Page 1 RINNAI HD250i Direct Flueing with Wall Terminal Flueing Installation Instructions This flue shall be installed in accordance with: • Manufacturer’s Installation Instructions • Local Gas Fitting Regulations • Municipal Building Codes • NZS:526 Installation Code • Any other local relevant statutory regulation This appliance and flue system must be installed, serviced and removed by an Authorised person.

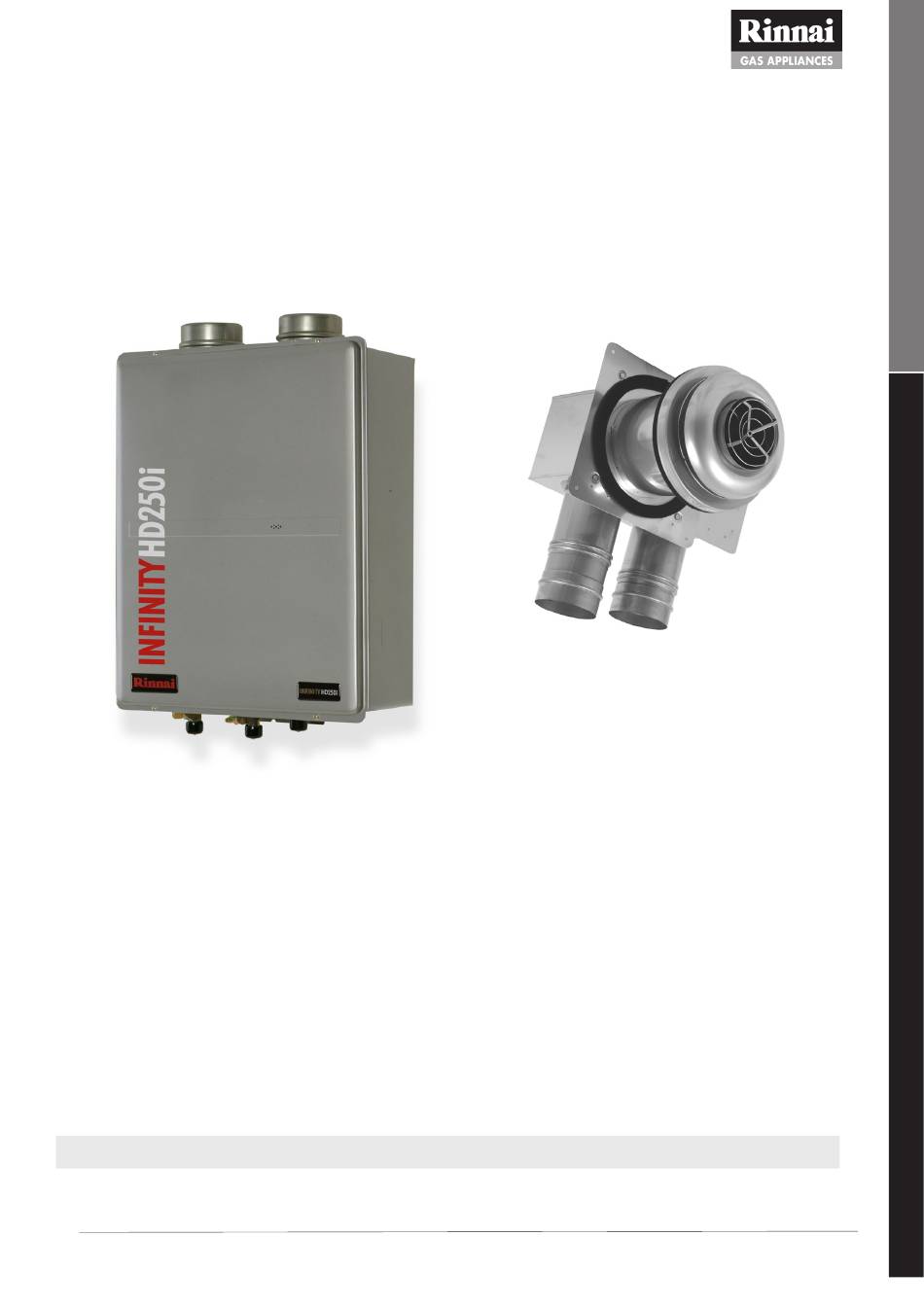

- Page 2 HD250i Direct Flueing - Summary Direct Flueing with Wall Terminal For installations where the Rinnai Infinity HD250i Internal is mounted directly on the inside of an external wall. The HD250i Direct Flue Kit (FFTL-10-200) can used to flue through walls 150-250mm thick (this can not be extended).
-
Page 3: Before Installation
HD250i Direct Flueing - Kit / Important Direct Flueing - Kit Components Flue Terminal Chamber Sleeve Condensate Proof Cover Screw Kit (in actual kit, screw components are packaged in a clear plastic roll pack) Butterfly Nuts (M5) Tapping Screws (ø 3.8 x L32) - Page 4 HD250i Direct Flueing - Installation Sleeve / Chamber Installation • Adjust sleeve length to thickness of wall allowing an additional 15mm (this is so it sits inside the flue cowl) and secure sleeve to chamber with screw (B). Ensure you align sleeve and screw with predrilled hole / slot.
- Page 5 HD250i Direct Flueing - Installation Flue Terminal Installation • Insert flue terminal into chamber so as the terminal is angled to fall Full thread screw Twist to insert • Fit terminal with condensate proof cover with trim nut and apply silicone sealant around flue...
- Page 6 691 Mt Albert Road PO Box 24068, Royal Oak, Auckland Email: info@rinnai.co.nz www.rinnai.co.nz All Rinnai appliances meet or exceed the safety standards required by New Zealand gas and electrical regulations. Rinnai is constantly improving its products and as such specifications are subject to change or variation without notice.
