TIMETRAX™ SYNC 5300 BELL RINGER
Installation Instructions

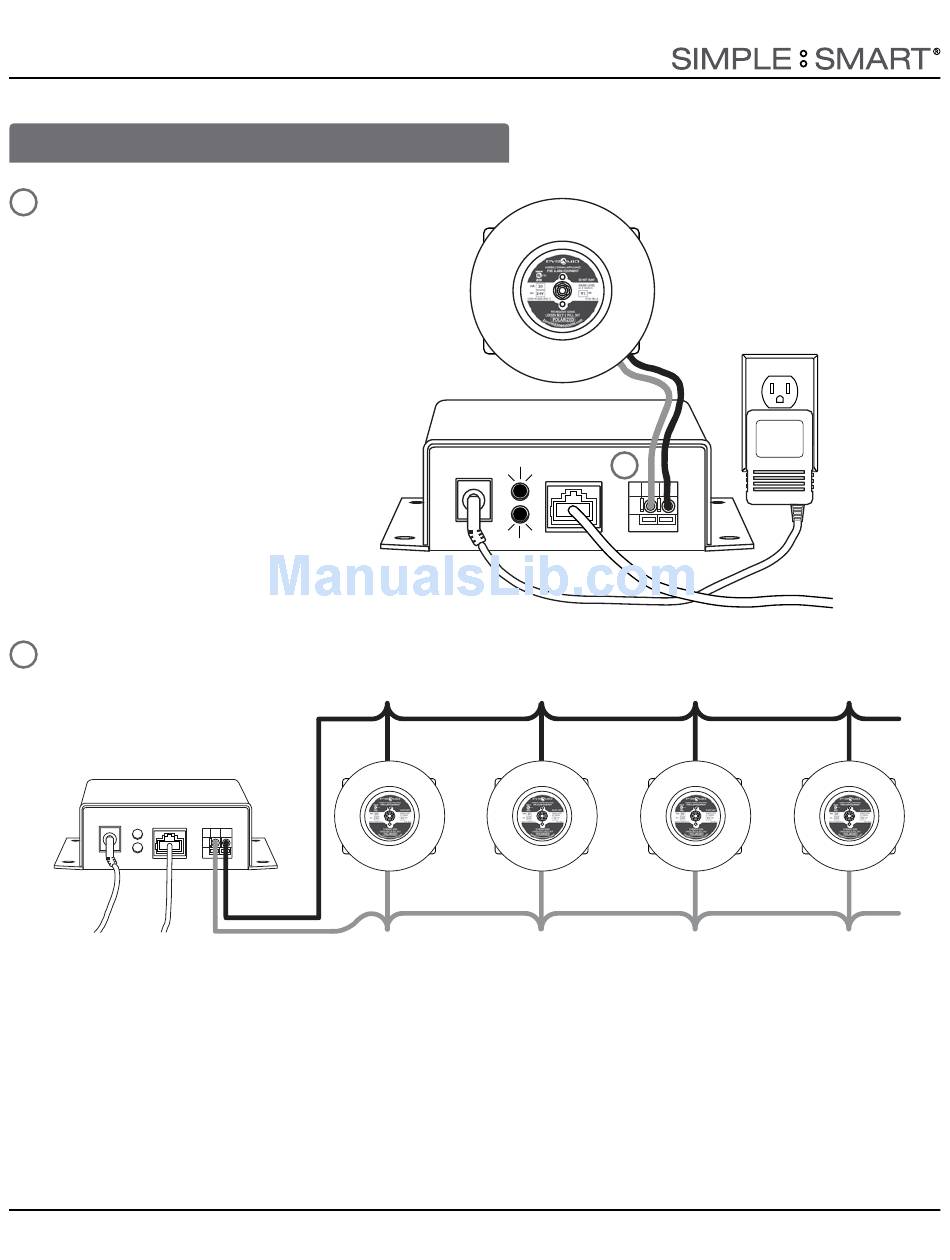

BELL/HORN CONNECTION
8
Connect 24Volt DC bell or horn to the 5300
bell ringer by pushing the bell wire into the
connector located on the far right of the
bottom of the 5300. Positive (red) is on the
left, and negative (black) is on the right.
To remove, gently push the orange clip down
to release wires.
9
If more than one bell or horn is needed, daisy chain the units in parallel.
pyramidtimesystems.com
8
BELL & HORN CONNECTION 6
