TIMETRAX™ SYNC 5300 BELL RINGER
Installation Instructions
INSTALLATION (Cont.)
4

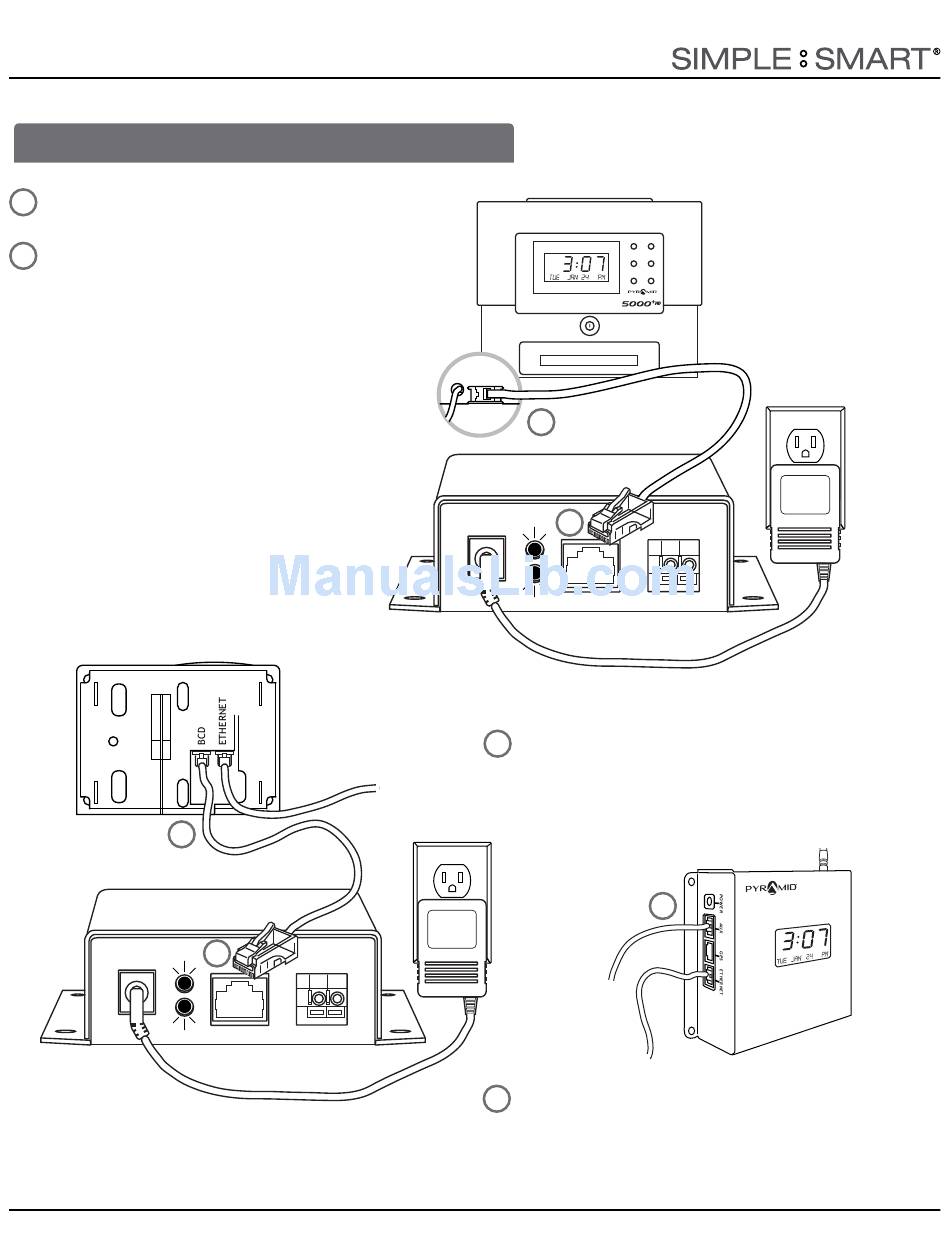

Insert RJ45 cable into the BCD port
located on the bottom of the 5300 case.
5 Insert other end RJ45 cable into BCD
port on the side or back of time clock.
The top light will turn green, signaling
connection (this can take up to 2 minutes).
Continue to step 8 on next page.
Note: The time clock must be powered
and have the time set. If the time is
not set, the indicator light will not
turn on.
TimeTrax™ Elite Time Clock System
7
5 INSTALLATION (Cont.)
Connect to
PC Ethernet port
6
5
4
6
If using 5300 Bell Ringer with a TimeTrax™
Elite Time Clock System or TimeTrax Sync™
RF Wireless Transmitter, insert the end of
the RJ45 cable into the BCD port located
on the bottom of the 5300 case.
TimeTrax Sync™
RF Transmitter
7
To 5300
To PC Ethernet port
7
Insert other end RJ45 cable into BCD port
on back of TimeTrax™ Elite Time Clock
System or AUX port on back or side of
TimeTrax Sync™ RF Wireless Transmitter.
