TIMETRAX™ SYNC 5300 BELL RINGER
Installation Instructions

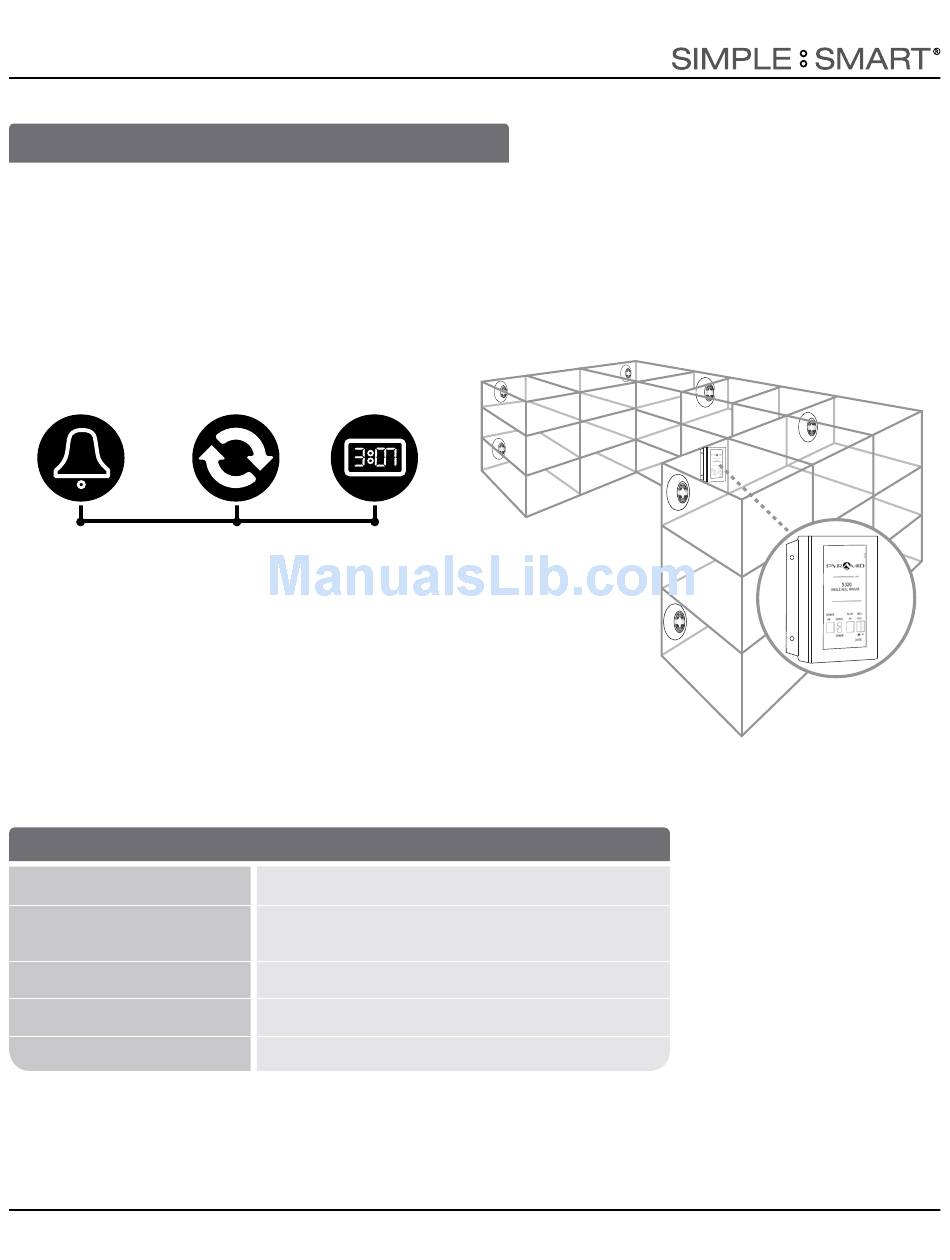

OVERVIEW
Thank you for choosing a TimeTrax Sync™ 5300 Bell Ringer. The TimeTrax Sync™ 5300 directs bells and horns (sold separately) to
promote accountability, productivity and punctuality with standardized class changes, shift changes, production schedules, arrival
time, breaks and departure time. The 5300 handles single zone configuration and provides 24V DC power to bells and horns up to
1amp maximum total load.
TimeTrax Sync™ 5300 interfaces with Pyramid 4000/5000 Series Auto Totaling Time Clocks, TimeTrax™ Elite Series Automated
Time Clock Systems or TimeTrax™ RF Wireless Transmitter to receive bell/horn activation signals. Bell and horn schedules may be
configured using any compatible Pyramid time clock or transmitter (sold separately). Please see page 10 for a complete list of bells,
horns, and compatible signal devices.
24V DC powers up to
1amp total maximum load
Please read through this User Guide for simple installation and set-up.
For more information, please visit pyramidtimesystems.com, email us at
customersupport@ptitime.com or call our technical support team at
888.479.7264 during regular business hours: 8am-5pm EST, M-F.
5300 BELL RINGER : FEATURES
Zone Capacity
5300 Interface
Bell/Horn Power
Bell Scheduling
Warranty
1 OVERVIEW
BCD signal from time clock
5300 bell ringer
or RF wireless transmitter
Single
Interfaces with Pyramid Auto Totaling Time Clocks,
Elite Time Clock Systems, or TimeTrax Sync™
RF Wireless Transmitters
24V DC maximum total load
Unlimited
1-Year manufacturer's limited warranty
888.479.7264
