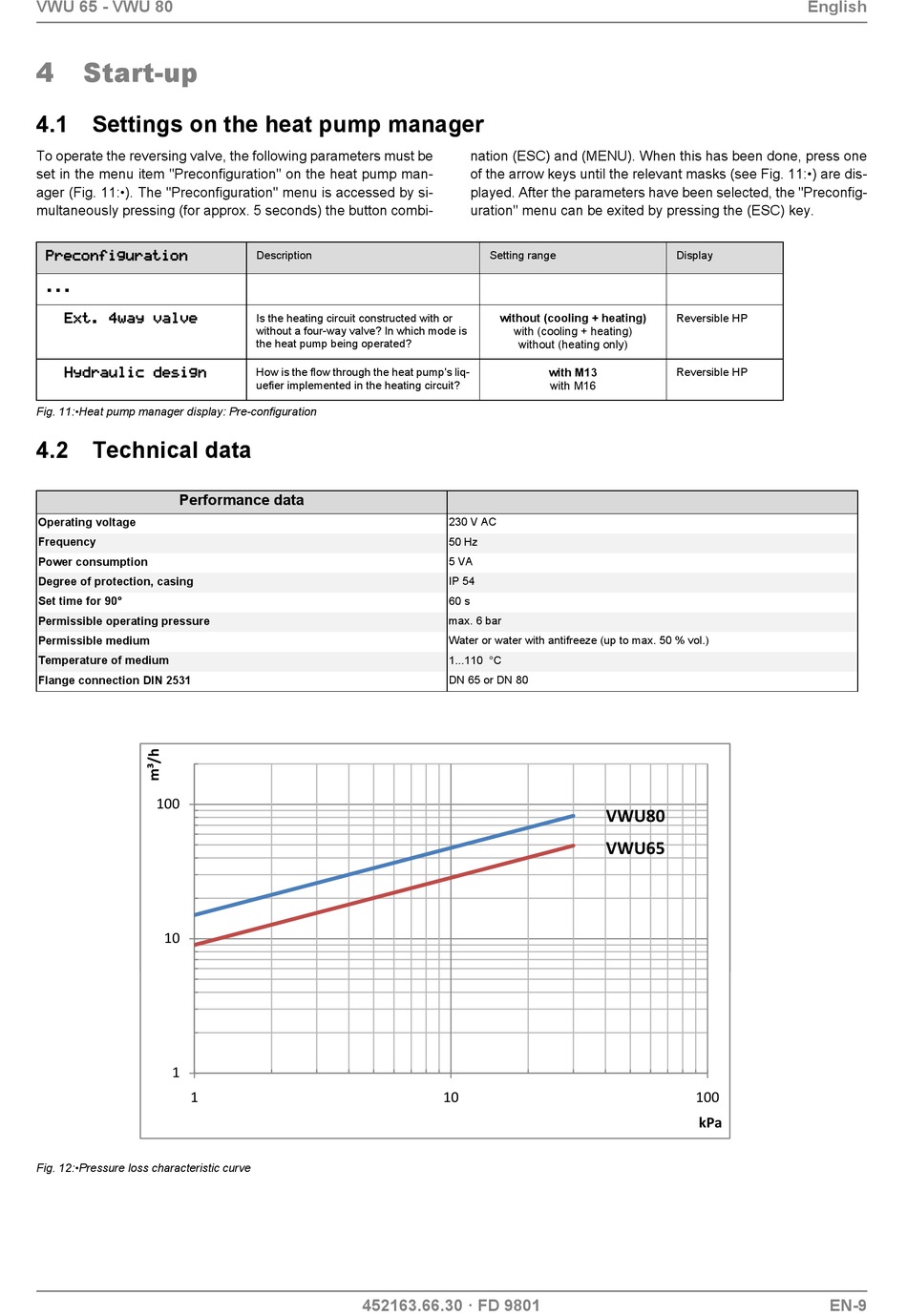

Start-up

4.1 Settings on the heat pump manager

To operate the reversing valve, the following parameters must be
set in the menu item "Preconfiguration" on the heat pump man-
ager (Fig. 11:•). The "Preconfiguration" menu is accessed by si-
multaneously pressing (for approx. 5 seconds) the button combi-




Fig. 11:•Heat pump manager display: Pre-configuration

4.2 Technical data

Performance data
Operating voltage
Frequency
Power consumption
Degree of protection, casing
Set time for 90°
Permissible operating pressure
Permissible medium
Temperature of medium
Flange connection DIN 2531
Fig. 12:•Pressure loss characteristic curve
Description
Is the heating circuit constructed with or
without a four-way valve? In which mode is
the heat pump being operated?
How is the flow through the heat pump's liq-
uefier implemented in the heating circuit?
