Tools Required
Š Forklift, crane or other heavy lifting equipment
Š Lifting straps rated to minimum of 4000 lbs
Š Lifting hooks or D connectors
Š Hammer drill with 9/16-inch and 7/8-inch bits.
(1/4-inch optional)
Š Reciprocating saw or grinder
Š Standard set of box end wrenches and sockets
(using ¾-inch and 1¼-inch)
Š Phillips head and flat head screwdrivers
Š Standard set of hex keys
Š Wire cutters
Š Wire strippers
Š Protective material (cardboard) to prevent scuffing
1 Set the Foundation
To ensure the stability of the WedgeSmart DC, the foundation must be constructed
in accordance with the following guidelines:
• Excavate a hole for the foundation to house the rebar mat and anchor bolt
assemblies. Soil compression under and around the foundation shall be compacted
to a soil density of 95% of standard proctor (ASTM-698).
• Add gravel where necessary to ensure a solid soil base. Soil must be stable and adequate to support the
weight of the foundation.
NOTICE: Softer soils require a larger footing. Employ the services of a structural or civil engineer for site
specific considerations. In Northern latitudes, consider the frost line.
• The WedgeSmart DC must be installed on a level surface. The chassis and wedge plate must be
plumb, level and on grade with the roadway surface.
NOTICE: Be aware of low clearance vehicles, such as car haulers. Recess the concrete pad accordingly.
• Cure concrete properties, at minimum, 3000 psi with a smooth finish and proper drainage. Slope
drainage ¼-inch per foot within 2 feet of the operator (2 cm per meter).
• Use Anchor Kit MX3460 (Grade B7 threaded steel rod and HIT-RE500 Epoxy adhesive.
A minimum of 4 anchor bolts required to secure each hinge
(6 mounting holes available at each hinge).
2 Measure and Lay Conduit for Communication & Power
Conduit Description
AC Main power
Low voltage power (accessories) and controls
Earth Ground
Vehicle Loop wires (IALD, Center, OALD, and/or Free Exit)
Dual Gate systems conduit required for:
AC power in
Low voltage systems/communications
WedgeSmart DC: Install Foundation
Road surface level
Consider vehicle
clearance (semi truck
and car hauler rigs)
and road surface grade
changes. The need for
recessed mounts may be
a site requirement.
Example
11" (28 cm)
Concrete Template
See *NOTICE
Chassis base & conduit
on page 1.
Wedge Plate Closed
21⅝"(55 cm) 9 & 10 ft
18"(46 cm) 12 & 14 ft
CAUTION
Use the template to make sure rebar
#5 (⅝ inch), Grade 40 or better,
does not interfere with anchor bolts.
Also, note that the anchor holes cannot
Min. Size cm
be drilled with the chassis in place.
1 inch 2.5
1 inch 2.5
3/4 inch 2
1 inch 2.5
No. Min. Size cm
1 1 inch 2.5
1 1 inch 2.5

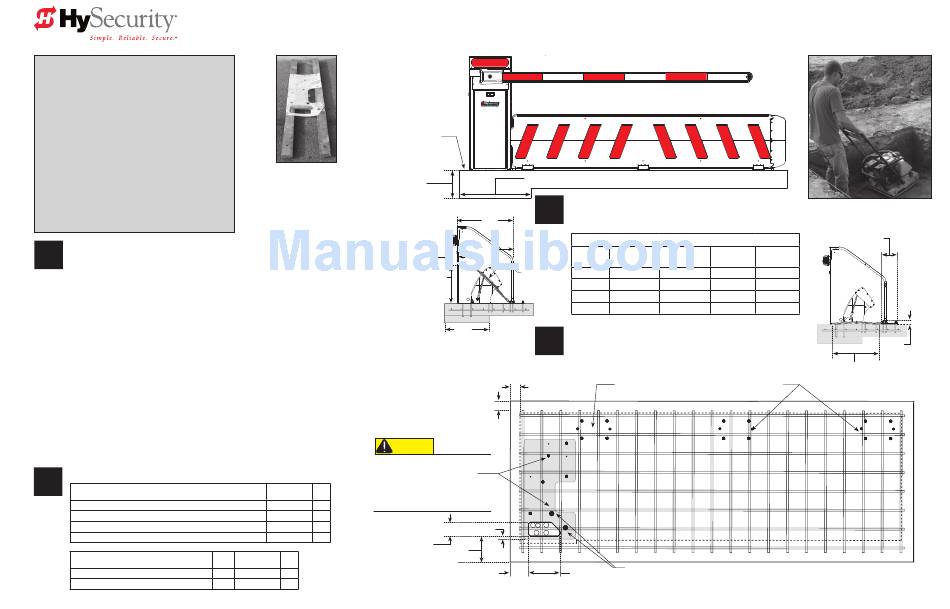

WedgeSmart DC Installation & Assembly - Foundation, Conduit, Anchor Cage
28" (113 cm) Length and depth minimums required to handle ¾-inch anchor bolts.
3
Excavate for Concrete Pad and Rebar Mat
32¼"
(82 cm)
42½"
(108 cm)
4" (10 cm)
45º
4 Assemble Rebar Mat
25½"
(65 cm)
1. Place one layer rebar mat at 8-inch on center (OC)
2. Stagger rebar mat between anchor bolts.
3. Use rebar #5 (⅝ inch), Grade 40 or better.
3" minimum
(76 mm)
1" (25 mm)
4⅜" (12 cm)
8½"
minimum
(22 cm)
minimum
5¾" 10" (25 cm)
(22 cm) minimum
Dimensions: Wedge Plate & Arm
Lane Wedge Plate Wedge Plate Arm
Width Length Width Length
9 ft 102" 29½" 9 ft
10 ft 114" 29½" 10 ft
12 ft 138" 24½" 10 ft
14 ft 162" 24½" 10 ft
NOTICE: Six bolt hole mounts exist at 3 hinge locations.
Min. Requirement: Use of 4 anchor bolts at each hinge location.
Two ¾" anchor mounts for strap bracket. AVOID REBAR interference in this area.
Soil Density compacted to 95%
per ASTM-698
Hinge Plate
8" (20 cm)
Plate
Height
21⅝"
21⅝"
18"
18"
1⅞"
(48 mm)
Wedge Plate Open
MX3672-01 Rev. A Page 2
