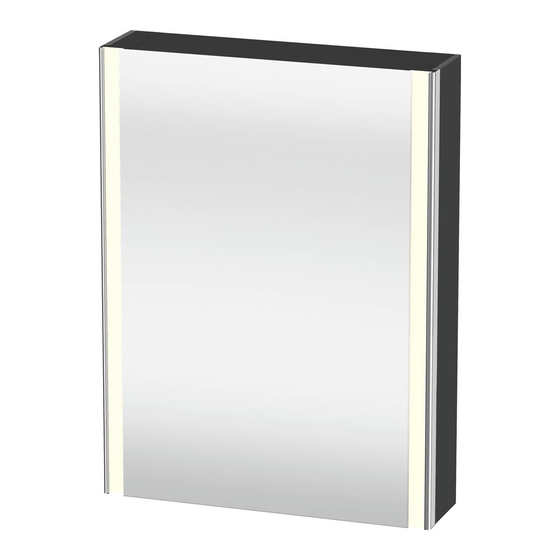

Mirrored Cabinet Installation Instructions
Congratulations on your purchase of Americas finest Mirrored Cabinet by GlassCrafters, Inc.
World class engineering and state of the art design will enable you to enjoy your cabinet for many years to come.
We realize that the marketplace offers many choices and we thank you for selecting
The following instruction sheets include the ALL MODELS listed below in both 4" deep and 6" deep Mirrored Cabinets.
To view a video showing helpful tips
on how to --
adjust our Cabinet HInges
or
to install our Mirrored Side Kits,
please go to:
GlassCraftersMirroredCabinets.com
and navigate to the
cabinet product that
you are installing.
Simply click on the
installation tab
(located below the
product images)
to view our
installation videos.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
If your unit is an electrified unit you should have the
GC Electric Option manual packed with your unit. If it is not
available for installation go on line and download the prod-
uct manual you need or contact your dealer.
ALL ELECTRIC UNITS REQUIRE INSTALLATION BY
A LICENSED ELECTRICIAN.
Please use extreme care while unpacking and handling your GlassCrafters' Mirrored Cabinet. Report any damage
immediately to our GlassCrafters customer service team at 800-233-7362,
GLASSCRAFTERS, INC
193 Veterans Blvd., Carlstadt, NJ 07072
GlassCrafters for your Mirrored Cabinet needs.
To insure proper installation we recommend installation by a professional installer.
GC1624
GC2036
Monday thru Friday from 8:00 am to 5:00 pm (EST)
1+(800) 233-7362 (F) 1+(888) 233-7362
sales@glasscraftersinc.com
GC1630
GC1636
GC2430
GC2030
GC2436
Revised 05/2016
1
Advertisement
Related Manuals for GlassCrafters GC1624
Summary of Contents for GlassCrafters GC1624
- Page 1 ALL ELECTRIC UNITS REQUIRE INSTALLATION BY A LICENSED ELECTRICIAN. Please use extreme care while unpacking and handling your GlassCrafters’ Mirrored Cabinet. Report any damage immediately to our GlassCrafters customer service team at 800-233-7362, Monday thru Friday from 8:00 am to 5:00 pm (EST)
-
Page 2: Parts List
Mirrored Cabinet Installation -- Unpack all parts carefully and protect Glass and Mirror parts during installation. Index Surface Mount Side Kit Installation....7 Parts List for All Models ........2 Glass Shelves...........8 Determining the Rough Opening......3 Door Installation and Adjustment......9 Recessing the Cabinet ........4 Limit Clips............10 Combining two (2) or three (3) Cabinets ..5 Cleaning Recommendation ......8 &... -
Page 3: Tools Required For Installation
Tools Required for Installation E. Power Screw Driver GlassCrafters recommends the following tools to F. Electric Drill properly and safely install your Mirrored Cabinets. G. 8mm 3/16” Masonry Drill Bit H. 7/32” Drill Bit A. Safety Glasses -- should be worn at all times I. - Page 4 Installing a Recessed & Semi-Recessed Mirrored Cabinet A. Determine the rough opening for the cabinet. Refer to “R.O.” formula chart on page 3. Opening must be plumb and level. B. Cabinet can be hinged on left or right. Simply flip the cabinet to change hinge location.
- Page 5 Combining Two (2) or Three (3) Parts required to join Two (2) Cabinets: Cabinet Units before Installation. Cabinet Connector Screws Screw Qty depth Part# Caps Any of the cabinets that are the same height my be 4” deep #426 10-32 x 1 1/2” 8 #434 joined to form one unit.
- Page 6 Installing a Surface Mount Mirrored Cabinet A. Determine the desired height and use a level to mark a horizontal line. Be sure to allow a minimum clearance of 1” above any obstruction and plumbing fixtures. Re- member the base of the cabinet box is 3/4” smaller than the face and the door.
- Page 7 Side Mirror Kit Installation Side Mirror Kit parts list: 2 Mirror side panels to match For surface mounted 4” & 6” Mirrored Cabinets and the model height ordered 6” semi-recessed Mirrored Cabinets. 4 Side kit brackets with adhe- sive tape 1) Attach the side mirror kit brackets thru the pre-punched Side Mirror Bracket 6 2”x2”...
- Page 8 Glass Shelves Installation For cleaning the mirror, we recommend using “ammonia free” Sprayway brand glass After the Mirrored Cabinet box has been properly in- cleaner, which is available at a variety of re- stalled, determine the appropriate height and location for tail outlets.
- Page 9 Door Installation The doors are packed individually for protec- 2) Lift and snap tion of the mirror surfaces. Carefully remove Door with Hinge into place the door from the carton.* Hold the door in the upright position snap open the factory in- stalled hinges.
- Page 10 Limit Clips Limit Clips are provided should you need to reduce the opening swing of the cabinet door from 170 degrees to 130 degrees (see top view) This will eliminate the possi- bility of the door hitting a wall sconce or other decorative items.
-
Page 11: Cleaning Recommendations
Model: GC1624-4" This installation manual serves the Qty. Part Number Cabinet 4" Cabinet GC1624-4-Cab complete line of GlassCrafters Door - Boxed Separately GC1624-D Mirrored Cabinets including all 4” Plastic Wall Anchor # 10 PWA deep and 6” deep models. The... - Page 12 Blum, Inc. will send replacement hardware without charge. warded in writing to GlassCrafters within three years of the delivery date to the end user of the product. GlassCrafters shall not be responsible for any installation or removal GlassCrafters shall not have any liability for any consequential damages stemming costs.
