Congratulations on your purchase of Americas finest Mirrored Cabinet by GlassCrafters, Inc.
World class engineering and state of the art design will enable you to enjoy your cabinet for many years to come.
We realize that the marketplace offers many choices and we thank you for selecting
The following instruction sheets include Models GC3630-Tri, GC4830-Tri, GC3636-Tri and GC4836-Tri
GC3630-Tri
GC3636-Tri
To view a video showing helpful tips on how to -- adjust our Cabinet HInges or to install our Mirrored Side Kits, please go to:
GlassCraftersMirroredCabinets.com and navigate to the cabinet product that you are installing. Simply click on the installation tab
(located below the product images) to view our installation videos.
Please use extreme care while unpacking and handling your GlassCrafters' Mirrored Cabinet. Report any damage immediately to our
GlassCrafters' customer service team at 800-233-7362, Monday thru Friday from 8:00 am to 5:00 pm (EST)
Revised 05/2016
GLASSCRAFTERS, INC
193 Veterans Blvd., Carlstadt, NJ 07072

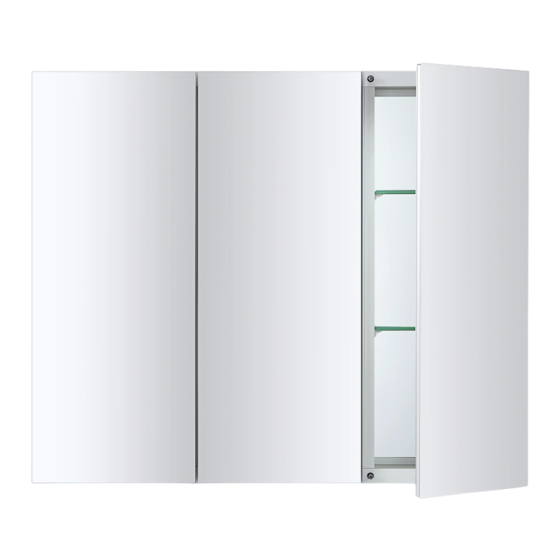

Tri-View Mirrored Cabinet
Installation Instructions
GlassCrafters for your Mirrored Cabinet needs.
in the 4" deep series.
To insure proper installation we recommend installation by a professional installer.
1+(800) 233-7362 (F) 1+(888) 233-7362
sales@glasscraftersinc.com
GC4830-Tri
GC4836-Tri
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GlassCrafters Tri-View
Summary of Contents for GlassCrafters Tri-View
- Page 1 (located below the product images) to view our installation videos. Please use extreme care while unpacking and handling your GlassCrafters’ Mirrored Cabinet. Report any damage immediately to our GlassCrafters’ customer service team at 800-233-7362, Monday thru Friday from 8:00 am to 5:00 pm (EST)
-
Page 2: Parts List
Tri-View Mirrored Cabinet Installation -- Unpack all parts carefully and protect Glass and Mirror parts during installation. Index Glass Shelves...........9 Parts List for All Models ........2 Cleaning Recommendation ......9 & 12 Determining the Rough Opening......3 Door Installation and Adjustment......10 Recessing the Cabinet ........4 & 5 Limit Clips............11... -
Page 3: Tools Required For Installation
Tools Required for Installation GlassCrafters recommends the following tools to properly and safely install your Mirrored Cabinets. A. Safety Glasses -- should be worn at all times B. Tape Measure C. Level D. #2 Phillips Head Screw Driver E. Power Screw Driver F. - Page 4 Installing a Tri-View Recessed Mirrored Cabinet A. Determine the rough opening for the cabinet. Refer to “R.O.” formula chart on page 3. Opening must be plumb and level. B. Cabinet can be hinged on left or right. Simply flip the cabinet to change hinge location.
- Page 5 Hinge Plates shown for right hinged doors Shown here -- Left, Right and Right hinge side door swings...
- Page 6 Installing a Surface Mount Mirrored Cabinet Determine the desired height and use a level to mark a horizontal line. Be sure to allow a minimum clearance of 1” above any obstruction and plumbing fixtures. Remember the base of the cabinet box is 3/4” smaller than the face and the door.
- Page 7 4 -- Lower onto wall bracket. 4 -- Tip up flush to the wall. Mark postions for top brackets and drill for stud or for wall anchor. 5 - Use a hand screw driver to fix the top brackets to the wall.
- Page 8 Side Kit Mirror Installation Side Mirror Kit parts list: For surface mounted 4” & 6” Mirrored Cabinets and 2 Mirror side panels to match 6” semi-recessed Mirrored Cabinets. the model height ordered 4 Side kit brackets with adhe- 1) Attach the side mirror kit brackets thru the pre-punched sive tape holes in your cabinet.
-
Page 9: Cleaning Recommendations
Glass Shelves Installation For cleaning the mirror, we recommend using “ammonia free” Sprayway brand glass cleaner, After the Mirrored Cabinet box has been properly in- which is available at a variety of retail outlets. stalled, determine the appropriate height and location for www.spraywayinc.com/content/glass-cleaner the glass shelves. -
Page 10: Door Installation
Door Installation The doors are shipped installed on the cabinet. 2) Lift and snap Before installing any cabinet you should have Door with Hinge into place carefully removed the doors from the cabinet and place in a safe location on a piece of car- pet with protective cardboard in beween each door to prevent damage and scratches. -
Page 11: Limit Clips
Limit Clips Limit Clips are provided should you need to reduce the opening swing of the cabinet door from 170 degrees to 130 degrees (see top view) This will eliminate the possi- bility of the door hitting a wall sconce or other decorative items. - Page 12 Blum, Inc. will send replacement hardware without charge. warded in writing to GlassCrafters within three years of the delivery date to the end user of the product. GlassCrafters shall not be responsible for any installation or removal GlassCrafters shall not have any liability for any consequential damages stemming costs.
