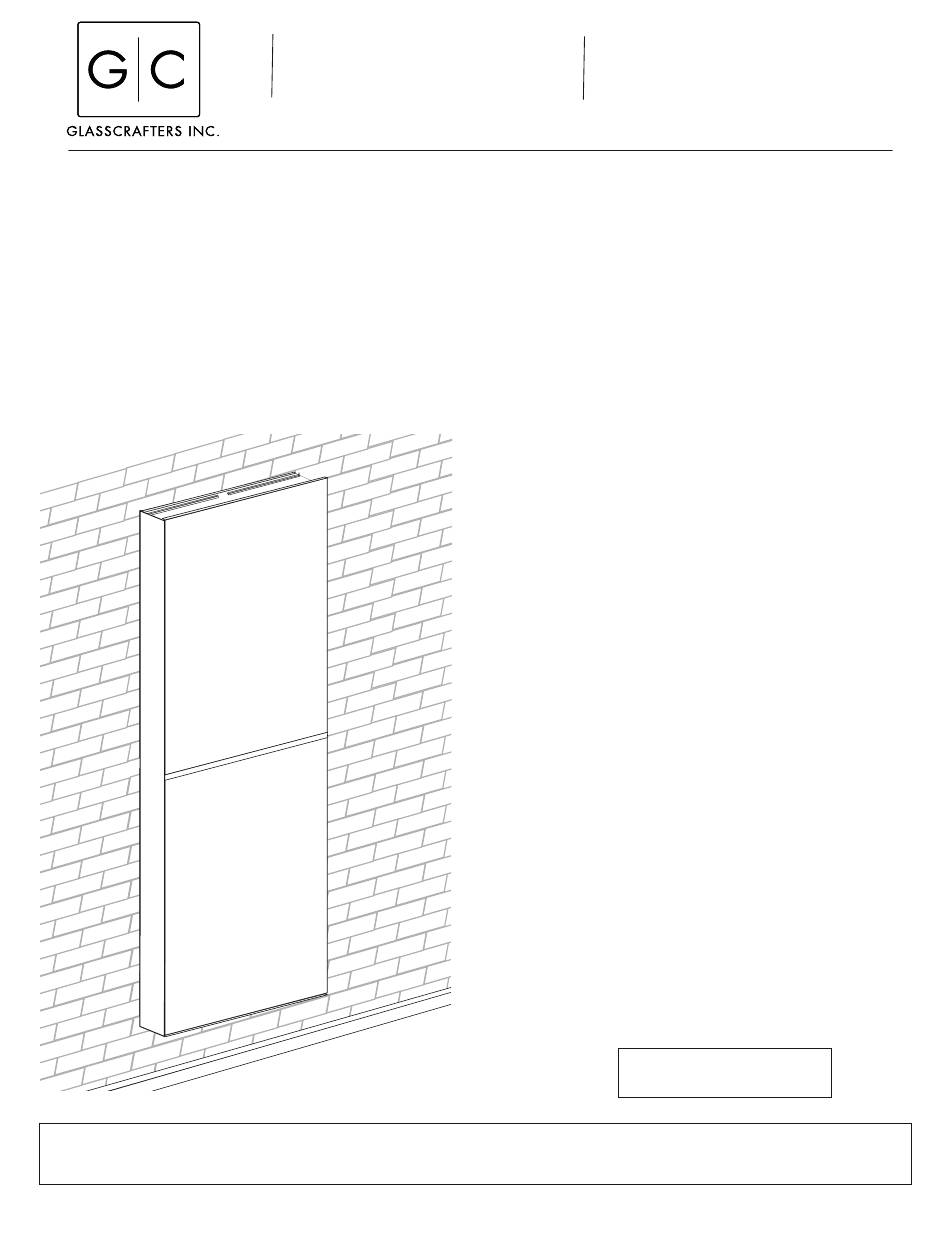

Vertical Tier System Mirrored Cabinets
Congratulations on your purchase of Americas finest Mirrored Cabinet by GlassCrafters, Inc.
World class engineering and state of the art design will enable you to enjoy your cabinet for many years to come.
We realize that the marketplace offers many choices and we thank you for selecting
The following instruction sheets include the ALL MODELS listed below in both
To insure proper installation we recommend installation by a professional installer.
To view a video showing helpful tips on how to -- adjust our Cabinet HInges or to install our Mirrored Side Kits, please go to:
GlassCraftersMirroredCabinets.com and navigate to the cabinet product that you are installing. Simply click on the installation tab
(located below the product images) to view our installation videos.
Please use extreme care while unpacking and handling your GlassCrafters' Mirrored Cabinet. Report any damage
immediately to our GlassCrafters' customer service team at 800-233-7362, Monday thru Friday from 8:00 am to 5:00 pm (EST).
GLASSCRAFTERS, INC
193 Veterans Blvd., Carlstadt, NJ 07072
Installation Instructions
GlassCrafters for your Mirrored Cabinet needs.
4" deep and 6" deep Mirrored Cabinets.
1+(800) 233-7362 (F) 1+(888) 233-7362
sales@glasscraftersinc.com
Vertical Tier System Mirrored Cabinets
Surface Mounted 4" deep cabinets:
Widths -- 16" , 20" & 24 "
Heights -- 54" , 60" , 66" & 72"
Surface Mounted 6" deep cabinets:
Widths -- 16" , 20" & 24 "
Heights -- 60" , 66" & 72"
Recessed mounted 6" deep cabinets:
Widths -- 16" , 20" & 24 "
Heights -- 60" , 66" & 72"
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
1
Revised 05 /2016
