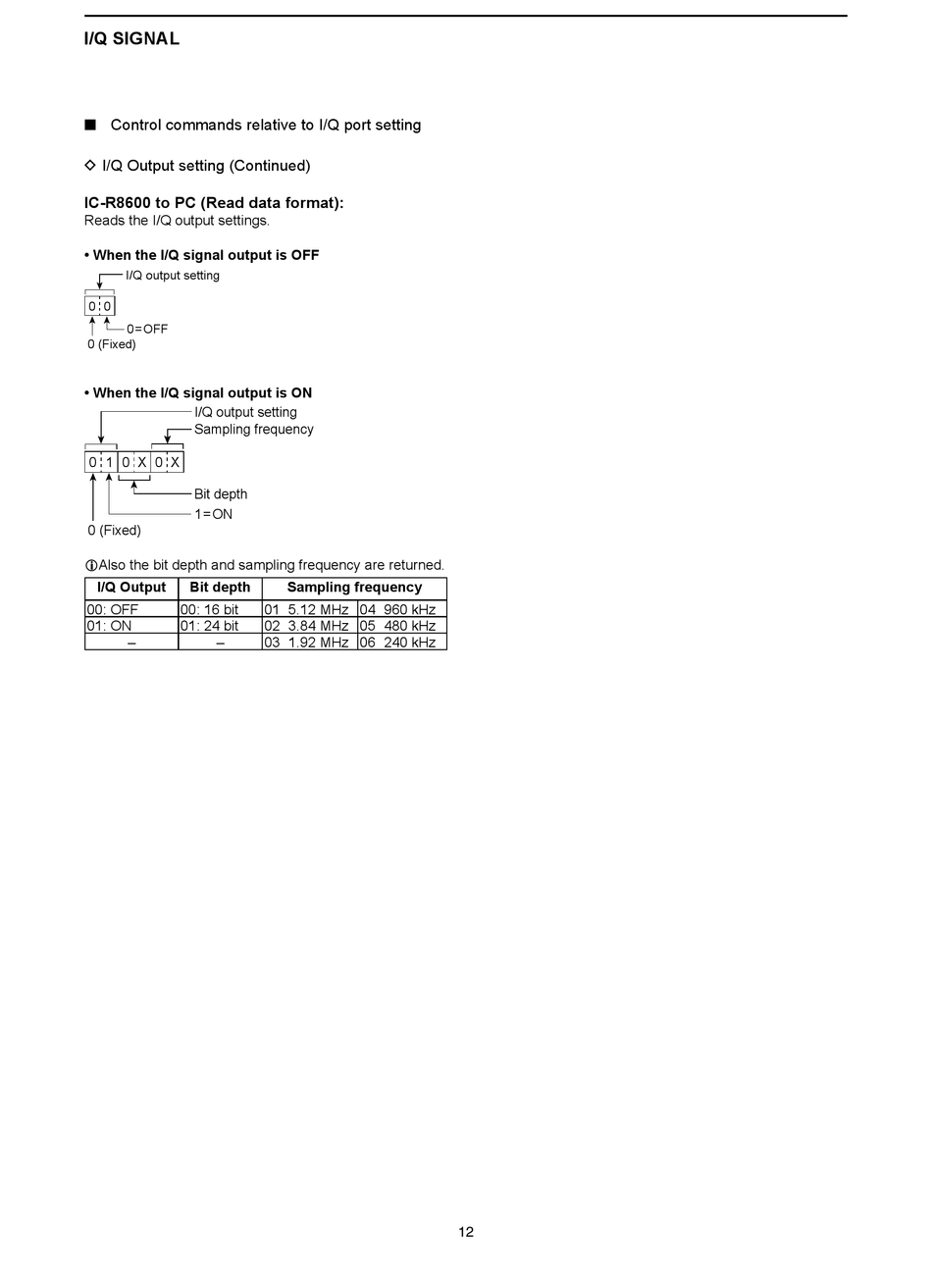

I/Q SIGNAL
■ Control commands relative to I/Q port setting
D I/Q Output setting (Continued)
IC-R8600 to PC (Read data format):
Reads the I/Q output settings.
• When the I/Q signal output is OFF
I/Q output setting
0 0
0 =OFF
0 (Fixed)
• When the I/Q signal output is ON
I/Q output setting
Sampling frequency
0 1 0 X 0 X
Bit depth
1 =ON
0 (Fixed)
LAlso the bit depth and sampling frequency are returned.
I/Q Output Bit depth
00: OFF 00: 16 bit
01: ON 01: 24 bit
– –
Sampling frequency
01 5.12 MHz 04 960 kHz
02 3.84 MHz 05 480 kHz
03 1.92 MHz 06 240 kHz
