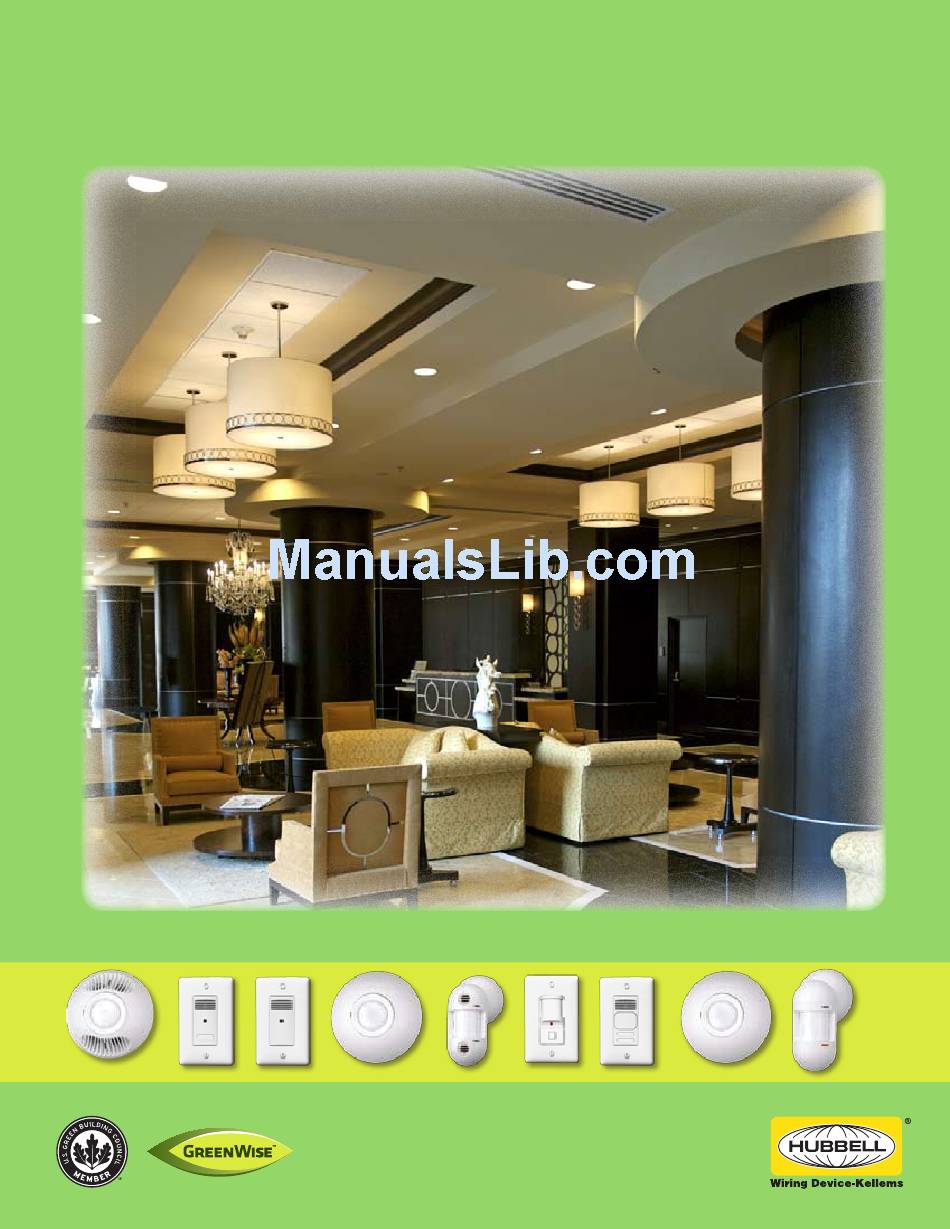

- Page 1 Occupancy Sensor H-MOSS ® Hubbell Motion Sensing Switches Hospitality Reference Guide Sensors for an Energy Conscious World...
-
Page 2: Table Of Contents
Installation Instruction Pages ..................10-19 The following are general recommendations for the applications listed. Your hotel/resort may require alternative products than those listed. Hubbell representatives are available to answer all your questions and discuss any project. Sensor selection and layout services... -
Page 3: Hubbell's Green Initiative
• Product selection guide for choosing the right H-MOSS Occupancy Sensor and technology • Online specification assistance through spec wizard, AutoCAD drawings, templates and documentation • Comprehensive design assistance for deploying occupancy sensors in a variety of applications • Highly knowledgeable network of specification professionals and trained, dedicated sales staff • Backed by Hubbell who is committed to safeguarding the environment through environmental stewardship, innovative products and efficient operations For more information about Hubbell’s GreenWise™ initiative and access to our complete suite of on-line tools, visit our website at www.hubbell-wiring.com/green. Savings with Occupancy Sensors Open Office Private Office Classroom Conference Room Storage Room... -
Page 4: Hospitality Solutions
Hospitality Solutions Turn the lights off to keep the lights on. Over 50% of a hotel’s electricity bill goes to keeping lights on, even when guests are away from their rooms. This results in substantial waste that reduces an establishment’s financial efficiency and sustainability. With occupancy sensors, the waste can be eliminated without affecting customer comfort and convenience. Manual-on mode automates savings. -
Page 5: How To Select The Right Technology For The Proper Application
Benefits: • Detect small motion • Sees around obstructions • Cost efficient Passive Infrared Passive infrared (PIR) technology senses occupancy by detecting the movement of heat emitted from the human body against the background space. Unlike US (PIR) technology, PIR sensors require an unobstructed line-of-sight for detection. These sensors use a segmented lens, which divides the coverage area into zones. Movement between zones is then interpreted as occupancy. PIR sensors are ideal for detecting major motion (e.g. walking), and they work best in small, enclosed spaces with high levels of occupant movement. Benefits: • Long range detection • Reliable triggering • Cost efficient www.hubbell-wiring.com... -
Page 6: Storage Area
Easy in, easy out With occupancy sensors, entering or leaving a storeroom with hands full is easily accomplished without worrying about the lights staying on and wasting energy. Hubbell H-MOSS breadth of products includes occupancy sensors with passive infrared technology that are ideal for small spaces of major movement, as well as options for covering large warehouse aisles and high-bay applications with 120-foot linear coverage. -
Page 7: Restroom
Promote savings and health. H-MOSS sensors intelligently sense occupation ® and control lights accordingly so facility managers no longer have to ensure that the lights are turned off in restrooms or when closing up. And because a switch is a common touch point for transmitting germs in bathrooms, using H-MOSS sensors helps promote healthy buildings. -
Page 8: Ice Machine/Vending Machine Areas
Ice Machine/Vending Machine Areas Design Guide Lighting When You Need It Vending areas typically have an ice machine and soft drink dispenser that do not require lights on 24 hours per day. The lights will need to be on when a guest steps into the vending area and shut down when the guest leaves. -
Page 9: Contact Information

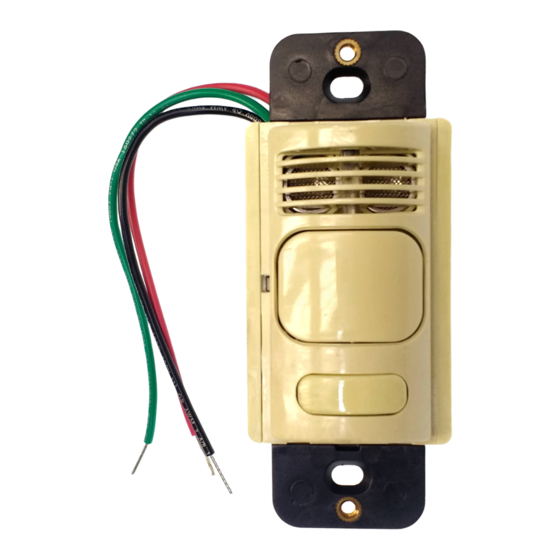

Contact Information For price and delivery contact your Hubbell Territory Manager Hubbell Technical Service phone: 1-800-288-6000 fax: 1-203-882-4852 Website: www.hubbell-wiring.com Layout Capabilities and Technical Support Hubbell representatives are available to answer all your questions and discuss any project—large or small. - Page 10 Passive Infrared / Ultrasonic Occupancy Sensors Installation and Operating Instructions DESCRIPTION Wiring Diagram Range Diagram The H-MOSS® sensor is an intelligent self-adapting occupancy sensor that is designed to replace existing wall switches. SPECIFICATIONS • 1000 sq. ft coverage area (Models: AP1277 and AD1277) 120/277VAC Load 1 •...
- Page 11 Air-Gap Override – If it is necessary to service the controlled Switch 2 – Auto/Manual B (Dual Circuit Versions Only) circuits without de-energizing them at the breaker panel (this is not Controls selection between Auto ON/Auto OFF Mode and Manual recommended as a standard procedure): ON/Auto OFF Mode for Circuit B.
- Page 12 Capteurs de mouvement à Ultrasonique / infrarouge passifs Directives de montage et mode d'emploi DESCRIPTION Diagrammes de câblage Diagramme de la portée Le H-MOSS est un capteur de mouvement auto-adaptatif intelligent conçu pour remplacer les commutateurs muraux existants. SPÉCIFICATIONS Rouge •...
- Page 13 Annulation manuelle – Actionner le(s) bouton(s) ON et OFF. Commutateur 1 – Auto/Manuel L'état des lumières correspondra à la dernière position des boutons Permet de choisir entre les modes Auto ON/Auto OFF et Manuel ON/ pendant la détection de mouvements. Le capteur passe en mode Auto OFF.
- Page 14 El LED rojo o verde del detector destellará para indicar la detección Detector de un botón/sin botón Detector de dos botones infrarroja o ultrasónica pasiva, según corresponda. ® Wiring Device-Kellems Hubbell Incorporated (Delaware) 185 Plains Road Milford, CT 06461-2420 (203) 882-4800 PD2218 Page 5...
- Page 15 3. Alejarse del detector para evitar que cambien los niveles de luz El temporizador adaptable se reconfi gura de su compra. HUBBELL reparará o reemplazará ambiente en la habitación. Nota: Durante la calibración, el detector según el temporizador 0 y el temporizador 1...
- Page 16 Français English Español...
- Page 17 English Français Español...
- Page 18 English DESCRIPTION DESCRIPTION DESCRIPCIÓN Los detectores por infrarrojos (I.R.) pasivos H-MOSS LVPR1500R funcionan a la tensión de línea y se fi jan al techo. Se The H-MOSS ® LVPR1500R sensors are line voltage passive infrared ceiling mount sensors. They are supplied with a Les capteurs à...
- Page 19 HUBBELL DE MEXICO garantiza este producto, de estar libre de defectos en materiales y mano de obra por un período de un año a partir de la fecha de su compra. HUBBELL reparará o reemplazará a su juicio el producto en un plazo de 60 días.
