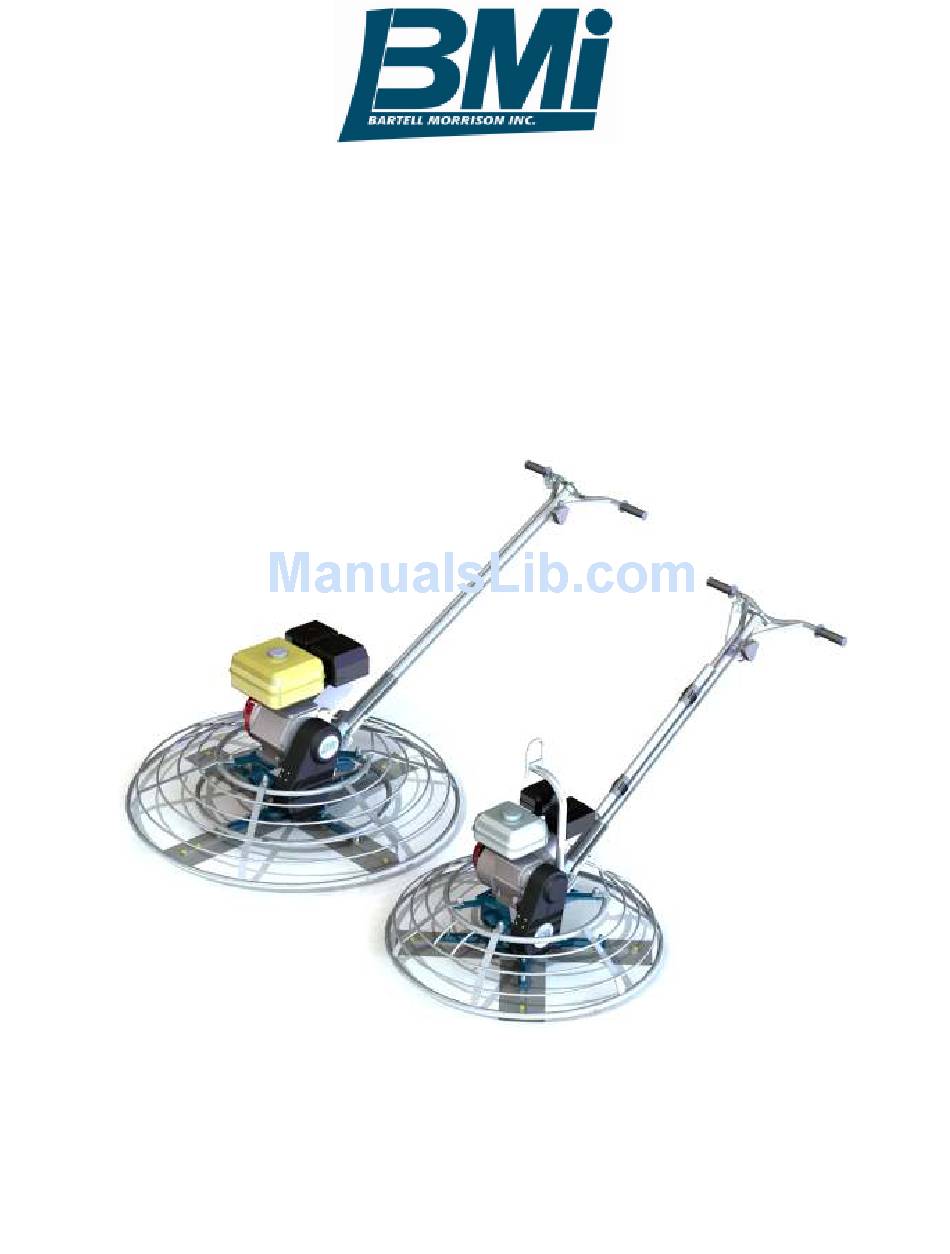

INSTRUCTION MANUAL & PARTS BOOK
POWER TROWEL
Use this guide along with the parts lists attached to locate and identify components of your trowel. When
ordering replacement parts, be sure to provide the model number and serial number from the trowel.
POWERFUL - EFFICIENT - DEPENDABLE
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484
WALK-BEHIND
MODELS
B430 / B436 / B436E / B440 / B446
BARTELL MORRISON INC.
Created: 07/04
Revised: 08/09
OI-B09001
PB-B09001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B430 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bartell B430

  • Page 1 POWER TROWEL MODELS B430 / B436 / B436E / B440 / B446 Use this guide along with the parts lists attached to locate and identify components of your trowel. When ordering replacement parts, be sure to provide the model number and serial number from the trowel.
  • Page 2 Read and understand operator's manual before using this machine. Failure to follow operating instructions could result in serious injury or death. BARTELL MORRISON INC. - 2 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 3: Table Of Contents

    ELECTRIC HANDLE ASSEMBLY B436 PARTS LIST ..................40 TROUBLESHOOTING............................. 41 SPECIFICATIONS ..............................42 COMPANY INFORMATION ............................ 43 NOTES ..................................45 BARTELL MORRISON INC. - 3 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 4: Quality Assurance/Machine Break-In

    We thank you for the confidence you have placed in us by purchasing a Bartell Walk- Behind Power Trowel and wish you many years of satisfied use.
  • Page 5: Walk-Behind Power Trowel Warranty

    Under no circumstances shall Bartell Morrison Inc. be liable for any additional or exceptional costs beyond the cost to repair or replace the defective portion of the equipment. Bartell Morrison Inc. shall not be held accountable for; costs associated with travel to inspect or repair defective equipment, costs for transporting defective equipment to or from an authorized repair facility, costs incurred to repair or replace the defective equipment at any facility other than one authorized by Bartell Morrison Inc., or ancillary...
  • Page 6: Maintenance Record

    However, when in need of parts or major service, be sure to see your Bartell dealer. For your convenience we have provided this space to record relevant data about your Walk-Behind Power Trowel.
  • Page 7: Routine Service Intervals

    500 hrs Valve clearance Check-adjust Fuel filter Check & Clean Replace Fuel Tank Clean 500 hrs Engine wiring Check BARTELL MORRISON INC. - 7 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 8 • Failure to have your Walk-Behind Power Trowel regularly serviced and properly maintained in accordance with the manufacturer’s instructions will lead to premature failure and void the warranty. BARTELL MORRISON INC. - 8 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484...
  • Page 9: Foreword

    Form a small “L” bend in the cable, hook the ASSEMBLY INSTRUCTIONS inner cable into the throttle block and tighten cable Your new Bartell Walk-Behind Power Trowel has been clamp down onto the casing. With thumb lever and shipped to you partially assembled. Filling the fuel tank...
  • Page 10: Diagram 1

    WALK-BEHIND TROWEL INSTRUCTION MANUAL DIAGRAM 1 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 BARTELL MORRISON INC. - 10 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 11: Operation (Floating)

    Fill fuel tank with clean gasoline, use safety approved gas containers. DO NOT MIX OIL WITH GASOLINE – USE UNLEADED GAS ONLY. BARTELL MORRISON INC. - 11 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04...
  • Page 12: Storage

    14 AWG 12 AWG 10-12 16 AWG 16 AWG 14 AWG 12 AWG 12-16 14 AWG 12 AWG (NOT RECOMMENDED) BARTELL MORRISON INC. - 12 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 13: Electric Power Trowel Operation

    The electric models of Bartell Power Trowels require appropriate power sources, connections, extension cords, and surge protection. Bartell Morrison Inc. is not responsible for damage to person or property due to improper use or setup of an Electric Power Trowel. Select your power supply and other provisions based on the specific type of trowel being operated.
  • Page 14: Setting Up The Electric Power Trowel

    • Do not pull the trowel by the safety switch housing. • Always unplug the trowel for storage or transportation. SETTING UP THE ELECTRIC POWER TROWEL The Bartell Electric Power Trowel ships without the handle attached. When installing the handle, ensure...
  • Page 15 4. Brace your hip against the shield pad on the handle for better control. Bartell Electric Power Trowels operate at a constant speed which is achieved immediately after startup, so there will be some kick.
  • Page 16: Electric Power Trowel Wiring Diagram

    LINE IN 230V LAMP PIN2 CONTROL PIN1 RECEPTICLE PIN3 13NO 14NO 230V TROWEL MOTOR CONTROL FUSE 3 AMP 230V BARTELL MORRISON INC. - 16 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 17: Trowel Arm Adjustment Fixture

    (9) over head of carriage bolt. the trowel arm. BARTELL MORRISON INC. - 17 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04...
  • Page 18: Assembly Drawings And Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL BARTELL MORRISON INC. - 18 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 19: Walk-Behind Power Trowel Assembly (Figure 1)

    Engine (opt.) Flat Head Screw Hex Hd. Screw Engine Stud Driven Sheave Flat Washer Muffler Cap Key, Sheave Rubber Washer BARTELL MORRISON INC. - 19 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 20: Walk-Behind Power Trowel Parts List

    Carry Bar Assembly w/ Clips 6/8/2004 Rev. 1 Belt for B446 changed, was 11047 (BP28) now 11178 (B29) 10/2005 BARTELL MORRISON INC. - 20 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 21: Base Unit Assembly (Figure 2)

    Mounting Rail LH Retaining Ring Engine Plate Gearbox Assy Stud Soc.Hd. Capscrew Retainer Lock Washer Cap Plug Soc.Hd. Capscrew Hex Nut BARTELL MORRISON INC. - 21 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 22: Base Unit Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # Base Unit, B430 / 436 / B446, Greased Spider Assembly List Item # Part # (430) Part # (436) Part # (440) Part # (446) Description Eff. Date Spider plate Assembly (See Figure...
  • Page 23: Spider Plate Assembly (Figure 3)

    Adjuster Bolt Lock Washer Figure 4 - Pressure Plate Assembly Item # Description Pressure Plate Thrust Bearing Pressure Plate Cap BARTELL MORRISON INC. - 23 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 24: Base Unit Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 20818 (B430), 20810 (B436), 20810L (B440), 20820 (B446) Spider Plate Assembly, Greased Item # Part # (430) Part # (436) Part # (440) Part # (446) Description Eff. Date 10810 10810...
  • Page 25: Clutch Assembly (Figure 5)

    Item # Description Item # Description Spindle Drum w/ Bushing Weight (Shoe) Face Plate Bearing Bushing Spring Set Screw BARTELL MORRISON INC. - 25 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 26: Clutch Assembly Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 21006 (B430), 21006/21005 (B436), 21005 (B440 / B446) Clutch Assembly Item # Part # (430) Part # (436) Part # (440/446) Description Eff. Date 11021 (5.5HP) 11021 11045 Spindle 08/21/2007 11045 (9HP) 11020 (5.5HP)
  • Page 27: Gearbox Assembly (Figure 6)

    Lock Washer Worm Gear Worm shaft Bearing Cup Woodruff Key Bearing Cone Oil Seal Taper Bearing Ball Bearing Sight Plug BARTELL MORRISON INC. - 27 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 28: Gearbox Assembly Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 20921 (B430 / B436 / B440), 20928 (B446) Gearbox Assembly Item # (B430 / B436 (B446) Description Eff. Date / B440) 10921 10928 Gear Housing 5/1/2004 10917 10929 Gearbox Cover 1/1/1997...
  • Page 29: Handle Assembly (Figure 7)

    Hand Knob Assy. Round Hd. Screw Handle Grips Pulley Slide Bushing Throttle Assy Hex Hd. Screw Pitch Adj. Cable Lockwasher BARTELL MORRISON INC. - 29 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 30: Handle Assembly Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 20520 (B430 / B436 / B440), 20562 (B446) Handle Assembly Item # (B430 / B436 (B446) Description Eff. Date / B440) 20517 20564 Handle Bracket Standard 1/1/1997 10518 10505 Handle Clamp...
  • Page 31: Instapitch Handle Assembly (Figure 8)

    Clevis Pin Pulley Instapitch Cable Lock Washer Hex Hd. Screw Hex Nut Round Hd. Screw Flat/Hex Bolt Deadman Switch BARTELL MORRISON INC. - 31 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 32: Instapitch Handle Assembly Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 20502 (B430 / B436 / B440), 20581 (B446) Handle Assembly (Instapitch Option) (B430 / B436 Item # (B446) Description Eff. Date / B440) 20518 20564 Handle Bracket 1/1/1997 10505 10505 Handle Clamp...
  • Page 33: European Safety Handle Assembly (Figure 9)

    Support Block Hand Knob Assy. Throttle Assy. Handle Grips Pulley Handle Pad Lock Washer Slide Bushing Round Hd. Screw BARTELL MORRISON INC. - 33 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 34: European Safety Handle Assembly Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 20601E (B430 / B436 / B440), 20562E (B446) European Safety Specification Handle Assembly Item # (B430 / B436 (B446) Description Eff. Date / B440) 20518 20564 Handle Bracket 08/20/2007 10505 10505...
  • Page 35: Blade Configurations (Figure 10)

    BLADE KIT ASSEMBLY Figure 10 – Finishing Blade Kit Item # Description Finishing Blade Hex Bolt Hex Bolt Lock Washer BARTELL MORRISON INC. - 35 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 36: Blade Configuration Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST B430 FINISH BLADES, IMPERIAL Item # Part # Description Eff. Date 10400 Trowel Blade, Imperial, Finish, 6” x 10-1/2” 08/20/2007 10401 Hex Hd. Cap Screw, 5/16”-18UNC x 1-1/2" 08/20/2007 10403 Hex Hd. Cap Screw, 5/16”-18UNC x 2"...
  • Page 37: B436E Electric Power Trowel Assembly (Figure 11)

    WALK-BEHIND TROWEL INSTRUCTION MANUAL BARTELL MORRISON INC. - 37 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 38: B436E Electric Power Trowel Assembly Parts List

    WALK-BEHIND TROWEL INSTRUCTION MANUAL B436E ELECTRIC WALK BEHIND ASSEMBLY Figure 11 – Complete Electric Trowel B436E BARTELL MORRISON INC. - 38 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 39: Electric Handle Assembly B436 (Figure 12)

    WALK-BEHIND TROWEL INSTRUCTION MANUAL BARTELL MORRISON INC. - 39 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 40: Electric Handle Assembly B436 Parts List

    Rubber Washer, 5/8” Dia. 11/15/2007 10547 Lock Nut, Hex, 1/2”-13UNC, Nylock 11/15/2007 51085 Fuse, 3HP 230V, B436E (Not Shown) 04/30/2008 BARTELL MORRISON INC. - 40 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 41 WALK-BEHIND TROWEL INSTRUCTION MANUAL ELECTRIC HANDLE ASSEMBLY (B436E) Figure 12 – Electric Trowel Handle Assembly BARTELL MORRISON INC. - 41 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 42 10509 Handle Grip, Rubber 11/15/2007 11850 Safety Switch Assembly w/ Wire 04/30/2008 10669 Handle Grip, Rubber, Open End 11/15/2007 BARTELL MORRISON INC. - 42 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 43: Troubleshooting

    Grease fittings too tight TROWELS BLADES WEARING UNEVENLY • Spider plate seized • Arms bent • Adjusting screws (carriage bolts) incorrectly set BARTELL MORRISON INC. - 43 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
  • Page 44: Specifications

    Folding Handle • Power rating conforming to DIN 6270 & ISO 3048/1 Std. • RPM results may vary by engine option. BARTELL MORRISON INC. - 44 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04...
  • Page 45 WALK-BEHIND TROWEL INSTRUCTION MANUAL Declaration of Conformity / Certificat de conformité / Gelijkvormigheids certificaat Declaración de Conformidad/Declaração de Conformidade/Dichiarazione Di Conformita Bartell Morrison Inc. 375 Annagem Blvd. Mississauga, Ontario, Canada L5T 3A7 Tel: 905-458-5455 Fax: 905-458-5484 Declare under our sole responsibility that the product to which this declaration relates is in conformity with the following standard(s) or other normative documents.
  • Page 46 Potenza Acustica Pressione Acustica Livello di Vibrazione (dB) (Db) (m/s Bartell Morrison Inc. The Technical Construction file is maintained at: 375 Annagem Blvd. Les fiches techniques de construction sont gardées à: Mississauga, Ontario, Canada Het technische constructie document wordt bewaard te: El archivo técnico de construcción se mantiene en:...
  • Page 47: Notes

    WALK-BEHIND TROWEL INSTRUCTION MANUAL NOTES BARTELL MORRISON INC. - 47 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-458-5455 FAX 905-458-5484 Created: 07/04 Revised: 08/09...
