Bartell TS74 Instruction Manual

Ride-on trowel

Advertisement

Quick Links

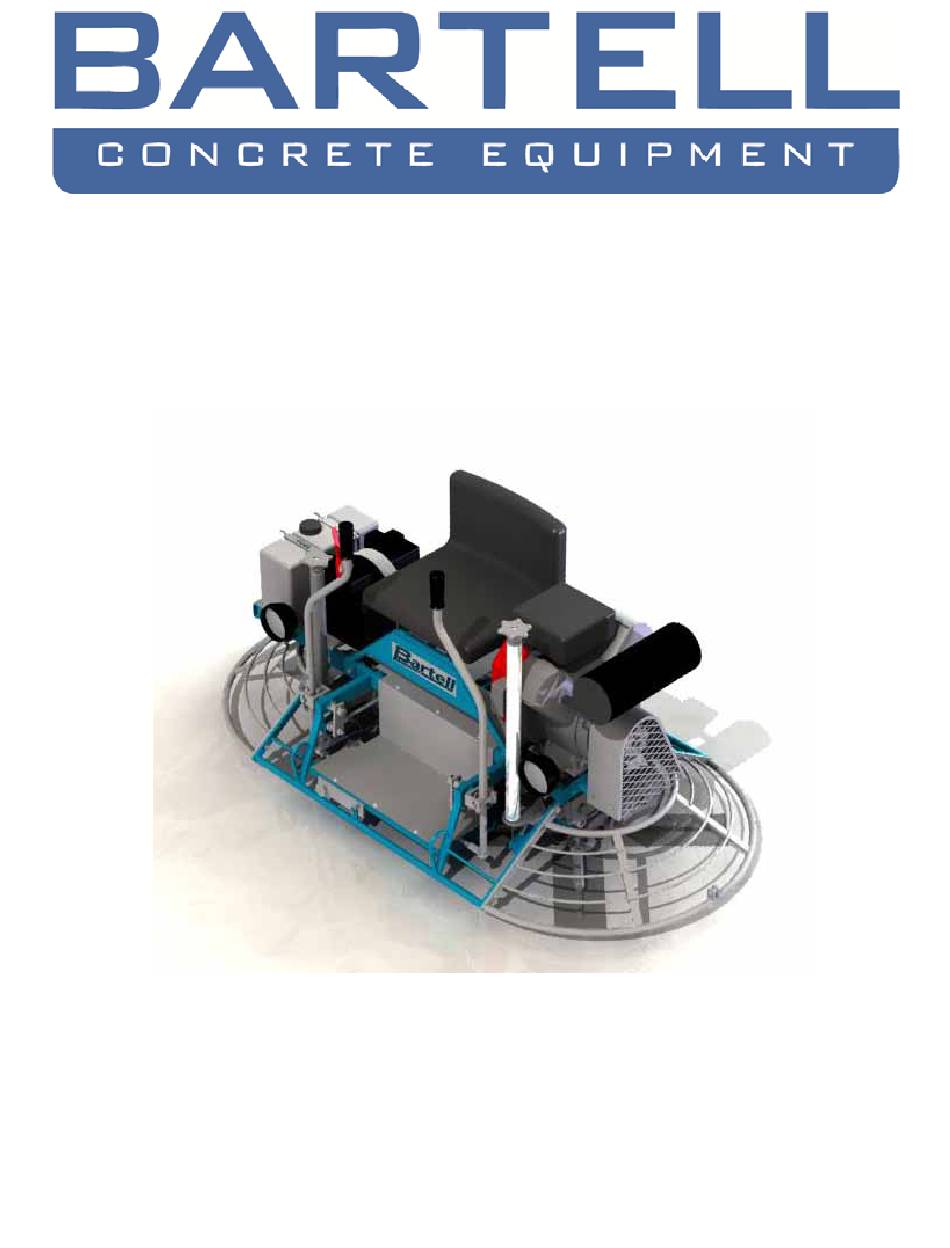

INSTRUCTION MANUAL & PARTS BOOK
TS74 RIDE-ON
TROWEL
POWERFUL - EFFICIENT - DEPENDABLE
BARTELL MORRISON INC.
BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-5444
Doc. # OI – B09004
Orig. Rel. – 04/2010
Curr. Rev. – 06
Rev. Date – 06/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS74 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bartell TS74

  • Page 1 TROWEL POWERFUL - EFFICIENT - DEPENDABLE BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-5444 Doc. # OI – B09004 Orig.
  • Page 2 TS74 RIDE-ON TROWEL INSTRUCTION MANUAL SAFETY PRECAUTIONS DANGER EXPLOSION HAZARD Never operate the machine in an explosive atmosphere, near combustible materials or where ventilation does not clear exhaust fumes. WARNING BURN HAZARD Never come into contact with the engine or muffler when engine is operating or shortly after it is turned off.
  • Page 3: Table Of Contents

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL TABLE OF CONTENTS QUALITY ASSURANCE/MACHINE BREAK-IN ..................4 MAINTENANCE RECORD ......................... 5 ROUTINE SERVICE INTERVALS ......................6 FOREWORD .............................. 8 SAFETY PRECAUTIONS .......................... 8 ASSEMBLY INSTRUCTIONS ........................8 1. BATTERY ............................... 8 2. STEERING HANDLE ASSEMBLY ......................8 3.
  • Page 4: Quality Assurance/Machine Break-In

    We thank you for the confidence you have placed in us by purchasing a Bartell Ride-on Trowel and wish you many years of satisfied use.
  • Page 5: Maintenance Record

    However, when in need of parts or major service be sure to see your Bartell dealer. For your convenience we have provided this space to record relevant data about your ride-on Trowel.
  • Page 6: Routine Service Intervals

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL Each After 1.5 Each 3 Each 6 Each 9 Each 12 Routine Service months months months months months Intervals 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs General Inspection: Operation of lights Check Battery Clean &...
  • Page 7 TS74 RIDE-ON TROWEL INSTRUCTION MANUAL Each After 1.5 Each 3 Each 6 Each 9 Each 12 months months months months months Routine Service Intervals - Continued - 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs Drive Train: Bearings...
  • Page 8: Foreword

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL FOREWORD ASSEMBLY INSTRUCTIONS It is important that the following be read carefully in Your new Bartell Ride-On Trowel has been shipped to order that the operational performance of the Bartell you partially disassembled. To prepare for operation use RIDE-ON...
  • Page 9: Seat Assembly

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL 4. SEAT ASSEMBLY 3. TO STOP ENGINE Remove protective wrapping from seat. The seat is a) Bring throttle to low idle, wait a few seconds. now ready to secure to the frame using included b) Remove left foot from dead-man safety switch.
  • Page 10: Float/Trowel Pitch Setting

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL 5. FLOAT/TROWEL PITCH SETTING 7. TRANSPORTER USE Once you are familiar with the steering functions on a flat floor, you are ready to combine the steering CAUTION: with float/trowel pitch settings to produce the finish The transporter is designed to be used on the job you require.
  • Page 11: Belt Change Procedure

    Top up with Chevron HiPerSYN ISO 320 gear oil bolt from the clutch. This releases belt from both the only. Gearbox capacity on the TS74 is 27oz./767ml. clutch and driven unit. 4. TO CHANGE GEARBOX OIL 5.
  • Page 12: Trowel Arm Adjustment Fixture

    The adjustment bar will be 6. Adjust carriage bolt (8) upwards until contact is made set on “46” for the TS74 trowel arm. with adjustment bar (9); holding carriage bolt in position with one wrench, tighten locknut (7) to secure in position with second wrench.
  • Page 13: Assembly Drawings And Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC - 13 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444 Created: 04/08 Revised: 06/14...
  • Page 14: Chassis Assembly (Figure 1)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CHASSIS ASSEMBLY Figure 1 - Complete Chassis BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC - 14 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444...
  • Page 15: Chassis Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Item # Part # Description Eff. S/N Eff. Date 13770 TS74 Frame Weldment 06/28/07 13718 End Ring 06/28/07 14713 Belt Guard 06/28/07 14596 HWHS #14 x 1/2”LG. 06/28/07 13641 Seat High Back...
  • Page 16: Powerplant Assembly (Figure 2) / Powerplant Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL POWERPLANT ASSEMBLY Figure 2 - Complete Powerplant CUSTOMER PARTS LIST Honda Item # Description Eff. S/N Eff. Date 20 hp 06/28/07 10905 USS Flat Washer, 3/8” Dia. 06/28/07 10902 Lock Washer, 3/8” Dia. 10270 HHCS 3/8-16UNC x 2-1/2”LG.
  • Page 17 TS74 RIDE-ON TROWEL INSTRUCTION MANUAL This Page Has Been Intentionally Left Blank BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC - 17 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444...
  • Page 18: Drive Train Assembly (Figure 3)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL DRIVETRAIN ASSEMBLY Figure 3 - Complete Drivetrain Item # Description Item # Description Item Description Lock Washer Cap Plug Grease Fitting Screw Lock Washer Mounting Plate Hex Nut Bushing Spider Plate Ass’y Key Stock Support Pin Spider Plate Ass’y...
  • Page 19: Drive Train Parts List

    FHCS 3/8-16 UNC x 1”LG. 06/28/07 11333 Mounting Plate 06/28/07 20858 Spider Assembly TS74 CCW (for 06/28/07 right side of unit) 20857 Spider Assembly TS74 CW (for left 06/28/07 side of unit) 20960 LG Front Gearbox Assembly 06/28/07 20955 Gearbox Assembly, RH 06/28/07 20626 Pressure Plate Ass’y LG...
  • Page 20: Steering Assembly (Figure 4)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL STEERING ASSEMBLY Figure 4 - Complete Steering Item # Description Item # Description Item # Description Deadman Lever Left Handle Pivot Hex Screw Stud Right Handle Lever Flat Washer Lock Washer Thread Rod Flanged Bearing...
  • Page 21: Steering Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Item # Part # Description Eff. S/N Eff. Date 10731 Deadman Lever 06/28/07 10910 Stud, 3/8-16UNC x 1-3/4”LG. 06/28/07 10902 Lock Washer, 3/8” Dia. 06/28/07 10901 Hex Nut, 3/8-16UNC 06/28/07 10009 Lock Washer, 1/2" Dia.
  • Page 22: Gearbox Assembly-Lh (Figure 5)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL GEARBOX ASSEMBLY Figure 5 – Gearbox Assembly Note: Left hand gearbox shown. Item # Description Item # Description Item # Description Gear Housing Counter Shaft O-Ring Main Shaft Oil Seal Taper Bearing Large Flange Seal Retainer...
  • Page 23: Gearbox Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST LH Side Gearbox Assembly (Part # 20960) Item # Part # Description Eff. S/N Eff. Date 10944 L.H. Gear Housing – 06/28/07 Left Side of Unit 10640 L.H. Ride-on Main Shaft 06/28/07 10603 Taper Bearing, No.
  • Page 24: Gearbox Assembly-Rh (Figure 6)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL GEARBOX ASSEMBLY Figure 6 – Gearbox Assembly Note: Right hand gearbox shown. Item # Description Item # Description Item # Description Gear Housing Relief Valve Woodruff Key Large Flange Plug Worm Gear End Cap Sight Plug...
  • Page 25: Gearbox Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST RH Side Gearbox Assembly (Part # 20955) Item # Part # Description Eff. S/N Eff. Date R.H. Gear Housing – Right Side of 10945 06/28/07 Unit 10231 Large Flange 06/28/07 10258 End Cap, Ride-on...
  • Page 26: Pitch Control Assembly (Figure 7)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL PITCH CONTROL SYSTEM Figure 7 – Pitch Control Assembly Item # Description Item # Description Tube Washer Cable Retainer Slide Bushing Screw Shaft Spring Pin Hand Knob Screw Screw Bearing Lock Washer Screw Shaft BARTELL MORRISON INC.
  • Page 27: Pitch Control Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 13636(LH, Tall), 13622(RH) Item Part # Part # Description Eff. S/N Eff. Date 13622(RH) 13636(LH) 13621 14333 Pitch Control Tube 06/28/07 13623 22539 Pitch Control Cable 06/28/07 10308 10308 Slide Bushing...
  • Page 28: Spider Plate Assembly (Figure 8) / Pressure Plate Assembly (Figure 9)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL SPIDER PLATE ASSEMBLY Figure 8 – Greased Spider Assembly Note: 4 Blade RH Spider Plate Shown. Item # Description Item # Description Spider Plate Lift Lever Grease Fitting Jam Nut Cap Plug Carriage Bolt Trowel Arm...
  • Page 29: Spider Plate Assembly / Pressure Plate Assembly Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 20858(CCW), 20857(CW) Item Part # Part # Description Eff. S/N Eff. Date 20858 20857 (CCW) (CW) 10840 10820 Grease Spider Plate 06/28/07 10801 10801 Grease Fitting 06/28/07 10822 10822 Cap Plug, Grease Nipple, Red...
  • Page 30: Trowel Blade Assembly (Figure 10)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL TROWEL BLADE ASSEMBLY Figure 9 – Trowel Blade Kit Item # Description Lock Washer Hex Bolt Trowel Hex Bolt BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC - 30 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201...
  • Page 31: Trowel Blade Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Imperial 6x14 Finish - 4 Blade Item # Part # Description Eff. S/N Eff. Date 10402 Lock Washer, 5/16” Dia. 06/28/07 10403 HHCS 5/16-18 x 2”LG, Grade 5 06/28/07 20414 6 x 14 Imperial Trowel Blade...
  • Page 32: Transporter Assembly (Figure 11)

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL TRANSPORTER ASSEMBLY Figure 11 – TS74 Transporter - 22593 Item # Description Item # Description Frame Assembly Lock Nut Linkage Arm Wheel Chain Hitch Pin Flat Washer Cotter Pin Hex Bolt Handle Grips BARTELL MORRISON INC.
  • Page 33: Transporter Parts List

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL CUSTOMER PARTS LIST Assembly # 22593 TRANSPORTER Item # Part # Description Eff. S/N Eff. Date 22594 Transporter Frame Assembly 06/28/07 13364 Transporter Linkage Arm 06/28/07 12860 Chain Link With 3/8” Washer 06/28/07 12859 HHCS 3/8-16 UNC x 2”LG.
  • Page 34: Troubleshooting

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL TROUBLESHOOTING WON’T START BELT WEARING RAPIDLY   Throttle fully open Belt adjusted improperly   Hand lever wire broken Pulley out of alignment   No gas Wrong belt/defective belt   Dirty gas Clutch sticking ...
  • Page 35: Specifications

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL SPECIFICATIONS RIDE-ON POWER TROWEL TS74 (GASOLINE) Engine Honda 20 HP Length 73” (186 cm) Width 40” (102 cm) Height (without seat & steering levers) 40” (102 cm) Weight 492 lbs. (223.6 kg) Trowel Coverage 14.5 sq. ft. (1.45 sq. m)
  • Page 36: Company Information

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL COMPANY INFORMATION Worldwide Distribution International Marketing Distributed By: Bartell Morrison Inc. 375 Annagem Blvd Mississauga, ON, Canada L5T 3A7 Tel: (905) 364-4200 Fax: (905) 364-4201 http://www.bartellmorrison.com Conforms with the provisions of the “MACHINES” directive, modified (directive 89/392/CEE) and the national codes transposing it.
  • Page 37: Notes

    TS74 RIDE-ON TROWEL INSTRUCTION MANUAL NOTES BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC - 37 - 375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444 Created: 04/08...
  • Page 38: Ride-On Power Trowel Warranty

    RIDE-ON POWER TROWEL WARRANTY Bartell Morrison Inc. agrees to furnish without charge, F.O.B. our plant, a replacement for any part or portion thereof, comprising the drive train of the Bartell Ride-on Power Trowel, consisting of the drive shaft assembly and the gear case...
  • Page 39 TS74 RIDE-ON TROWEL INSTRUCTION MANUAL  All ride-on trowels sold by Bartell Morrison Inc. are warranted against defects in materials and/or workmanship; excluding normal wear on wearing components and components covered by a separate original manufacturers warranty, for a period of 24 months from the date of sale to the original end user purchaser provided that certain conditions have been met.
  • Page 40: Sample Of Ce Certificate

    SAMPLE OF CE CERTIFICATE Declaration of Conformity / Certificat de conformité / Gelijkvormigheids certificaat Declaración de Conformidad/Declaração de Conformidade/Dichiarazione Di Conformita Bartell Morrison Inc. 375 Annagem Blvd. Mississauga, Ontario, Canada L5T 3A7 Tel: 905-364-4200 Fax: 905-364-4201 Declare under our sole responsibility that the product to which this declaration relates is in conformity with the following standard(s) or other normative documents.
  • Page 41 Numero de serie da maquina Numero de serie do motor Massa Modello Numero di seria la macchina Numero di seria la motore Massa (kg) TS74 Ride-on Power Trowel Noise Level Pressure level Vibration level Puissance acoustique Pression acoustique Niveau de vibration Geluidniveau...
