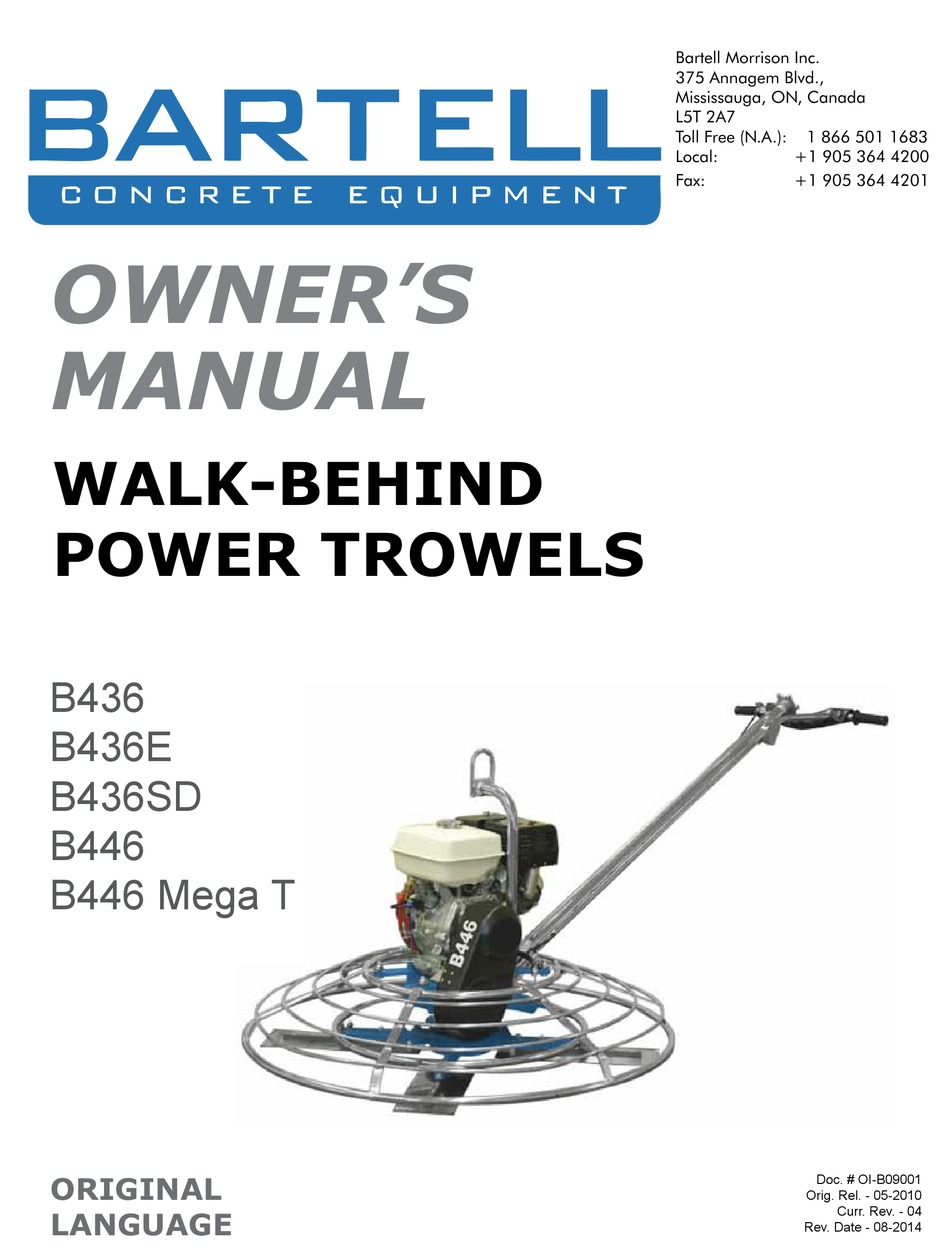

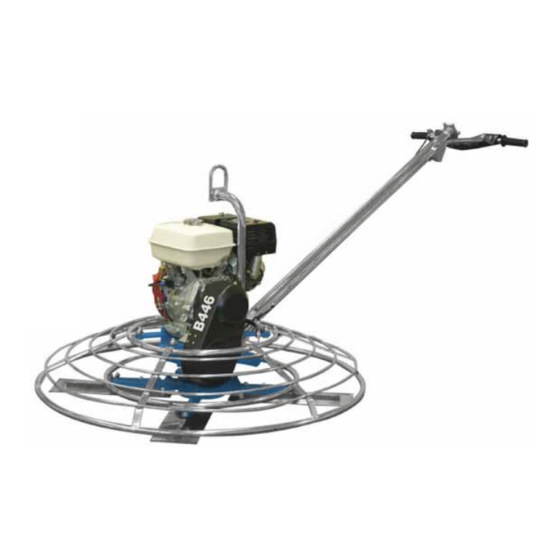

  • Page 1 Bartell Morrison Inc. 375 Annagem Blvd., Mississauga, ON, Canada L5T 2A7 Toll Free (N.A.): 1 866 501 1683 Local: +1 905 364 4200 Fax: +1 905 364 4201 BARTELL MORRISON INC. OWNER’S MANUAL WALK-BEHIND POWER TROWELS B436 B430 B436E...
  • Page 2 No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Bartell Morrison Inc. unless such copying is permitted by federal copyright laws.
  • Page 3 WALK BEHIND POWER TROWEL INSTRUCTION MANUAL SAFETY PRECAUTIONS DANGER EXPLOSION HAZARD Never operate the machine in an explosive atmosphere, near combustible materials or where ventilation does not clear exhaust fumes. WARNING BURN HAZARD Never come into contact with the engine or muffler when engine is operating or shortly after it is turned off.

  • Page 4: Table Of Contents

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL WALK BEHIND POWER TROWEL INSTRUCTION MANUAL TABLE OF CONTENTS TABLE OF CONTENTS QUALITY ASSURANCE/MACHINE BREAK-IN .......................4 QUALITY ASSURANCE/MACHINE BREAK-IN .......................4 WALK-BEHIND POWER TROWEL WARRANTY ....................5 WALK-BEHIND POWER TROWEL WARRANTY ....................5 MAINTENANCE RECORD ............................6 MAINTENANCE RECORD ............................6 ROUTINE SERVICE INTERVALS..........................7 ROUTINE SERVICE INTERVALS..........................7 FOREWORD................................9...

  • Page 5: Quality Assurance/Machine Break-In

    We thank you for the confidence you have placed in us by purchasing a Bartell Walk- Behind Power Trowel and wish you many years of satisfied use.

  • Page 6: Walk-Behind Power Trowel Warranty

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL WALK-BEHIND POWER TROWEL WARRANTY All products sold by Bartell Morrison Inc. and Bartell Morrison (USA) LLC (the “Company”) are warranted against defects in materials and/or workmanship; excluding normal wear on wearing components and components covered by a separate original manufacturers warranty, for a period of 24 months from the date of sale to the original end user purchaser provided that certain conditions have been met.

  • Page 7: Maintenance Record

    However, when in need of parts or major service, be sure to see your Bartell dealer. For your convenience we have provided this space to record relevant data about your Walk-Behind Power Trowel.

  • Page 8: Routine Service Intervals

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL Routine Service Each After 1.5 Each 3 Each 6 Each 9 Each 12 months months months months months Intervals 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs General Inspection: Guards Check Warning stickers Check Test run: Check operation...
  • Page 9 WALK BEHIND POWER TROWEL INSTRUCTION MANUAL Routine Service Intervals Due to the nature and environment of use, Walk-Behind Power Trowels could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your trowel. The initial service for your power trowel should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule above.

  • Page 10: Safety Precautions

    Form a small “L” bend in the cable, hook the esult! connection, attach wire to terminal provided at Your new Bartell Walk-Behind Power Trowel has been inner cable into the throttle block and tighten cable “ON/OFF” location. shipped to you partially assembled. Filling the fuel tank clamp down onto the casing.
  • Page 11 WALK-BEHIND TROWEL INSTRUCTION MANUAL SETUP PROCEDURE Fig. 1 Fig. 2 Step 1: Trowel shown with handle separate. (Fig. 1) Step 2: Lay handle on ring to prepare for assembly. (Fig. 2 and 3) Fig. 3 Fig. 4 Step 3: Install pitch control cable to yoke and install locknut loosely (Fig.
  • Page 12 WALK-BEHIND TROWEL INSTRUCTION MANUAL Fig. 7 Fig. 8 Step 5: Unwrap throttle control and engine safety shut-off wires to prepare for their assembly. (Fig. 7 and 8) Fig. 9 Fig. 10 Step 6: Remove air filter cover and air filter. (Fig. 9) Step 7: Check for free moving engine throttle control lever and loosen pivot nut if necessary (Fig.
  • Page 13 WALK-BEHIND TROWEL INSTRUCTION MANUAL Fig. 13 Fig. 14 Step 10: Secure the wire to the cable clamp while Step 11: Check operation of throttle control lever. pushing with slight pressure forward. (Fig. 13) (Fig. 11 and 14) Fig. 16 Fig. 15 Step 12: Reinstall air filter and cover (Fig.

  • Page 14: Operation (Floating)

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL OPERATION (Floating) STOPPING PROCEDURE When the slab has set sufficiently firm that the 1. Throttle engine down. operator’s footprint leaves a very slight depression on 2. Turn off stop switch. the surface of the slab, it is ready for the floating operation.

  • Page 15: Storage

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL STORAGE MAINTENANCE The following steps should be taken to prepare your Maintaining your Walk-Behind Power Trowel will insure Walk-Behind Power Trowel for extended storage. long life to the machine and its components. 1. Close fuel shut off valve. AIR CLEANER - Keep air filter clean at all times.

  • Page 16: Electric Power Trowel Operation

    The electric models of Bartell Power Trowels require appropriate power sources, connections, extension cords, and surge protection. Bartell Morrison Inc. is not responsible for damage to person or property due to improper use or setup of an Electric Power Trowel. Select your power supply and other provisions based on the specific type of trowel being operated.

  • Page 17: Setting Up The Electric Power Trowel

    Do not pull the trowel by the safety switch housing. Always unplug the trowel for storage or transportation. SETTING UP THE ELECTRIC POWER TROWEL The Bartell Electric Power Trowel ships without the handle attached. When installing the handle, ensure that the control plug at the lower end...
  • Page 18 4. Brace your hip against the shield pad on the handle for better control. Bartell Electric Power Trowels operate at a constant speed which is achieved immediately after startup, so there will be some kick.

  • Page 19: Electric Power Trowel Wiring Diagram

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL ELECTRIC POWER TROWEL WIRING DIAGRAM: PIN2 CONTROL PIN1 PLUG PIN3 DEADMAN SAFETY SWITCH CONTROL BOX 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-6400 FAX 732-566-5444 CREATED: 07/04 CREATED: 07/04...

  • Page 20: Trowel Arm Adjustment Fixture

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL TROWEL ARM ADJUSTMEN T FIXTURE PART #20801 Ex: Unit 36” (B436) 1)10810A – Trowel arm 2)10817A – Lift lever 3)10808 – Jam nut 4)10809 – Set screw 5)10824 – Block top 6)10507 – Bolt 7)10808 –...

  • Page 21: Troubleshooting

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL TROUBLESHOOTING WON’T START MACHINE JUMPS ON FLOOR • Throttle fully open • Concrete hardened on bottom of spider plate • Hand lever wire broken • Trowels unevenly worn • No gas • Spider plate seized •...

  • Page 22: Specifications

    8” x 14" 38 ½" Up to 165 lb. (gas option) Size Trowel Size Blade Size Weight B436 (90 cm) 9 hp Honda OHV (25 x 36 cm) (15 x 36 cm) (20 x 36 cm) (98 cm) (75 kg) 36”...
  • Page 23 WALK BEHIND POWER TROWEL INSTRUCTION MANUAL Declaration of Conformity / Certificat de conformité / Gelijkvormigheids certificaat Declaración de Conformidad/Declaração de Conformidade/Dichiarazione Di Conformita Bartell Morrison Inc. Bartell Morrison (USA) LLC. 375 Annagem Blvd. 12 Industrial Drive Mississauga, Ontario, Canada Keyport, New Jersey, United States of America...
  • Page 24 Numero de serie da maquina Numero de serie do motor Massa Modello Numero di seria la macchina Numero di seria la motore Massa (kg) B436 Walk Behind Power Trowel (56.8) Noise Level Pressure level Vibration level Puissance acoustique Pression acoustique Niveau de vibration...

  • Page 25: Notes

    WALK BEHIND POWER TROWEL INSTRUCTION MANUAL NOTES 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201 25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-6400 FAX 732-566-5444 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-6400 FAX 732-566-5444 CREATED: 07/04...
  • Page 26 WALK BEHIND POWER TROWEL INSTRUCTION MANUAL 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201 200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-6400 FAX 732-566-5444 CREATED: 07/04 CREATED: 07/04 REVISED: 05/10 REVISED: 08/14...
  • Page 27 PARTS BOOK WALK-BEHIND TROWELS TABLE OF CONTENTS 1. GENERAL ASSEMBLY - B446 GENERAL ASSEMBLY - B446 w/CVT 2. BASE UNIT ASSEMBLY 3. HANDLE ASSEMBLY: FINE PITCH 4. HANDLE ASSEMBLY: EUROPEAN SPEC. 5. GEARBOX ASSEMBLY 6. CLUTCH ASSEMBLY 7. SPIDER PLATE AND PRESSURE PLATE ASSEMBLY 8.

  • Page 28: General Assembly - B446

    PARTS LIST 1 WALK-BEHIND TROWELS GENERAL ASSEMBLY - B446...
  • Page 29 PARTS LIST 1 WALK-BEHIND TROWELS GENERAL ASSEMBLY - B446 ITEM PART NO. DESCRIPTION QTY. REMARK BASE UNIT 6/8/2004 20442 STABILIZER RING 8/21/2007 10442 SHOULDER BOLT 8/21/2007 20562 HANDLE ASSEMBLY, STANDARD 6/8/2004 20611 HANDLE ASSEMBLY, EUROPEAN 1/17/2008 SQUARE KEY, 3/16” x 1 7/8”LG 8/16/2007 11003 ENGINE...

  • Page 30: General Assembly - B446 W/Cvt

    PARTS LIST 1 WALK-BEHIND TROWELS GENERAL ASSEMBLY - B446 w/CVT...
  • Page 31 PARTS LIST 1 WALK-BEHIND TROWELS GENERAL ASSEMBLY - B446 w/CVT ITEM PART NO. DESCRIPTION QTY. REMARK BASE UNIT 6/8/2004 20442 STABILIZER RING 8/21/2007 10442 SHOULDER BOLT 8/21/2007 20562 HANDLE ASSEMBLY, STANDARD 6/8/2004 20611 HANDLE ASSEMBLY, EUROPEAN 1/17/2008 SQUARE KEY, 3/16” x 1 7/8”LG 8/16/2007 11003 ENGINE...

  • Page 32: Base Unit Assembly

    PARTS LIST 2 WALK-BEHIND TROWELS BASE UNIT ASSEMBLY...

  • Page 33: Gearbox Assembly

    PARTS LIST 2 WALK-BEHIND TROWELS BASE UNIT ASSEMBLY - (B446) ITEM PART NO. DESCRIPTION QTY. REMARK 20820 SPIDER PLATE ASSEMBLY 5/1/2004 20928 GEARBOX ASSEMBLY 4/7/1998 20626 PRESSURE PLATE ASSEMBLY 1/1/2002 KEY, 1/4”SQ x 1-5/32”lg 5/1/2002 10608 SPIDER PLATE RETAINER 1/1/1997 10804 10802 SOCKET HEAD SCREW, RETAINER...
  • Page 34 PARTS LIST 3 WALK-BEHIND TROWELS HANDLE ASSEMBLY - 20562 FINE PITCH...
  • Page 35 PARTS LIST 3 WALK-BEHIND TROWELS HANDLE ASSEMBLY - 20562 FINE PITCH ITEM PART NO. DESCRIPTION QTY. REMARK 20564 HANDLE BRACKET STANDARD 1/1/1997 10505 HANDLE CLAMP 1/1/1997 20563 HANDLE TUBE 1/1/1997 10503 SUPPORT BLOCK 1/1/1997 PULLEY 1/1/1997 10515 10514 DOWEL PIN 1/1/1997 10506 HHCS, 3/8-16 x 2 1/2”LG...
  • Page 36 PARTS LIST 4 WALK-BEHIND TROWELS HANDLE ASSEMBLY - 20611 EUROPEAN SPEC. 310-8...
  • Page 37 PARTS LIST 4 WALK-BEHIND TROWELS HANDLE ASSEMBLY - 20611 EUROPEAN SPEC. PART NO. REMARK ITEM DESCRIPTION QTY. 20611 20611 20564 HANDLE BRACKET 8/20/2007 10505 HANDLE CLAMP 8/20/2007 21718 HANDLE TUBE 1/14/2008 SUPPORT BLOCK 1/14/2008 21719 21705 PULLEY 1/14/2008 DOWEL PIN 1/14/2008 21706 13349...
  • Page 38 PARTS LIST 5 WALK-BEHIND TROWELS GEARBOX ASSEMBLY - 20928...
  • Page 39 PARTS LIST 5 WALK-BEHIND TROWELS GEARBOX ASSEMBLY - 20928 ITEM PART NO. DESCRIPTION QTY. REMARK 10928 GEAR HOUSING 5/1/2004 10929 GEAERBOX COVER 1/1/1997 10903 FHSCS, 1/4-20 x 3/4”LG (5/16-18 x 1”LG 5/1/2002 10607 MAIN SHAFT 4/7/1998 MAIN GEAR 1/1/1997 10605 10609 WOODRUFF KEY 1/1/1997...

  • Page 40: Clutch Assembly

    PARTS LIST 6 WALK-BEHIND TROWELS PARTS LIST 7 WALK-BEHIND TROWELS CLUTCH ASSEMBLY - 21005 (1” SHAFT) CLUTCH ASSEMBLY - 21029 (1” SHAFT) ITEM ITEM PART NO. DESCRIPTION QTY. REMARK PART NO. DESCRIPTION QTY. REMARK 11045 SPINDLE 8/21/2007 11045 SPINDLE 8/21/2007 11044 BEARING 8/21/2007...
  • Page 41 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 42 PARTS LIST 8 PARTS LIST 7 WALK-BEHIND TROWELS WALK-BEHIND TROWELS SPIDER PLATE ASSEMBLY - 20820 SPIDER PLATE ASSEMBLY PRESSURE PLATE ASSEMBLY PRESSURE PLATE ASSEMBLY - 20626...
  • Page 43 PARTS LIST 7 WALK-BEHIND TROWELS SPIDER PLATE ASSEMBLY - 20820 ITEM PART NO. DESCRIPTION QTY. REMARK 10820 GREASE SPIDER PLATE 1/1/1997 10801 GREASE FITTING, 1/8NPT x 65” 1/1/1997 10822 CAP PLUG, GREASE NIPPLE, RED 1/1/1997 10405 TROWEL ARM 9/5/2000 HHCS, 3/8-16 x 7/8”LG 1/1/1997 10806 10805...

  • Page 44: Blade Kit Assembly

    PARTS LIST 8 WALK-BEHIND TROWELS BLADE KIT ASSEMBLY B446 FINISH BLADES, IMPERIAL ITEM PART NO. DESCRIPTION QTY. REMARK 20410 TROWEL BLADE, IMPERIAL, FINISH, 6” X 18” 8/20/2007 10401 HEX HD. CAP SCREW, 5/16”-18UNC X 1-1/2” 8/20/2007 10403 HEX HD. CAP SCREW, 5/16”-18UNC X 2” 8/20/2007 LOCK WASHER, 5/16”...
  • Page 45 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 46 BARTELL MORRISON BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC. 25 200 Commerce Dr. 375 Annagem Blvd. 12 Industrial Drive. Freehold, New Jersey, USA Mississauga, Ontario, Canada Keyport, New Jersey, USA 07728 L5T3A7 07735 Toll Free: 888-999-1570 Toll Free: 866-501-1683 Toll Free: 888-999-1570...
