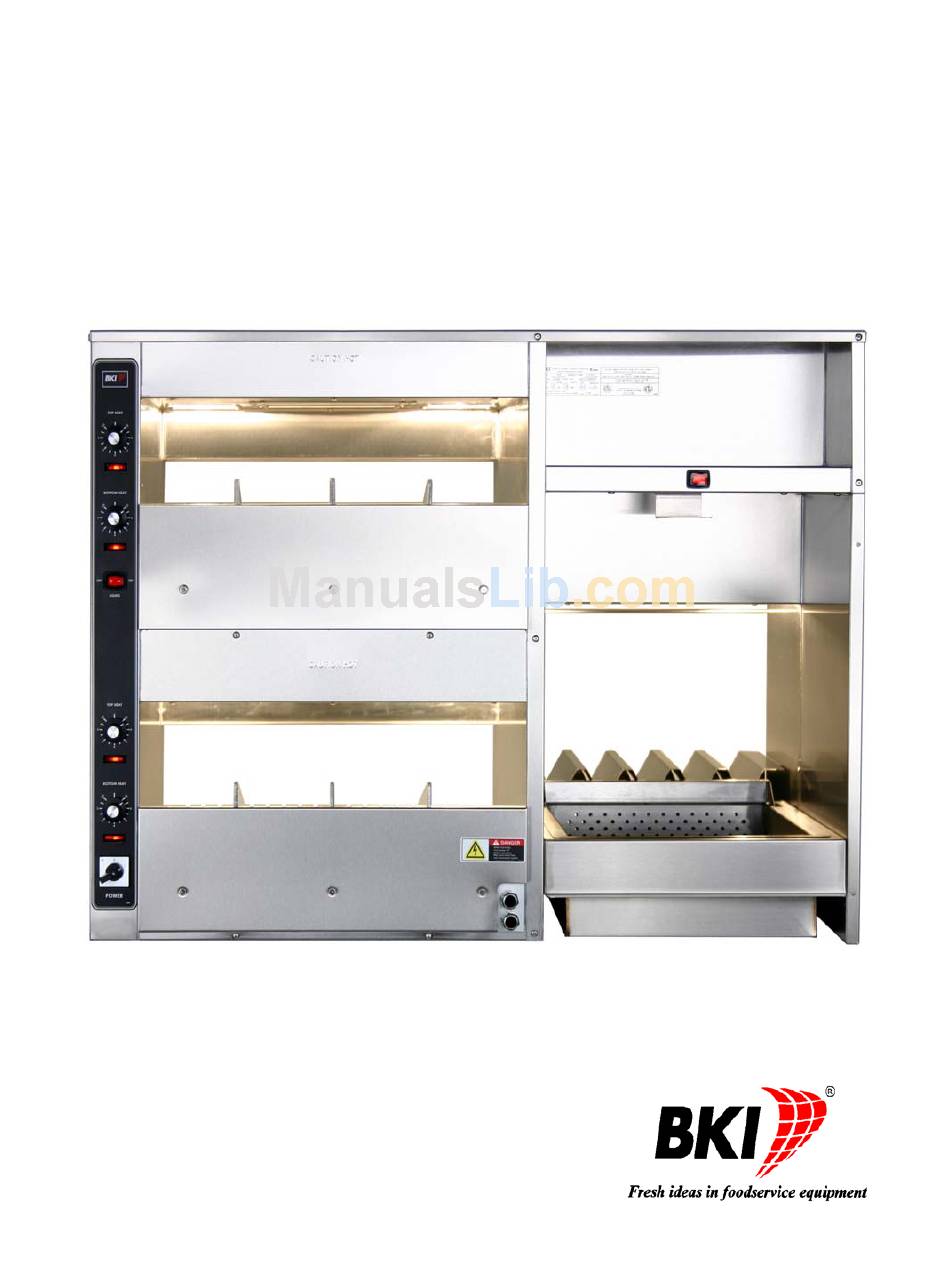

- Page 1 Sandwich/Fry Warmer MODELS SFW, SFW-72, FW-15L Service Manual Serial Numbers 121866 and Higher...
-
Page 2: Warranty Information
Warranty Information LIMITED ONE YEAR WARRANTY BKI (The "Company") warrants to the original purchaser that at time of shipment from the Company factory, this equipment will be free from defect in materials and workmanship. Written notice of a claim under this warranty must be received by the Company within ONE YEAR from the date of installation, but no longer than ONE YEAR AND THREE MONTHS from date of shipment from the factory. -
Page 3: Table Of Contents
Sandwich/Fry Warmer Table of Contents ... 1 Introduction... 2 Safety Precautions ... 2 Safety Signs and Messages ... 2 Safe Work Practices ... 3 Safety Labels ... 5 Installation... 6 Instructions For Shipping Damage... 6 Electrical Information And Grounding ... 6 Installation Instructions... -
Page 4: Introduction
Sandwich/Fry Warmer Congratulations! You have chosen a Sandwich/Fry Warmer that will give you many years of fine service from the original manufacturer, BKI. The BKI name and trademark on this unit assures you of the finest in design and engineering — that it has been built with care and dedication —... -
Page 5: Safe Work Practices
Sandwich/Fry Warmer Safe Work Practices Beware of High Voltage This equipment uses high voltage. Serious injury can occur if you or any untrained or unauthorized person installs, services, or repairs this equipment. Always Use an Authorized Service agent to Service Your Equipment. Keep this manual with the Equipment This manual is an important part of your equipment. - Page 6 Sandwich/Fry Warmer Know your responsibilities as an Employer Make certain your employees know how to operate the equipment. Make certain your employees are aware of the safety precautions on the equipment and in this manual. Make certain that you have thoroughly trained your employees about operating the equipment safely.
-
Page 7: Safety Labels
Sandwich/Fry Warmer Introduction Safety Labels... -
Page 8: Installation
Sandwich/Fry Warmer Serious injury, equipment damage or death could result if attempting to install this unit yourself. Ensure that an authorized BKI service agent installs the unit. Instructions For Shipping Damage You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for damage when they arrive. -
Page 9: Left-Sided Sfw
Sandwich/Fry Warmer 3. Place the blower pan into the hole making sure that open side of the pan fits over the two tabs on the louvered blower box. 4. Place the perforated pan insert into the blower pan. Left-Sided SFW 1. -
Page 10: Left-Sided Sfw-72
Sandwich/Fry Warmer Left-Sided SFW-72 1. Obtain a suitable countertop location and place the entire unit in position. 2. Measure, mark and cut a hole in the countertop for the Fry Warmer blower pan to fit in according to the following drawing. 3. - Page 11 Sandwich/Fry Warmer FW-15L 1. Obtain a suitable countertop location for the unit that will provide a clearance of 4” from the side louvers. 2. Cut a hole in the countertop to fit the collar weldment according to the drawing below. 3.
- Page 12 Sandwich/Fry Warmer 8. Using a 1/8” drill bit, drill holes in countertop through existing holes in the main unit and collar weldment flanges. 9. Secure main unit and collar weldment to countertop using #8 sheet metal screws. 10. Feed power cord (supplied), down through hole in countertop. 11.
-
Page 13: Operation
Sandwich/Fry Warmer Operation Operation Controls and Indicators... -
Page 14: Unit Startup And Preheating
Sandwich/Fry Warmer Item # Description Upper Sandwich Warmer TOP HEAT temperature control Upper Sandwich Warmer TOP HEAT pilot light Upper Sandwich Warmer BOTTOM HEAT temperature control Upper Sandwich Warmer BOTTOM HEAT pilot light LIGHTS ON/OFF Switch for Upper and Lower Sandwich Warmer Lower Sandwich Warmer TOP HEAT temperature... -
Page 15: Sandwich Warmer Temperature Adjustment
Sandwich/Fry Warmer FW-15L 1. Connect the plug of the power cord into a receptacle that matches the power rating specified on the rating tag. 2. Place the Fry Warmer ON/OFF switch to the ON (1) position. The switch should illuminate red, the bulb should light and the chute and perforated pan should begin to heat up. -
Page 16: Maintenance
Sandwich/Fry Warmer Failure to comply with the maintenance below could result in a serious accident. Electrocution, equipment failure or property damage could result if an unlicensed electrician performs electrical repair. Ensure that a licensed electrician perform electrical repair. Scheduled Maintenance This unit should be cleaned at the end of each working day. -
Page 17: Troubleshooting
Sandwich/Fry Warmer 4. Allow the equipment to cool to room temperature. 5. Remove and clean the Fry Warmer blower pan and pan insert. 6. Clean around the slotted holes at the air discharge on the blower box. 7. Clean the air intakes using a mild soap and water solution. 8. -
Page 18: Repair
Sandwich/Fry Warmer Repair Before replacing any parts, make sure the power has been turned off and the unit has cooled down. Lamp Replacement Only use Teflon-coated lamp to prevent glass contamination. 1. Make sure power to the unit is OFF and the unit has cooled down. 2. -
Page 19: Replacement Parts
Sandwich/Fry Warmer Use the information in this section to identify replacement parts. To order replacement parts, call your local BKI sales and service representative. Before calling, please note the serial number on the rating tag affixed to the unit. Assemblies SFW 120V Calrod Assembly ITEM # PART #... -
Page 20: Sfw Control Panel Assembly
Sandwich/Fry Warmer SFW Control Panel Assembly ITEM # PART # K0040 S0029 S0141 PL0005 PL0003 S0356 N0529 S0006 DESCRIPTION KNOB, S/S STRAT T0075 SWITCH, INFINITE 120V-1246 (SFW) SWITCH, INFINITE 240V (SFW-72) PILOT LIGHT, 125V (SFW) PILOT LIGHT, 250V (SFW-72) SWITCH, ROCKER 16A 250V DECAL, CTL PNL SFW SWITCH, 30A 2P ON/OFF Replacement Parts... -
Page 21: Components
Sandwich/Fry Warmer Components PART # B0066 BULB, 40A15 130V TEFLON COATED (SFW) BULB, 40A15 130V TEFLON COATED (FW-15L) B0553 BULB, 40W 230V TEFLON COATED (SFW-72) C0060 CERAMIC HEATER 250W 120V FULL SIZE (SFW) C0064 CERAMIC HEATER 250W 230V FULL SIZE (SFW-72) C0080 CALROD, 120V 400W CERAMIC (SFW) CALROD, 120V 400W CERAMIC (FW-15L) - Page 22 Sandwich/Fry Warmer PART # S0356 SWITCH, ROCKER 16A 250V (SFW/SFW-72) SWITCH, ROCKER 16A 250V (FW-15L) P0121 PAN INSERT 15" FW (SFW/SFW-72) PAN INSERT 15" FW (FW-15L) FB31209603 DIVIDER PAN, FRY SIDE (SFW/SWF-72) DIVIDER PAN, FRY SIDE (FW-15L) MB31213011 DIVIDER BAR (SFW) DIVIDER BAR (SFW-72) WB31207200 BLOWER PAN WELDMENT (SFW/SFW-72)
-
Page 23: Wiring Diagrams
Sandwich/Fry Warmer Refer to the table below to find the wiring diagram associated with your unit. Wiring Diagram SFW-72 FW-15L Wiring Diagrams Part # SB31290600 SB31292000 SB31291400 Wiring Diagrams Figure # Page # Figure 1 Figure 2 Figure 3... - Page 24 Sandwich/Fry Warmer Wiring Diagrams Figure 1. SFW...
- Page 25 Sandwich/Fry Warmer Wiring Diagrams Figure 2. SFW-72...
- Page 26 Sandwich/Fry Warmer Wiring Diagrams Figure 3. FW-15L...
-
Page 27: Notes
Sandwich/Fry Warmer Notes Notes... - Page 28 P.O. Box 80400, Simpsonville, S.C. 29680-0400, USA http://www.bkideas.com Made and printed in the U.S.A LI0272/0908...
