Fry Warmer
MODELS FW-12, FW-15, FW-12T, FW-15T, FW-15DTO
Service Manual
Serial Numbers 120182 and Higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fry Warmer FW-12 and is the answer not in the manual?

Questions and answers

Related Manuals for BKI Fry Warmer FW-12

Summary of Contents for BKI Fry Warmer FW-12

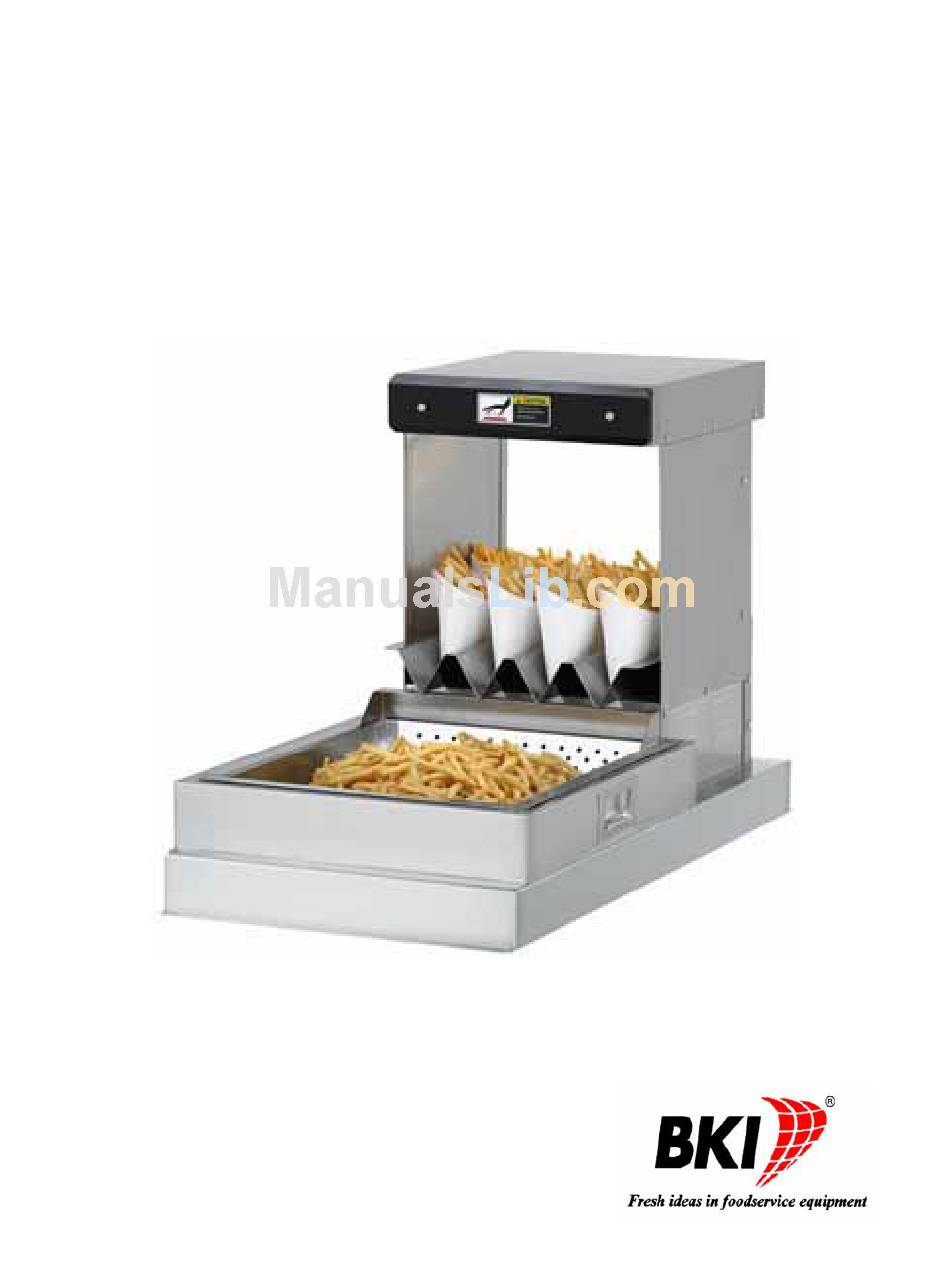

  • Page 1 Fry Warmer MODELS FW-12, FW-15, FW-12T, FW-15T, FW-15DTO Service Manual Serial Numbers 120182 and Higher...
