BKI FW-12 Service Manual

Fry warmer
Hide thumbs Also See for FW-12:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

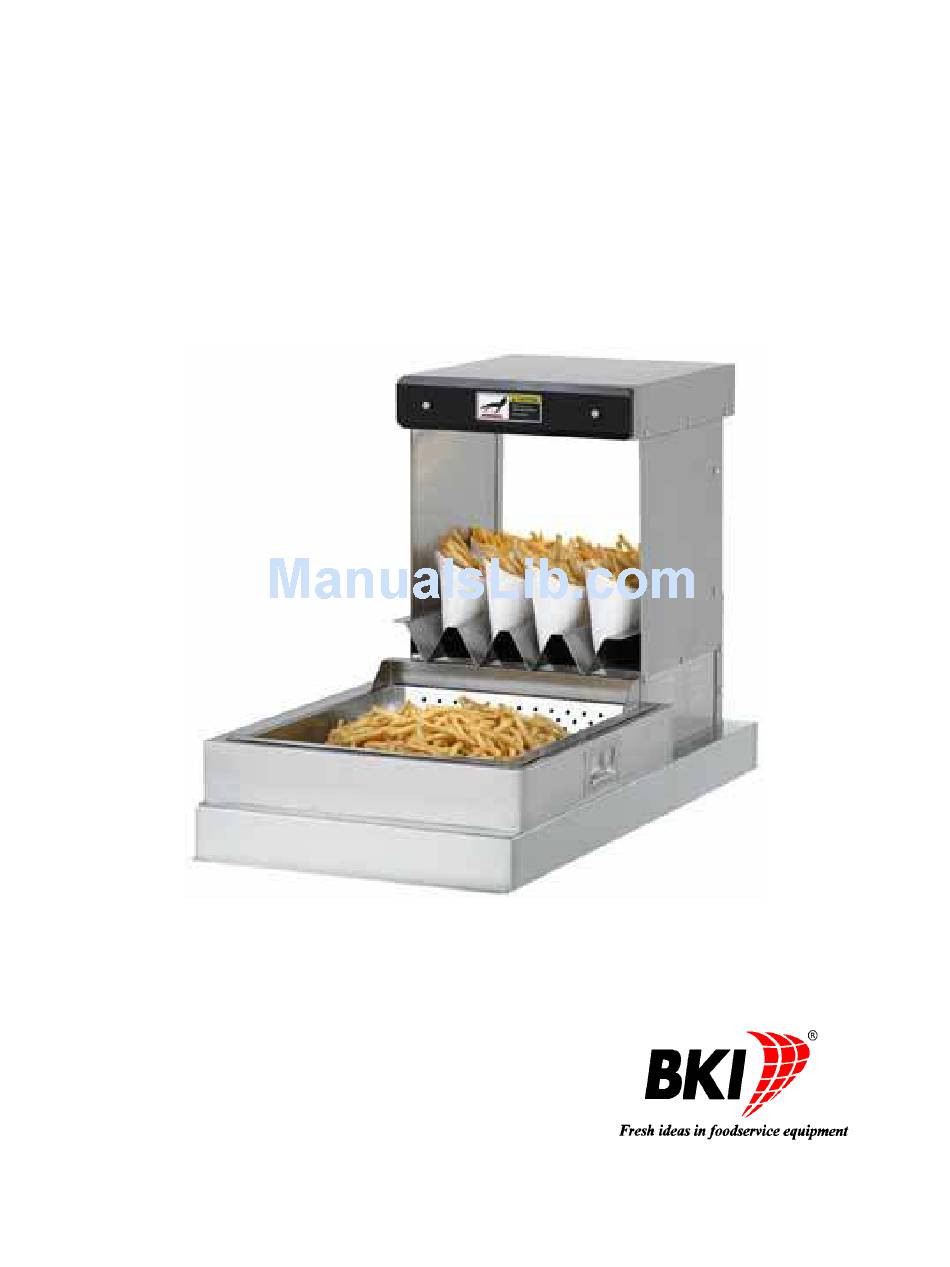

Fry Warmer
MODELS FW-12, FW-15, FW-12T, FW-15T, FW-15DTO
Service Manual
Serial Numbers 120182 and Higher
CS-TM-025.01
Revised 3/26/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FW-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BKI FW-12

Summary of Contents for BKI FW-12

  • Page 1 Fry Warmer MODELS FW-12, FW-15, FW-12T, FW-15T, FW-15DTO Service Manual Serial Numbers 120182 and Higher CS-TM-025.01 Revised 3/26/13...
  • Page 2 U.S.A. COVERAGE PERIOD Warranty claims must be received in writing by BKI within one (1) year from date of installation or within one (1) year and three (3) months from data of shipment from the factory, whichever comes first.

  • Page 3: Table Of Contents

    Installation ................................5 Instructions For Shipping Damage ........................5 Electrical Information And Grounding........................5 Installation Instructions ............................5 FW-12 & FW-12T (Side Breather)........................5 FW-15 (Side Breather) ............................6 FW-15 (Bottom Breather) ..........................7 FW-15T/FW-15DTO (Bottom Breather) ......................9 Maintenance ................................10 Scheduled Maintenance ............................

  • Page 4: Introduction

    BKI. The BKI name and trademark on this unit assures you of the finest in design and engineering — that it has been built with care and dedication — using the best materials available. Attention to the operating instructions regarding proper installation, operation, and maintenance will result in long lasting dependability to insure the highest profitable return on your investment.
  • Page 5 Fry Warmer Introduction Keep this manual with the Equipment This manual is an important part of your equipment. Always keep it near for easy access. If you need to replace this manual, contact: Technical Services Department 2812 Grandview Drive Simpsonville, S.C. 29680 Or call toll free: 1-800-927-6887 Outside the U.S., call 864-963-3471 Protect Children...

  • Page 6: Safety Labels

    Fry Warmer Introduction Safety Labels...

  • Page 7: Installation

    BKI Fry Warmers are wired for use in accordance with all applicable local, state, and federal codes. For specific electrical requirements and connections refer to the wiring diagram attached to the unit or provided in the Service Manual.

  • Page 8: Side Breather)

    10. Fit pan insert to main unit by lifting the open side of pan insert over the two tabs on main unit and lower the pan insert into the opening in the adapter. Countertop Cutout (FW-12 & FW-12T) 1. Obtain a suitable countertop location for the unit that will provide a clearance of 4” from the side louvers.

  • Page 9: Bottom Breather)

    Fry Warmer Installation Countertop Cutout 1. Obtain a suitable countertop location for the unit that will provide a clearance of 4” from the side louvers. 2. Cut a 16” x 18” hole in the countertop to fit the pan insert. 3.
  • Page 10 Fry Warmer Installation 4. Secure WB31216000 to countertop with # 8 sheet metal screws. 5. Seal WB31216000 to the countertop to conform to NSF Standard 4, Item 4.28. (Dow Corning RTV #732 Multi purpose Sealant.) 6. Feed power cord (supplied), up through holes in WB31216000. 7.

  • Page 11: Fw-15T/Fw-15Dto (Bottom Breather)

    Fry Warmer Installation 8. Position main unit on WB31211900. 9. Fit pan insert to main unit by lifting the open side of pan insert over the two tabs on main unit and lower the pan insert into the opening in the countertop. FW-15T/FW-15DTO (Bottom Breather) Countertop Collar Weldment With Liner Pan (WB31217700) 1.

  • Page 12: Maintenance

    Fry Warmer Maintenance Maintenance Failure to comply with the maintenance below could result in a serious accident. Electrocution, equipment failure or property damage could result if an unlicensed electrician performs electrical repair. Ensure that a licensed electrician perform electrical repair. Scheduled Maintenance Cleaning This unit should be cleaned at the end of each working day.

  • Page 13: Troubleshooting

    Refer to the table below for troubleshooting information. Problem Cause Possible Solution Warmer chute is not Ceramic heating Contact an authorized BKI service agent for holding heat element failure corrective action. Noisy fan Fan blade is dirty or fan Contact an authorized BKI service agent for bearings are failing corrective action.

  • Page 14: Replacement Parts

    Replacement Parts Replacement Parts Use the information in this section to identify replacement parts. To order replacement parts, call your local BKI sales and service representative. Before calling, please note the serial number on the rating tag affixed to the unit.
  • Page 15 Fry Warmer Replacement Parts PART # DESCRIPTION B0066 BULB, 40A15 130V PTFE COATED C0119 CALROD, 120V 1000W 140C C/U SWITCH C0080 CALROD, 120V 400W CERAMIC CS0024 CORD SET, 12/3 SJTO 8' 30"LEAD FB31204803 DIVIDER PAN FW CUF WB31219900 GREASE DEFL.RET.BRKT.WELD FW LH0021 LAMPHOLDER, #62602 HI TEMP M0093...

  • Page 16: Fw-12/Fw-15 Pass Thru (Side Breather)

    Fry Warmer Replacement Parts FW-12/FW-15 PASS THRU (Side Breather)
  • Page 17 Fry Warmer Replacement Parts PART # DESCRIPTION B0555* BULB, 150W 240V HALOGEN COATED (220V England) B0066 BULB, 40A15 130V PTFE COATED C0119 CALROD, 120V 1000W 140C C/U SWITCH C0080 CALROD, 120V 400W CERAMIC C0127* CALROD, 220V 1000W 140C C/U SWITCH (220V England) C0057* CERAMIC HTR 400W FULL SIZE 220/240V (220V England) CS0024...

  • Page 18: Cuf (Bottom Breather)

    Fry Warmer Replacement Parts FW-15 CUF (Bottom Breather)
  • Page 19 Fry Warmer Replacement Parts PART # DESCRIPTION B0066 BULB, 40A15 130V PTFE COATED C0119 CALROD, 120V 1000W 140C C/U SWITCH C0080 CALROD, 120V 400W CERAMIC CS0024 CORD SET, 12/3 SJTO 8' 30"LEAD FB31204803 DIVIDER PAN FW CUF WB31219900 GREASE DEFL.RET.BRKT.WELD FW LH0021 LAMPHOLDER, #62602 HI TEMP M0093...

  • Page 20: Pass Thru (Bottom Breather)

    Fry Warmer Replacement Parts FW-15 PASS THRU (Bottom Breather)
  • Page 21 Fry Warmer Replacement Parts PART # DESCRIPTION B0066 BULB, 40A15 130V PTFE COATED C0119 CALROD, 120V 1000W 140C C/U SWITCH C0080 CALROD, 120V 400W CERAMIC CS0024 CORD SET, 12/3 SJTO 8' 30"LEAD FB31201503 DIVIDER PAN, FW15 WB31219900 GREASE DEFL.RET.BRKT.WELD FW LH0021 LAMPHOLDER, #62602 HI TEMP M0093...

  • Page 22: Fw-12T (Side Breather)

    Fry Warmer Replacement Parts FW-12T (Side Breather) PART # DESCRIPTION WB31204100 BLOWER PAN FW-12 WELD C0119 CALROD, 120V 1000W 140C C/U SWITCH CS0005 CORD SET, 115V 7'6" M0093 MOTOR BLOWER ASSY 120V FB31203403 PAN RETAINING BRKT FW...

  • Page 23: Fw-15T (Bottom Breather)

    Fry Warmer Replacement Parts FW-15T (Bottom Breather) PART # DESCRIPTION C0119 CALROD, 120V 1000W 140C C/U SWITCH CS0005 CORD SET, 115V 7'6" M0093 MOTOR BLOWER ASSY 120V FB31203403 PAN RETAINING BRKT FW WB31207500 PER PAN INSERT W/4" SHIELD FW15...

  • Page 24: Fw-15Dto (Bottom Breather)

    Fry Warmer Replacement Parts FW-15DTO (Bottom Breather)
  • Page 25 Fry Warmer Replacement Parts PART # DESCRIPTION B0066 BULB, 40A15 130V PTFE COATED C0119 CALROD, 120V 1000W 140C C/U SWITCH C0080 CALROD, 120V 400W CERAMIC CS0005 CORD SET, 115V 7'6" FB31204803 DIVIDER PAN FW CUF LH0021 LAMPHOLDER, #62602 HI TEMP M0093 MOTOR BLOWER ASSY 120V FB31203403...

  • Page 26: Accessories

    WB31211900 COUNTER TOP COLLAR WELDMENT WITHOUT LINER PAN ATTACHED, BOTTOM BREATHER FW WB31217700 COUNTER TOP COLLAR WELDMENT FW TOWER W/PAN LINER, BOTTOM BREATHER AN3121460S FW HEATER MOTOR ASSY (BAY MOTOR) WN31206400 TABLE TOP ADAPTER FW-12 WN31206500 TABLE TOP ADAPTER FW-15...

  • Page 27: Wiring Diagrams

    Fry Warmer Wiring Diagrams Wiring Diagrams FW-12/FW-15 (Side Breather)

  • Page 28: Fw-12/Fw-15 (Bottom Breather)

    Fry Warmer Wiring Diagrams FW-12/FW-15 (Bottom Breather)

  • Page 29: 220V England)

    Fry Warmer Wiring Diagrams FW-15 (220V England)

  • Page 30: Fw-12T/Fw-15T

    Fry Warmer Wiring Diagrams FW-12T/FW-15T...
  • Page 31 Fry Warmer Wiring Diagrams...

  • Page 32: Fw-15Dto (Bottom Breather)

    Fry Warmer Wiring Diagrams FW-15DTO (Bottom Breather)
  • Page 33 Fry Warmer Wiring Diagrams...

  • Page 34: Notes

    Fry Warmer Notes Notes...
  • Page 35 Fry Warmer Notes...
  • Page 36 2812 Grandview Dr., Simpsonville, S.C. 29680, USA http://www.bkideas.com Made and printed in the U.S.A LI0224/0407 CS-TM-025.01 Revised 3/26/13...
  • Page 37 Fry Warmer Notes REVISION HISTORY REVISION DATE REVISED BY DESCRIPTION 03/26/13 Initial Release-Supersedes all previous releases...
