GUIDELINES FOR BASE INSTALLATION
SHOWER BASE
MODELS

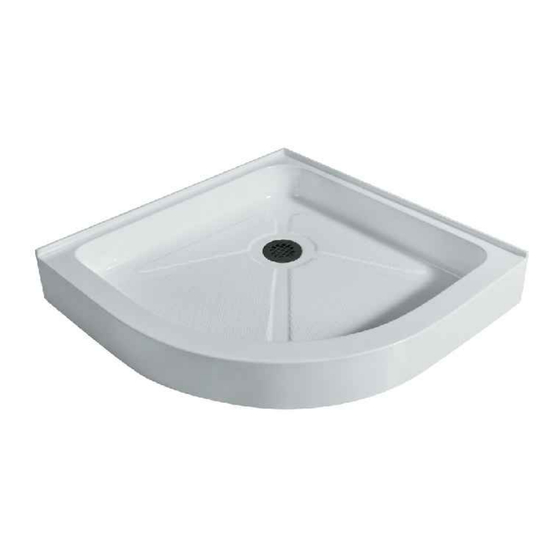

MODEL VG06029
MODEL VG06021*
MODEL VG06039
MODEL VG06031*
MODEL VG06019
MODEL VG06011/MODEL VG06051*
MODEL VG06019
MODEL VG06011/MODEL VG06051*
Right Drain
Configuration
Right Drain
Configuration
MODEL VG06049
MODEL VG06041/MODEL VG06042*
MODEL VG06068
MODEL VG06061/MODEL VG06062/MODEL VG06063*
MODEL VG06069
MODEL VG06061/MODEL VG06062/MODEL VG06063*
MODEL VG06019
MODEL VG06011/MODEL VG06051*
MODEL VG06019
MODEL VG06011/MODEL VG06051*
* Corresponding Vigo Brand
shower enclosure / shower door
that goes with the Vigo Brand
shower base depicted.
Left Drain
Configuration
Left Drain
Configuration
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO VG06029XXX36
Summary of Contents for VIGO VG06029XXX36
-

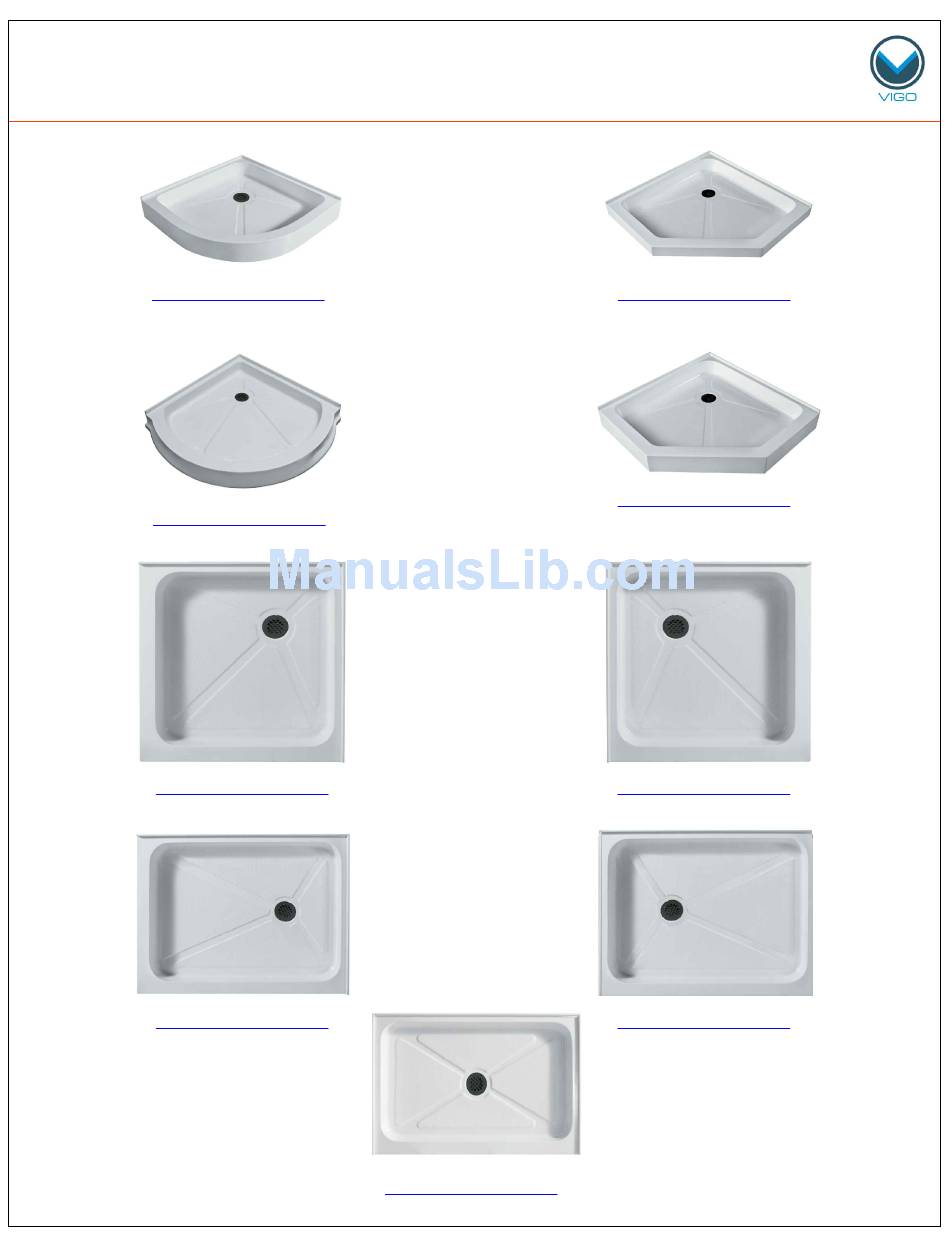

Page 1: Models
MODEL VG06011/MODEL VG06051* Left Drain Right Drain Configuration Configuration MODEL VG06019 MODEL VG06019 MODEL VG06011/MODEL VG06051* MODEL VG06011/MODEL VG06051* * Corresponding Vigo Brand shower enclosure / shower door that goes with the Vigo Brand MODEL VG06049 shower base depicted. MODEL VG06041/MODEL VG06042*... -
Page 2: Table Of Contents
GUIDELINES FOR BASE INSTALLATION SHOWER BASE TABLE OF CONTENTS Models................................1 Table of contents...............................2 Models, Notes to installer, Inspection guidelines....................3 Dimensions................................4 MODEL VG06029XXX36 MODEL VG06029XXX40 Dimensions................................5 MODEL VG06039XXX36 MODEL VG06039XXX40 Dimensions................................6 MODEL VG06049XXX4832C MODEL VG06049XXX4836C MODEL VG06049XXX6030C MODEL VG06049XXX6032C MODEL VG06049XXX6036C Dimensions................................7... -
Page 3: Models, Notes To Installer, Inspection Guidelines
MODEL VG06029 MODEL VG06069 MODEL VG06039 MODEL VG06049 MODEL VG06019 Thank you for purchasing the Vigo brand Inspection Guidelines Special Notes to Installer shower base. For the best results, please A careful check of the base should be conducted It is the sole responsibility of the installer to read and follow all directions carefully. -
Page 4: Dimensions
GUIDELINES FOR BASE INSTALLATION SHOWER BASE DIMENSIONS OF MODEL VG06029 36 1/8" 12" 2 7/8" 2" 13 7/8" 2 7/8" 2" MODEL VG06029XXX36 40 1/4" 12" 2 7/8" 2" 17 7/8" 2 7/8" 2" MODEL VG06029XXX40... -
Page 5: Dimensions
GUIDELINES FOR BASE INSTALLATION SHOWER BASE DIMENSIONS OF MODEL VG06039 40 1/2" 37" 35 3/4" 12" 40 1/2" 1 1/2" 3 1/2" 4 1/8" MODEL VG06039XXX36 43 5/8" 39 3/4" 38 3/4" 12" 43 5/8" 1 1/2" 3 1/2" 4 1/8" MODEL VG06039XXX40... -
Page 6: Dimensions
GUIDELINES FOR BASE INSTALLATION SHOWER BASE DIMENSIONS OF MODEL VG06049 47 3/4" 47 3/4" 23 7/8" 23 7/8" 3/8" 3/8" 1 1/4" 3/8" 1 1/4" 1 1/4" 3/8" 2 7/8" 1 1/4" 2 7/8" 3/8" 3/8" 4 3/4" 4 3/4" MODEL VG06049XXX4836C MODEL VG06049XXX4832C 59 3/4"... -
Page 7: Dimensions
GUIDELINES FOR BASE INSTALLATION SHOWER BASE DIMENSIONS OF MODEL VG06068 40 1/4" 36 1/8" 38 1/8" 12" 12" 12" 2 7/8" 2 7/8" 2 7/8" 2" 2" 17 1/2" 19 1/2" 2" 21 1/2" 2 7/8" 2 7/8" 2 7/8" 2"... -
Page 8: Dimensions
GUIDELINES FOR BASE INSTALLATION SHOWER BASES DIMENSIONS OF MODEL VG06019 32 3/8" 40 1/4" 9 1/8" 12" 2 7/8" 2 7/8" 2" 2" 2 7/8" 2 7/8" 2" 2" 5 1/2" 5 1/2" MODEL VG06019XXX3232 MODEL VG06019XXX3240* 48 1/8" 36 1/8" 12"... -
Page 9: Dimensions
GUIDELINES FOR BASE INSTALLATION SHOWER BASES DIMENSIONS OF MODEL VG06069 36 1/8" 38 1/8" 40 1/4" 12" 12" 12" 2 7/8" 2 7/8" 2" 2 7/8" 2" 17 1/2" 2" 19 1/2" 21 1/2" 2 7/8" 2 7/8" 2 7/8" 2"... -
Page 10: Diagrams Of Proper Underlayment And A Typical Installation
GUIDELINES FOR BASE INSTALLATION SHOWER BASES DIAGRAMS OF PROPER UNDERLAYMENT AND A TYPICAL INSTALLATION IMPORTANT NOTE Make sure to use the proper underlayment base product (mortar / plaster) under the base prior to installation. Base this off proper building requirements which may be impacted from age or location of dwelling. -
Page 11: Shower Base Installation Instructions
SHOWER BASES SHOWER BASE INSTALLATION INSTRUCTIONS 1) Vigo does not provide any drainage fittings or P trap with the Vigo Brand Shower Base. 2) Important note - Please review your specific drain manufacturer's instructions for proper installation and follow local acceptable plumbing code. -
Page 12: Shower Base Installation Instructions
GUIDELINES FOR BASE INSTALLATION SHOWER BASE SHOWER BASE INSTALLATION INSTRUCTIONS CAUTION: It is advisable to protect the base surface with a thin plywood or cardboard shield while fastening the flange to the framing. WARNING! THE BASE BOTTOM SHOULD BE CLEAR OF ALL POTENTIALLY DAMAGING DEBRIS AND THE SURFACE PROTECTED BEFORE STEPPING INSIDE. -
Page 13: Trouble Shooting, Care And Maintenance
3 - Drain hole is in incorrect corner per desired location 3 - Ordered incorrectly 3 - Contact your Vigo retailer for methods of resolution CARE AND MAINTENANCE Routine Cleaning: Mild, non-abrasive cleaner specifically formulated for gelcoat and acrylic surfaces recommended. (Rinse surface thoroughly.) Heavy Soap Deposits: Liquid ammonia household cleaner, applied full strength. -
Page 14: Shower Base Limited Warranty
VIGO warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of two (2) years from the initial date of purchase by the owner or end-user, contractor, or builder, from VIGO or an authorized VIGO dealer.
