STEP 3
Attach Support(D),(E)to Pole(A),(B)
using Big Screw/nut(3)and Long Wooden
Dowel(2).
D
D
D
D
(1)x 4pcs
6
A
E
E
E
E
(1)x 4pcs
2
B
Recommended Maximum Weight
15
*Unit in Pound(lbs)
STEP 4
Attach Bottom Stand(C)to Lower Pole(B)
using Screw(3)and cover with Sticker(4).
x 4pcs
4
B
3
C
C
C
C
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
x 8pcs
Recomm. 1 Person
Tool Required
www.furinno.com
Assembly Instruction

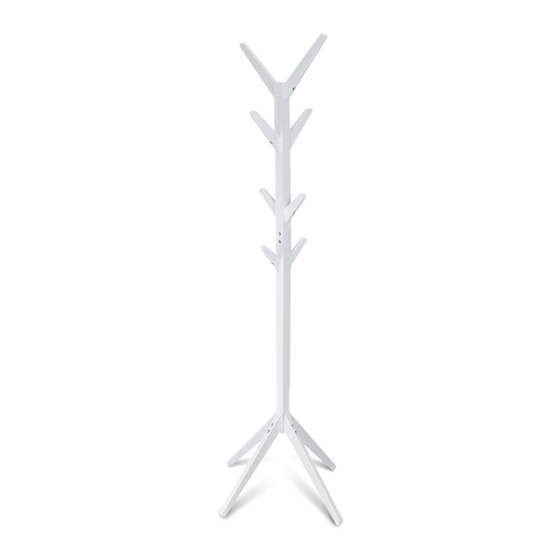

Furinno Yaotai Hat and Coat Rack Stand
MODEL
:
DIMENSION :
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
FNAK-11122
17.7"(W) x 68.9"(H) x 17.7"(D)
FNAK1112220140409
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furinno FNAK-11122
Summary of Contents for Furinno FNAK-11122
- Page 1 Attach Bottom Stand(C)to Lower Pole(B) using Big Screw/nut(3)and Long Wooden using Screw(3)and cover with Sticker(4). Dowel(2). its Space. its Budget Assembly Instruction Furinno Yaotai Hat and Coat Rack Stand FNAK-11122 MODEL DIMENSION : 17.7”(W) x 68.9”(H) x 17.7”(D) (1)x 4pcs x 4pcs Approx.
- Page 2 STEP 1 STEP 2 Hardware List Parts List Attach Upper Pole(A)and Lower Pole(B) Tighten Upper Pole(A)and Lower Pole(B) Small Screw/Nut 2pcs Upper Pole 1pcs with Short Wooden Dowel(5). with Screw/Nut(1). Lower Pole 1pcs Long Wooden Dowel 4pcs Bottom Stand 4pcs Screw 8pcs Sticker...
