Furinno 14151R1 Assembly Instruction

its Space. its Budget
Approx. 30 minutes
Recomm. 2 Person
Tool Required Tool Required
Wall Plug
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
www.furinno.com
STEP 1
Insert Mini Fix Cam (2) to Panel (A&B), as shown.
STEP 2
2.1 Install L Bracket (6) to Bar (D) with Small Screw (1).
2.2 Attach assembled unit to Panel (B) with Small Screw (1).
Assembly Instruction

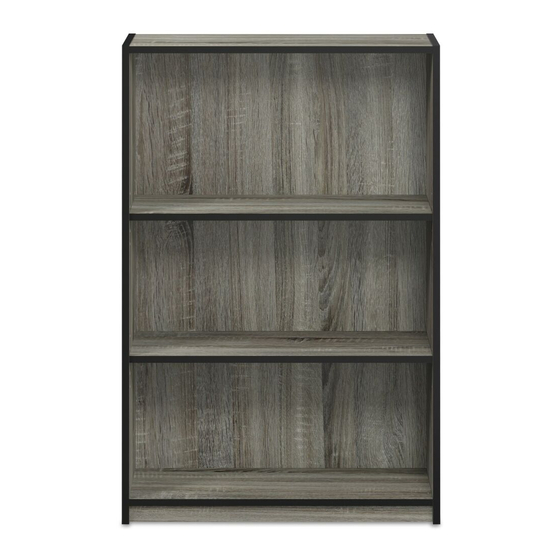

Furinno 3 ier Shelf Bookcase T
14151R1
MODEL :
14151R120180226
(2) x 8pcs
STEP 2.1
STEP 2.2
No Hardware List
Small Screw
1
2 Mini Fix Cam
3 Mini Fix Bolt
4 Wall Mounting Set
5 Shelving Support
6 L Bracket
7 Power Pin
USEFUL HINTS BEFORE YOU START:
1. Read each step carefully before starting.
2. It is important that each step is performed in correct order to avoid difficulties.
3. Identify, sort and count the parts before assembly.
4. Assemble your furniture on packaging cardboard to prevent scratch or damage.
5. Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
6. Using uncompatible hardware might cause damage to product.
STEP 3
Insert Mini Fix Bolt (3) into Panel (E) & (F) using screwdriver.
E
STEP 4
Attach Panel (F) to assembled unit in Step 2, as shown.
Start
Qty No Parts List
Top Panel
A
4pcs
Bottom Panel
8pcs B
8pcs C Shelf Panel
1set D Bottom Bar
E Left Side Panel
F Right Side Panel
Back Panel
G
8pcs
2pcs
28pcs
F
Tighten
Qty
1pc
1pc
2pcs
1pc
1pc
1pc
1set
(3) x 8pcs
