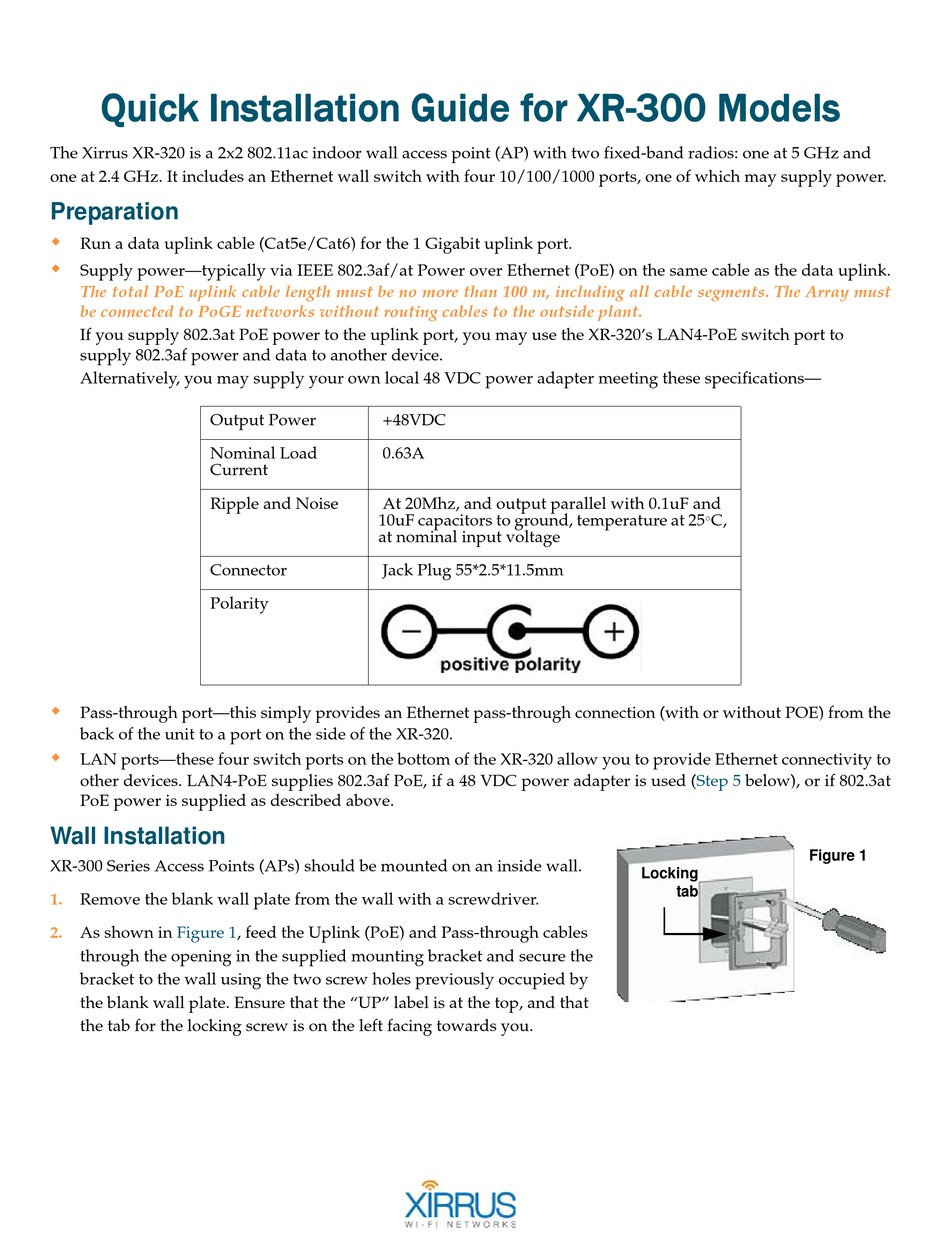

Quick Installation Guide for XR-300 Models

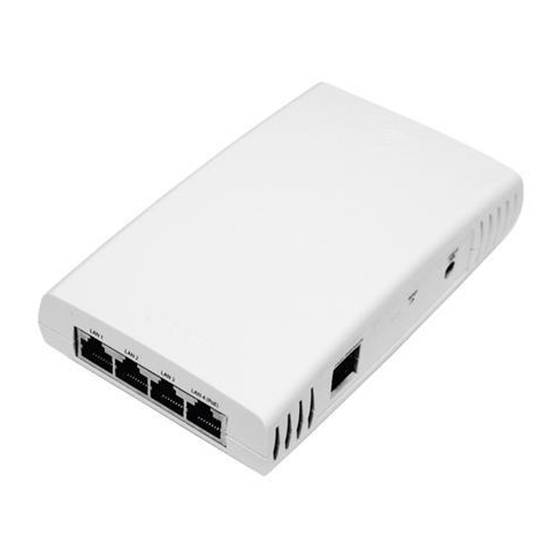

The Xirrus XR-320 is a 2x2 802.11ac indoor wall access point (AP) with two fixed-band radios: one at 5 GHz and
one at 2.4 GHz. It includes an Ethernet wall switch with four 10/100/1000 ports, one of which may supply power.
Preparation
Run a data uplink cable (Cat5e/Cat6) for the 1 Gigabit uplink port.
Supply power—typically via IEEE 802.3af/at Power over Ethernet (PoE) on the same cable as the data uplink.
The total PoE uplink cable length must be no more than 100 m, including all cable segments. The Array must
be connected to PoGE networks without routing cables to the outside plant.
If you supply 802.3at PoE power to the uplink port, you may use the XR-320's LAN4-PoE switch port to
supply 802.3af power and data to another device.
Alternatively, you may supply your own local 48 VDC power adapter meeting these specifications—
Output Power
Nominal Load
Current
Ripple and Noise
Connector
Polarity
Pass-through port—this simply provides an Ethernet pass-through connection (with or without POE) from the
back of the unit to a port on the side of the XR-320.
LAN ports—these four switch ports on the bottom of the XR-320 allow you to provide Ethernet connectivity to
other devices. LAN4-PoE supplies 802.3af PoE, if a 48 VDC power adapter is used
PoE power is supplied as described above.
Wall Installation
XR-300 Series Access Points (APs) should be mounted on an inside wall.
1.
Remove the blank wall plate from the wall with a screwdriver.
2.
As shown in
Figure
through the opening in the supplied mounting bracket and secure the
bracket to the wall using the two screw holes previously occupied by
the blank wall plate. Ensure that the "UP" label is at the top, and that
the tab for the locking screw is on the left facing towards you.
+48VDC
0.63A
At 20Mhz, and output parallel with 0.1uF and
10uF capacitors to ground, temperature at 25
at nominal input voltage
Jack Plug 55*2.5*11.5mm
1, feed the Uplink (PoE) and Pass-through cables
C,
°
(Step 5
below), or if 802.3at
Figure 1
Locking
tab
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xirrus XR-320
Summary of Contents for Xirrus XR-320
-
Page 1: Wall Installation
Quick Installation Guide for XR-300 Models The Xirrus XR-320 is a 2x2 802.11ac indoor wall access point (AP) with two fixed-band radios: one at 5 GHz and one at 2.4 GHz. It includes an Ethernet wall switch with four 10/100/1000 ports, one of which may supply power. - Page 2 If you have not supplied power via PoE, use a local 48 VDC power adapter Figure 3 (meeting the specifications on Page 1) as shown in Figure When the correct power is supplied, the POWER LED on the side of the unit lights, and the XR-320 boots up.
- Page 3 If you need to manually reset the XR-320, the RESET button is located above the Pass-through port. Use a paper clip to depress and hold the reset button (there should be a faint click). There are three actions that the XR-320 can perform depending on how long the button is held down: ...
