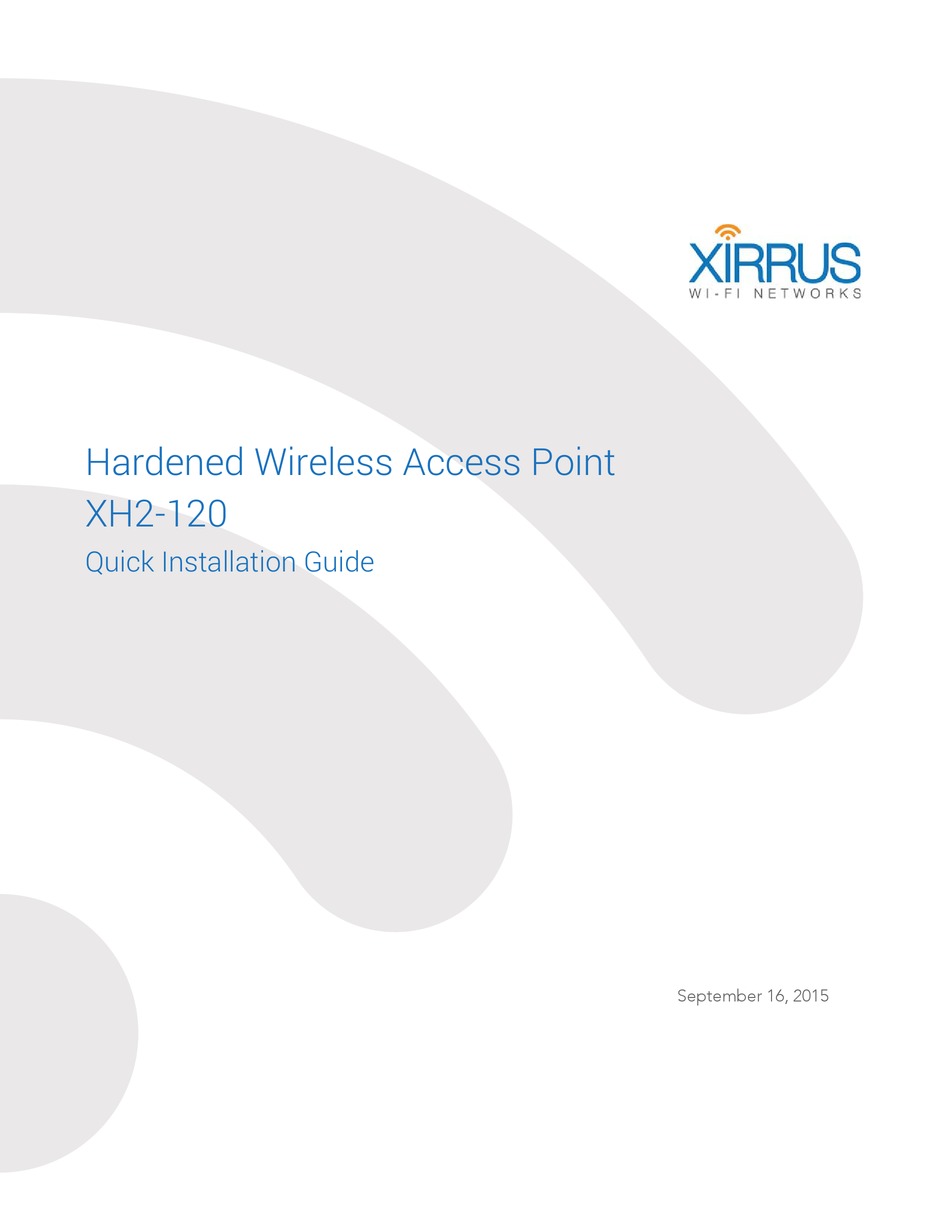

- Page 1 Hardened Wireless Access Point XH2-120 Quick Installation Guide XD4 Series September 16, 2015...
- Page 2 Xirrus, Inc. All other trademarks and brand names are marks of their respective holders. Please see Legal Notices, Warnings, Compliance Statements, and Warranty and License Agreements in the Wireless AP User’s Guide. All rights reserved. This document may not be reproduced or disclosed in whole or in part by any means without the written consent of Xirrus, Inc.
- Page 3 See Xirrus External Antenna Guide for recommended antennas. If you are not using one of the recommended antennas, the XH2-120’s output power setting must be reduced by 1 dB for every dB above 6dBi gain the selected antenna may produce.
-
Page 4: Choose A Suitable Location
It is best to choose a location that has some protection from the sun. The maximum cable length between the XH2-120 and the RJ-45 Ethernet network is 100 meters. The PoE injector is not a repeater, so its location will not increase this distance. - Page 5 XH Outdoor Access Points Determine a good electrical earth ground point near the AP mounting location. If an earth ground point is not available, consult an electrician to have one installed. Before the AP is attached to a wall or pole, secure a grounding wire and lug to the AP with the provided screw in the location indicated in the illustration.
-
Page 6: 5A-Pole Mounting
Mount the AP on a Pole or Wall 5a—Pole Mounting For pole mounting, Xirrus recommends using metal straps (not included with the AP). The metal straps can be obtained from BAND-IT-IDEX, Inc. (www.BAND-IT-IDEX.com). See their web site for additional contact information. Complete the following steps to mount the AP to a pole. - Page 7 XH Outdoor Access Points Once the strap is satisfactorily tight, rotate the Band-It tool back so that the strap cannot slide back through the buckle. Using the built in cutting tool on the Band-It tool, cut the excess strap. ...
-
Page 8: 5B-Wall Mounting
XH Outdoor Access Points 5b—Wall Mounting Place the AP in the desired location and mark the location of the two mounting holes on the wall, as shown. Drill and prepare the holes for the desired screw type. In metal walls the holes may be tapped to the proper thread or the AP may be mounted with sheet metal screws. -
Page 9: Install Antenna(S)
XH Outdoor Access Points Install Antenna(s) See the Xirrus External Antenna Guide for recommended antennas. NOTE: See the Warnings and Notices regarding external antennas in “Notices, Warnings & Compliance Statements” on page 13. NOTE: Be sure to configure the AP's IAPs to the proper bands (2.4 GHz and 5.0 GHz) in Step 10. - Page 10 XH Outdoor Access Points Assemble the PoE connector. The components of the connector are shown in the photo below in the order that they are placed onto the Ethernet cable, and also shown in more detail as a color-coded drawing. You will perform a few assembly steps below before sliding the parts onto the cable.
- Page 11 10 minutes or less depending on bandwidth. Plug the RJ45 connector into the GIG1 POE+ port on the bottom of the XH2-120, making sure that its tab clicks in place for a secure connection. If power is being properly supplied to the AP, the LED located between the two Ethernet ports will show blinking green.
-
Page 12: Connect The Antenna
IAP1 ANT1 GIG2 GIG1 POE+ IAP1 ANT2 The XH2-120 has four male Type N connectors for the antennas. IAP2 ANT2 IAP2 ANT1 Both of the AP's RADIO1 cables (RADIO1 ANT1 and RADIO1 ANT2) must be attached to antenna leads for the same frequency band (for example, 2.4GHz), and RADIO1 must be set to that band on the AP (see Step 10). -
Page 13: Zero-Touch Provisioning And Ongoing Management
AP to correspond in Step 10—set RADIO1 to the 2.4GHz band and RADIO2 to the 5GHz band. NOTE: To use a 3x3 MIMO antenna type with the XH2-120, connect to the +45 and -45 antenna outputs. Do not use the connector marked “V”. -
Page 14: Physical/Environmental Specifications
XH Outdoor Access Points Physical/Environmental Specifications Operating Temperature: -20 to +55°C / -4 to 131°F, 0-90% humidity, non-condensing. XH2-120 Dimensions 9.9 in 2.75 in 25.1 cm 7.0 cm 10.1 in 25.6 cm Note: Depth (2.75 in) includes the height of the protrusions built into the top and bottom of unit for screws. - Page 15 Xirrus equipment. Additionally, verify that the ambient operating temperature does not exceed 55°C. Software used by the modular Access Points (APs) is covered by the Xirrus Software License and Product Warranty Agreement. ...
- Page 16 WARNING: Ultimate disposal of this product should be handled according to all national laws and regulations. WARNING: Incorrect installation of Xirrus Access Points may invalidate FCC, CE mark, or other regulatory compliance approvals. Customers are responsible for any legal violations from operation of un-approved equipment or incorrect installation.
-
Page 17: Wi-Fi Alliance Certification
XH Outdoor Access Points EXTERNAL ANTENNAS WARNING: In order to comply with radio frequency (RF) exposure limits, the antennas for this product should be positioned no less than 26 cm from your body or nearby persons. WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. - Page 18 The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. When used with approved Xirrus antennas, Xirrus Wireless products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper installation of this radio according to the instructions found in this manual will result in user exposure that is substantially below the FCC recommended limits.
-
Page 19: Industry Canada Statements And Warnings
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Xirrus Access Points are certified to the requirements of RSS-210. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. -
Page 20: Eu Directive 1999/5/Ec Compliance Information
This declaration is only valid for configurations (combinations of software, firmware and hardware) provided and/or supported by Xirrus Inc. The use of software or firmware not supported/provided by Xirrus Inc. may result that the equipment is no longer compliant with the regulatory requirements. - Page 21 XH Outdoor Access Points Français [French] Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC. ĺslenska [Icelandic] Þetta tæki er samkvæmt grunnkröfum og öðrum viðeigandi ákvæðum Tilskipunar 1999/5/EC. Italiano [Italian] Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE. Latviski [Latvian] Šī iekārta atbilst Direktīvas 1999/5/EK būtiskajā prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šis įrenginys tenkina 1995/5/EB Direktyvos esminius reikalavimus ir kitas šios direktyvos nuostatas. Nederlands [Dutch] Dit apparant voldoet aan de essentiele eisen en andere van toepassing zijnde bepalingen van de Richtlijn 1995/5/EC. Malti [Maltese] Dan l‐apparant huwa konformi mal‐htigiet essenzjali u l‐provedimenti l‐ohra rilevanti tad‐Direttiva 1999/5/EC. Margyar [Hungarian] Ez a készülék teljesiti az alapvetö követelményeket és más 1999/5/EK irányelvben meghatározott vonatkozó rendelkezéseket. Norsk [Norwegian] Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU‐direktiv 1999/5/EF. Polski [Polish] Urządzenie jest zgodne z ogólnymi wymaganiami oraz sczególnymi mi warunkami określony mi Dyrektywą. UE:1999/5/EC. Portuguès [Portuguese] Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Directiva 1999/5/EC. Slovensko [Slovenian] Ta naprava je skladna z bistvenimi zahtevami in ostalimi relevantnimi popoji Direktive 1999/5/EC. Slovensky [Slovak] Toto zariadenie je v zhode so základnými požadavkami a inými prislušnými nariadeniami direktiv: 1999/5/EC. Suomi [Finnish] Tämä laite täyttää direktiivin 1999/5//EY olennaiset vaatimukset ja on siinä asetettujen muiden laitetta koskevien määräysten mukainen. Svenska [Swedish] Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i Direktiv 1999/5/EC.
- Page 22 Safety: EN 50385 RF Exposure: EN 62479 CE Marking: For the Xirrus Wireless Access Point, the CE mark and Class-2 identifier opposite are affixed to the equipment and its packaging: WEEE Compliance: Natural resources were used in the production of this equipment.
- Page 23 XH Outdoor Access Points Belgium: The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Xirrus recommends checking at www.bipt.be for more details. Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch Instituut voor postdiensten en telecommunicatie (BIPT).
- Page 24 Only antennas provided by Xirrus for use with the product should be installed. The use of any other antennas may cause damage to the access points or violate regulatory emission limits and will not be supported by Xirrus.
- Page 25 Industry Canada Guidelines for Exposure to Radio Waves The Xirrus Access Points include radio transmitters and receivers. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) as referenced in Health Canada Safety Code 6.
- Page 26 XH Outdoor Access Points least a minimum distance as specified from the user in accordance to the regulatory guidelines which are designed to reduce the overall exposure of the user or operator. Separation Distance Distance Limit 26 cm 1.34 mW/cm 100 mW/cm Health Canada states that present scientific information does not indicate the need for any special precautions for the use of wireless devices.
-
Page 27: Customer Support
Xirrus products and technologies. Access to all tools on the Xirrus Customer Support Website requires a login user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL: http://support.xirrus.com...
